Crystal Structure of T.th.HB8 Argininosuccinate lyase complexed with L-Arginine

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Argininosuccinate lyase

Thermus thermophilus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	ARGININE × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ARLY_THET8
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–462； UniProt 1–462 Author chain B； PDBConstruct 1–462； UniProt 1–462 Author chain C； PDBConstruct 1–462； UniProt 1–462 Author chain D； PDBConstruct 1–462； UniProt 1–462

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2e9f
Deposition date deposition_date	2007-01-25
Structure title title	Crystal Structure of T.th.HB8 Argininosuccinate lyase complexed with L-Arginine
Keywords keywords	alpha helix bundle, LYASE; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2e9f__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

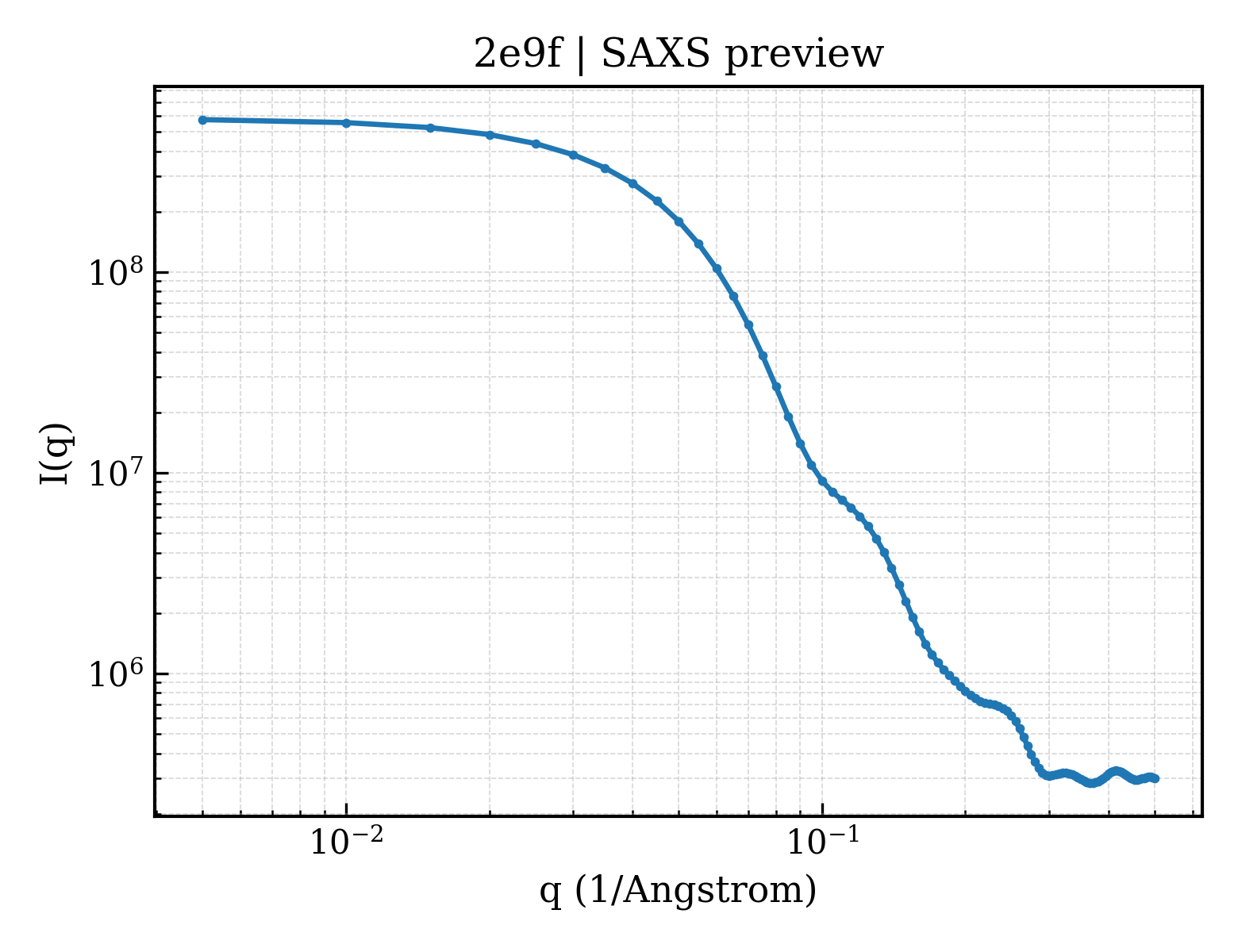

2e9f__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

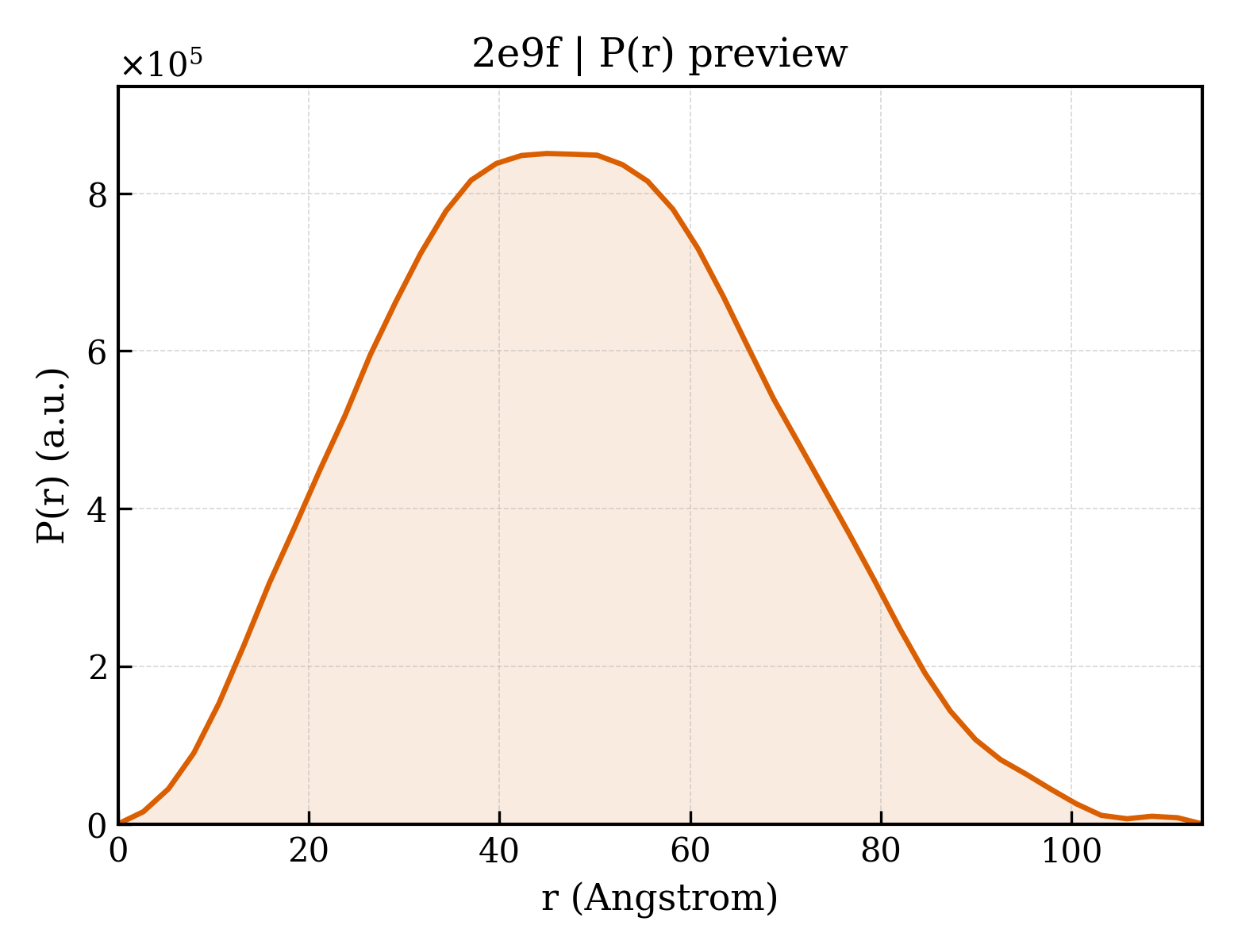

2e9f__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.02 Å
Rg (electron density)	36.19 Å
Total Rg	36.60 Å
Atom count	14083
Residues	1796
Excluded volume	250720 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2e9f__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Argininosuccinate lyase
Molecular weight formula_weight	51991.6 kDa
EC 编号 ec_number	4.3.2.1
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	14218

MAHRTWGGRFGEGPDALAARFNASLAFDRALWREDLWQNRVHARMLHAVGLLSAEELEAILKGLDRIEEEIEAGTFPWREELEDVHMNLEARLTELVGPPGGKLHTARSRNDQVATDLRLYLRGAIDELLALLLALRRVLVREAEKHLDPLYVLPGYTHLQRAQPVLLAHWFLAYYEMLKRDAGRLEDAKERLNESPLGAAALAGTGFPIDRHFTARELGFKAPMRNSLDAVASRDFALEVLSALNIGMLHLSRMAEELILYSTEEFGFVEVPDAFATGSSIMPQKKNPDILELIRAKAGRVLGAFVGLSAVVKGLPLAYNKDLQEDKEPLLDALATYRDSLRLLAALLPGLKWRRERMWRAAEGGYTLATELADYLAEKGLPFREAHHVVGRLVRRLVEEGRALKDLTLEELQAHHPLFAEDALPLLRLETAIHRRRSYGGTAPEAVRERLEEAKKEVGLD

Source Source

Source organism organism	Thermus thermophilus
NCBI taxonomy ID ncbi_taxonomy_id	300852
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	ARGININE
Molecular weight formula_weight	175.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	135

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2e9fa_
Class class	a — All alpha proteins
Fold Fold fold	a.127 — L-aspartase-like
Superfamily Superfamily superfamily	a.127.1 — L-aspartase-like
Family Family family	a.127.1.0 — automated matches

Domain ID domain_id	d2e9fb_
Class class	a — All alpha proteins
Fold Fold fold	a.127 — L-aspartase-like
Superfamily Superfamily superfamily	a.127.1 — L-aspartase-like
Family Family family	a.127.1.0 — automated matches

Domain ID domain_id	d2e9fc_
Class class	a — All alpha proteins
Fold Fold fold	a.127 — L-aspartase-like
Superfamily Superfamily superfamily	a.127.1 — L-aspartase-like
Family Family family	a.127.1.0 — automated matches

Domain ID domain_id	d2e9fd_
Class class	a — All alpha proteins
Fold Fold fold	a.127 — L-aspartase-like
Superfamily Superfamily superfamily	a.127.1 — L-aspartase-like
Family Family family	a.127.1.0 — automated matches

CATH v4.4 (12 domains)

Domain ID domain_id	2e9fA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	275 — Fumarase C; Chain B, domain 1
Homologous superfamily homologous superfamily	10 — Fumarase/aspartase (N-terminal domain)

Domain ID domain_id	2e9fA02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	200 — Fumarase C; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

Domain ID domain_id	2e9fA03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	40 — Ribonucleotide Reductase Protein R1; domain 1
Homologous superfamily homologous superfamily	30 — Fumarase/aspartase (C-terminal domain)

Domain ID domain_id	2e9fB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	275 — Fumarase C; Chain B, domain 1
Homologous superfamily homologous superfamily	10 — Fumarase/aspartase (N-terminal domain)

Domain ID domain_id	2e9fB02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	200 — Fumarase C; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

Domain ID domain_id	2e9fB03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	40 — Ribonucleotide Reductase Protein R1; domain 1
Homologous superfamily homologous superfamily	30 — Fumarase/aspartase (C-terminal domain)

Domain ID domain_id	2e9fC01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	275 — Fumarase C; Chain B, domain 1
Homologous superfamily homologous superfamily	10 — Fumarase/aspartase (N-terminal domain)

Domain ID domain_id	2e9fC02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	200 — Fumarase C; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

Domain ID domain_id	2e9fC03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	40 — Ribonucleotide Reductase Protein R1; domain 1
Homologous superfamily homologous superfamily	30 — Fumarase/aspartase (C-terminal domain)

Domain ID domain_id	2e9fD01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	275 — Fumarase C; Chain B, domain 1
Homologous superfamily homologous superfamily	10 — Fumarase/aspartase (N-terminal domain)

Domain ID domain_id	2e9fD02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	200 — Fumarase C; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

Domain ID domain_id	2e9fD03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	40 — Ribonucleotide Reductase Protein R1; domain 1
Homologous superfamily homologous superfamily	30 — Fumarase/aspartase (C-terminal domain)

▶

Unit-cell length a length_a	78.336 Å
Unit-cell length b length_b	119.787 Å
Unit-cell length c length_c	257.839 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	34.290 Å
R factor r_factor	0.2050
R_work r_work	0.2050
R_free r_free	0.2710
