SAXSdb — 2ecu

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

flavin reductase (HpaC) of 4-hydroxyphenylacetate 3-monooxygnease

Thermus thermophilus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	2-(2-{2-[2-(2-METHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHOXY)-ETHANOL × 1 DODECAETHYLENE GLYCOL × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q5SJP7_THET8
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–149； UniProt 1–149 Author chain B； PDBConstruct 1–149； UniProt 1–149

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ecu
Deposition date deposition_date	2007-02-14
Structure title title	Crystal structure of flavin reductase component (HpaC) of 4-hydroxyphenylacetate 3-monooxygenase
Keywords keywords	flavin reductase, flavin diffusible, two-component monooxygenase, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2ecu__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

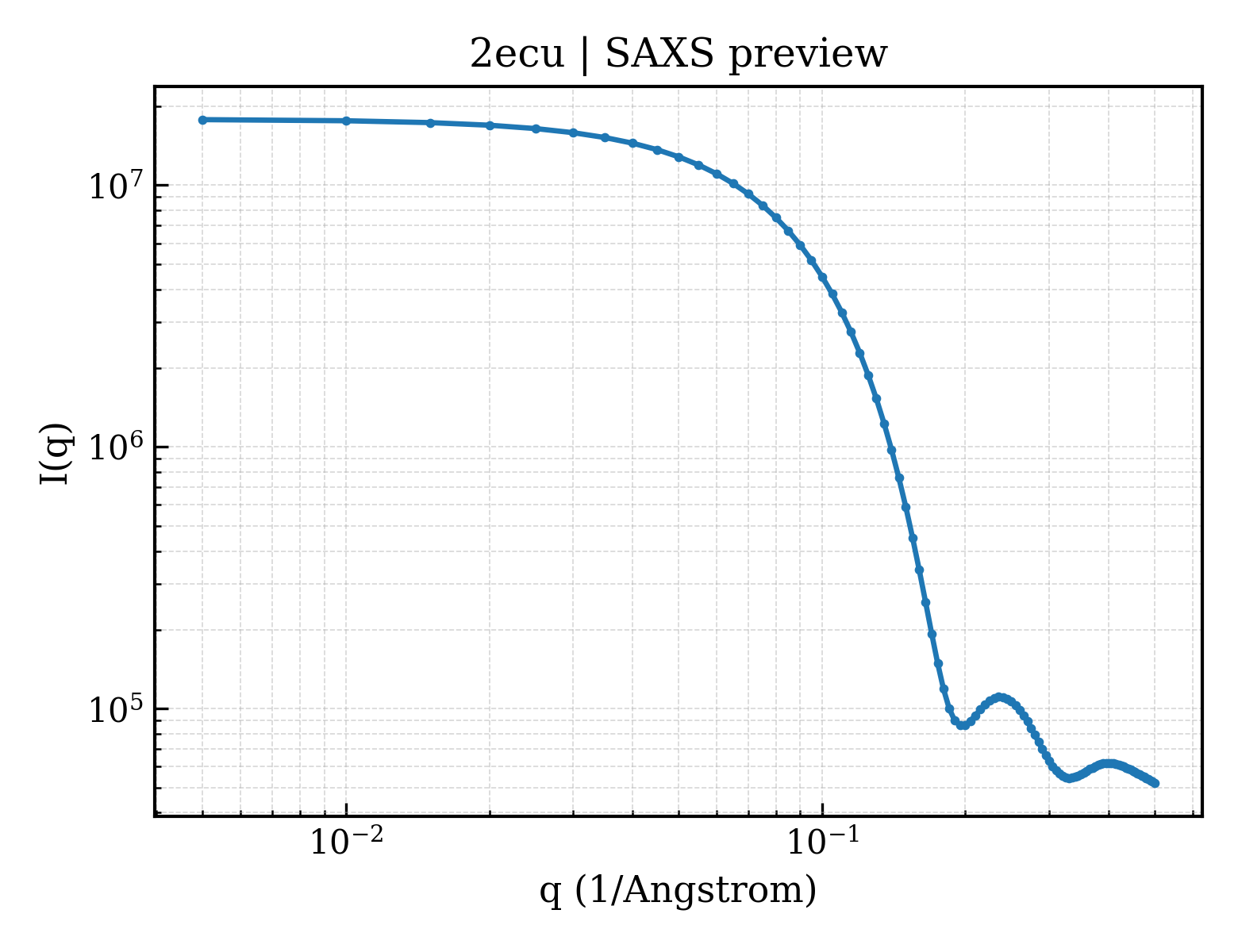

2ecu__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

2ecu__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.91 Å
Rg (electron density)	18.41 Å
Total Rg	19.47 Å
Atom count	2313
Residues	298
Excluded volume	41642 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2ecu__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	flavin reductase (HpaC) of 4-hydroxyphenylacetate 3-monooxygnease
Molecular weight formula_weight	16059.6 kDa
EC 编号 ec_number	1.6.8.-
Mutation mutation	E131G
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2713

MKEAFKEALARFASGVTVVAARLGEEERGMTATAFMSLSLEPPLVALAVSERAKLLPVLEGAGAFTVSLLREGQEAVSEHFAGRPKEGIALEEGRVKGALAVLRCRLHALYPGGDHRIVVGLVEEVELGEGGPPLVYFQRGYRRLVWPS

Source Source

Source organism organism	Thermus thermophilus
NCBI taxonomy ID ncbi_taxonomy_id	300852
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	2-(2-{2-[2-(2-METHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHOXY)-ETHANOL
Molecular weight formula_weight	252.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	DODECAETHYLENE GLYCOL
Molecular weight formula_weight	546.6 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	400

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2ecua_
Class class	b — All beta proteins
Fold Fold fold	b.45 — Split barrel-like
Superfamily Superfamily superfamily	b.45.1 — FMN-binding split barrel
Family Family family	b.45.1.0 — automated matches

Domain ID domain_id	d2ecub_
Class class	b — All beta proteins
Fold Fold fold	b.45 — Split barrel-like
Superfamily Superfamily superfamily	b.45.1 — FMN-binding split barrel
Family Family family	b.45.1.0 — automated matches

CATH v4.4 (2 domains)

Domain ID domain_id	2ecuA00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	110 — Pnp Oxidase; Chain A
Homologous superfamily homologous superfamily	10 — Electron Transport, Fmn-binding Protein; Chain A

Domain ID domain_id	2ecuB00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	110 — Pnp Oxidase; Chain A
Homologous superfamily homologous superfamily	10 — Electron Transport, Fmn-binding Protein; Chain A

▶

Unit-cell length a length_a	41.587 Å
Unit-cell length b length_b	43.690 Å
Unit-cell length c length_c	74.715 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	92.88 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.300 Å
Low-resolution limit resolution_low	41.530 Å
R factor r_factor	—
R_work r_work	0.1970
R_free r_free	0.2160
