2ed6
Crystal Structure of Envelope Protein VP28 from White Spot Syndrome Virus (WSSV)
SAXS 散射曲线 SAXS Profile

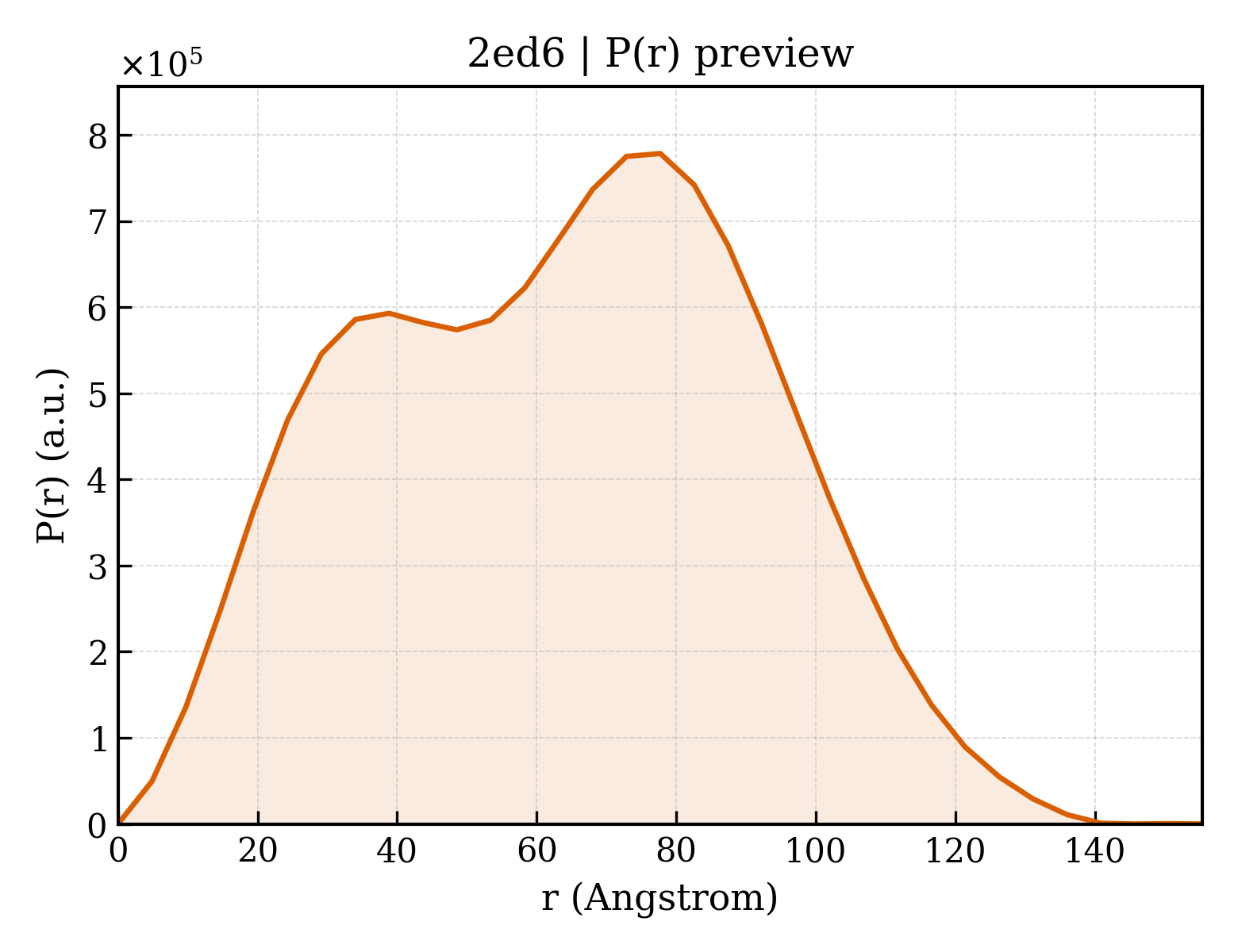

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2ed6 |
| 沉积日期 deposition_date | 2007-02-14 |
| 结构标题 title | Crystal Structure of Envelope Protein VP28 from White Spot Syndrome Virus (WSSV) |
| 关键词 keywords | beta barrel, N-terminal helix protruding region, VIRAL PROTEIN; VIRAL PROTEIN |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 49.36 Å |
| 回转半径 Rg (电子) rg_electron | 48.85 Å |
| 零角强度 I(0) i0 | 731424000.00 |
| 分子量 molecular_weight | 220390.0 kDa |
| 排除体积 excluded_volume | 273710 ų |
| 包络体积 envelope_volume | 395190 ų |
| 水化壳体积 shell_volume | 66157 ų |
| 包络直径 envelope_diameter | 154.2 Å |
| 壳层 Rg shell_rg | 55.41 Å |
| 包络 Rg envelope_rg | 46.74 Å |
| 形状 Rg shape_rg | 48.84 Å |
| 总 Rg total_rg | 49.13 Å |
| 总原子数 total_atoms | 15456 |
| 残基数 n_residues | 2040 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 155.4 Å |
| Rg (实空间) rg_real | 49.13 Å |
| Rg 误差 (实空间) rg_real_error | 1.67 Å |
| I(0) (实空间) i0_real | 7.3140e+08 |
| I(0) 误差 (实空间) i0_real_error | 1.4810e+07 |
| Rg (倒空间) rg_reciprocal | 49.36 Å |
| I(0) (倒空间) i0_reciprocal | 731600000.0000 |
| 解质量估计 total_estimate | 0.8675 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 3 |
| 主峰位置 r_peak_primary | 77.7 Å |
| 偏度 Skewness skewness | 0.008 |
| 峰度 Kurtosis kurtosis | -0.782 |
| 角度范围 angular_range | — – 0.1600 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 168900000.0000 |
| 实空间数据点数 n_real_points | 33 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.825; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.802 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (2)
6. 折叠分类 (SCOP + CATH) 24 domains
SCOP 2.08 (12 domains)
| 结构域编号 domain_id | d2ed6a1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.170 — WSSV envelope protein-like |
| 超家族 Superfamily superfamily | b.170.1 — WSSV envelope protein-like |
| 家族 Family family | b.170.1.1 — WSSV envelope protein-like |
| 结构域编号 domain_id | d2ed6b_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.170 — WSSV envelope protein-like |
| 超家族 Superfamily superfamily | b.170.1 — WSSV envelope protein-like |
| 家族 Family family | b.170.1.1 — WSSV envelope protein-like |
| 结构域编号 domain_id | d2ed6c_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.170 — WSSV envelope protein-like |
| 超家族 Superfamily superfamily | b.170.1 — WSSV envelope protein-like |
| 家族 Family family | b.170.1.1 — WSSV envelope protein-like |
| 结构域编号 domain_id | d2ed6d_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.170 — WSSV envelope protein-like |
| 超家族 Superfamily superfamily | b.170.1 — WSSV envelope protein-like |
| 家族 Family family | b.170.1.1 — WSSV envelope protein-like |
| 结构域编号 domain_id | d2ed6e_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.170 — WSSV envelope protein-like |
| 超家族 Superfamily superfamily | b.170.1 — WSSV envelope protein-like |
| 家族 Family family | b.170.1.1 — WSSV envelope protein-like |
| 结构域编号 domain_id | d2ed6f_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.170 — WSSV envelope protein-like |
| 超家族 Superfamily superfamily | b.170.1 — WSSV envelope protein-like |
| 家族 Family family | b.170.1.1 — WSSV envelope protein-like |
| 结构域编号 domain_id | d2ed6g_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.170 — WSSV envelope protein-like |
| 超家族 Superfamily superfamily | b.170.1 — WSSV envelope protein-like |
| 家族 Family family | b.170.1.1 — WSSV envelope protein-like |
| 结构域编号 domain_id | d2ed6h_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.170 — WSSV envelope protein-like |
| 超家族 Superfamily superfamily | b.170.1 — WSSV envelope protein-like |
| 家族 Family family | b.170.1.1 — WSSV envelope protein-like |
| 结构域编号 domain_id | d2ed6i_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.170 — WSSV envelope protein-like |
| 超家族 Superfamily superfamily | b.170.1 — WSSV envelope protein-like |
| 家族 Family family | b.170.1.1 — WSSV envelope protein-like |
| 结构域编号 domain_id | d2ed6j_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.170 — WSSV envelope protein-like |
| 超家族 Superfamily superfamily | b.170.1 — WSSV envelope protein-like |
| 家族 Family family | b.170.1.1 — WSSV envelope protein-like |
| 结构域编号 domain_id | d2ed6k_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.170 — WSSV envelope protein-like |
| 超家族 Superfamily superfamily | b.170.1 — WSSV envelope protein-like |
| 家族 Family family | b.170.1.1 — WSSV envelope protein-like |
| 结构域编号 domain_id | d2ed6l_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.170 — WSSV envelope protein-like |
| 超家族 Superfamily superfamily | b.170.1 — WSSV envelope protein-like |
| 家族 Family family | b.170.1.1 — WSSV envelope protein-like |
CATH v4.4 (12 domains)
| 结构域编号 domain_id | 2ed6A01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 2770 — WSSV envelope protein-like |
| 结构域编号 domain_id | 2ed6B01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 2770 — WSSV envelope protein-like |
| 结构域编号 domain_id | 2ed6C01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 2770 — WSSV envelope protein-like |
| 结构域编号 domain_id | 2ed6D01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 2770 — WSSV envelope protein-like |
| 结构域编号 domain_id | 2ed6E01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 2770 — WSSV envelope protein-like |
| 结构域编号 domain_id | 2ed6F01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 2770 — WSSV envelope protein-like |
| 结构域编号 domain_id | 2ed6G01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 2770 — WSSV envelope protein-like |
| 结构域编号 domain_id | 2ed6H01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 2770 — WSSV envelope protein-like |
| 结构域编号 domain_id | 2ed6I01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 2770 — WSSV envelope protein-like |
| 结构域编号 domain_id | 2ed6J01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 2770 — WSSV envelope protein-like |
| 结构域编号 domain_id | 2ed6K01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 2770 — WSSV envelope protein-like |
| 结构域编号 domain_id | 2ed6L01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 2770 — WSSV envelope protein-like |
