SAXSdb — 2ef5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Arginase

Thermus thermophilus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	MANGANESE (II) ION × 12 GUANIDINE × 6 LYSINE × 6 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q5SI78_THET8
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–290； UniProt 2–291 Author chain B； PDBConstruct 1–290； UniProt 2–291 Author chain D； PDBConstruct 1–290； UniProt 2–291 Author chain E； PDBConstruct 1–290； UniProt 2–291 Author chain F； PDBConstruct 1–290； UniProt 2–291 Author chain G； PDBConstruct 1–290； UniProt 2–291

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ef5
Deposition date deposition_date	2007-02-20
Structure title title	Crystal structure of the arginase from thermus thermophilus
Keywords keywords	;arginase, ttha1496, thermus thermophilus, Structural Genomics, NPPSFA, National Project on Protein Structural and Functional Analyses, RIKEN Structural Genomics/Proteomics Initiative, RSGI, HYDROLASE ;; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2ef5__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2ef5__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

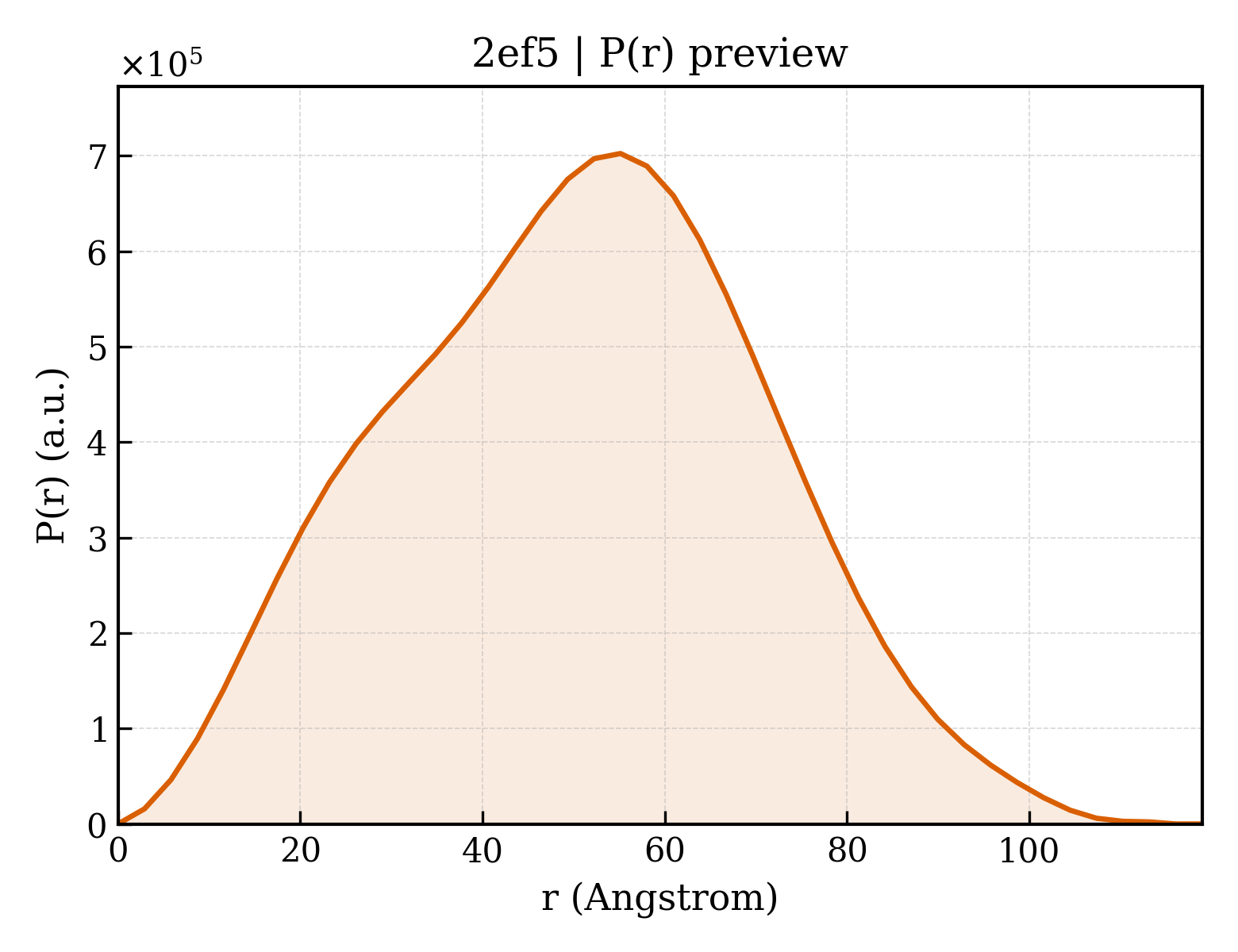

2ef5__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	38.81 Å
Rg (electron density)	38.01 Å
Total Rg	38.43 Å
Atom count	12408
Residues	1638
Excluded volume	222790 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2ef5__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Arginase
Molecular weight formula_weight	31139.0 kDa
EC 编号 ec_number	3.5.3.1
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,D,E,F,G
Atom count atom_count	13060

ERVAVVGVPMDLGANRRGVDMGPSALRYARLLEQLEDLGYTVEDLGDVPVSLARASRRRGRGLAYLEEIRAAALVLKERLAALPEGVFPIVLGGDHSLSMGSVAGAARGRRVGVVWVDAHADFNTPETSPSGNVHGMPLAVLSGLGHPRLTEVFRAVDPKDVVLVGVRSLDPGEKRLLKEAGVRVYTMHEVDRLGVARIAEEVLKHLQGLPLHVSLDADVLDPTLAPGVGTPVPGGLTYREAHLLMEILAESGRVQSLDLVEVNPILDERNRTAEMLVGLALSLLGKRIF

Source Source

Source organism organism	Thermus thermophilus
NCBI taxonomy ID ncbi_taxonomy_id	274
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 3 Entity 3 non-polymer

Description description	GUANIDINE
Molecular weight formula_weight	59.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 non-polymer

Description description	LYSINE
Molecular weight formula_weight	147.2 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	652

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d2ef5a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.42 — Arginase/deacetylase
Superfamily Superfamily superfamily	c.42.1 — Arginase/deacetylase
Family Family family	c.42.1.0 — automated matches

Domain ID domain_id	d2ef5b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.42 — Arginase/deacetylase
Superfamily Superfamily superfamily	c.42.1 — Arginase/deacetylase
Family Family family	c.42.1.0 — automated matches

Domain ID domain_id	d2ef5d_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.42 — Arginase/deacetylase
Superfamily Superfamily superfamily	c.42.1 — Arginase/deacetylase
Family Family family	c.42.1.0 — automated matches

Domain ID domain_id	d2ef5e_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.42 — Arginase/deacetylase
Superfamily Superfamily superfamily	c.42.1 — Arginase/deacetylase
Family Family family	c.42.1.0 — automated matches

Domain ID domain_id	d2ef5f_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.42 — Arginase/deacetylase
Superfamily Superfamily superfamily	c.42.1 — Arginase/deacetylase
Family Family family	c.42.1.0 — automated matches

Domain ID domain_id	d2ef5g_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.42 — Arginase/deacetylase
Superfamily Superfamily superfamily	c.42.1 — Arginase/deacetylase
Family Family family	c.42.1.0 — automated matches

CATH v4.4 (6 domains)

Domain ID domain_id	2ef5A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	800 — Arginase; Chain A
Homologous superfamily homologous superfamily	10 — Ureohydrolase domain

Domain ID domain_id	2ef5B00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	800 — Arginase; Chain A
Homologous superfamily homologous superfamily	10 — Ureohydrolase domain

Domain ID domain_id	2ef5D00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	800 — Arginase; Chain A
Homologous superfamily homologous superfamily	10 — Ureohydrolase domain

Domain ID domain_id	2ef5E00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	800 — Arginase; Chain A
Homologous superfamily homologous superfamily	10 — Ureohydrolase domain

Domain ID domain_id	2ef5F00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	800 — Arginase; Chain A
Homologous superfamily homologous superfamily	10 — Ureohydrolase domain

Domain ID domain_id	2ef5G00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	800 — Arginase; Chain A
Homologous superfamily homologous superfamily	10 — Ureohydrolase domain

▶

Unit-cell length a length_a	150.795 Å
Unit-cell length b length_b	97.478 Å
Unit-cell length c length_c	126.463 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	108.66 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	19.980 Å
R factor r_factor	0.2330
R_work r_work	0.2330
R_free r_free	0.2360
