SAXSdb — 2efh

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Similarity to vacuolar protein sorting-associated protein VPS9

Arabidopsis thaliana

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Small GTP-binding protein-like × 1 （Q9SN68） GUANOSINE-5'-DIPHOSPHATE × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Small GTP-binding protein-like × 1 （Q9SN68） GUANOSINE-5'-DIPHOSPHATE × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9LT31_ARATH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–267； UniProt 1–265 Author chain C； PDBConstruct 3–267； UniProt 1–265

Small GTP-binding protein-like

Arabidopsis thaliana

UniProt Q9SN68

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Similarity to vacuolar protein sorting-associated protein VPS9 × 1 （Q9LT31） GUANOSINE-5'-DIPHOSPHATE × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Similarity to vacuolar protein sorting-associated protein VPS9 × 1 （Q9LT31） GUANOSINE-5'-DIPHOSPHATE × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9SN68_ARATH
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 3–181； UniProt 1–179 Author chain D； PDBConstruct 3–181； UniProt 1–179

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2efh
Deposition date deposition_date	2007-02-22
Structure title title	Ara7-GDP/AtVps9a(D185N)
Keywords keywords	GEF, GTPase, Vps9, Rab5, nucleotide, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2efh__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2efh__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

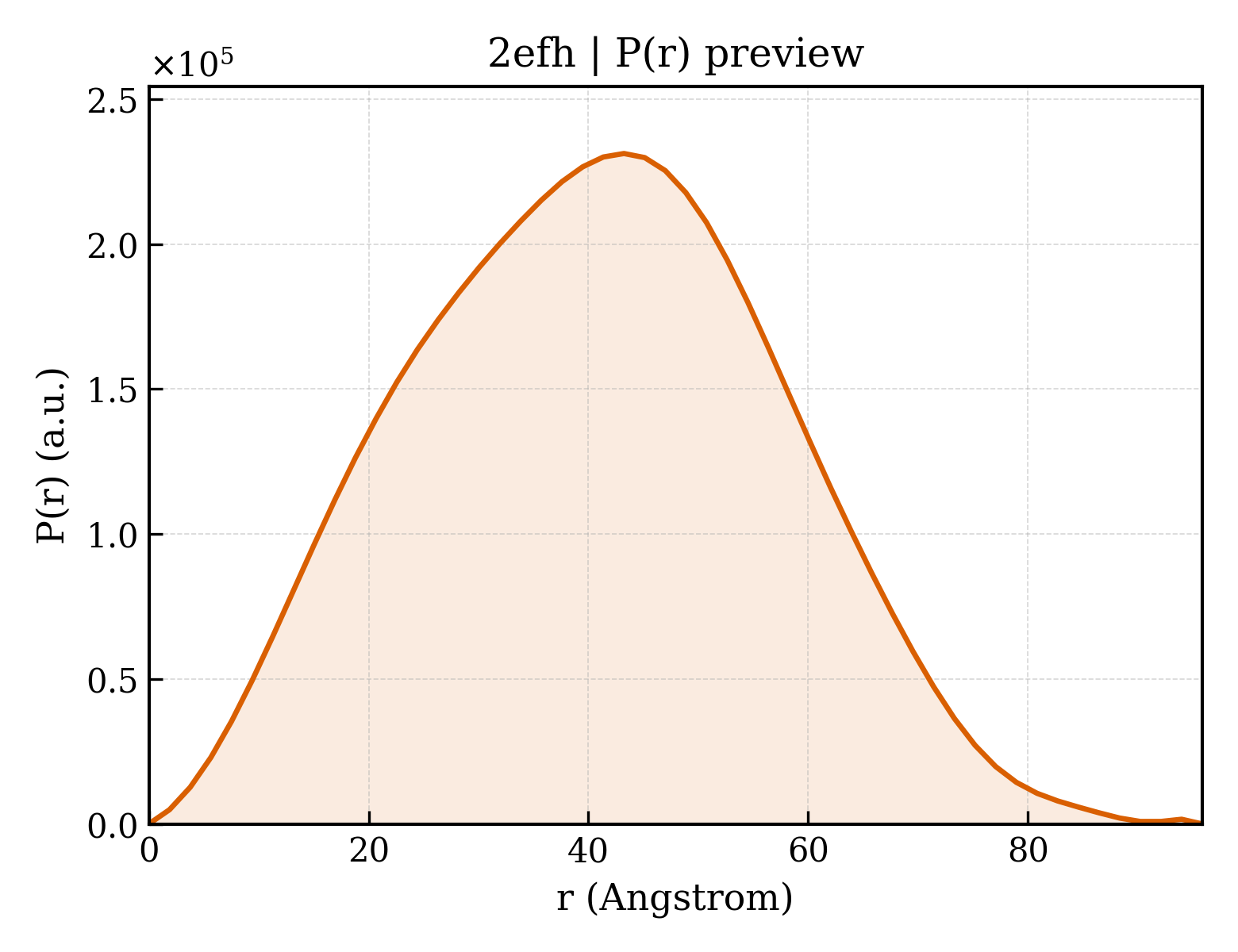

2efh__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.76 Å
Rg (electron density)	23.72 Å
Total Rg	24.57 Å
Atom count	3161
Residues	398
Excluded volume	56321 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2efh__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2efh__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Similarity to vacuolar protein sorting-associated protein VPS9
Molecular weight formula_weight	30167.3 kDa
Mutation mutation	D185N
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	6643

GSMENTDVFLGLHDFLERMRKPSAGDFVKSIKSFIVSFSNNAPDPEKDCAMVQEFFSKMEAAFRAHPLWSGCSEEELDSAGDGLEKYVMTKLFTRVFASNTEEVIADEKLFQKMSLVQQFISPENLDIQPTFQNESSWLLAQKELQKINMYKAPRDKLVCILNCCKVINNLLLNASIASNENAPGANEFLPVLIYVTIKANPPQLHSNLLYIQRYRRESKLVGEAAYFFTNILSAESFISNIDAKSISLDEAEFEKNMESARARISG

Source Source

Source organism organism	Arabidopsis thaliana
Common name common_name	thale cress
NCBI taxonomy ID ncbi_taxonomy_id	3702
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Small GTP-binding protein-like
Molecular weight formula_weight	19887.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

GSMAAAGNKSINAKLVLLGDVGAGKSSLVLRFVKDQFVEFQESTIGAAFFSQTLAVNDATVKFEIWDTAGQERYHSLAPMYYRGAAAAIIVFDVTNQASFERAKKWVQELQAQGNPNMVMALAGNKSDLLDARKVTAEDAQTYAQENGLFFMETSAKTATNVKEIFYEIARRLPRVQPTEN

Source Source

Source organism organism	Arabidopsis thaliana
Common name common_name	thale cress
NCBI taxonomy ID ncbi_taxonomy_id	3702
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	GUANOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	443.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	321

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2efhb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

Domain ID domain_id	d2efhd_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

CATH v4.4 (6 domains)

Domain ID domain_id	2efhA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	120 —

Domain ID domain_id	2efhA02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	80 — VPS9 domain

Domain ID domain_id	2efhB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2efhC01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	246 — Serum Albumin; Chain A, Domain 1
Homologous superfamily homologous superfamily	120 —

Domain ID domain_id	2efhC02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	80 — VPS9 domain

Domain ID domain_id	2efhD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

Unit-cell length a length_a	58.466 Å
Unit-cell length b length_b	58.606 Å
Unit-cell length c length_c	68.974 Å
Unit-cell angle α angle_alpha	81.90 °
Unit-cell angle β angle_beta	87.42 °
Unit-cell angle γ angle_gamma	72.75 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	68.360 Å
R factor r_factor	0.2160
R_work r_work	0.2137
R_free r_free	0.2590
