2egi

Crystal Structure of a Hypothetical Protein(AQ1494) from Aquifex aeolicus

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Hypothetical protein aq_1494

Aquifex aeolicus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	GLYCEROL × 1 water × 4	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 4	water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Y1494_AQUAE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–128； UniProt 1–128 Author chain C； PDBConstruct 1–128； UniProt 1–128 Author chain D； PDBConstruct 1–128； UniProt 1–128 Author chain E； PDBConstruct 1–128； UniProt 1–128 Author chain F； PDBConstruct 1–128； UniProt 1–128 Author chain G； PDBConstruct 1–128； UniProt 1–128 Author chain H； PDBConstruct 1–128； UniProt 1–128 Author chain I； PDBConstruct 1–128； UniProt 1–128

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2egi
Deposition date deposition_date	2007-03-01
Structure title title	Crystal Structure of a Hypothetical Protein(AQ1494) from Aquifex aeolicus
Keywords keywords	;Hypothetical Protein, Aquifex aeolicus, Structural Genomics, NPPSFA, National Project on Protein Structural and Functional Analyses, RIKEN Structural Genomics/Proteomics Initiative, RSGI, UNKNOWN FUNCTION ;; STRUCTURAL GENOMICS, UNKNOWN FUNCTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2egi__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2egi__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

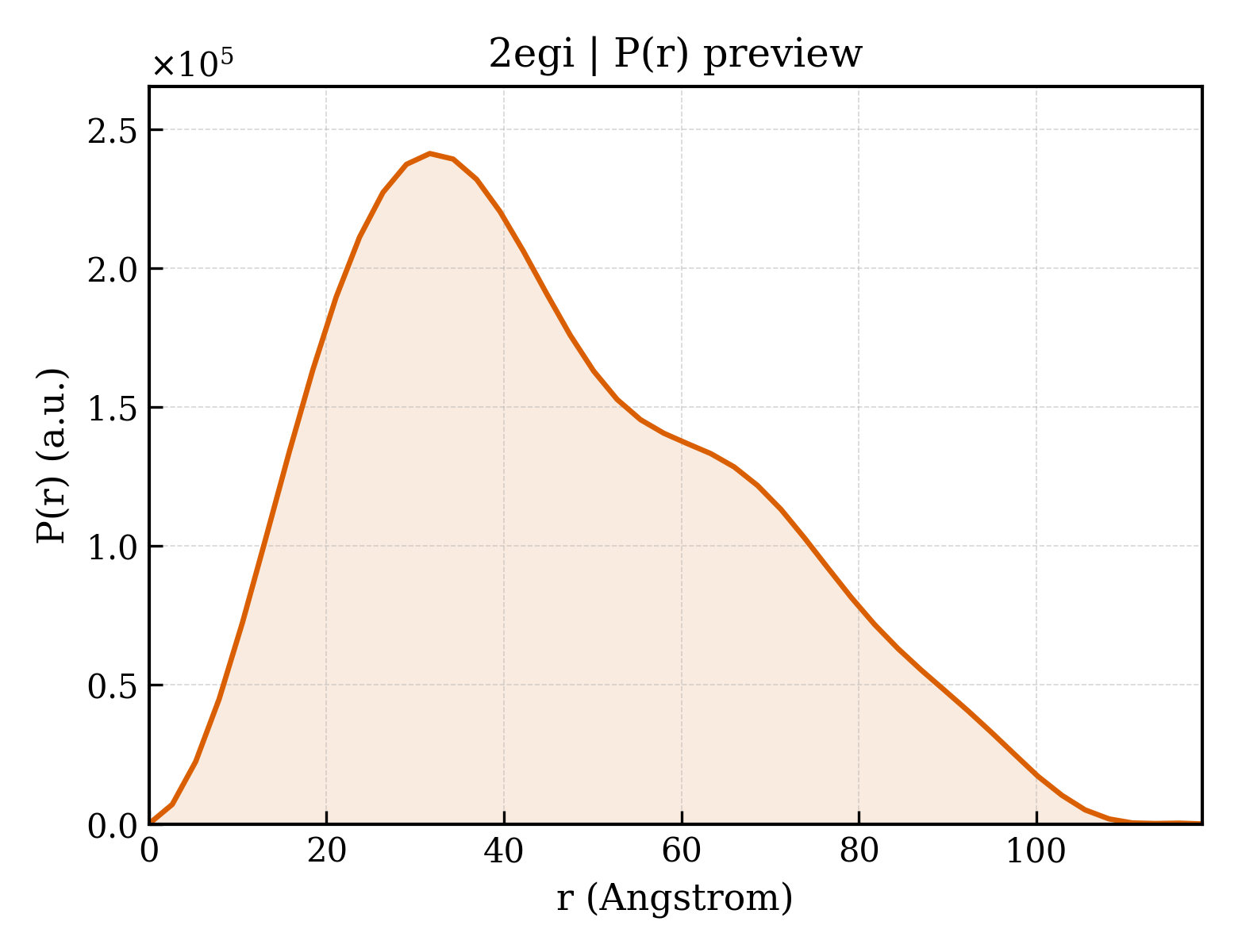

2egi__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.57 Å
Rg (electron density)	21.86 Å
Total Rg	23.02 Å
Atom count	3742
Residues	459
Excluded volume	66802 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2egi__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2egi__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Hypothetical protein aq_1494
Molecular weight formula_weight	15308.7 kDa
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,D,E,F,G,H,I
Atom count atom_count	7780

MPFIYRRRVQFYETDAQGIVHHSNYFRYFEEARGEFLRSKGFPYSKMRDMGLEVVLLNAYCEYKKPLFYDDVFEVHLNLEELSRFTFTFSYIVFKEDIAVAKANTKHCMVKNGKIVSIPKEVLEVLKD

Source Source

Source organism organism	Aquifex aeolicus
NCBI taxonomy ID ncbi_taxonomy_id	63363
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	286

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d2egia_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
Superfamily Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
Family Family family	d.38.1.0 — automated matches

Domain ID domain_id	d2egic_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
Superfamily Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
Family Family family	d.38.1.0 — automated matches

Domain ID domain_id	d2egid_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
Superfamily Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
Family Family family	d.38.1.0 — automated matches

Domain ID domain_id	d2egie_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
Superfamily Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
Family Family family	d.38.1.0 — automated matches

Domain ID domain_id	d2egif_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
Superfamily Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
Family Family family	d.38.1.0 — automated matches

Domain ID domain_id	d2egig_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
Superfamily Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
Family Family family	d.38.1.0 — automated matches

Domain ID domain_id	d2egih_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
Superfamily Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
Family Family family	d.38.1.0 — automated matches

Domain ID domain_id	d2egii_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.38 — Thioesterase/thiol ester dehydrase-isomerase
Superfamily Superfamily superfamily	d.38.1 — Thioesterase/thiol ester dehydrase-isomerase
Family Family family	d.38.1.0 — automated matches

CATH v4.4 (8 domains)

Domain ID domain_id	2egiA00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	129 — Thiol Ester Dehydrase; Chain A
Homologous superfamily homologous superfamily	10 — Hotdog Thioesterase

Domain ID domain_id	2egiC00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	129 — Thiol Ester Dehydrase; Chain A
Homologous superfamily homologous superfamily	10 — Hotdog Thioesterase

Domain ID domain_id	2egiD00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	129 — Thiol Ester Dehydrase; Chain A
Homologous superfamily homologous superfamily	10 — Hotdog Thioesterase

Domain ID domain_id	2egiE00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	129 — Thiol Ester Dehydrase; Chain A
Homologous superfamily homologous superfamily	10 — Hotdog Thioesterase

Domain ID domain_id	2egiF00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	129 — Thiol Ester Dehydrase; Chain A
Homologous superfamily homologous superfamily	10 — Hotdog Thioesterase

Domain ID domain_id	2egiG00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	129 — Thiol Ester Dehydrase; Chain A
Homologous superfamily homologous superfamily	10 — Hotdog Thioesterase

Domain ID domain_id	2egiH00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	129 — Thiol Ester Dehydrase; Chain A
Homologous superfamily homologous superfamily	10 — Hotdog Thioesterase

Domain ID domain_id	2egiI00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	129 — Thiol Ester Dehydrase; Chain A
Homologous superfamily homologous superfamily	10 — Hotdog Thioesterase

▶

Unit-cell length a length_a	98.493 Å
Unit-cell length b length_b	97.754 Å
Unit-cell length c length_c	113.194 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	19.720 Å
R factor r_factor	0.2400
R_work r_work	0.2400
R_free r_free	0.2820
