2elc

Crystal structure of TTHA1842 from Thermus thermophilus HB8

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Anthranilate phosphoribosyltransferase

Thermus thermophilus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	GLYCEROL × 12 SODIUM ION × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TRPD_THET8
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–329； UniProt 1–329 Author chain B； PDBConstruct 1–329； UniProt 1–329 Author chain C； PDBConstruct 1–329； UniProt 1–329 Author chain D； PDBConstruct 1–329； UniProt 1–329

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2elc
Deposition date deposition_date	2007-03-27
Structure title title	Crystal structure of TTHA1842 from Thermus thermophilus HB8
Keywords keywords	;Transferase, Structural Genomics, NPPSFA, National Project on Protein Structural and Functional Analyses, RIKEN Structural Genomics/Proteomics Initiative, RSGI ;; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2elc__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2elc__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

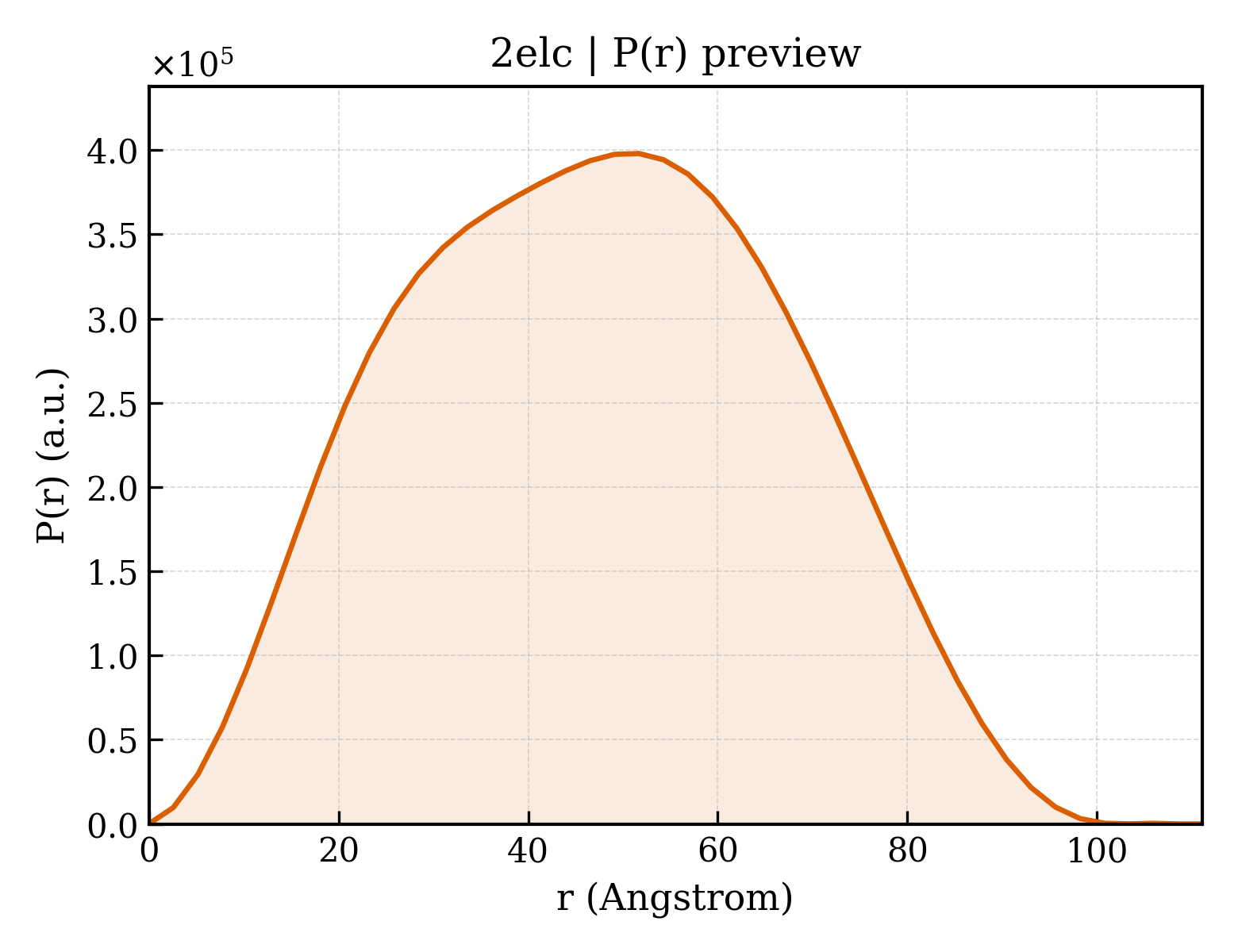

2elc__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.40 Å
Rg (electron density)	35.94 Å
Total Rg	36.28 Å
Atom count	9722
Residues	1316
Excluded volume	174120 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2elc__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Anthranilate phosphoribosyltransferase
Molecular weight formula_weight	34317.6 kDa
EC 编号 ec_number	2.4.2.18
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	11432

MDAVKKAILGEVLEEEEAYEVMRALMAGEVSPVRAAGLLVALSLRGERPHEIAAMARAMREAARPLRVHRRPLLDIVGTGGDGKGLMNLSTLAALVAAAGGVAVAKHGNRAASSRAGSADLLEALGVDLEAPPERVGEAIEELGFGFLFARVFHPAMRHVAPVRAELGVRTVFNLLGPLTNPAGADAYVLGVFSPEWLAPMAEALERLGARGLVVHGEGADELVLGENRVVEVGKGAYALTPEEVGLKRAPLEALKGGGPEENAALARRLLKGEEKGPLADAVALAAGAGFYAAGKTPSLKEGVALAREVLASGEAYLLLERYVAFLRA

Source Source

Source organism organism	Thermus thermophilus
NCBI taxonomy ID ncbi_taxonomy_id	300852
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 3 Entity 3 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1569

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d2elca1
Class class	a — All alpha proteins
Fold Fold fold	a.46 — Methionine synthase domain-like
Superfamily Superfamily superfamily	a.46.2 — Nucleoside phosphorylase/phosphoribosyltransferase N-terminal domain
Family Family family	a.46.2.1 — Nucleoside phosphorylase/phosphoribosyltransferase N-terminal domain

Domain ID domain_id	d2elca2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.27 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain
Superfamily Superfamily superfamily	c.27.1 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain
Family Family family	c.27.1.1 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

Domain ID domain_id	d2elcb1
Class class	a — All alpha proteins
Fold Fold fold	a.46 — Methionine synthase domain-like
Superfamily Superfamily superfamily	a.46.2 — Nucleoside phosphorylase/phosphoribosyltransferase N-terminal domain
Family Family family	a.46.2.1 — Nucleoside phosphorylase/phosphoribosyltransferase N-terminal domain

Domain ID domain_id	d2elcb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.27 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain
Superfamily Superfamily superfamily	c.27.1 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain
Family Family family	c.27.1.1 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

Domain ID domain_id	d2elcc1
Class class	a — All alpha proteins
Fold Fold fold	a.46 — Methionine synthase domain-like
Superfamily Superfamily superfamily	a.46.2 — Nucleoside phosphorylase/phosphoribosyltransferase N-terminal domain
Family Family family	a.46.2.1 — Nucleoside phosphorylase/phosphoribosyltransferase N-terminal domain

Domain ID domain_id	d2elcc2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.27 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain
Superfamily Superfamily superfamily	c.27.1 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain
Family Family family	c.27.1.1 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

Domain ID domain_id	d2elcd1
Class class	a — All alpha proteins
Fold Fold fold	a.46 — Methionine synthase domain-like
Superfamily Superfamily superfamily	a.46.2 — Nucleoside phosphorylase/phosphoribosyltransferase N-terminal domain
Family Family family	a.46.2.1 — Nucleoside phosphorylase/phosphoribosyltransferase N-terminal domain

Domain ID domain_id	d2elcd2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.27 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain
Superfamily Superfamily superfamily	c.27.1 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain
Family Family family	c.27.1.1 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

CATH v4.4 (8 domains)

Domain ID domain_id	2elcA01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	970 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain C

Domain ID domain_id	2elcA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1030 — Pyrimidine Nucleoside Phosphorylase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

Domain ID domain_id	2elcB01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	970 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain C

Domain ID domain_id	2elcB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1030 — Pyrimidine Nucleoside Phosphorylase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

Domain ID domain_id	2elcC01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	970 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain C

Domain ID domain_id	2elcC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1030 — Pyrimidine Nucleoside Phosphorylase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

Domain ID domain_id	2elcD01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	970 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain C

Domain ID domain_id	2elcD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1030 — Pyrimidine Nucleoside Phosphorylase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

▶

Unit-cell length a length_a	165.319 Å
Unit-cell length b length_b	72.913 Å
Unit-cell length c length_c	141.263 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	125.21 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.550 Å
Low-resolution limit resolution_low	40.000 Å
R factor r_factor	0.1870
R_work r_work	0.1870
R_free r_free	0.2020
