2env
Solution structure of the C4-type zinc finger domain from human Peroxisome proliferator-activated receptor delta

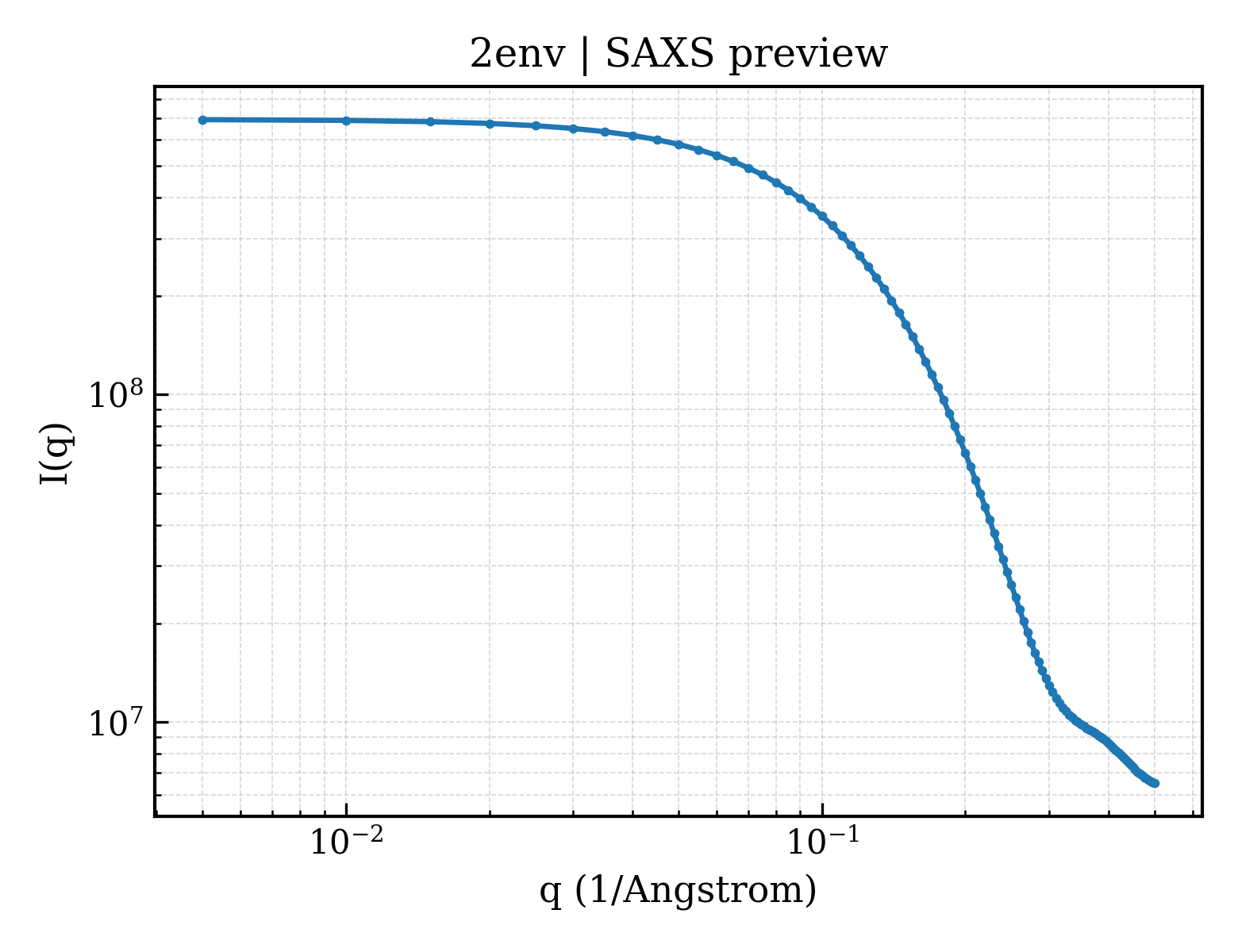

SAXS 散射曲线 SAXS Profile

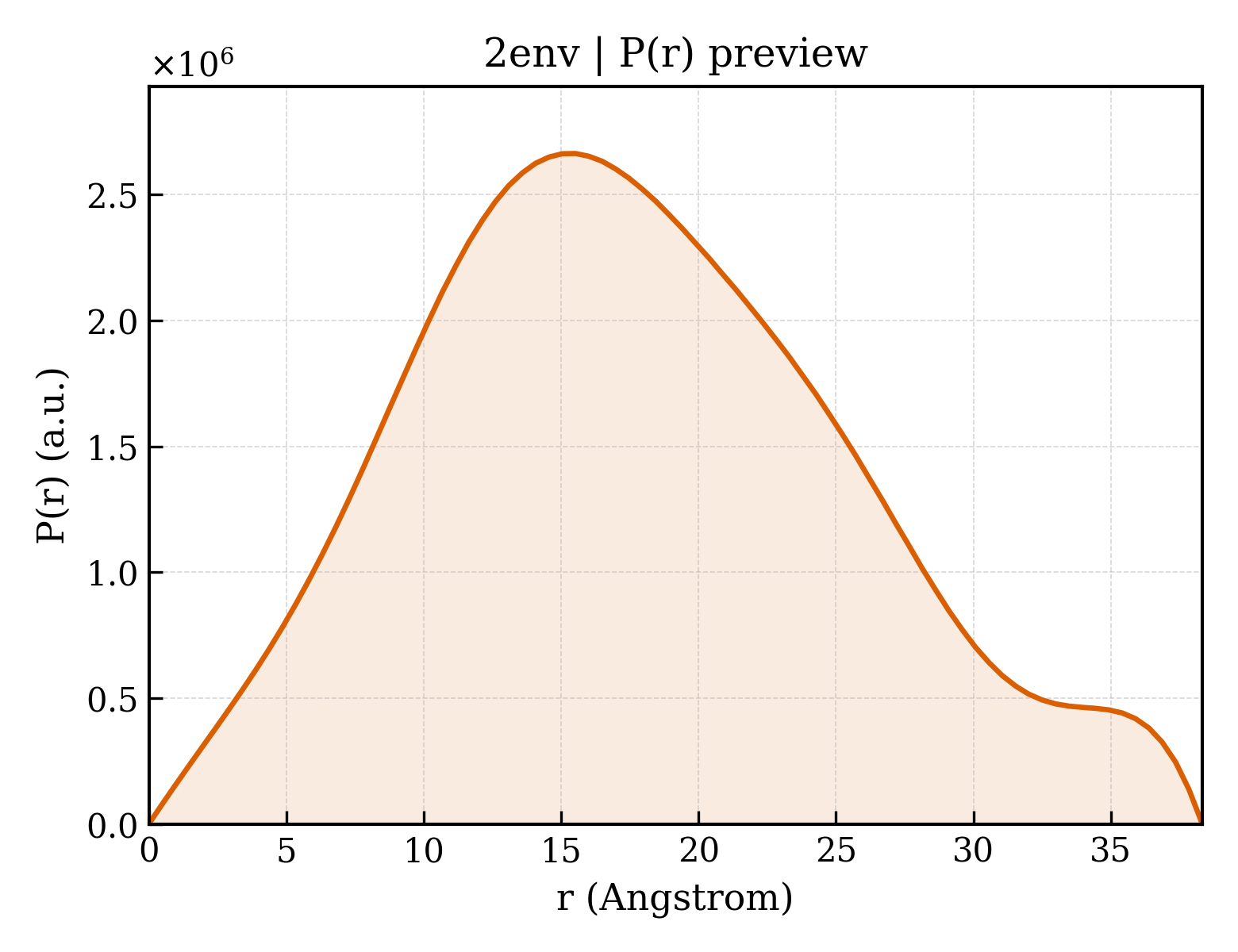

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2env |
| 沉积日期 deposition_date | 2007-03-28 |
| 结构标题 title | Solution structure of the C4-type zinc finger domain from human Peroxisome proliferator-activated receptor delta |
| 关键词 keywords | ;zinc binding, PPAR delta, PPAR beta, RXR, NR, nuclear receptor, prostaglandin, insulin sensitivity, Structural Genomics, NPPSFA, National Project on Protein Structural and Functional Analyses, RIKEN Structural Genomics/Proteomics Initiative, RSGI, TRANSCRIPTION ;; TRANSCRIPTION |
| 实验方法 method | SOLUTION NMR |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 14.47 Å |
| 回转半径 Rg (电子) rg_electron | 14.17 Å |
| 零角强度 I(0) i0 | 692747000.00 |
| 分子量 molecular_weight | 198140.0 kDa |
| 排除体积 excluded_volume | 238400 ų |
| 包络体积 envelope_volume | 38238 ų |
| 水化壳体积 shell_volume | 16872 ų |
| 包络直径 envelope_diameter | 71.1 Å |
| 壳层 Rg shell_rg | 25.55 Å |
| 包络 Rg envelope_rg | 20.64 Å |
| 形状 Rg shape_rg | 14.20 Å |
| 总 Rg total_rg | 14.35 Å |
| 总原子数 total_atoms | 26720 |
| 残基数 n_residues | 1760 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 38.3 Å |
| Rg (实空间) rg_real | 13.62 Å |
| Rg 误差 (实空间) rg_real_error | 0.06 Å |
| I(0) (实空间) i0_real | 6.6090e+08 |
| I(0) 误差 (实空间) i0_real_error | 5.2760e+06 |
| Rg (倒空间) rg_reciprocal | 14.58 Å |
| I(0) (倒空间) i0_reciprocal | 692700000.0000 |
| 解质量估计 total_estimate | 0.6854 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 15.5 Å |
| 偏度 Skewness skewness | 0.298 |
| 峰度 Kurtosis kurtosis | -0.387 |
| 角度范围 angular_range | — – 0.5000 Å−1 |
| 当前正则化参数 α current_alpha | 3.4550 |
| 最高正则化参数 α highest_alpha | 188400.0000 |
| 实空间数据点数 n_real_points | 80 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.004; Oscil: 0.987; Stabil: 0.983; Sysdev: 0.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (2)
6. 折叠分类 (SCOP + CATH) 4 domains
SCOP 2.08 (3 domains)
| 结构域编号 domain_id | d2enva1 |
| 类 Class class | g — Small proteins |
| 折叠类型 Fold fold | g.39 — Glucocorticoid receptor-like (DNA-binding domain) |
| 超家族 Superfamily superfamily | g.39.1 — Glucocorticoid receptor-like (DNA-binding domain) |
| 家族 Family family | g.39.1.2 — Nuclear receptor |
| 结构域编号 domain_id | d2enva2 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d2enva3 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
CATH v4.4 (1 domains)
| 结构域编号 domain_id | 2envA00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 50 — Erythroid Transcription Factor GATA-1; Chain A |
| 同源超家族 H-superfamily homologous superfamily | 10 — Erythroid Transcription Factor GATA-1, subunit A |
