SAXSdb — 2eqb

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2eqb
沉积日期 deposition_date	2007-03-30
结构标题 title	Crystal structure of the Rab GTPase Sec4p, the Sec2p GEF domain, and phosphate complex
关键词 keywords	coiled coil, ENDOCYTOSIS-EXOCYTOSIS COMPLEX; ENDOCYTOSIS/EXOCYTOSIS
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	34.36 Å
回转半径 Rg (电子) rg_electron	34.86 Å
零角强度 I(0) i0	29963300.00
分子量 molecular_weight	41427.0 kDa
排除体积 excluded_volume	51392 Å³
包络体积 envelope_volume	68869 Å³
水化壳体积 shell_volume	20897 Å³
包络直径 envelope_diameter	140.2 Å
壳层 Rg shell_rg	31.74 Å
包络 Rg envelope_rg	36.55 Å
形状 Rg shape_rg	34.87 Å
总 Rg total_rg	34.57 Å
总原子数 total_atoms	2909
残基数 n_residues	357
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	134.8 Å
Rg (实空间) rg_real	35.16 Å
Rg 误差 (实空间) rg_real_error	2.03 Å
I(0) (实空间) i0_real	2.9960e+07
I(0) 误差 (实空间) i0_real_error	5.5850e+05
Rg (倒空间) rg_reciprocal	34.66 Å
I(0) (倒空间) i0_reciprocal	29950000.0000
解质量估计 total_estimate	0.6790
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	26.4 Å
偏度 Skewness skewness	0.778
峰度 Kurtosis kurtosis	0.060
角度范围 angular_range	— – 0.2300 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	1881000.0000
实空间数据点数 n_real_points	47
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.281; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.105; Smooth: 0.875

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Ras-related protein SEC4
分子量 formula_weight	19447.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	3023

GPLGSSIMKILLIGDSGVGKSCLLVRFVEDKFNPSFITTIGIDFKIKTVDINGKKVKLQLWDTAGQERFRTITTAYYRGAMGIILVYDVTDERTFTNIKQWFKTVNEHANDEAQLLLVGNKSDMETRVVTADQGEALAKELGIPFIESSAKNDDNVNEIFFTLAKLIQEKIDSN

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Rab guanine nucleotide exchange factor SEC2
分子量 formula_weight	11391.6 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,C

GPLGSNYNQLKEDYNTLKRELSDRDDEVKRLREDIAKENELRTKAEEEADKLNKEVEDLTASLFDEANNMVADARKEKYAIEILNKRLTEQLREKDT

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	PHOSPHATE ION
分子量 formula_weight	95.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	114

▼

6. 折叠分类 (SCOP + CATH) 9 domains

SCOP 2.08 (6 domains)

结构域编号 domain_id	d2eqba2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
超家族 Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
家族 Family family	c.37.1.8 — G proteins

结构域编号 domain_id	d2eqba3
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d2eqbb1
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.33 — Sec2 N-terminal region
家族 Family family	h.1.33.1 — Sec2 N-terminal region

结构域编号 domain_id	d2eqbb2
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d2eqbc2
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.33 — Sec2 N-terminal region
家族 Family family	h.1.33.1 — Sec2 N-terminal region

结构域编号 domain_id	d2eqbc3
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

CATH v4.4 (3 domains)

结构域编号 domain_id	2eqbA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

结构域编号 domain_id	2eqbB00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	4880 —

结构域编号 domain_id	2eqbC00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	4880 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	116.581 Å
晶胞边长 b length_b	117.422 Å
晶胞边长 c length_c	123.332 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	I 2 2 2
空间群编号 int_tables_number	23
晶系 crystal_system	—

分辨率 resolution	2.700 Å
最低分辨率 resolution_low	48.080 Å
R 因子 r_factor	0.2730
R_work r_work	0.2730
R_free r_free	0.2980

fit	/app/data/saxs_computation/eq/2eqb/2eqb.fit
pddf	/app/data/pr_computation/eq/2eqb/2eqb.pr.out
profile	/app/data/saxs_computation/eq/2eqb/2eqb.dat

Crystal structure of the Rab GTPase Sec4p, the Sec2p GEF domain, and phosphate complex

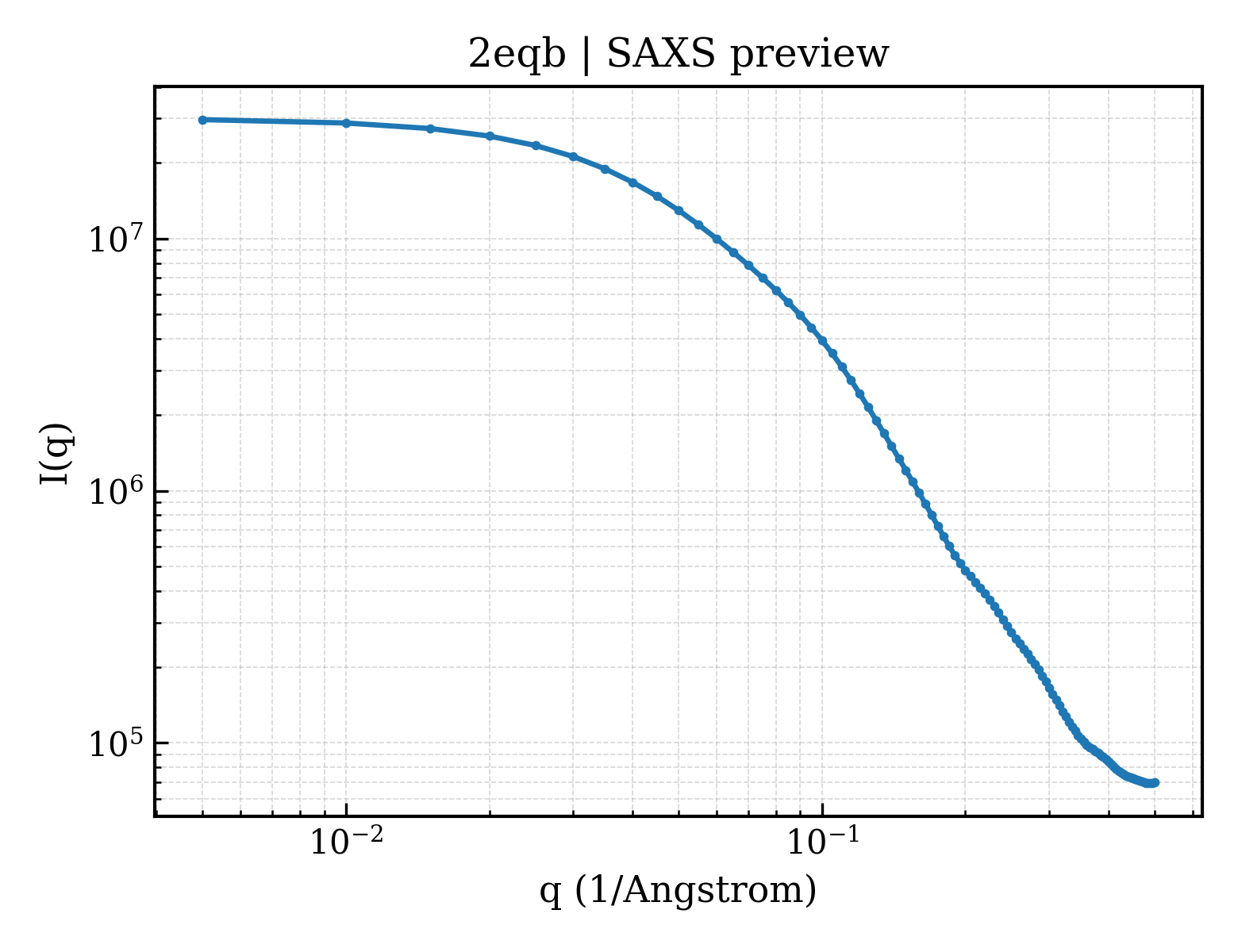

SAXS 散射曲线 SAXS Profile
