2esg

Solution structure of the complex between immunoglobulin IgA1 and human serum albumin

Method: SOLUTION SCATTERING D_max: 223.9 Å Quality: REASONABLE

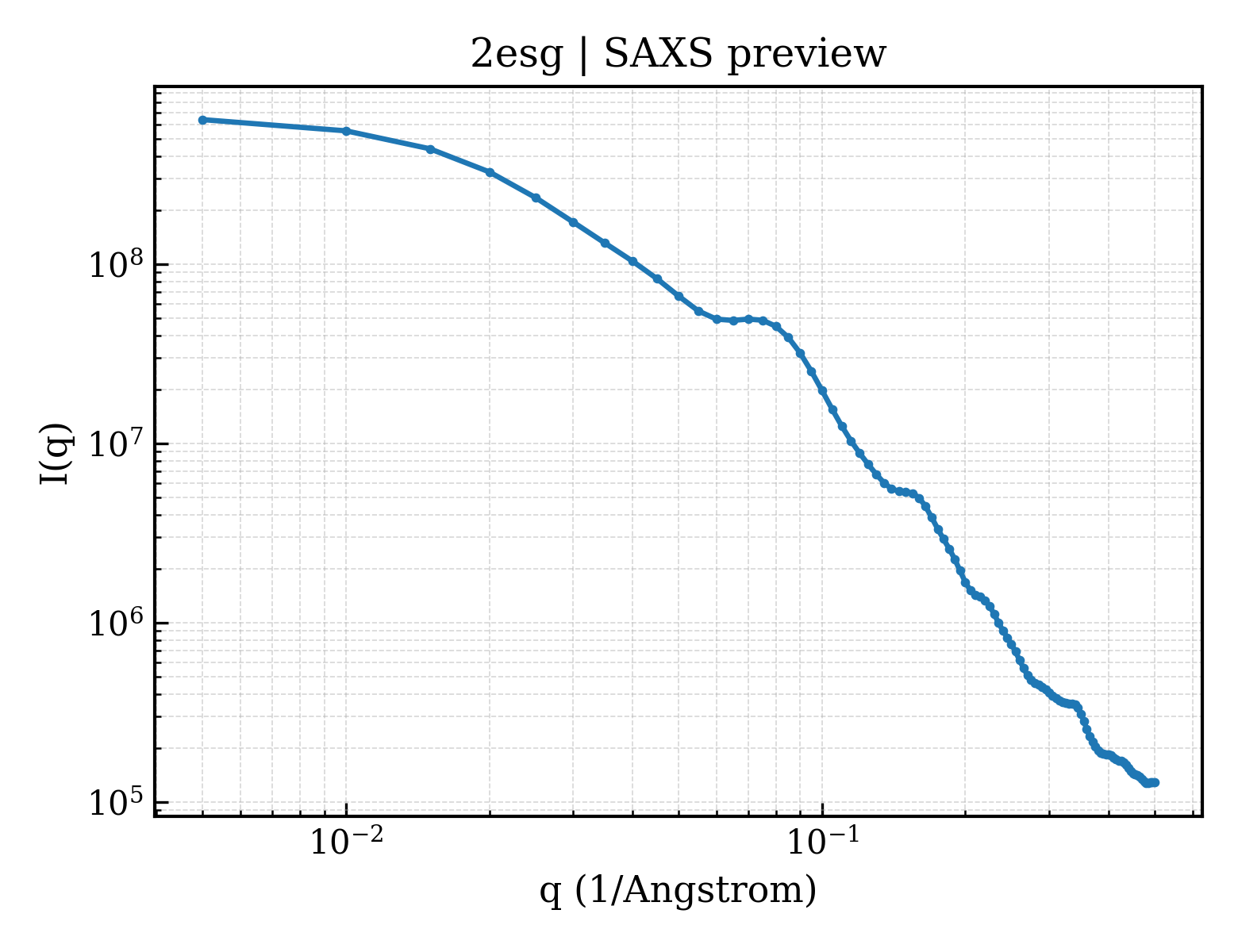

SAXS 散射曲线 SAXS Profile

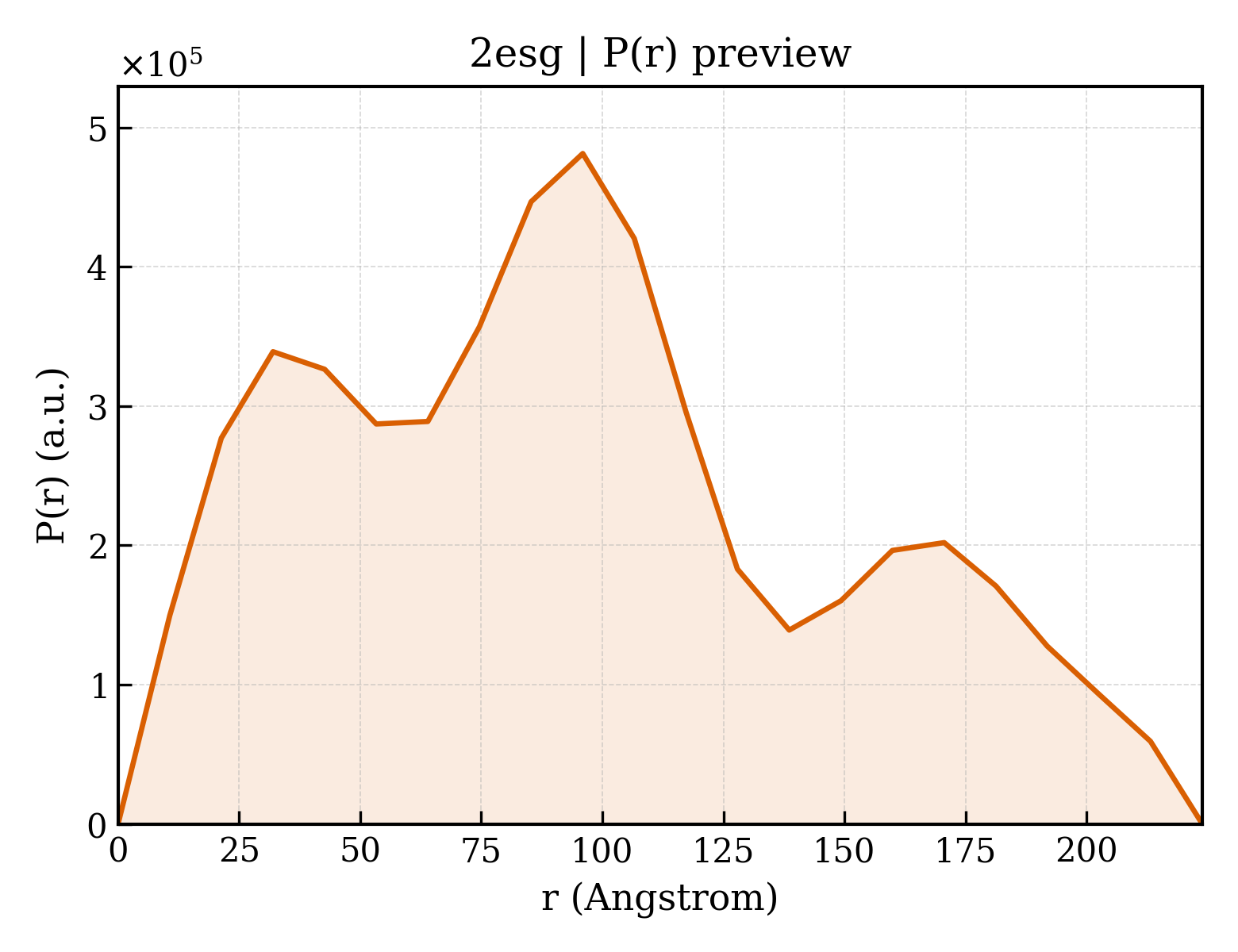

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2esg
沉积日期 deposition_date	2005-10-26
结构标题 title	Solution structure of the complex between immunoglobulin IgA1 and human serum albumin
关键词 keywords	immunoglobulin, antibody, human serum albumin, IMMUNE SYSTEM-TRANSPORT PROTEIN COMPLEX; IMMUNE SYSTEM/TRANSPORT PROTEIN
实验方法 method	SOLUTION SCATTERING

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	76.02 Å
回转半径 Rg (电子) rg_electron	76.83 Å
零角强度 I(0) i0	670519000.00
分子量 molecular_weight	214170.0 kDa
排除体积 excluded_volume	260000 Å³
包络体积 envelope_volume	367540 Å³
水化壳体积 shell_volume	48337 Å³
包络直径 envelope_diameter	233.5 Å
壳层 Rg shell_rg	55.69 Å
包络 Rg envelope_rg	71.33 Å
形状 Rg shape_rg	76.89 Å
总 Rg total_rg	76.42 Å
总原子数 total_atoms	—
残基数 n_residues	—
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	223.9 Å
Rg (实空间) rg_real	76.52 Å
Rg 误差 (实空间) rg_real_error	1.57 Å
I(0) (实空间) i0_real	6.7010e+08
I(0) 误差 (实空间) i0_real_error	1.3070e+07
Rg (倒空间) rg_reciprocal	73.52 Å
I(0) (倒空间) i0_reciprocal	666100000.0000
解质量估计 total_estimate	0.6683
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	96.0 Å
偏度 Skewness skewness	0.375
峰度 Kurtosis kurtosis	-0.684
角度范围 angular_range	— – 0.1050 Å⁻¹
当前正则化参数 α current_alpha	0.0107
最高正则化参数 α highest_alpha	13970000.0000
实空间数据点数 n_real_points	22
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.329; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.693; Smooth: 0.001

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Immunoglobulin A1 light chain
分子量 formula_weight	23216.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L,M
原子数 atom_count	1956

ELVMTQSPSSLSASVGDRVNIACRASQGISSALAWYQQKPGKAPRLLIYDASNLESGVPSRFSGSGSGTDFTLTISSLQPEDFAIYYCQQFNSYPLTFGGGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Entity 2 polymer

描述 description	Immunoglobulin A1 heavy chain
分子量 formula_weight	51068.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B

QVKLLEQSGAEVKKPGASVKVSCKASGYSFTSYGLHWVRQAPGQRLEWMGWISAGTGNTKYSQKFRGRVTFTRDTSATTAYMGLSSLRPEDTAVYYCARDPYGGGKSEFDYWGQGTLVTVSSASPTSPKVFPLSLCSTQPDGNVVIACLVQGFFPQEPLSVTWSESGQGVTARNFPPSQDASGDLYTTSSQLTLPATQCLAGKSVTCHVKHYTNPSQDVTVPCPVPSTPPTPSPSTPPTPSPSCCHPRLSLHRPALEDLLLGSEANLTCTLTGLRDASGVTFTWTPSSGKSAVQGPPERDLCGCYSVSSVLPGCAEPWNHGKTFTCTAAYPESKTPLTATLSKSGNTFRPEVHLLPPPSEELALNELVTLTCLARGFSPKDVLVRWLQGSQELPREKYLTWASRQEPSQGTTTFAVTSILRVAAEDWKKGDTFSCMVGHEALPLAFTQKTIDRLAGKPTHVNVSVVMAEVDGTCY

Entity 3 polymer

描述 description	Serum albumin
分子量 formula_weight	66571.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

DAHKSEVAHRFKDLGEENFKALVLIAFAQYLQQCPFEDHVKLVNEVTEFAKTCVADESAENCDKSLHTLFGDKLCTVATLRETYGEMADCCAKQEPERNECFLQHKDDNPNLPRLVRPEVDVMCTAFHDNEETFLKKYLYEIARRHPYFYAPELLFFAKRYKAAFTECCQAADKAACLLPKLDELRDEGKASSAKQRLKCASLQKFGERAFKAWAVARLSQRFPKAEFAEVSKLVTDLTKVHTECCHGDLLECADDRADLAKYICENQDSISSKLKECCEKPLLEKSHCIAEVENDEMPADLPSLAADFVESKDVCKNYAEAKDVFLGMFLYEYARRHPDYSVVLLLRLAKTYETTLEKCCAAADPHECYAKVFDEFKPLVEEPQNLIKQNCELFEQLGEYKFQNALLVRYTKKVPQVSTPTLVEVSRNLGKVGSKCCKHPEAKRMPCAEDYLSVVLNQLCVLHEKTPVSDRVTKCCTESLVNRRPCFSALEVDETYVPKEFNAETFTFHADICTLSEKERQIKKQTALVELVKHKPKATKEQLKAVMDDFAAFVEKCCKADDKETCFAEEGKKLVAASQAALGL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

▼

6. 折叠分类 (SCOP + CATH) 2 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d2esgc1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.126 — Serum albumin-like
超家族 Superfamily superfamily	a.126.1 — Serum albumin-like
家族 Family family	a.126.1.1 — Serum albumin-like

结构域编号 domain_id	d2esgc2
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.126 — Serum albumin-like
超家族 Superfamily superfamily	a.126.1 — Serum albumin-like
家族 Family family	a.126.1.1 — Serum albumin-like

▶

7. 引用文献 (1)

▶

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

fit	/app/data/saxs_computation/es/2esg/2esg.fit
pddf	/app/data/pr_computation/es/2esg/2esg.pr.out
profile	/app/data/saxs_computation/es/2esg/2esg.dat
