SAXSdb — 2exu

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transcription initiation protein SPT4/SPT5

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Homooligomer	Protein 2	ZINC ION × 2 ETHANOL × 4 (4S)-2-METHYL-2,4-PENTANEDIOL × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPT5_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 102–192； UniProt 285–375

Transcription initiation protein SPT4/SPT5

Saccharomyces cerevisiae

UniProt P32914

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Homooligomer	Protein 2	ZINC ION × 2 ETHANOL × 4 (4S)-2-METHYL-2,4-PENTANEDIOL × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPT4_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–99； UniProt 1–99

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2exu
Deposition date deposition_date	2005-11-08
Structure title title	Crystal Structure of Saccharomyces cerevisiae transcription elongation factors Spt4-Spt5NGN domain
Keywords keywords	helixs surrounding beta sheet, Transcription; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2exu__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

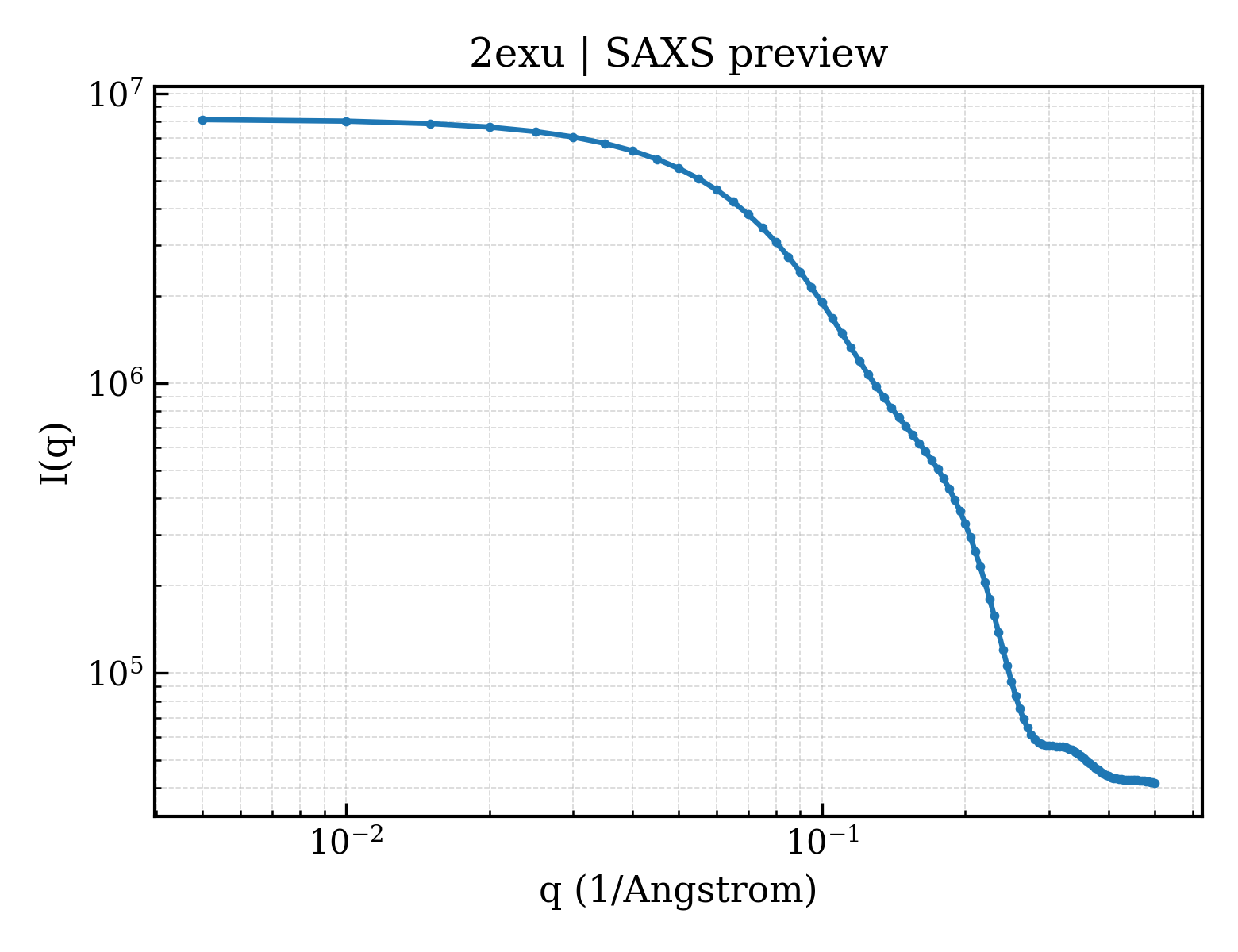

2exu__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

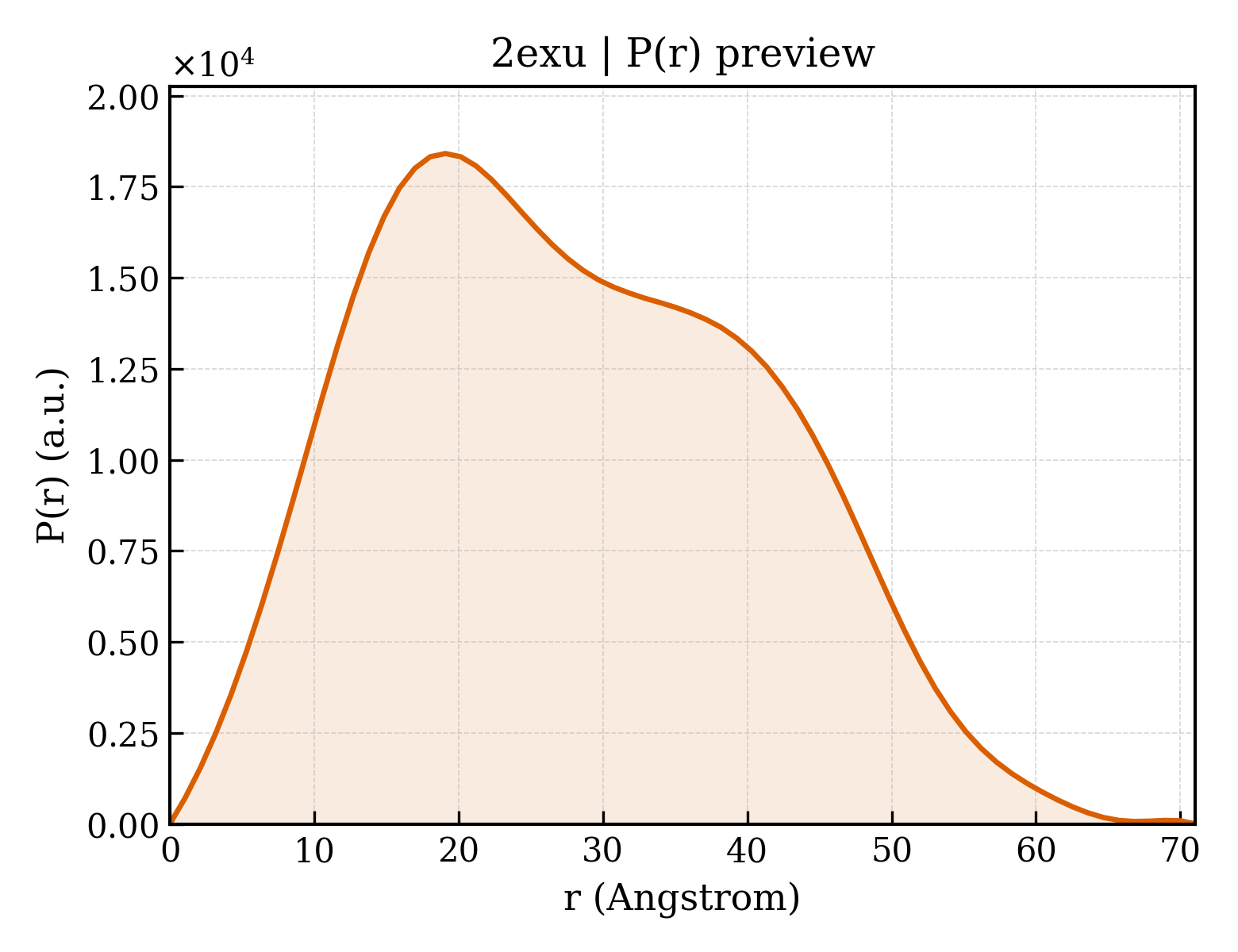

2exu__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.51 Å
Rg (electron density)	22.31 Å
Total Rg	23.22 Å
Atom count	3036
Residues	384
Excluded volume	55110 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2exu__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Transcription initiation protein SPT4/SPT5
Molecular weight formula_weight	22624.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1628

MSSERACMLCGIVQTTNEFNRDGCPNCQGIFEEAGVSTMECTSPSFEGLVGMCKPTKSWVAKWLSVDHSIAGMYAIKVDGRLPAEVVELLPHYKPRDGSGSATIWGVRCRPGKEKELIRKLLKKKFNLDRAMGKKKLKILSIFQRDNYTGRIYIEAPKQSVIEKFCNGVPDIYISQKLLIPVQELPLLLKPNLEHHHHHH

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	ETHANOL
Molecular weight formula_weight	46.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	(4S)-2-METHYL-2,4-PENTANEDIOL
Molecular weight formula_weight	118.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	110

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	2exuA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	40 — Herpes Virus-1
Homologous superfamily homologous superfamily	210 —

Domain ID domain_id	2exuA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	940 — NusG, N-terminal domain

▶

Unit-cell length a length_a	53.801 Å
Unit-cell length b length_b	53.801 Å
Unit-cell length c length_c	177.120 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41 2 2
Space-group number int_tables_number	91
Crystal system crystal_system	—

Resolution resolution	2.230 Å
Low-resolution limit resolution_low	21.420 Å
R factor r_factor	0.2070
R_work r_work	0.2060
R_free r_free	0.2210
