SAXSdb — 2f3f

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2f3f
沉积日期 deposition_date	2005-11-21
结构标题 title	Crystal Structure of the Bace complex with BDF488, a macrocyclic inhibitor
关键词 keywords	;BETA-SECRETASE, MEMAPSIN2, ALZHEIMER'S DISEASE, ASPARTIC PROTEASE, MACROCYCLIC PEPTIDOMIMETIC INHIBITOR, HYDROLASE ;; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	39.66 Å
回转半径 Rg (电子) rg_electron	39.68 Å
零角强度 I(0) i0	238509000.00
分子量 molecular_weight	127460.0 kDa
排除体积 excluded_volume	160050 Å³
包络体积 envelope_volume	205790 Å³
水化壳体积 shell_volume	45728 Å³
包络直径 envelope_diameter	142.7 Å
壳层 Rg shell_rg	42.85 Å
包络 Rg envelope_rg	38.93 Å
形状 Rg shape_rg	39.68 Å
总 Rg total_rg	39.89 Å
总原子数 total_atoms	8987
残基数 n_residues	1129
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	136.0 Å
Rg (实空间) rg_real	40.01 Å
Rg 误差 (实空间) rg_real_error	1.15 Å
I(0) (实空间) i0_real	2.3850e+08
I(0) 误差 (实空间) i0_real_error	4.2880e+06
Rg (倒空间) rg_reciprocal	39.80 Å
I(0) (倒空间) i0_reciprocal	238500000.0000
解质量估计 total_estimate	0.8403
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	37.4 Å
偏度 Skewness skewness	0.463
峰度 Kurtosis kurtosis	-0.450
角度范围 angular_range	— – 0.2000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	56920000.0000
实空间数据点数 n_real_points	41
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.796; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.791; Smooth: 0.740

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Beta-secretase 1
分子量 formula_weight	44777.3 kDa
EC 编号 ec_number	3.4.23.46
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C
原子数 atom_count	9495

GPDEEPEEPGRRGSFVEMVDNLRGKSGQGYYVEMTVGSPPQTLNILVDTGSSNFAVGAAPHPFLHRYYQRQLSSTYRDLRKGVYVPYTQGKWEGELGTDLVSIPHGPNVTVRANIAAITESDKFFINGSNWEGILGLAYAEIARPDDSLEPFFDSLVKQTHVPNLFSLQLCGAGFPLNQSEVLASVGGSMIIGGIDHSLYTGSLWYTPIRREWYYEVIIVRVEINGQDLKMDCKEYNYDKSIVDSGTTNLRLPKKVFEAAVKSIKAASSTEKFPDGFWLGEQLVCWQAGTTPWNIFPVISLYLMGEVTNQSFRITILPQQYLRPVEDVATSQDDCYKFAISQSSTGTVMGAVIMEGFYVVFDRARKRIGFAVSACHVHDEFRTAAVEGPFVTLDMEDCGYNI

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	;(2R,4S)-N-BUTYL-4-HYDROXY-2-METHYL- 4-((E)-(4AS,12R,15S,17AS)-15-METHYL -14,17-DIOXO-2,3,4,4A,6,9,11,12,13, 14,15,16,17,17A-TETRADECAHYDRO-1H-5 ,10-DITHIA-1,13,16-TRIAZA-BENZOCYCL OPENTADECEN-12-YL)-BUTYRAMIDE ;
分子量 formula_weight	514.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	508

▼

6. 折叠分类 (SCOP + CATH) 9 domains

SCOP 2.08 (3 domains)

结构域编号 domain_id	d2f3fa_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.50 — Acid proteases
超家族 Superfamily superfamily	b.50.1 — Acid proteases
家族 Family family	b.50.1.2 — Pepsin-like

结构域编号 domain_id	d2f3fb_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.50 — Acid proteases
超家族 Superfamily superfamily	b.50.1 — Acid proteases
家族 Family family	b.50.1.2 — Pepsin-like

结构域编号 domain_id	d2f3fc_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.50 — Acid proteases
超家族 Superfamily superfamily	b.50.1 — Acid proteases
家族 Family family	b.50.1.2 — Pepsin-like

CATH v4.4 (6 domains)

结构域编号 domain_id	2f3fA01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	70 — Cathepsin D, subunit A; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Acid Proteases

结构域编号 domain_id	2f3fA02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	70 — Cathepsin D, subunit A; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Acid Proteases

结构域编号 domain_id	2f3fB01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	70 — Cathepsin D, subunit A; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Acid Proteases

结构域编号 domain_id	2f3fB02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	70 — Cathepsin D, subunit A; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Acid Proteases

结构域编号 domain_id	2f3fC01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	70 — Cathepsin D, subunit A; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Acid Proteases

结构域编号 domain_id	2f3fC02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	70 — Cathepsin D, subunit A; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Acid Proteases

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	82.250 Å
晶胞边长 b length_b	103.202 Å
晶胞边长 c length_c	100.997 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	103.03 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	6

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.300 Å
最低分辨率 resolution_low	63.290 Å
R 因子 r_factor	0.1920
R_work r_work	0.1900
R_free r_free	0.2200

fit	/app/data/saxs_computation/f3/2f3f/2f3f.fit
pddf	/app/data/pr_computation/f3/2f3f/2f3f.pr.out
profile	/app/data/saxs_computation/f3/2f3f/2f3f.dat

Crystal Structure of the Bace complex with BDF488, a macrocyclic inhibitor

SAXS 散射曲线 SAXS Profile

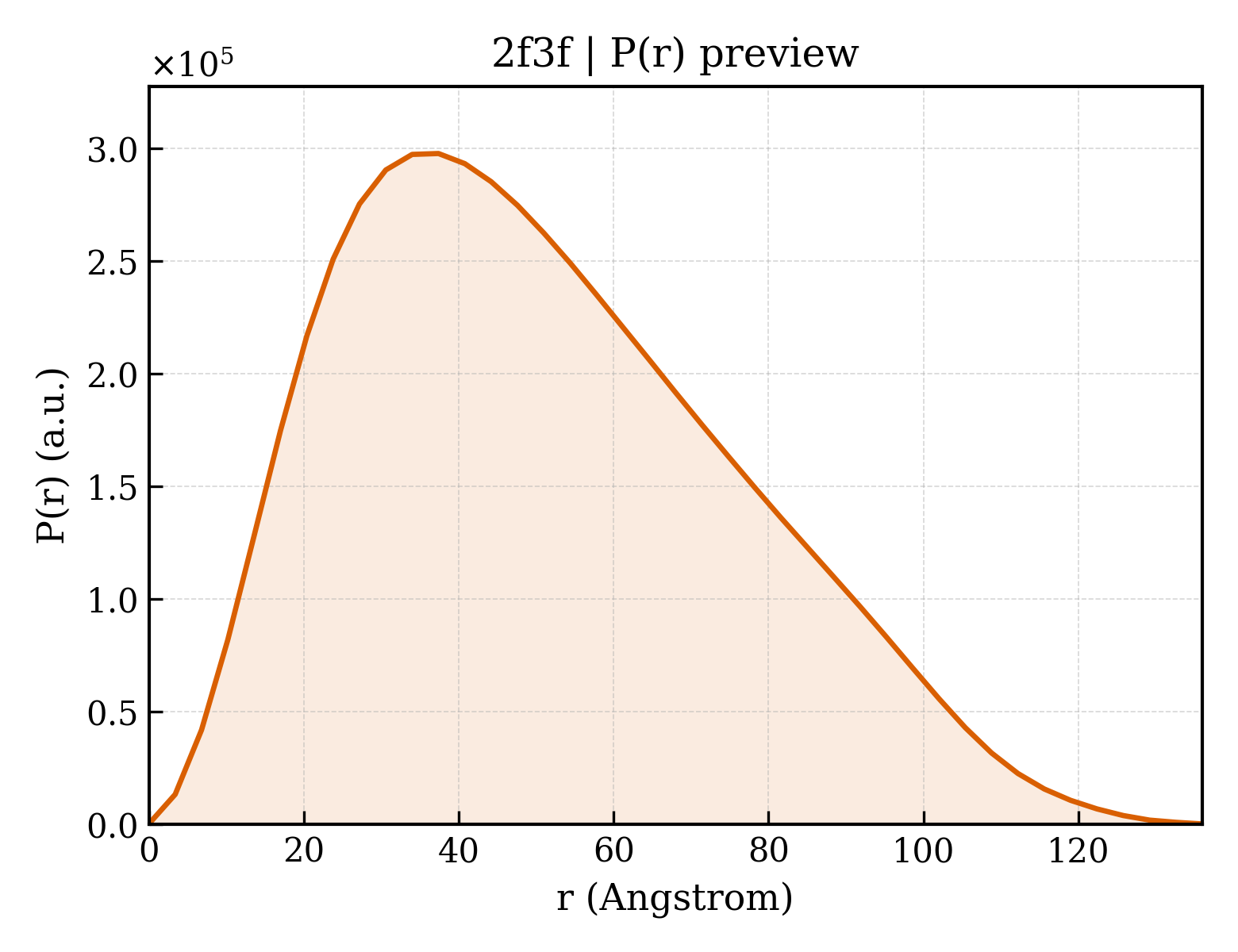

P(r) 距离分布 P(r) Distribution
