1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2hiz
沉积日期 deposition_date	2006-06-29
结构标题 title	Crystal Structure of human beta-secretase (BACE) in the presence of an inhibitor
关键词 keywords	protein-inhibitor complex, Hydrolase; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	36.60 Å
回转半径 Rg (电子) rg_electron	35.97 Å
零角强度 I(0) i0	236391000.00
分子量 molecular_weight	126840.0 kDa
排除体积 excluded_volume	159400 Å³
包络体积 envelope_volume	195420 Å³
水化壳体积 shell_volume	45728 Å³
包络直径 envelope_diameter	122.4 Å
壳层 Rg shell_rg	41.63 Å
包络 Rg envelope_rg	35.99 Å
形状 Rg shape_rg	36.00 Å
总 Rg total_rg	36.26 Å
总原子数 total_atoms	8946
残基数 n_residues	1116
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	119.0 Å
Rg (实空间) rg_real	36.59 Å
Rg 误差 (实空间) rg_real_error	1.00 Å
I(0) (实空间) i0_real	2.3640e+08
I(0) 误差 (实空间) i0_real_error	3.9710e+06
Rg (倒空间) rg_reciprocal	36.60 Å
I(0) (倒空间) i0_reciprocal	236400000.0000
解质量估计 total_estimate	0.8902
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	36.0 Å
偏度 Skewness skewness	0.259
峰度 Kurtosis kurtosis	-0.584
角度范围 angular_range	— – 0.2150 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	122100000.0000
实空间数据点数 n_real_points	44
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.917; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.955; Smooth: 0.861

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Beta-secretase 1
分子量 formula_weight	50250.6 kDa
EC 编号 ec_number	3.4.23.46
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C
原子数 atom_count	9176

MASMTGGQQMGRGSMAGVLPAHGTQHGIRLPLRSGLGGAPLGLRLPRETDEEPEEPGRRGSFVEMVDNLRGKSGQGYYVEMTVGSPPQTLNILVDTGSSNFAVGAAPHPFLHRYYQRQLSSTYRDLRKGVYVPYTQGKWEGELGTDLVSIPHGPNVTVRANIAAITESDKFFINGSNWEGILGLAYAEIARPDDSLEPFFDSLVKQTHVPNLFSLQLCGAGFPLNQSEVLASVGGSMIIGGIDHSLYTGSLWYTPIRREWYYEVIIVRVEINGQDLKMDCKEYNYDKSIVDSGTTNLRLPKKVFEAAVKSIKAASSTEKFPDGFWLGEQLVCWQAGTTPWNIFPVISLYLMGEVTNQSFRITILPQQYLRPVEDVATSQDDCYKFAISQSSTGTVMGAVIMEGFYVVFDRARKRIGFAVSACHVHDEFRTAAVEGPFVTLDMEDCGYNIPQTDES

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	PHOSPHATE ION
分子量 formula_weight	95.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 3 non-polymer

描述 description	;BENZYL [(1S)-2-({(1S,2R)-1-BENZYL-2-HYDROXY-3-[(3-METHOXYBENZYL)AMINO]PROPYL}AMINO)-2-OXO-1-{[(1-PROPYLBUTYL)SULFONYL]METHYL}ETHYL]CARBAMATE ;
分子量 formula_weight	667.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	230

▼

6. 折叠分类 (SCOP + CATH) 9 domains

SCOP 2.08 (3 domains)

结构域编号 domain_id	d2hiza1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.50 — Acid proteases
超家族 Superfamily superfamily	b.50.1 — Acid proteases
家族 Family family	b.50.1.2 — Pepsin-like

结构域编号 domain_id	d2hizb1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.50 — Acid proteases
超家族 Superfamily superfamily	b.50.1 — Acid proteases
家族 Family family	b.50.1.2 — Pepsin-like

结构域编号 domain_id	d2hizc1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.50 — Acid proteases
超家族 Superfamily superfamily	b.50.1 — Acid proteases
家族 Family family	b.50.1.2 — Pepsin-like

CATH v4.4 (6 domains)

结构域编号 domain_id	2hizA01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	70 — Cathepsin D, subunit A; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Acid Proteases

结构域编号 domain_id	2hizA02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	70 — Cathepsin D, subunit A; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Acid Proteases

结构域编号 domain_id	2hizB01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	70 — Cathepsin D, subunit A; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Acid Proteases

结构域编号 domain_id	2hizB02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	70 — Cathepsin D, subunit A; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Acid Proteases

结构域编号 domain_id	2hizC01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	70 — Cathepsin D, subunit A; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Acid Proteases

结构域编号 domain_id	2hizC02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	70 — Cathepsin D, subunit A; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Acid Proteases

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	82.240 Å
晶胞边长 b length_b	104.090 Å
晶胞边长 c length_c	100.950 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	103.46 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	6

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.500 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	—
R_work r_work	0.2140
R_free r_free	0.2530

fit	/app/data/saxs_computation/hi/2hiz/2hiz.fit
pddf	/app/data/pr_computation/hi/2hiz/2hiz.pr.out
profile	/app/data/saxs_computation/hi/2hiz/2hiz.dat

Crystal Structure of human beta-secretase (BACE) in the presence of an inhibitor

SAXS 散射曲线 SAXS Profile

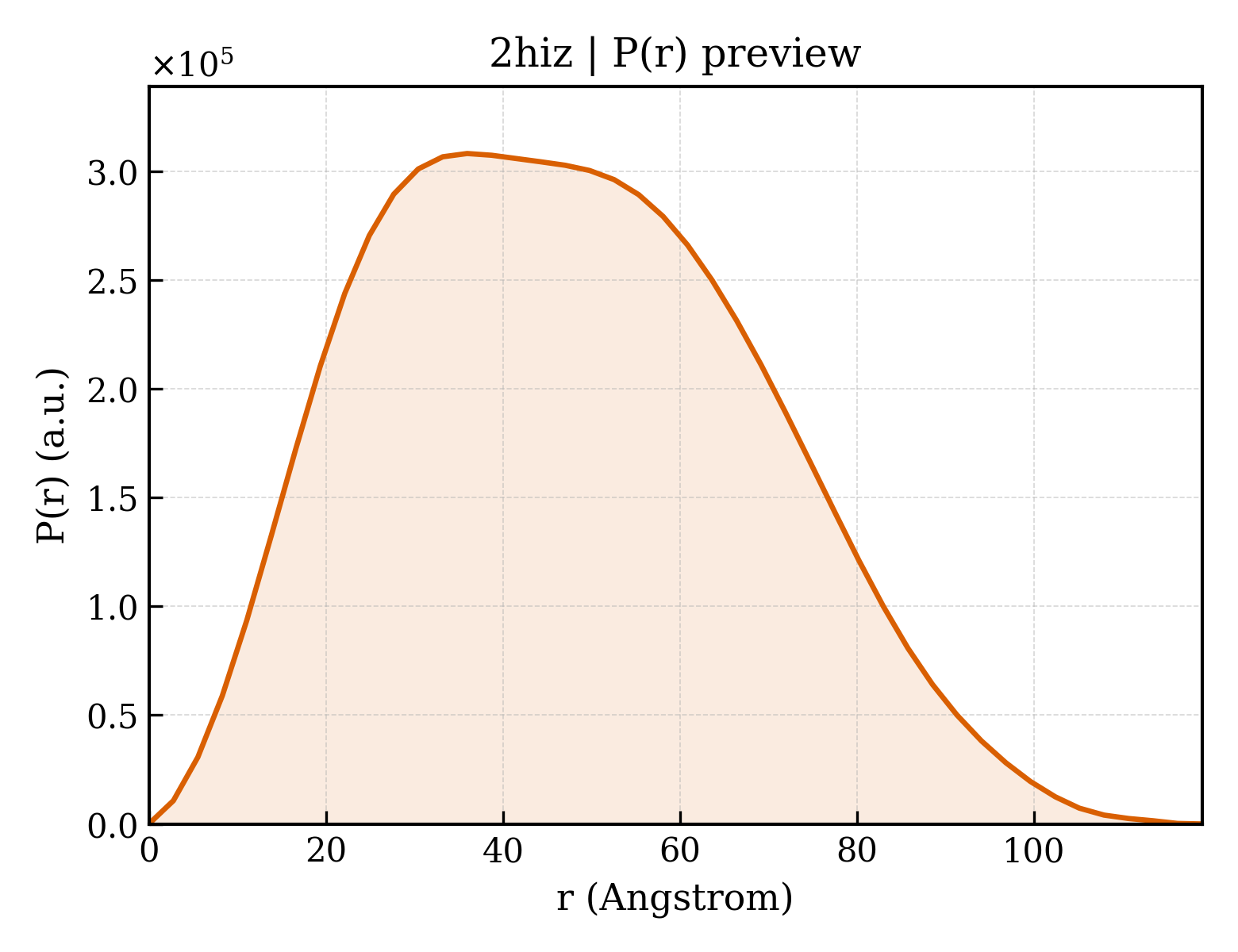

P(r) 距离分布 P(r) Distribution
