2f4n
Crystal structure of protein MJ1651 from Methanococcus jannaschii DSM 2661, Pfam DUF62
SAXS 散射曲线 SAXS Profile

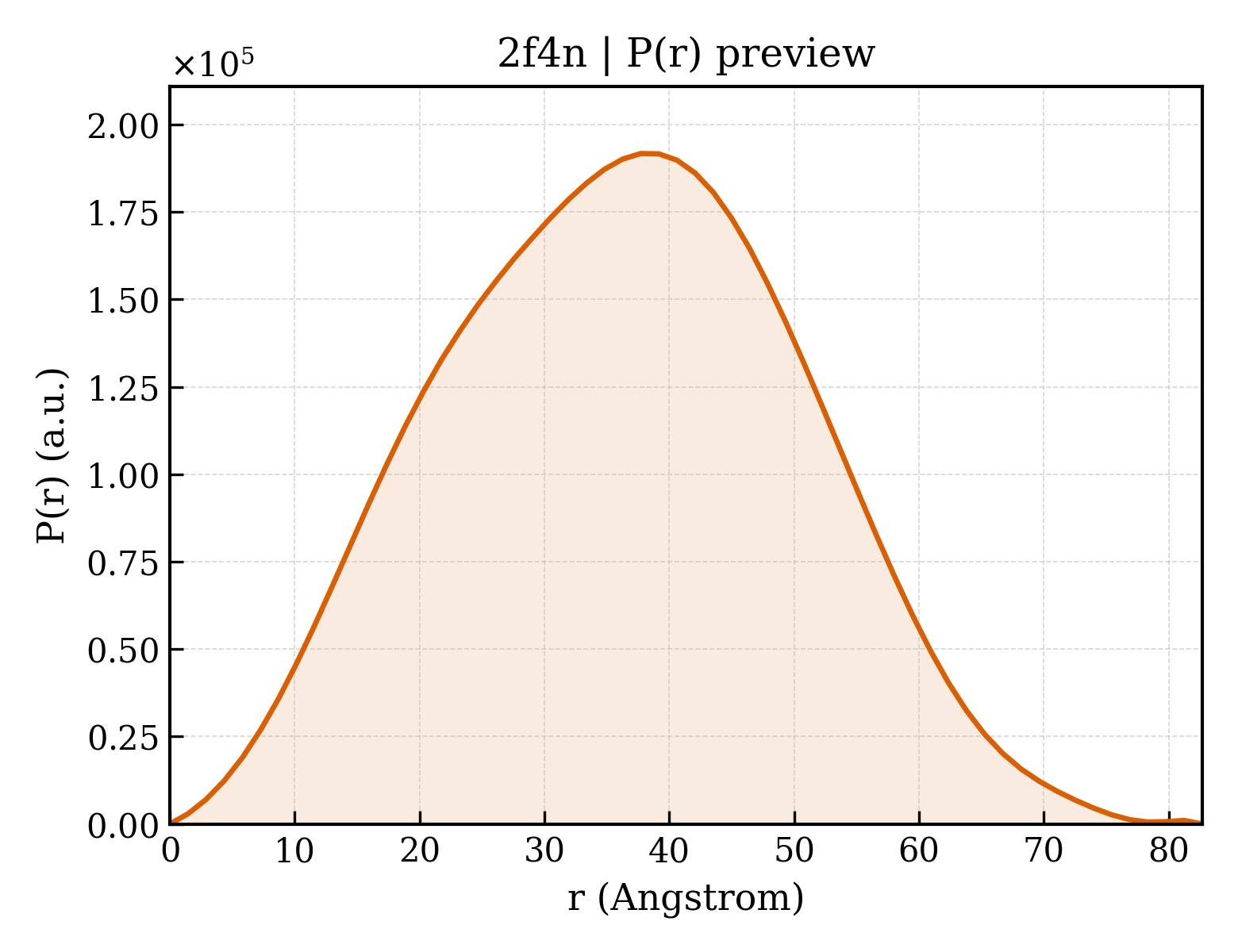

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2f4n |
| 沉积日期 deposition_date | 2005-11-23 |
| 结构标题 title | Crystal structure of protein MJ1651 from Methanococcus jannaschii DSM 2661, Pfam DUF62 |
| 关键词 keywords | ;Conserved hypothetical protein, Mehtanococcus jannaschii, Structural Genomics, PSI, Protein Structure Initiative, New York SGX Research Center for Structural Genomics, NYSGXRC, UNKNOWN FUNCTION ;; STRUCTURAL GENOMICS, UNKNOWN FUNCTION |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 27.78 Å |
| 回转半径 Rg (电子) rg_electron | 26.52 Å |
| 零角强度 I(0) i0 | 92428400.00 |
| 分子量 molecular_weight | 78950.0 kDa |
| 排除体积 excluded_volume | 100150 ų |
| 包络体积 envelope_volume | 123350 ų |
| 水化壳体积 shell_volume | 37170 ų |
| 包络直径 envelope_diameter | 84.0 Å |
| 壳层 Rg shell_rg | 35.25 Å |
| 包络 Rg envelope_rg | 26.51 Å |
| 形状 Rg shape_rg | 26.49 Å |
| 总 Rg total_rg | 27.57 Å |
| 总原子数 total_atoms | 5539 |
| 残基数 n_residues | 703 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 82.7 Å |
| Rg (实空间) rg_real | 27.55 Å |
| Rg 误差 (实空间) rg_real_error | 0.39 Å |
| I(0) (实空间) i0_real | 9.2430e+07 |
| I(0) 误差 (实空间) i0_real_error | 1.2130e+06 |
| Rg (倒空间) rg_reciprocal | 27.62 Å |
| I(0) (倒空间) i0_reciprocal | 92430000.0000 |
| 解质量估计 total_estimate | 0.7150 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 37.7 Å |
| 偏度 Skewness skewness | 0.051 |
| 峰度 Kurtosis kurtosis | -0.513 |
| 角度范围 angular_range | — – 0.2850 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 42330000.0000 |
| 实空间数据点数 n_real_points | 58 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.939; Stabil: 1.000; Sysdev: 0.177; Positv: 1.000; Valcen: 0.976; Smooth: 0.966 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (2)
6. 折叠分类 (SCOP + CATH) 6 domains
CATH v4.4 (6 domains)
| 结构域编号 domain_id | 2f4nA01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 10790 — S-adenosyl-l-methionine hydroxide adenosyltransferase, N-terminal |
| 结构域编号 domain_id | 2f4nA02 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 30 — Elongation Factor Tu (Ef-tu); domain 3 |
| 同源超家族 H-superfamily homologous superfamily | 90 — Bacterial fluorinating enzyme like |
| 结构域编号 domain_id | 2f4nB01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 10790 — S-adenosyl-l-methionine hydroxide adenosyltransferase, N-terminal |
| 结构域编号 domain_id | 2f4nB02 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 30 — Elongation Factor Tu (Ef-tu); domain 3 |
| 同源超家族 H-superfamily homologous superfamily | 90 — Bacterial fluorinating enzyme like |
| 结构域编号 domain_id | 2f4nC01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 10790 — S-adenosyl-l-methionine hydroxide adenosyltransferase, N-terminal |
| 结构域编号 domain_id | 2f4nC02 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 30 — Elongation Factor Tu (Ef-tu); domain 3 |
| 同源超家族 H-superfamily homologous superfamily | 90 — Bacterial fluorinating enzyme like |
