2f5z

Crystal Structure of Human Dihydrolipoamide Dehydrogenase (E3) Complexed to the E3-Binding Domain of Human E3-Binding Protein

Method: X-RAY DIFFRACTION D_max: 240.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

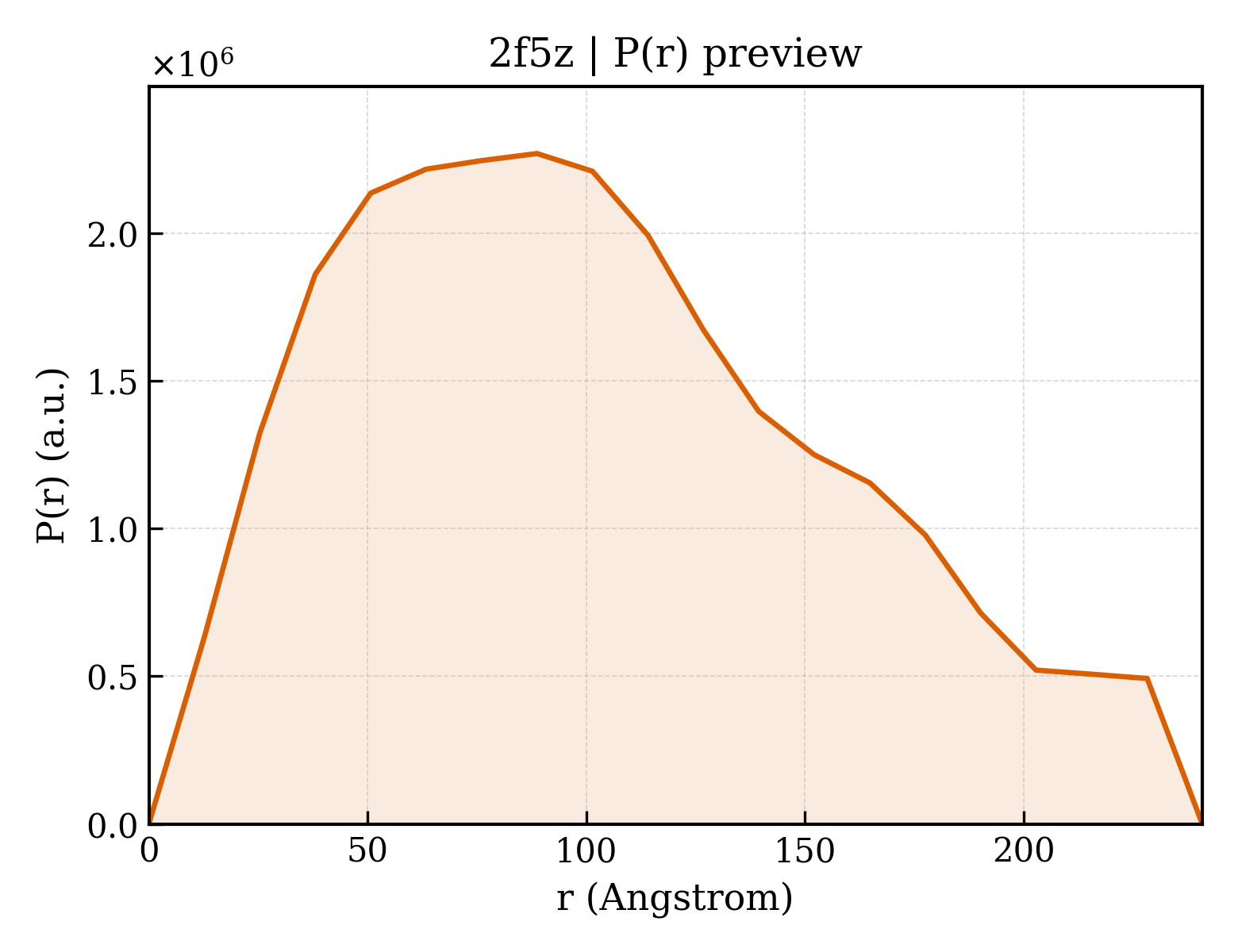

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2f5z
沉积日期 deposition_date	2005-11-28
结构标题 title	Crystal Structure of Human Dihydrolipoamide Dehydrogenase (E3) Complexed to the E3-Binding Domain of Human E3-Binding Protein
关键词 keywords	protein-protein complex, OXIDOREDUCTASE-PROTEIN BINDING COMPLEX; OXIDOREDUCTASE/PROTEIN BINDING
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	81.45 Å
回转半径 Rg (电子) rg_electron	82.56 Å
零角强度 I(0) i0	4091770000.00
分子量 molecular_weight	531640.0 kDa
排除体积 excluded_volume	662470 Å³
包络体积 envelope_volume	1025800 Å³
水化壳体积 shell_volume	115620 Å³
包络直径 envelope_diameter	277.5 Å
壳层 Rg shell_rg	63.36 Å
包络 Rg envelope_rg	80.23 Å
形状 Rg shape_rg	82.56 Å
总 Rg total_rg	82.28 Å
总原子数 total_atoms	37220
残基数 n_residues	4930
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	240.8 Å
Rg (实空间) rg_real	81.43 Å
Rg 误差 (实空间) rg_real_error	1.56 Å
I(0) (实空间) i0_real	4.0740e+09
I(0) 误差 (实空间) i0_real_error	9.5340e+07
Rg (倒空间) rg_reciprocal	78.29 Å
I(0) (倒空间) i0_reciprocal	4056000000.0000
解质量估计 total_estimate	0.8307
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	88.7 Å
偏度 Skewness skewness	0.442
峰度 Kurtosis kurtosis	-0.579
角度范围 angular_range	— – 0.0950 Å⁻¹
当前正则化参数 α current_alpha	0.0269
最高正则化参数 α highest_alpha	57260000.0000
实空间数据点数 n_real_points	20
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.937; Stabil: 0.991; Sysdev: 1.000; Positv: 1.000; Valcen: 0.933; Smooth: 0.067

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Dihydrolipoyl dehydrogenase
分子量 formula_weight	50208.4 kDa
EC 编号 ec_number	1.8.1.4
来源方法 src_method	man
拷贝数 entity_count	10

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J
原子数 atom_count	40176

ADQPIDADVTVIGSGPGGYVAAIKAAQLGFKTVCIEKNETLGGTCLNVGCIPSKALLNNSHYYHMAHGTDFASRGIEMSEVRLNLDKMMEQKSTAVKALTGGIAHLFKQNKVVHVNGYGKITGKNQVTATKADGGTQVIDTKNILIATGSEVTPFPGITIDEDTIVSSTGALSLKKVPEKMVVIGAGVIGVELGSVWQRLGADVTAVEFLGHVGGVGIDMEISKNFQRILQKQGFKFKLNTKVTGATKKSDGKIDVSIEAASGGKAEVITCDVLLVCIGRRPFTKNLGLEELGIELDPRGRIPVNTRFQTKIPNIYAIGDVVAGPMLAHKAEDEGIICVEGMAGGAVHIDYNCVPSVIYTHPEVAWVGKSEEQLKEEGIEYKVGKFPFAANSRAKTNADTDGMVKILGQKSTDRVLGAHILGPGAGEMVNEAALALEYGASCEDIARVCHAHPTLSEAFREANLAASFGKSINF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Pyruvate dehydrogenase protein X component
分子量 formula_weight	7150.2 kDa
突变 mutation	K120G,T176L
来源方法 src_method	man
拷贝数 entity_count	5

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K,L,M,N,O

GEHIPGTLRFRLSPAARNILEKHSLDASQGTATGPRGIFTKEDALKLVQLKQTGKILEHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21

Entity 3 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	39

Entity 4 non-polymer

描述 description	FLAVIN-ADENINE DINUCLEOTIDE
分子量 formula_weight	785.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	10

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1776

▼

6. 折叠分类 (SCOP + CATH) 35 domains

CATH v4.4 (35 domains)

结构域编号 domain_id	2f5zA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2f5zA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2f5zA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	390 — Enolase-like; domain 1
同源超家族 H-superfamily homologous superfamily	30 — FAD/NAD-linked reductase, C-terminal dimerisation domain

结构域编号 domain_id	2f5zB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2f5zB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2f5zB03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	390 — Enolase-like; domain 1
同源超家族 H-superfamily homologous superfamily	30 — FAD/NAD-linked reductase, C-terminal dimerisation domain

结构域编号 domain_id	2f5zC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2f5zC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2f5zC03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	390 — Enolase-like; domain 1
同源超家族 H-superfamily homologous superfamily	30 — FAD/NAD-linked reductase, C-terminal dimerisation domain

结构域编号 domain_id	2f5zD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2f5zD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2f5zD03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	390 — Enolase-like; domain 1
同源超家族 H-superfamily homologous superfamily	30 — FAD/NAD-linked reductase, C-terminal dimerisation domain

结构域编号 domain_id	2f5zE01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2f5zE02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2f5zE03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	390 — Enolase-like; domain 1
同源超家族 H-superfamily homologous superfamily	30 — FAD/NAD-linked reductase, C-terminal dimerisation domain

结构域编号 domain_id	2f5zF01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2f5zF02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2f5zF03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	390 — Enolase-like; domain 1
同源超家族 H-superfamily homologous superfamily	30 — FAD/NAD-linked reductase, C-terminal dimerisation domain

结构域编号 domain_id	2f5zG01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2f5zG02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2f5zG03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	390 — Enolase-like; domain 1
同源超家族 H-superfamily homologous superfamily	30 — FAD/NAD-linked reductase, C-terminal dimerisation domain

结构域编号 domain_id	2f5zH01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2f5zH02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2f5zH03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	390 — Enolase-like; domain 1
同源超家族 H-superfamily homologous superfamily	30 — FAD/NAD-linked reductase, C-terminal dimerisation domain

结构域编号 domain_id	2f5zI01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2f5zI02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2f5zI03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	390 — Enolase-like; domain 1
同源超家族 H-superfamily homologous superfamily	30 — FAD/NAD-linked reductase, C-terminal dimerisation domain

结构域编号 domain_id	2f5zJ01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2f5zJ02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2f5zJ03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	390 — Enolase-like; domain 1
同源超家族 H-superfamily homologous superfamily	30 — FAD/NAD-linked reductase, C-terminal dimerisation domain

结构域编号 domain_id	2f5zK00
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	320 — Dihydrolipoamide Transferase
同源超家族 H-superfamily homologous superfamily	10 — E3-binding domain

结构域编号 domain_id	2f5zL00
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	320 — Dihydrolipoamide Transferase
同源超家族 H-superfamily homologous superfamily	10 — E3-binding domain

结构域编号 domain_id	2f5zM00
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	320 — Dihydrolipoamide Transferase
同源超家族 H-superfamily homologous superfamily	10 — E3-binding domain

结构域编号 domain_id	2f5zN00
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	320 — Dihydrolipoamide Transferase
同源超家族 H-superfamily homologous superfamily	10 — E3-binding domain

结构域编号 domain_id	2f5zO00
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	320 — Dihydrolipoamide Transferase
同源超家族 H-superfamily homologous superfamily	10 — E3-binding domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	171.153 Å
晶胞边长 b length_b	187.728 Å
晶胞边长 c length_c	224.392 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	40

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.180 Å
最低分辨率 resolution_low	37.400 Å
R 因子 r_factor	0.2050
R_work r_work	0.2050
R_free r_free	0.2420

Crystal Structure of Human Dihydrolipoamide Dehydrogenase (E3) Complexed to the E3-Binding Domain of Human E3-Binding Protein

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

精修参数 Refinement

衍射实验 Diffraction

5. 实体与聚合体信息 (5)

Entity 1 polymer

聚合体 Polymer

来源 Source

Entity 2 polymer

聚合体 Polymer

来源 Source

Entity 3 non-polymer

Entity 4 non-polymer

Entity 5 water

6. 折叠分类 (SCOP + CATH) 35 domains

CATH v4.4 (35 domains)

7. 引用文献 (1)

8. 文件与曲线 (10)

Files (7)

Curves (3)

fit	/app/data/saxs_computation/f5/2f5z/2f5z.fit
pddf	/app/data/pr_computation/f5/2f5z/2f5z.pr.out
profile	/app/data/saxs_computation/f5/2f5z/2f5z.dat
