SAXSdb — 2f8t

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2f8t
沉积日期 deposition_date	2005-12-03
结构标题 title	Crystal structure of Aa-Ago with externally-bound siRNA
关键词 keywords	Argonaute, siRNA, RISC loading complex, RNA BINDING PROTEIN-RNA COMPLEX; RNA BINDING PROTEIN/RNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	45.62 Å
回转半径 Rg (电子) rg_electron	43.62 Å
零角强度 I(0) i0	492687000.00
分子量 molecular_weight	182070.0 kDa
排除体积 excluded_volume	228250 Å³
包络体积 envelope_volume	323550 Å³
水化壳体积 shell_volume	63553 Å³
包络直径 envelope_diameter	171.8 Å
壳层 Rg shell_rg	46.92 Å
包络 Rg envelope_rg	43.53 Å
形状 Rg shape_rg	43.48 Å
总 Rg total_rg	44.27 Å
总原子数 total_atoms	12790
残基数 n_residues	1458
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	166.0 Å
Rg (实空间) rg_real	45.88 Å
Rg 误差 (实空间) rg_real_error	1.60 Å
I(0) (实空间) i0_real	4.9270e+08
I(0) 误差 (实空间) i0_real_error	9.6740e+06
Rg (倒空间) rg_reciprocal	45.62 Å
I(0) (倒空间) i0_reciprocal	492500000.0000
解质量估计 total_estimate	0.8432
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	47.4 Å
偏度 Skewness skewness	0.490
峰度 Kurtosis kurtosis	-0.139
角度范围 angular_range	— – 0.1750 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	43140000.0000
实空间数据点数 n_real_points	36
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.733; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.843; Smooth: 0.916

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	26-MER
分子量 formula_weight	8281.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	C,D
原子数 atom_count	12841

AGACAGCAUGCAUGCAUGCUGUCUUU

Entity 2 polymer

描述 description	Argonaute protein
分子量 formula_weight	83264.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B

MGKEALLNLYRIEYRPKDTTFTVFKPTHEIQKEKLNKVRWRVFLQTGLPTFRREDEFWCAGKVEKDTLYLTLSNGEIVELKRVGEEEFRGFQNERECQELFRDFLTKTKVKDKFISDFYKKFRDKITVQGKNRKIALIPEVNEKVLKSEEGYFLLHLDLKFRIQPFETLQTLLERNDFNPKRIRVKPIGIDFVGRVQDVFKAKEKGEEFFRLCMERSTHKSSKKAWEELLKNRELREKAFLVVLEKGYTYPATILKPVLTYENLEDEERNEVADIVRMEPGKRLNLIRYILRRYVKALRDYGWYISPEEERAKGKLNFKDTVLDAKGKNTKVITNLRKFLELCRPFVKKDVLSVEIISVSVYKKLEWRKEEFLKELINFLKNKGIKLKIKGKSLILAQTREEAKEKLIPVINKIKDVDLVIVFLEEYPKVDPYKSFLLYDFVKRELLKKMIPSQVILNRTLKNENLKFVLLNVAEQVLAKTGNIPYKLKEIEGKVDAFVGIDISRITRDGKTVNAVAFTKIFNSKGELVRYYLTSYPAFGEKLTEKAIGDVFSLLEKLGFKKGSKIVVHRDGRLYRDEVAAFKKYGELYGYSLELLEIIKRNNPRFFSNEKFIKGYFYKLSEDSVILATYNQVYEGTHQPIKVRKVYGELPVEVLCSQILSLTLMNYSSFQPIKLPATVHYSDKITKLMLRGIEPIKKEGDIMYWL

来源 Source

来源生物 organism	Aquifex aeolicus
NCBI 分类编号 ncbi_taxonomy_id	63363
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	51

▼

6. 折叠分类 (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

结构域编号 domain_id	d2f8ta1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.34 — SH3-like barrel
超家族 Superfamily superfamily	b.34.14 — PAZ domain
家族 Family family	b.34.14.1 — PAZ domain

结构域编号 domain_id	d2f8ta3
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.44 — Phosphotyrosine protein phosphatases I-like
超家族 Superfamily superfamily	c.44.3 — PIWI domain N-terminal-like
家族 Family family	c.44.3.1 — PIWI domain N-terminal

结构域编号 domain_id	d2f8ta4
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.55 — Ribonuclease H-like motif
超家族 Superfamily superfamily	c.55.3 — Ribonuclease H-like
家族 Family family	c.55.3.15 — PIWI domain C-terminal

结构域编号 domain_id	d2f8tb1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.34 — SH3-like barrel
超家族 Superfamily superfamily	b.34.14 — PAZ domain
家族 Family family	b.34.14.1 — PAZ domain

结构域编号 domain_id	d2f8tb3
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.44 — Phosphotyrosine protein phosphatases I-like
超家族 Superfamily superfamily	c.44.3 — PIWI domain N-terminal-like
家族 Family family	c.44.3.1 — PIWI domain N-terminal

结构域编号 domain_id	d2f8tb4
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.55 — Ribonuclease H-like motif
超家族 Superfamily superfamily	c.55.3 — Ribonuclease H-like
家族 Family family	c.55.3.15 — PIWI domain C-terminal

CATH v4.4 (6 domains)

结构域编号 domain_id	2f8tA02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	340 — PAZ domain fold
同源超家族 H-superfamily homologous superfamily	10 — PAZ domain superfamily

结构域编号 domain_id	2f8tA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	2300 — Response regulator

结构域编号 domain_id	2f8tA04
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	10 — Ribonuclease H-like superfamily/Ribonuclease H

结构域编号 domain_id	2f8tB02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	340 — PAZ domain fold
同源超家族 H-superfamily homologous superfamily	10 — PAZ domain superfamily

结构域编号 domain_id	2f8tB03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	2300 — Response regulator

结构域编号 domain_id	2f8tB04
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	10 — Ribonuclease H-like superfamily/Ribonuclease H

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	81.200 Å
晶胞边长 b length_b	118.077 Å
晶胞边长 c length_c	98.498 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	99.57 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	3.100 Å
最低分辨率 resolution_low	40.000 Å
R 因子 r_factor	0.2087
R_work r_work	0.2040
R_free r_free	0.2969

fit	/app/data/saxs_computation/f8/2f8t/2f8t.fit
pddf	/app/data/pr_computation/f8/2f8t/2f8t.pr.out
profile	/app/data/saxs_computation/f8/2f8t/2f8t.dat

Crystal structure of Aa-Ago with externally-bound siRNA

SAXS 散射曲线 SAXS Profile

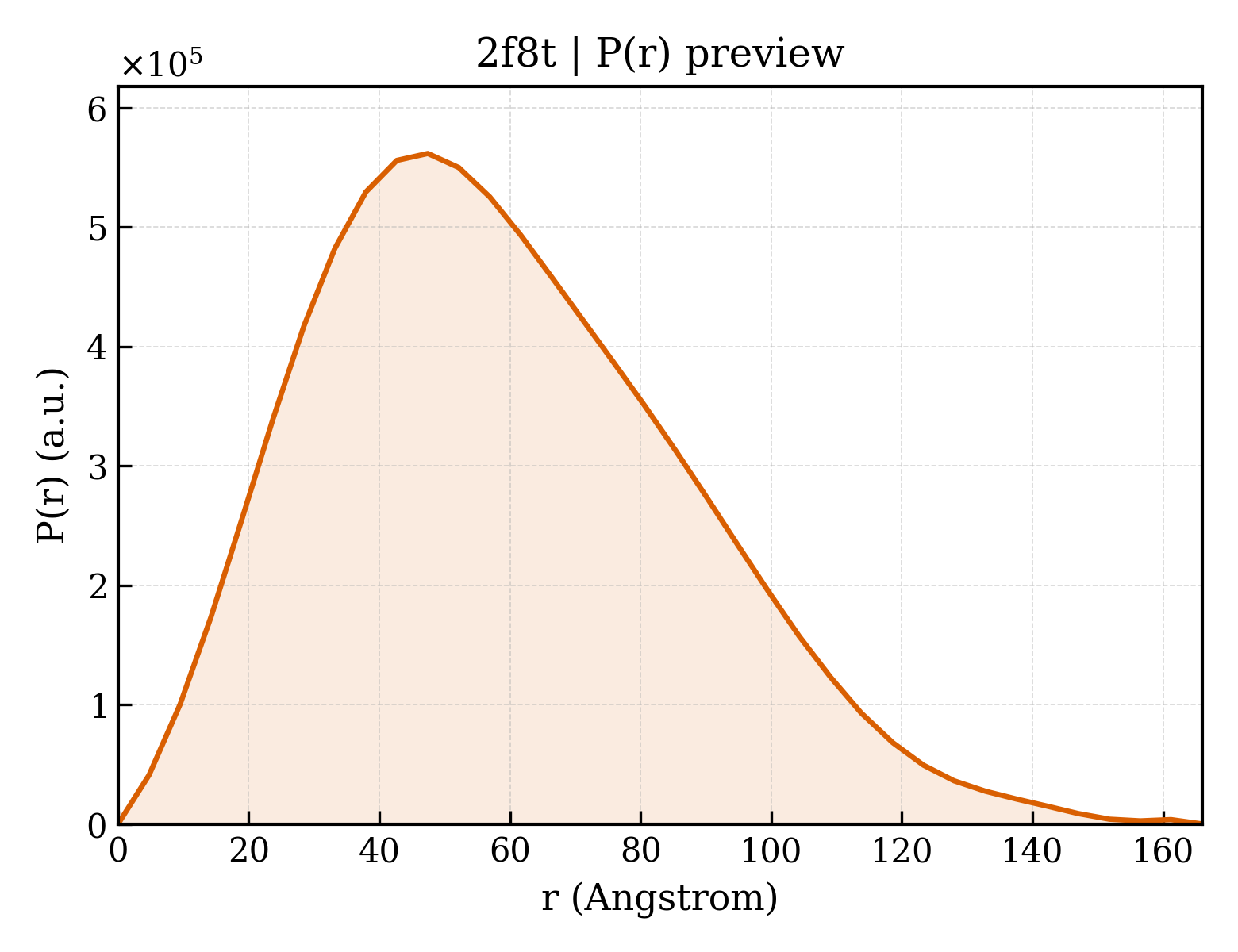

P(r) 距离分布 P(r) Distribution
