SAXSdb — 2fdj

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Alkylated DNA repair protein alkB

Escherichia coli K12

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	FE (II) ION × 1 SUCCINIC ACID × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ALKB_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–206； UniProt 12–216

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2fdj
Deposition date deposition_date	2005-12-14
Structure title title	Crystal Structure of AlkB in complex with Fe(II) and succinate
Keywords keywords	;beta jellyroll, Structural Genomics, PSI, Protein Structure Initiative, Northeast Structural Genomics Consortium, NESG, OXIDOREDUCTASE ;; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2fdj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

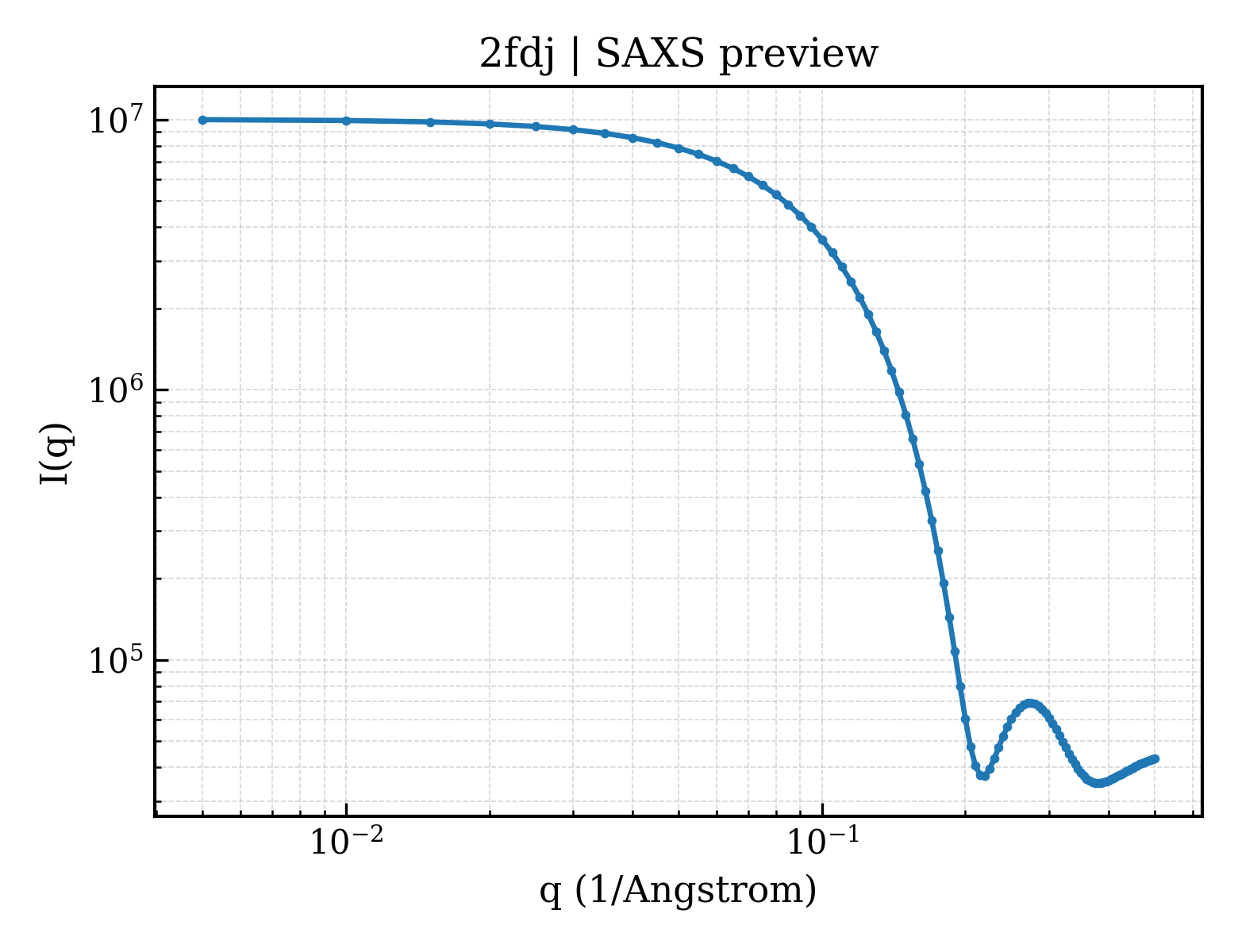

2fdj__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

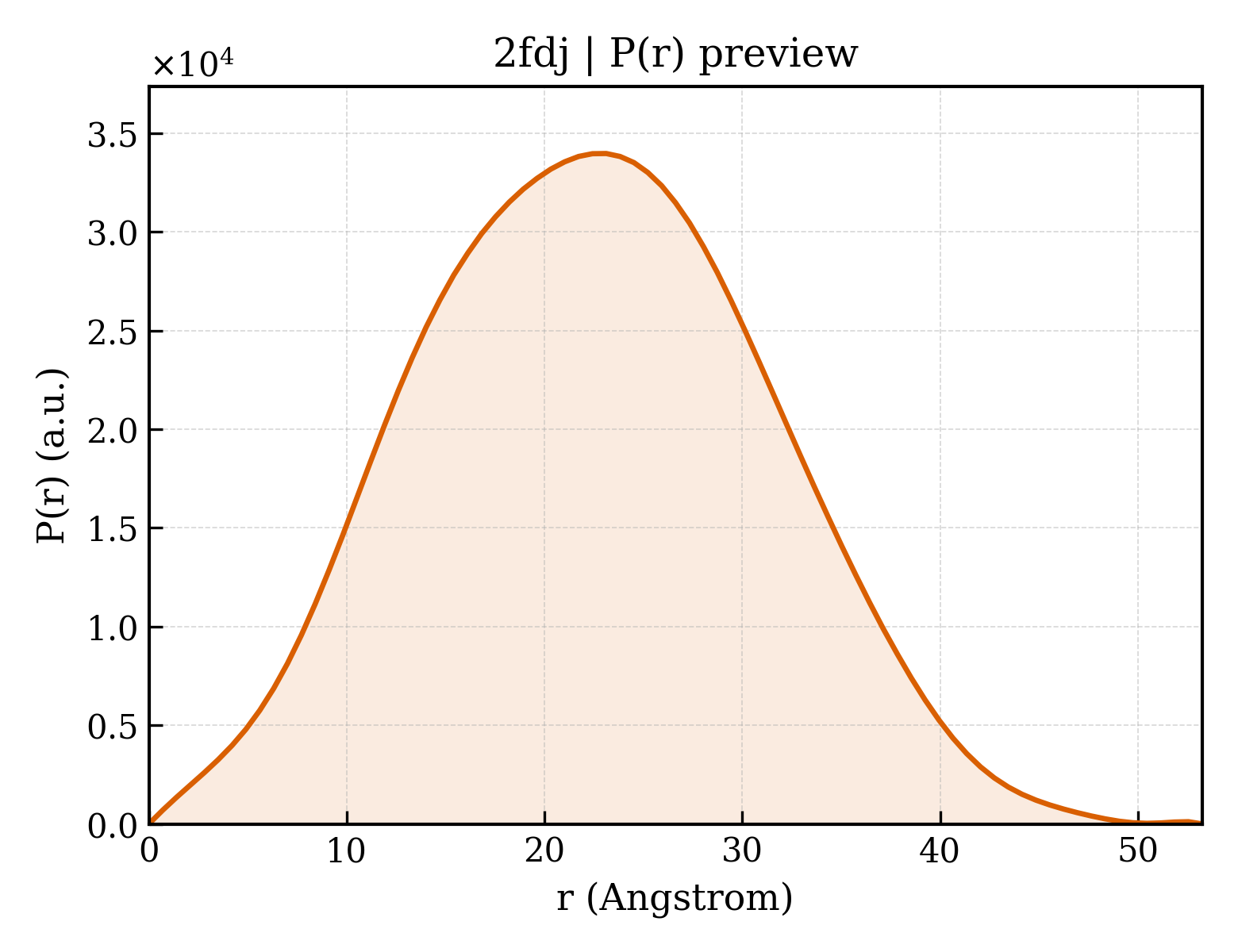

2fdj__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.17 Å
Rg (electron density)	16.05 Å
Total Rg	17.13 Å
Atom count	1636
Residues	208
Excluded volume	29021 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2fdj__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Alkylated DNA repair protein alkB
Molecular weight formula_weight	23611.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1895

MQEPLAAGAVILRRFAFNAAEQLIRDINDVASQSPFRQMVTPGGYTMSVAMTNCGHLGWTTHRQGYLYSPIDPQTNKPWPAMPQSFHNLCQRAATAAGYPDFQPDACLINRYAPGAKLSLHQDKDEPDLRAPIVSVSLGLPAIFQFGGLKRNDPLKRLLLEHGDVVVWGGESRLFYHGIQPLKAGFHPLTIDCRYNLTFRQAGKKENLYFQ

Source Source

Source organism organism	Escherichia coli K12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	FE (II) ION
Molecular weight formula_weight	55.8 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	SUCCINIC ACID
Molecular weight formula_weight	118.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	259

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2fdja2
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.2 — Clavaminate synthase-like
Family Family family	b.82.2.10 — AlkB-like

Domain ID domain_id	d2fdja3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	2fdjA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	590 — Alpha-ketoglutarate-dependent dioxygenase AlkB-like

▶

Unit-cell length a length_a	36.769 Å
Unit-cell length b length_b	38.705 Å
Unit-cell length c length_c	40.261 Å
Unit-cell angle α angle_alpha	75.65 °
Unit-cell angle β angle_beta	74.65 °
Unit-cell angle γ angle_gamma	66.23 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	19.160 Å
R factor r_factor	—
R_work r_work	0.1780
R_free r_free	0.2290
