2fhj

Crystal structure of formylmethanofuran: tetrahydromethanopterin formyltransferase in complex with its coenzymes

Method: X-RAY DIFFRACTION D_max: 89.8 Å Quality: EXCELLENT

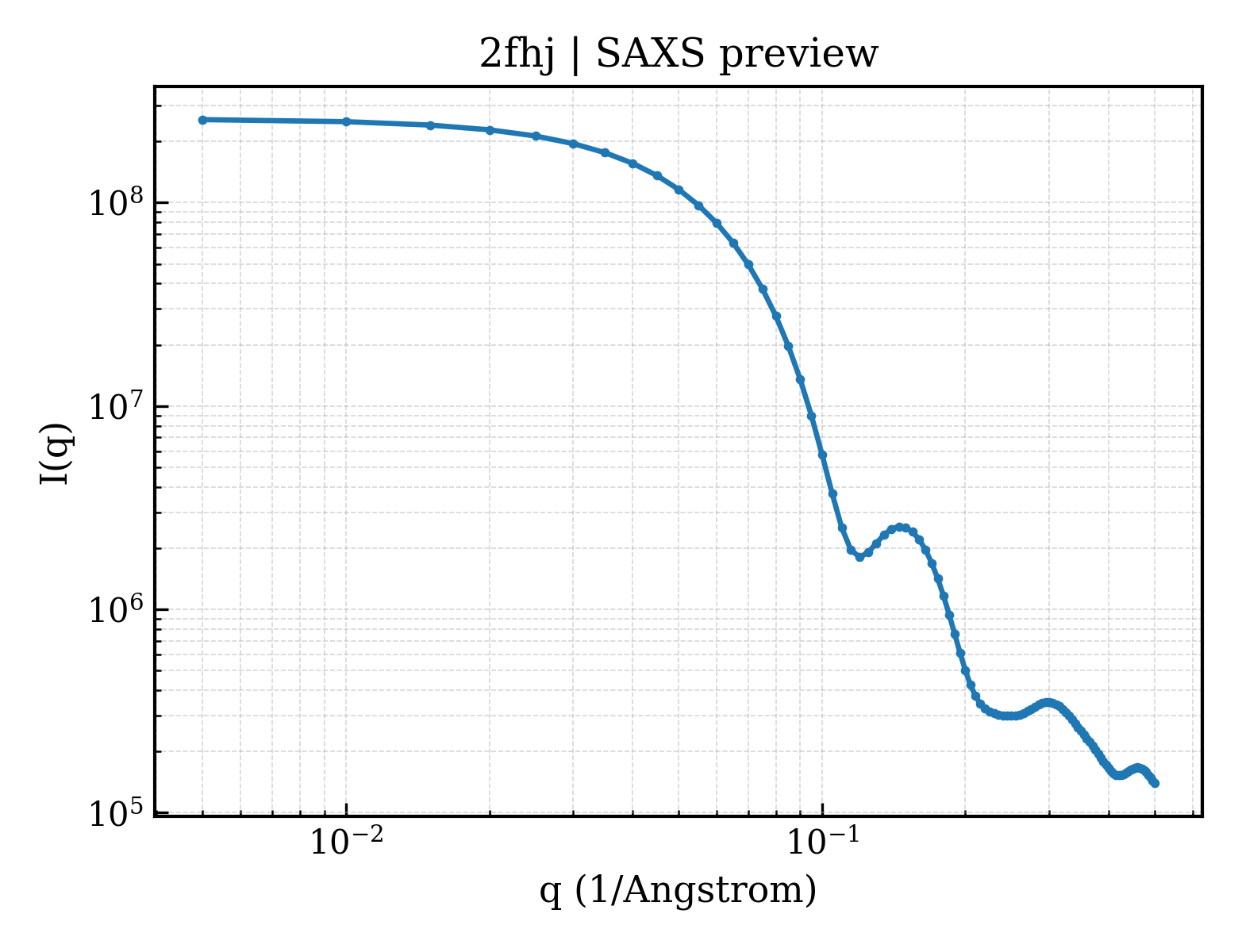

SAXS 散射曲线 SAXS Profile

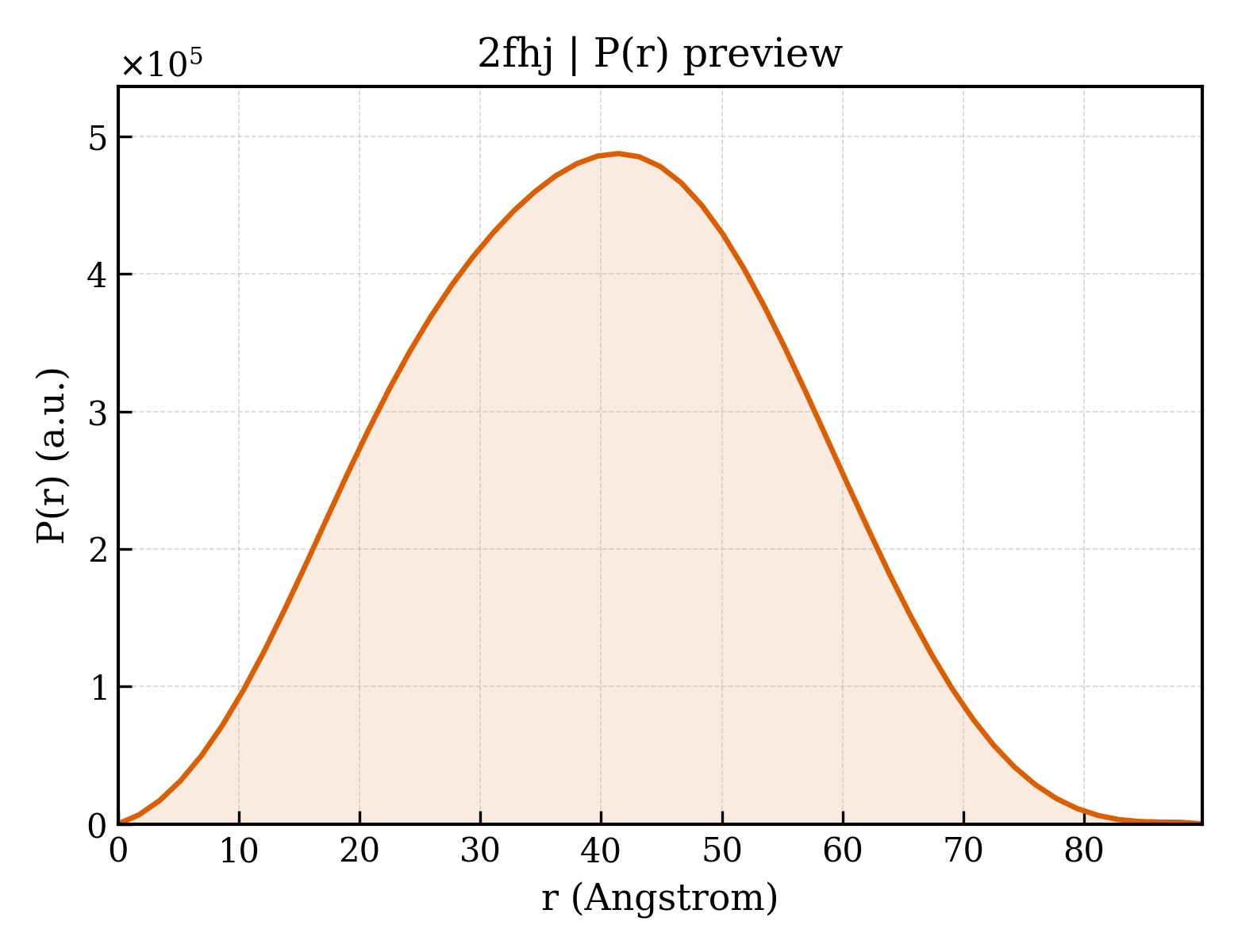

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2fhj
沉积日期 deposition_date	2005-12-25
结构标题 title	Crystal structure of formylmethanofuran: tetrahydromethanopterin formyltransferase in complex with its coenzymes
关键词 keywords	tetrahydromethanopterin; methanofuran; C1 metabolism; formyltransferase; complex, TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	30.47 Å
回转半径 Rg (电子) rg_electron	29.06 Å
零角强度 I(0) i0	257971000.00
分子量 molecular_weight	129160.0 kDa
排除体积 excluded_volume	161550 Å³
包络体积 envelope_volume	183510 Å³
水化壳体积 shell_volume	49279 Å³
包络直径 envelope_diameter	94.6 Å
壳层 Rg shell_rg	38.78 Å
包络 Rg envelope_rg	29.13 Å
形状 Rg shape_rg	29.13 Å
总 Rg total_rg	29.68 Å
总原子数 total_atoms	9045
残基数 n_residues	1183
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	89.8 Å
Rg (实空间) rg_real	30.22 Å
Rg 误差 (实空间) rg_real_error	0.40 Å
I(0) (实空间) i0_real	2.5800e+08
I(0) 误差 (实空间) i0_real_error	3.3480e+06
Rg (倒空间) rg_reciprocal	30.33 Å
I(0) (倒空间) i0_reciprocal	258000000.0000
解质量估计 total_estimate	0.9055
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	41.4 Å
偏度 Skewness skewness	0.038
峰度 Kurtosis kurtosis	-0.556
角度范围 angular_range	— – 0.2600 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	110100000.0000
实空间数据点数 n_real_points	53
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.947; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.968; Smooth: 0.957

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (8)

Entity 1 polymer

描述 description	Formylmethanofuran--tetrahydromethanopterin formyltransferase
分子量 formula_weight	31686.4 kDa
EC 编号 ec_number	2.3.1.101
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C
原子数 atom_count	9818

MEINGVEIEDTFAEAFEAKMARVLITAASHKWAMIAVKEATGFGTSVIMCPAEAGIDCGYVPPEETPDGRPGVTIMIGHNDEDELKEQLLDRIGQCVMTAPTASAFDAMPEAEKEDEDRVGYKLSFFGDGYQEEDELDGRKVWKIPVVEGEFIVEDSFGITTGVAGGNFYIMAESQPAGLQAAEAAVDAIKGVEGAYAPFPGGIVASASKVGSKQYDFLPASTNDAYCPTVEDNELPEGVKCVYEIVINGLNEEAVKEAMRVGIEAACQQPGVVKISAGNFGGKLGQYEIHLHDLF

来源 Source

来源生物 organism	Methanopyrus kandleri
NCBI 分类编号 ncbi_taxonomy_id	2320
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

描述 description	Formylmethanofuran--tetrahydromethanopterin formyltransferase
分子量 formula_weight	31702.4 kDa
EC 编号 ec_number	2.3.1.101
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

来源 Source

来源生物 organism	Methanopyrus kandleri
NCBI 分类编号 ncbi_taxonomy_id	2320
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 non-polymer

描述 description	POTASSIUM ION
分子量 formula_weight	39.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	17

Entity 4 non-polymer

描述 description	N-[4,5,7-TRICARBOXYHEPTANOYL]-L-GAMMA-GLUTAMYL-N-{2-[4-({5-[(FORMYLAMINO)METHYL]-3-FURYL}METHOXY)PHENYL]ETHYL}-D-GLUTAMINE
分子量 formula_weight	776.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 5 non-polymer

描述 description	;5-(4-{[1-(2-AMINO-5-FORMYL-7-METHYL-4-OXO-3,4,5,6,7,8-HEXAHYDROPTERIDIN-6-YL)ETHYL]AMINO}PHENYL)-5-DEOXY-1-O-{5-O-[(1,3-DICARBOXYPROPOXY)(HYDROXY)PHOSPHORYL]PENTOFURANOSYL}PENTITOL ;
分子量 formula_weight	804.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 6 non-polymer

描述 description	2-{2-[2-(2-{2-[2-(2-ETHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL
分子量 formula_weight	354.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 7 non-polymer

描述 description	3,6,9,12,15,18,21,24,27,30,33,36,39-TRIDECAOXAHENTETRACONTANE-1,41-DIOL
分子量 formula_weight	634.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 8 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	451

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d2fhja1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.33 — Formylmethanofuran:tetrahydromethanopterin formyltransferase
家族 Family family	d.58.33.1 — Formylmethanofuran:tetrahydromethanopterin formyltransferase

结构域编号 domain_id	d2fhja2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.33 — Formylmethanofuran:tetrahydromethanopterin formyltransferase
家族 Family family	d.58.33.1 — Formylmethanofuran:tetrahydromethanopterin formyltransferase

结构域编号 domain_id	d2fhjb1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.33 — Formylmethanofuran:tetrahydromethanopterin formyltransferase
家族 Family family	d.58.33.1 — Formylmethanofuran:tetrahydromethanopterin formyltransferase

结构域编号 domain_id	d2fhjb2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.33 — Formylmethanofuran:tetrahydromethanopterin formyltransferase
家族 Family family	d.58.33.1 — Formylmethanofuran:tetrahydromethanopterin formyltransferase

结构域编号 domain_id	d2fhjc1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.33 — Formylmethanofuran:tetrahydromethanopterin formyltransferase
家族 Family family	d.58.33.1 — Formylmethanofuran:tetrahydromethanopterin formyltransferase

结构域编号 domain_id	d2fhjc2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.33 — Formylmethanofuran:tetrahydromethanopterin formyltransferase
家族 Family family	d.58.33.1 — Formylmethanofuran:tetrahydromethanopterin formyltransferase

结构域编号 domain_id	d2fhjd1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.33 — Formylmethanofuran:tetrahydromethanopterin formyltransferase
家族 Family family	d.58.33.1 — Formylmethanofuran:tetrahydromethanopterin formyltransferase

结构域编号 domain_id	d2fhjd2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.33 — Formylmethanofuran:tetrahydromethanopterin formyltransferase
家族 Family family	d.58.33.1 — Formylmethanofuran:tetrahydromethanopterin formyltransferase

CATH v4.4 (8 domains)

结构域编号 domain_id	2fhjA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	520 —

结构域编号 domain_id	2fhjA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	520 —

结构域编号 domain_id	2fhjB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	520 —

结构域编号 domain_id	2fhjB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	520 —

结构域编号 domain_id	2fhjC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	520 —

结构域编号 domain_id	2fhjC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	520 —

结构域编号 domain_id	2fhjD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	520 —

结构域编号 domain_id	2fhjD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	520 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	85.000 Å
晶胞边长 b length_b	74.150 Å
晶胞边长 c length_c	103.870 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	113.54 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	6

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.000 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.2210
R_work r_work	0.2190
R_free r_free	0.2560

fit	/app/data/saxs_computation/fh/2fhj/2fhj.fit
pddf	/app/data/pr_computation/fh/2fhj/2fhj.pr.out
profile	/app/data/saxs_computation/fh/2fhj/2fhj.dat
