2fja
;adenosine 5'-phosphosulfate reductase in complex with substrate ;

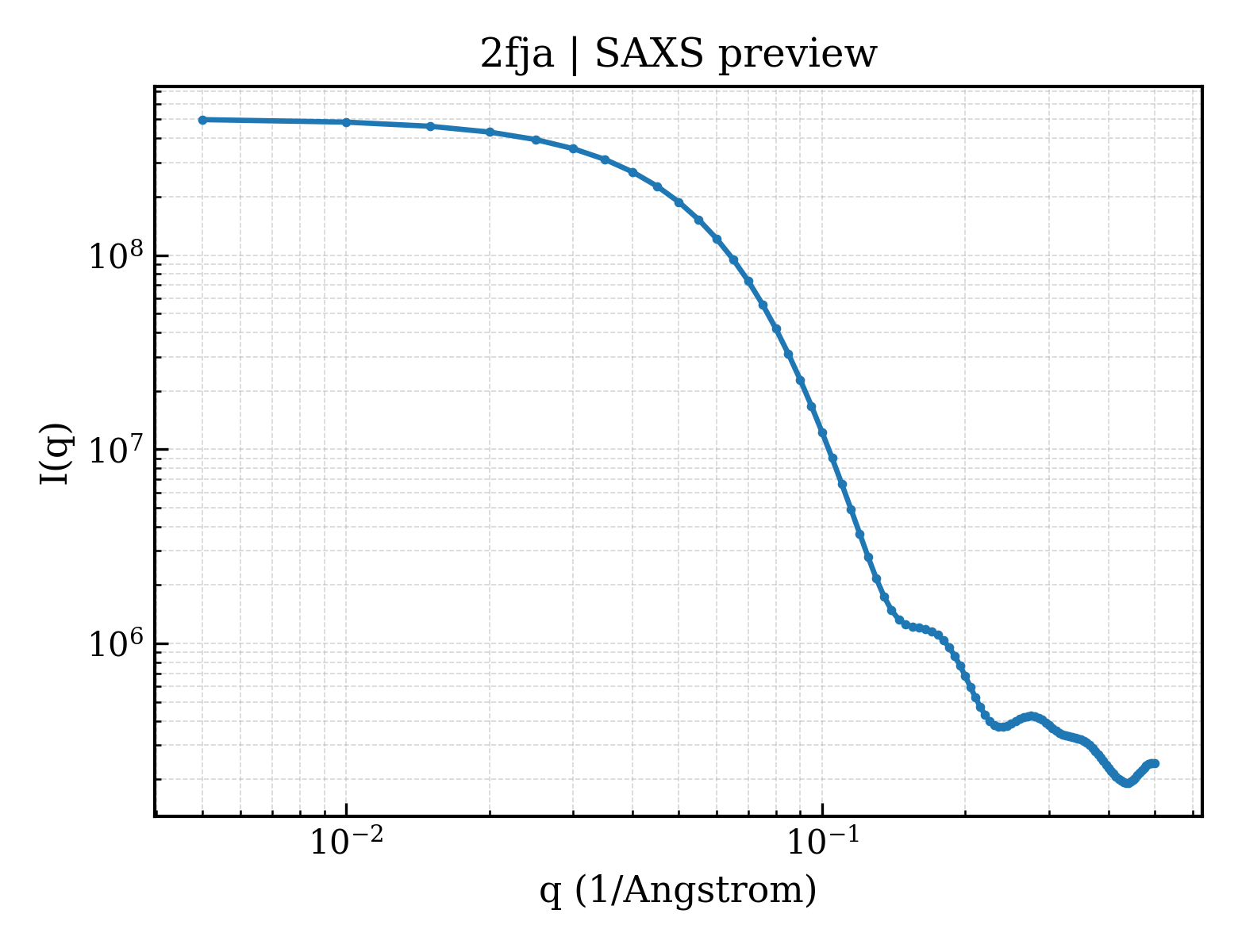

SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2fja |
| 沉积日期 deposition_date | 2006-01-02 |
| 结构标题 title | ;adenosine 5'-phosphosulfate reductase in complex with substrate ; |
| 关键词 keywords | APS reductase, adenylyl-phosphosulfate reductase, sulfur cycle, OXIDOREDUCTASE; OXIDOREDUCTASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 34.30 Å |
| 回转半径 Rg (电子) rg_electron | 33.88 Å |
| 零角强度 I(0) i0 | 502952000.00 |
| 分子量 molecular_weight | 183640.0 kDa |
| 排除体积 excluded_volume | 229630 ų |
| 包络体积 envelope_volume | 258030 ų |
| 水化壳体积 shell_volume | 60241 ų |
| 包络直径 envelope_diameter | 120.6 Å |
| 壳层 Rg shell_rg | 42.81 Å |
| 包络 Rg envelope_rg | 34.27 Å |
| 形状 Rg shape_rg | 33.90 Å |
| 总 Rg total_rg | 34.36 Å |
| 总原子数 total_atoms | 12861 |
| 残基数 n_residues | 1582 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 113.3 Å |
| Rg (实空间) rg_real | 34.26 Å |
| Rg 误差 (实空间) rg_real_error | 0.76 Å |
| I(0) (实空间) i0_real | 5.0300e+08 |
| I(0) 误差 (实空间) i0_real_error | 7.9390e+06 |
| Rg (倒空间) rg_reciprocal | 34.29 Å |
| I(0) (倒空间) i0_reciprocal | 503000000.0000 |
| 解质量估计 total_estimate | 0.8782 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 39.4 Å |
| 偏度 Skewness skewness | 0.365 |
| 峰度 Kurtosis kurtosis | -0.269 |
| 角度范围 angular_range | — – 0.2300 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 294000000.0000 |
| 实空间数据点数 n_real_points | 47 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.829; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.929 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (6)
6. 折叠分类 (SCOP + CATH) 12 domains
SCOP 2.08 (2 domains)
| 结构域编号 domain_id | d2fjab_ |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.58 — Ferredoxin-like |
| 超家族 Superfamily superfamily | d.58.1 — 4Fe-4S ferredoxins |
| 家族 Family family | d.58.1.5 — Ferredoxin domains from multidomain proteins |
| 结构域编号 domain_id | d2fjad_ |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.58 — Ferredoxin-like |
| 超家族 Superfamily superfamily | d.58.1 — 4Fe-4S ferredoxins |
| 家族 Family family | d.58.1.5 — Ferredoxin domains from multidomain proteins |
CATH v4.4 (10 domains)
| 结构域编号 domain_id | 2fjaA01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 50 — 3-Layer(bba) Sandwich |
| 拓扑 Topology topology | 50 — FAD/NAD(P)-binding domain |
| 同源超家族 H-superfamily homologous superfamily | 60 — FAD/NAD(P)-binding domain |
| 结构域编号 domain_id | 2fjaA02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 90 — Alpha-Beta Complex |
| 拓扑 Topology topology | 700 — Flavocytochrome C3; Chain A, domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Succinate dehydrogenase/fumarate reductase flavoprotein, catalytic domain |
| 结构域编号 domain_id | 2fjaA03 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 100 — Fumarate reductase/succinate dehydrogenase flavoprotein-like, C-terminal domain |
| 结构域编号 domain_id | 2fjaB01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 70 — Alpha-Beta Plaits |
| 同源超家族 H-superfamily homologous superfamily | 20 — |
| 结构域编号 domain_id | 2fjaB02 |
| 类 Class class | 6 — Special |
| 架构 Architecture architecture | 20 — Other non-globular |
| 拓扑 Topology topology | 260 — Signal recognition particle alu RNA binding heterodimer, srp9/1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Adenylylsulphate reductase, beta subunit, C-terminal domain |
| 结构域编号 domain_id | 2fjaC01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 50 — 3-Layer(bba) Sandwich |
| 拓扑 Topology topology | 50 — FAD/NAD(P)-binding domain |
| 同源超家族 H-superfamily homologous superfamily | 60 — FAD/NAD(P)-binding domain |
| 结构域编号 domain_id | 2fjaC02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 90 — Alpha-Beta Complex |
| 拓扑 Topology topology | 700 — Flavocytochrome C3; Chain A, domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Succinate dehydrogenase/fumarate reductase flavoprotein, catalytic domain |
| 结构域编号 domain_id | 2fjaC03 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 100 — Fumarate reductase/succinate dehydrogenase flavoprotein-like, C-terminal domain |
| 结构域编号 domain_id | 2fjaD01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 70 — Alpha-Beta Plaits |
| 同源超家族 H-superfamily homologous superfamily | 20 — |
| 结构域编号 domain_id | 2fjaD02 |
| 类 Class class | 6 — Special |
| 架构 Architecture architecture | 20 — Other non-globular |
| 拓扑 Topology topology | 260 — Signal recognition particle alu RNA binding heterodimer, srp9/1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Adenylylsulphate reductase, beta subunit, C-terminal domain |
