2fli

The crystal structure of D-ribulose 5-phosphate 3-epimerase from Streptococus pyogenes complexed with D-xylitol 5-phosphate

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ribulose-phosphate 3-epimerase

Streptococcus pyogenes

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	ZINC ION × 6 D-XYLITOL-5-PHOSPHATE × 6 water × 6	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 6	ZINC ION × 6 D-XYLITOL-5-PHOSPHATE × 6 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9A1H8_STRP1
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–220； UniProt 1–220 Author chain B； PDBConstruct 1–220； UniProt 1–220 Author chain C； PDBConstruct 1–220； UniProt 1–220 Author chain D； PDBConstruct 1–220； UniProt 1–220 Author chain E； PDBConstruct 1–220； UniProt 1–220 Author chain F； PDBConstruct 1–220； UniProt 1–220 Author chain G； PDBConstruct 1–220； UniProt 1–220 Author chain H； PDBConstruct 1–220； UniProt 1–220 Author chain I； PDBConstruct 1–220； UniProt 1–220 Author chain J； PDBConstruct 1–220； UniProt 1–220 Author chain K； PDBConstruct 1–220； UniProt 1–220 Author chain L； PDBConstruct 1–220； UniProt 1–220

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2fli
Deposition date deposition_date	2006-01-06
Structure title title	The crystal structure of D-ribulose 5-phosphate 3-epimerase from Streptococus pyogenes complexed with D-xylitol 5-phosphate
Keywords keywords	D-ribulose 5-phosphate 3-epimerase, (beta/alpha)8-barrel, D-xylitol 5-phosphate, ISOMERASE; ISOMERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2fli__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2fli__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

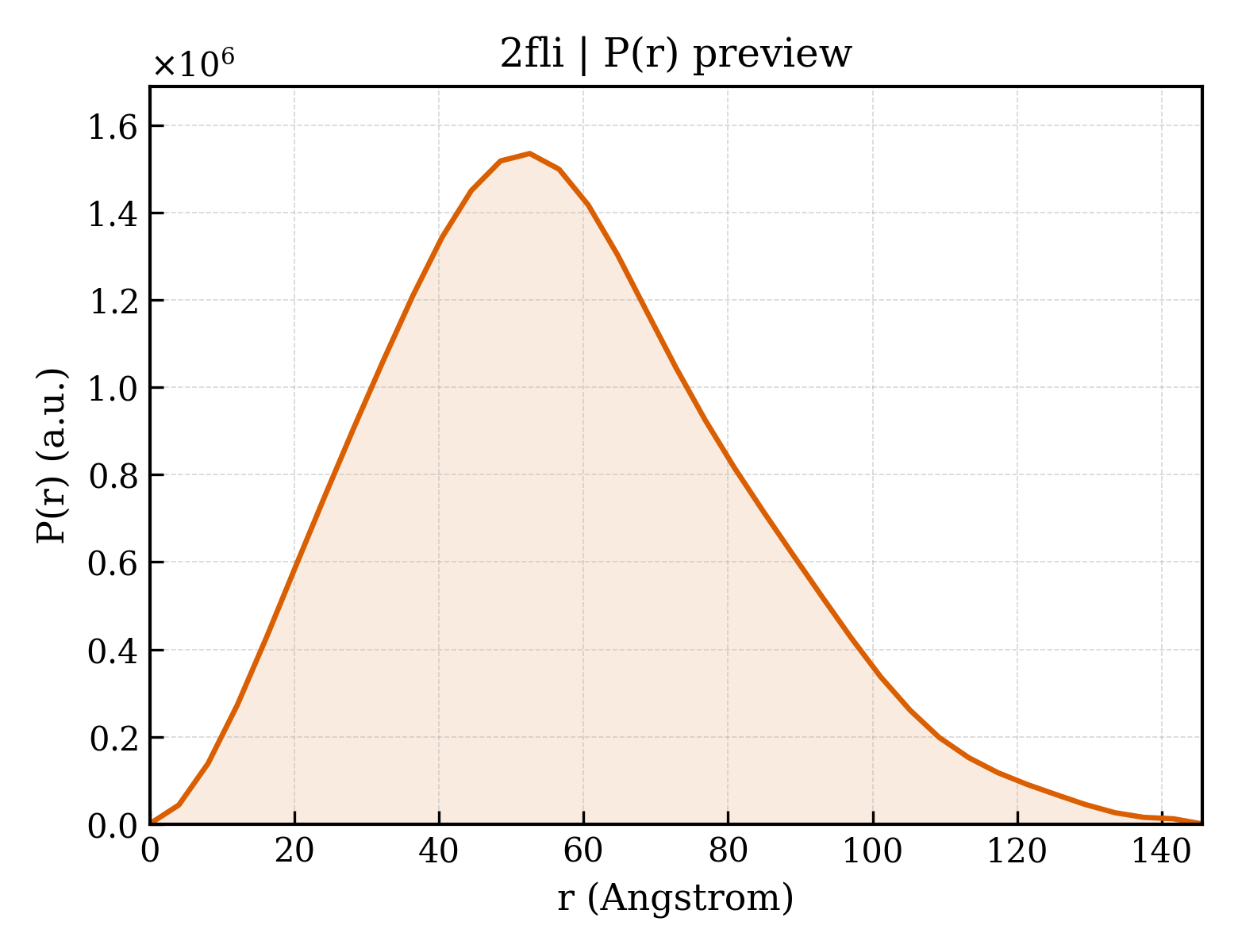

2fli__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.80 Å
Rg (electron density)	31.74 Å
Total Rg	32.33 Å
Atom count	9954
Residues	1302
Excluded volume	178070 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2fli__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2fli__assembly_2__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	ribulose-phosphate 3-epimerase
Molecular weight formula_weight	23766.2 kDa
EC 编号 ec_number	5.1.3.-
Source method src_method	man
Copy count entity_count	12

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L
Atom count atom_count	20886

MSTLKIAPSILAADYANFASELARIEETDAEYVHIDIMDGQFVPNISFGADVVASMRKHSKLVFDCHLMVVDPERYVEAFAQAGADIMTIHTESTRHIHGALQKIKAAGMKAGVVINPGTPATALEPLLDLVDQVLIMTVNPGFGGQAFIPECLEKVATVAKWRDEKGLSFDIEVDGGVDNKTIRACYEAGANVFVAGSYLFKASDLVSQVQTLRTALNV

Source Source

Source organism organism	Streptococcus pyogenes
NCBI taxonomy ID ncbi_taxonomy_id	1314
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 3 Entity 3 non-polymer

Description description	D-XYLITOL-5-PHOSPHATE
Molecular weight formula_weight	232.1 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	968

▼

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d2flia1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.2 — Ribulose-phoshate binding barrel
Family Family family	c.1.2.2 — D-ribulose-5-phosphate 3-epimerase

Domain ID domain_id	d2flib_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.2 — Ribulose-phoshate binding barrel
Family Family family	c.1.2.0 — automated matches

Domain ID domain_id	d2flic_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.2 — Ribulose-phoshate binding barrel
Family Family family	c.1.2.0 — automated matches

Domain ID domain_id	d2flid_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.2 — Ribulose-phoshate binding barrel
Family Family family	c.1.2.0 — automated matches

Domain ID domain_id	d2flie_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.2 — Ribulose-phoshate binding barrel
Family Family family	c.1.2.0 — automated matches

Domain ID domain_id	d2flif_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.2 — Ribulose-phoshate binding barrel
Family Family family	c.1.2.0 — automated matches

Domain ID domain_id	d2flig_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.2 — Ribulose-phoshate binding barrel
Family Family family	c.1.2.0 — automated matches

Domain ID domain_id	d2flih_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.2 — Ribulose-phoshate binding barrel
Family Family family	c.1.2.0 — automated matches

Domain ID domain_id	d2flii_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.2 — Ribulose-phoshate binding barrel
Family Family family	c.1.2.0 — automated matches

Domain ID domain_id	d2flij_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.2 — Ribulose-phoshate binding barrel
Family Family family	c.1.2.0 — automated matches

Domain ID domain_id	d2flik_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.2 — Ribulose-phoshate binding barrel
Family Family family	c.1.2.0 — automated matches

Domain ID domain_id	d2flil_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.2 — Ribulose-phoshate binding barrel
Family Family family	c.1.2.0 — automated matches

CATH v4.4 (12 domains)

Domain ID domain_id	2fliA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	2fliB00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	2fliC00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	2fliD00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	2fliE00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	2fliF00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	2fliG00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	2fliH00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	2fliI00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	2fliJ00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	2fliK00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	2fliL00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

▶

Unit-cell length a length_a	80.022 Å
Unit-cell length b length_b	199.449 Å
Unit-cell length c length_c	87.622 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	109.76 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	24.990 Å
R factor r_factor	0.2270
R_work r_work	0.2240
R_free r_free	0.2560
