SAXSdb — 2fo5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cysteine proteinase EP-B 2

Hordeum vulgare

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	ACE-LEU-LEU-argininal (leupeptin) × 1 SULFATE ION × 3 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	ACE-LEU-LEU-argininal (leupeptin) × 1 SULFATE ION × 2 water × 1	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	ACE-LEU-LEU-argininal (leupeptin) × 1 SULFATE ION × 2 water × 1	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 2	ACE-LEU-LEU-argininal (leupeptin) × 1 SULFATE ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CYSP2_HORVU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–243； UniProt 133–375 Author chain B； PDBConstruct 1–243； UniProt 133–375 Author chain C； PDBConstruct 1–243； UniProt 133–375 Author chain D； PDBConstruct 1–243； UniProt 133–375

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2fo5
Deposition date deposition_date	2006-01-12
Structure title title	Crystal structure of recombinant barley cysteine endoprotease B isoform 2 (EP-B2) in complex with leupeptin
Keywords keywords	EP-B2, EPB2, EPB, cysteine endoprotease, endopeptidase, leupeptin, HYDROLASE, HYDROLASE-HYDROLASE INHIBITOR COMPLEX; HYDROLASE/HYDROLASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2fo5__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2fo5__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

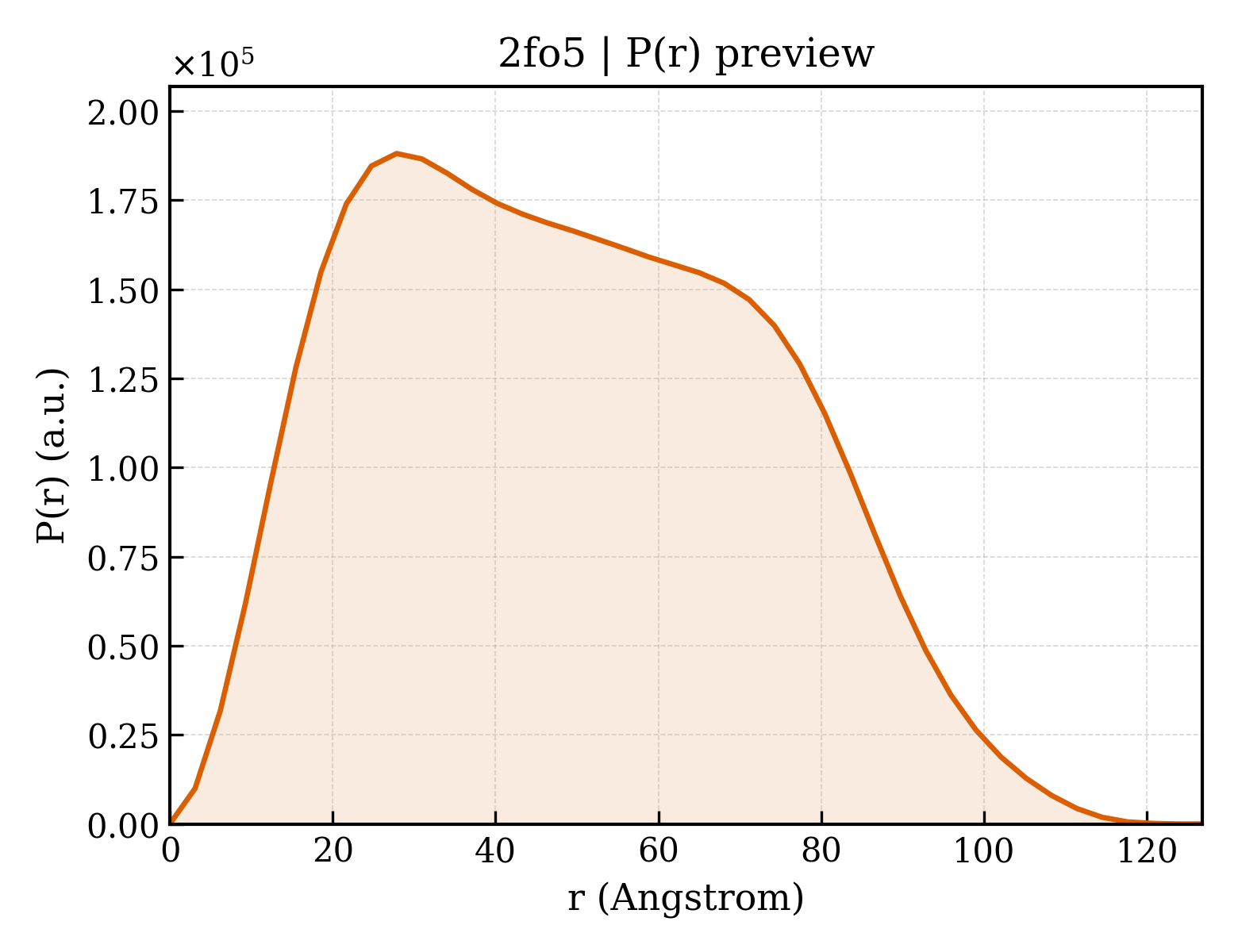

2fo5__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.85 Å
Rg (electron density)	16.59 Å
Total Rg	17.61 Å
Atom count	1700
Residues	226
Excluded volume	29672 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2fo5__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2fo5__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`2fo5__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`2fo5__assembly_4__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Cysteine proteinase EP-B 2
Molecular weight formula_weight	27759.7 kDa
EC 编号 ec_number	3.4.22.-
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	7294

VSDLPPSVDWRQKGAVTGVKDQGKCGSCWAFSTVVSVEGINAIRTGSLVSLSEQELIDCDTADNDGCQGGLMDNAFEYIKNNGGLITEAAYPYRAARGTCNVARAAQNSPVVVHIDGHQDVPANSEEDLARAVANQPVSVAVEASGKAFMFYSEGVFTGECGTELDHGVAVVGYGVAEDGKAYWTVKNSWGPSWGEQGYIRVEKDSGASGGLCGIAMEASYPVKTYSKPKPTPRRALGARESLNSSSVDKLAAALEHHHHHH

Source Source

Source organism organism	Hordeum vulgare
NCBI taxonomy ID ncbi_taxonomy_id	4513
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 polymer

Description description	ACE-LEU-LEU-argininal (leupeptin)
Molecular weight formula_weight	429.6 kDa
Source method src_method	syn
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F,G,H

XLLR

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	9

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	509

▼

6. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	2fo5A00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	70 — Cathepsin B; Chain A
Homologous superfamily homologous superfamily	10 — Cysteine proteinases

Domain ID domain_id	2fo5B00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	70 — Cathepsin B; Chain A
Homologous superfamily homologous superfamily	10 — Cysteine proteinases

Domain ID domain_id	2fo5C00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	70 — Cathepsin B; Chain A
Homologous superfamily homologous superfamily	10 — Cysteine proteinases

Domain ID domain_id	2fo5D00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	70 — Cathepsin B; Chain A
Homologous superfamily homologous superfamily	10 — Cysteine proteinases

▶

Unit-cell length a length_a	44.370 Å
Unit-cell length b length_b	51.730 Å
Unit-cell length c length_c	115.655 Å
Unit-cell angle α angle_alpha	86.32 °
Unit-cell angle β angle_beta	86.46 °
Unit-cell angle γ angle_gamma	79.63 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	15.000 Å
R factor r_factor	—
R_work r_work	0.2010
R_free r_free	0.2330
