SAXSdb — 2fp7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Genome polyprotein

West Nile virus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	N-benzoyl-L-norleucyl-L-lysyl-N-[(2S)-5-carbamimidamido-1-hydroxypentan-2-yl]-L-argininamide × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	POLG_WNV
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 7–53； UniProt 1420–1466 Author chain B； PDBConstruct 1–172； UniProt 1517–1688

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2fp7
Deposition date deposition_date	2006-01-16
Structure title title	West Nile Virus NS2B/NS3protease in complex with Bz-Nle-Lys-Arg-Arg-H
Keywords keywords	Flavivirus, NS3 protease, NS2B cofactor, substrate-based inhibitor, HYDROLASE-HYDROLASE INHIBITOR COMPLEX; HYDROLASE/HYDROLASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2fp7__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

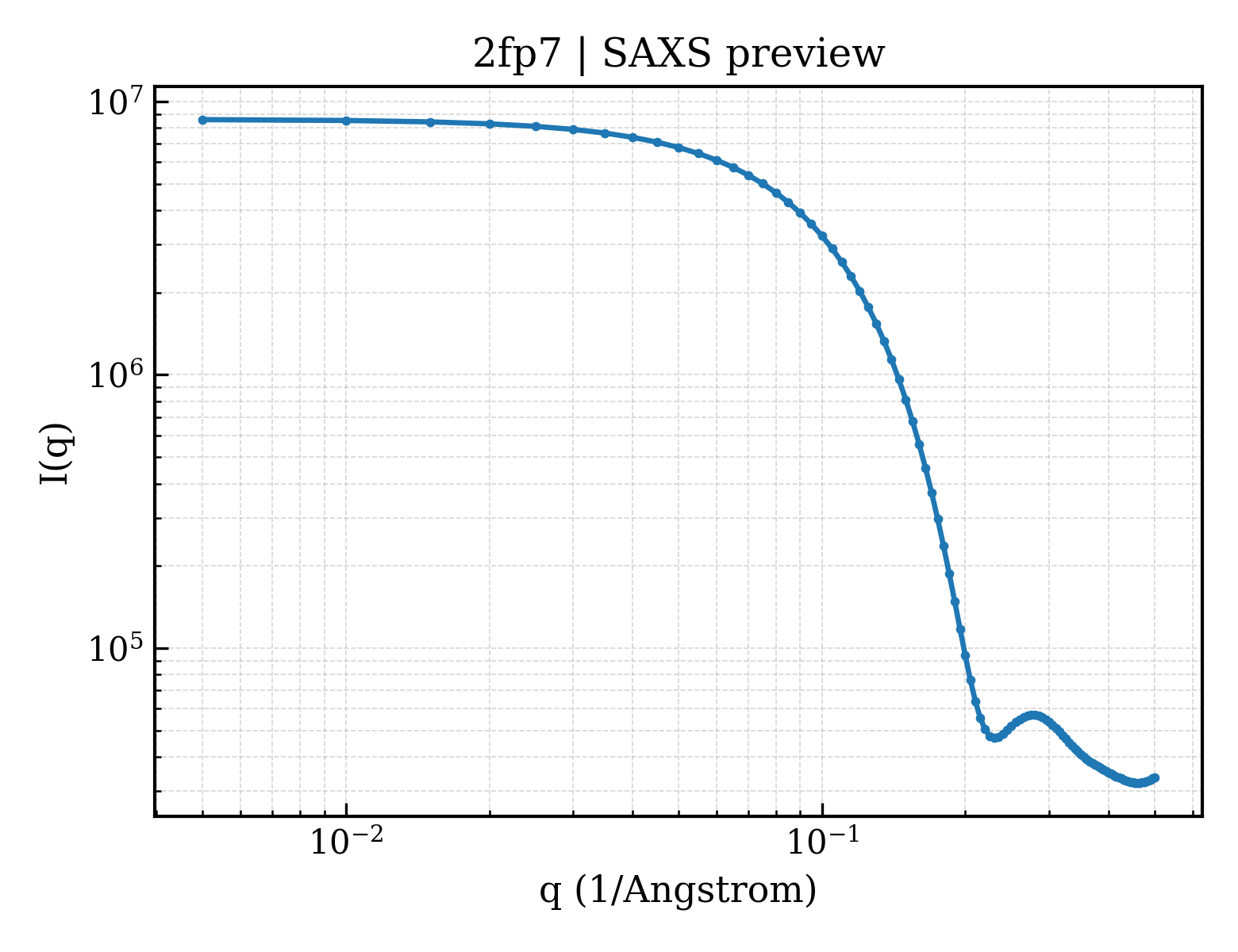

2fp7__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

2fp7__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	16.88 Å
Rg (electron density)	15.56 Å
Total Rg	16.70 Å
Atom count	1486
Residues	189
Excluded volume	26238 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2fp7__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Genome polyprotein
Molecular weight formula_weight	6101.6 kDa
EC 编号 ec_number	3.4.21.91,3.6.1.15,3.6.4.13,2.1.1.56,2.1.1.57,2.7.7.48
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1619

GSHMLETDMWIERTADITWESDAEITGSSERVDVRLDDDGNFQLMNDPGAPWKG

Source Source

Source organism organism	West Nile virus
Common name common_name	WNV
NCBI taxonomy ID ncbi_taxonomy_id	11082
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Genome polyprotein
Molecular weight formula_weight	18588.1 kDa
EC 编号 ec_number	3.4.21.91,3.6.1.15,3.6.4.13,2.1.1.56,2.1.1.57,2.7.7.48
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

GDTTTGVYRIMTRGLLGSYQAGAGVMVEGVFHTLWHTTKGAALMSGEGRLDPYWGSVKEDRLCYGGPWKLQHKWNGHDEVQMIVVEPGKNVKNVQTKPGVFKTPEGEIGAVTLDYPTGTSGSPIVDKNGDVIGLYGNGVIMPNGSYISAIVQGERMEEPAPAGFEPEMLRKK

Source Source

Source organism organism	West Nile virus
Common name common_name	WNV
NCBI taxonomy ID ncbi_taxonomy_id	11082
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	N-benzoyl-L-norleucyl-L-lysyl-N-[(2S)-5-carbamimidamido-1-hydroxypentan-2-yl]-L-argininamide
Molecular weight formula_weight	663.9 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

XLKRR

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	133

▼

6. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d2fp7a1
Class class	g — Small proteins
Fold Fold fold	g.96 — Flavivirus non-structural protein NS2B-like
Superfamily Superfamily superfamily	g.96.1 — Flavivirus non-structural protein NS2B-like
Family Family family	g.96.1.1 — Flavivirus non-structural protein NS2B-like

Domain ID domain_id	d2fp7a2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2fp7b1
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.3 — Viral proteases

CATH v4.4 (2 domains)

Domain ID domain_id	2fp7B01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	120 —

Domain ID domain_id	2fp7B02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

▶

Unit-cell length a length_a	93.425 Å
Unit-cell length b length_b	93.425 Å
Unit-cell length c length_c	47.435 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 65
Space-group number int_tables_number	170
Crystal system crystal_system	—

Resolution resolution	1.680 Å
Low-resolution limit resolution_low	46.730 Å
R factor r_factor	0.1825
R_work r_work	0.1805
R_free r_free	0.2188
