SAXSdb — 2fqz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

R.Ecl18kI

Enterobacter cloacae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Homooligomer	Protein 2 DNA 2	DNA STRAND 1 × 1 DNA STRAND 2 × 1 water × 4	Consistent with all polymers
2	Protein–DNA	Homooligomer	Protein 2 DNA 2	DNA STRAND 1 × 1 DNA STRAND 2 × 1 water × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O87963_ENTCL
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 1–305； UniProt 1–305 Author chain B； PDBConstruct 1–305； UniProt 1–305 Author chain C； PDBConstruct 1–305； UniProt 1–305 Author chain D； PDBConstruct 1–305； UniProt 1–305

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2fqz
Deposition date deposition_date	2006-01-18
Structure title title	Metal-depleted Ecl18kI in complex with uncleaved DNA
Keywords keywords	ECL18KI-DNA COMPLEX, TYPE II RESTRICTION ENDONUCLEASE, NUCLEOTIDE FLIPPING, BASE EXTRUSION, Hydrolase-DNA COMPLEX; Hydrolase/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2fqz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2fqz__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

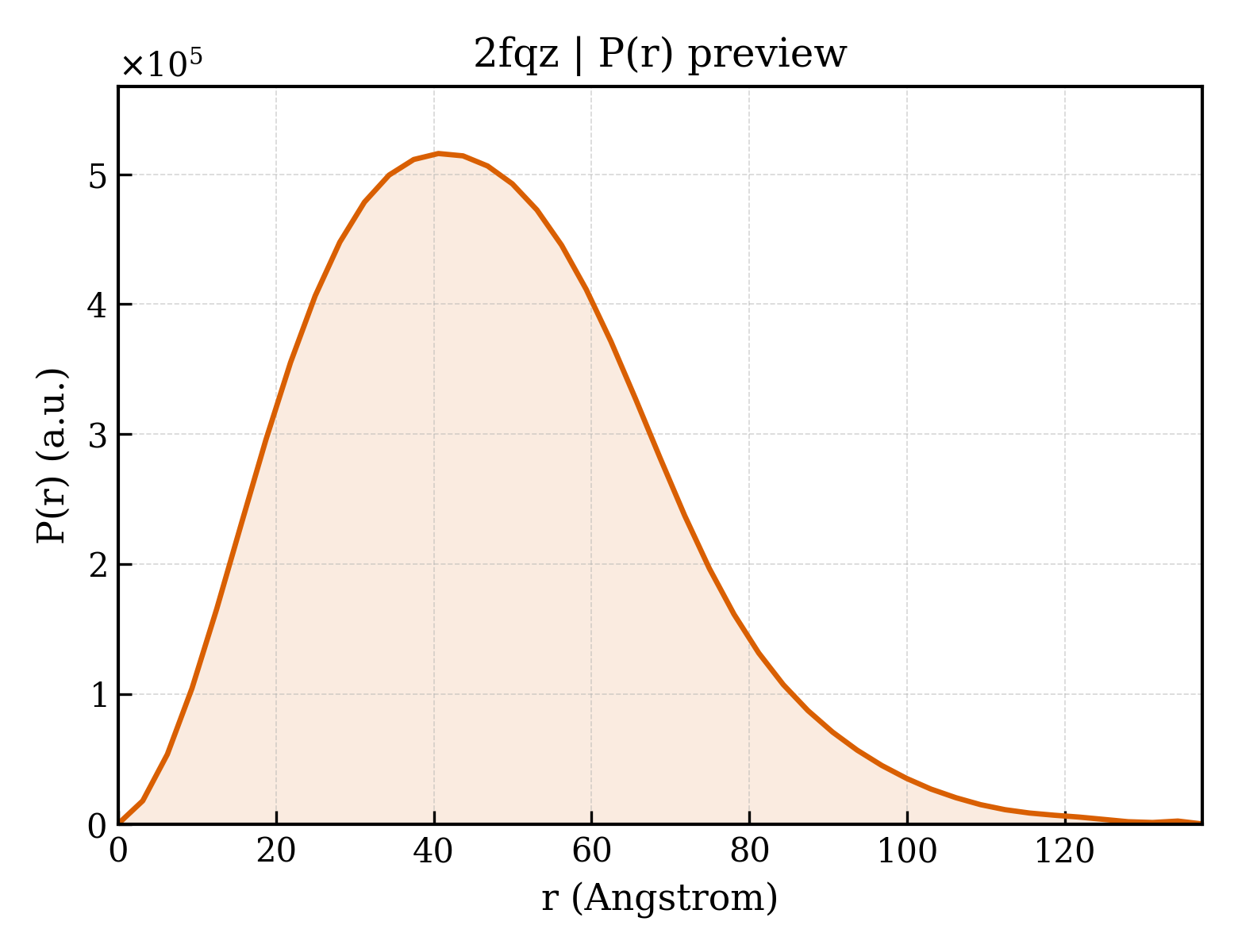

2fqz__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.30 Å
Rg (electron density)	26.82 Å
Total Rg	27.48 Å
Atom count	5177
Residues	601
Excluded volume	91116 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2fqz__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2fqz__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	DNA STRAND 1
Molecular weight formula_weight	2741.8 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	E,G
Atom count atom_count	11645

CGCCAGGGC

Entity 2 Entity 2 polymer

Description description	DNA STRAND 2
Molecular weight formula_weight	2732.8 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	F,H

GCCCTGGCG

Entity 3 Entity 3 polymer

Description description	R.Ecl18kI
Molecular weight formula_weight	35938.8 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D

MQRLSPGEFKTLISKERKSHFITPFALVYKTFCDLGYDQKNSDYFLNNPSEYIIAMRKNCWKEFEPFEKEFTTRMLSYLIDEERIKDMSPYDAIRDFTMEYPTHIYDLALSNTQSRRSRAGKEFESILELLMMGAGIPVDVQGAIGKSFFQKNQIGKLVDLVMPGVVQYTSNKRNTMLISAKTTLRERWQEVPEEVNRTGIREMYLATLDDSFSEETINILYEANVVVVTTVENKNFKYKNNNRVLTFEDMLQSAMELSRKWNNVSYTDSEKEEIQQSILKQIEKYSDFPYVVNYYRNRLSALFD

Source Source

Source organism organism	Enterobacter cloacae
NCBI taxonomy ID ncbi_taxonomy_id	550
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	555

▼

6. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	2fqzA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	91 — Restriction Endonuclease
Homologous superfamily homologous superfamily	80 —

Domain ID domain_id	2fqzB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	91 — Restriction Endonuclease
Homologous superfamily homologous superfamily	80 —

Domain ID domain_id	2fqzC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	91 — Restriction Endonuclease
Homologous superfamily homologous superfamily	80 —

Domain ID domain_id	2fqzD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	91 — Restriction Endonuclease
Homologous superfamily homologous superfamily	80 —

▶

Unit-cell length a length_a	77.371 Å
Unit-cell length b length_b	95.519 Å
Unit-cell length c length_c	190.173 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2200
R_work r_work	0.2100
R_free r_free	0.2600
