2fty

Crystal structure of dihydropyrimidinase from Saccharomyces kluyveri

Method: X-RAY DIFFRACTION D_max: 120.6 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

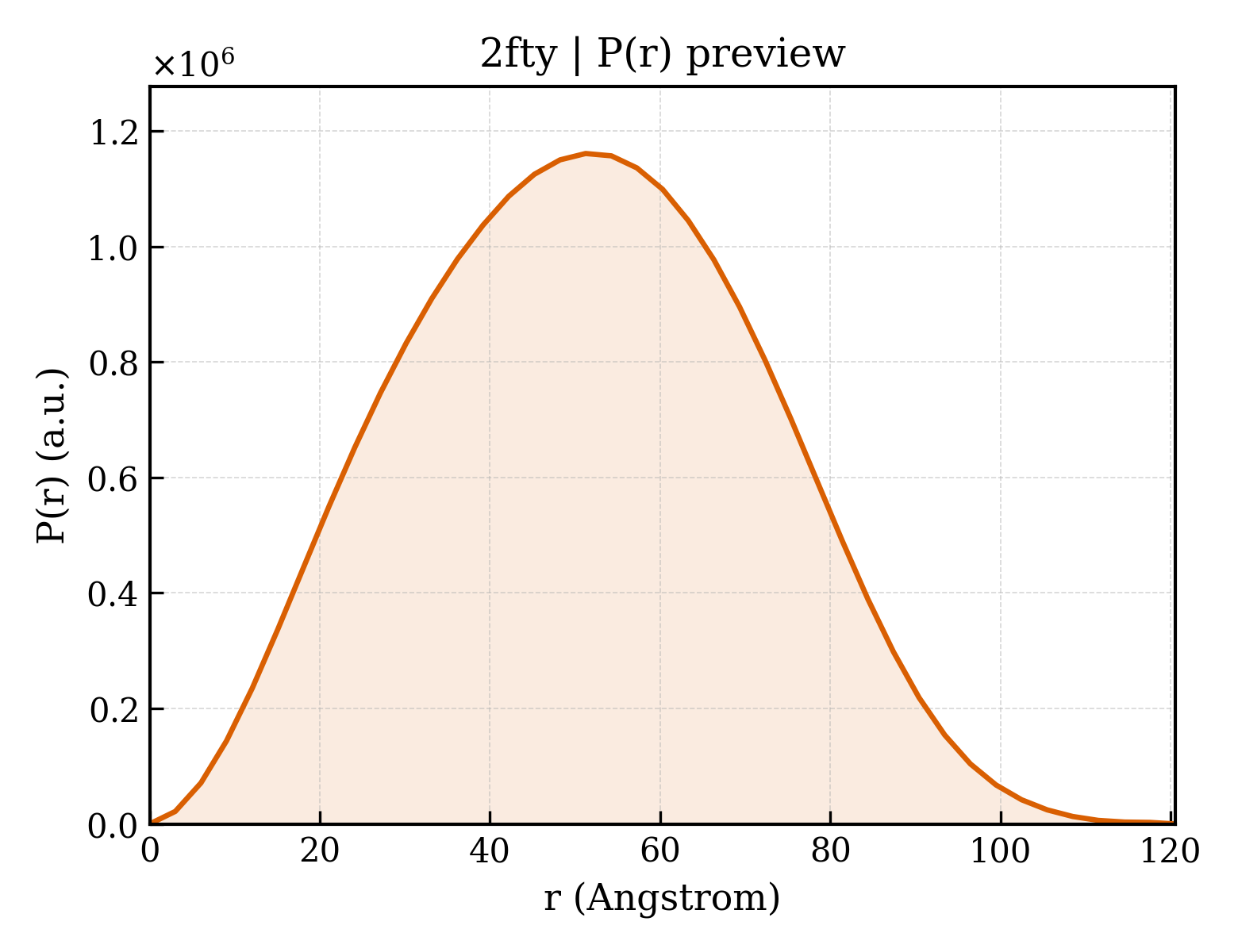

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2fty
沉积日期 deposition_date	2006-01-25
结构标题 title	Crystal structure of dihydropyrimidinase from Saccharomyces kluyveri
关键词 keywords	alpha/beta barrel, beta-sandwich, Hydrolase; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	39.26 Å
回转半径 Rg (电子) rg_electron	38.48 Å
零角强度 I(0) i0	822341000.00
分子量 molecular_weight	236610.0 kDa
排除体积 excluded_volume	296010 Å³
包络体积 envelope_volume	361210 Å³
水化壳体积 shell_volume	73370 Å³
包络直径 envelope_diameter	127.1 Å
壳层 Rg shell_rg	47.96 Å
包络 Rg envelope_rg	38.22 Å
形状 Rg shape_rg	38.52 Å
总 Rg total_rg	38.82 Å
总原子数 total_atoms	16595
残基数 n_residues	2121
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	120.6 Å
Rg (实空间) rg_real	38.96 Å
Rg 误差 (实空间) rg_real_error	0.66 Å
I(0) (实空间) i0_real	8.2230e+08
I(0) 误差 (实空间) i0_real_error	1.2800e+07
Rg (倒空间) rg_reciprocal	39.15 Å
I(0) (倒空间) i0_reciprocal	822500000.0000
解质量估计 total_estimate	0.8995
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	51.2 Å
偏度 Skewness skewness	0.084
峰度 Kurtosis kurtosis	-0.555
角度范围 angular_range	— – 0.2000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	202100000.0000
实空间数据点数 n_real_points	41
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.933; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.978; Smooth: 0.911

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	dihydropyrimidinase
分子量 formula_weight	62325.1 kDa
EC 编号 ec_number	3.5.2.2
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	17311

PIYDLIIKNGIICTASDIYAAEIAVNNGKVQLIAASIDPSLGSEVIDAEGAFITPGGIDAHVHVDEPLKLLGDVVDTMEHATRSAVAGGTTTVVAFSTQDVSKKGPSALAESVKLDVDEYSEQTLYCDYGLHLILFQIEKPSVEARELLDVQLQAAYNDYGVSSVKMFMTYPGLQISDYDIMSAMYATRKNGFTTMLHAENGDMVKWMIEALEEQGLTDAYYHGVSRPSIVEGEATNRAITLATTMDTPILFVHVSSPQAAEVIKQAQTKGLKVYAETCPQYALLSDAITRCHHHGEVESYGVGIDLSSISESPFTNPDDRFIGSKYICSPPIRPEGTQKSIWKGMNNGTFTIVGSDHCSYNYYEKTSTASKHRAFDPENNKNGEFRYIPNGLPGVCTRMPLLYDYGYLRGNLTSMMKLVEIQCTNPAKVYGMYPQKGSILPGVSDADLVIWYPDDSKKEYNSKPKLITNKLMEHNCDYTPFEGIEIKNWPRYTIVKGKIVYKEGEILKENADGKYLKRGKSFMCTPKNEWVTEWRPKYESPGDDDDKHHHHHHHHSGD

来源 Source

来源生物 organism	Lachancea kluyveri
NCBI 分类编号 ncbi_taxonomy_id	4934
宿主生物 host_organism	Escherichia coli BL21

Entity 2 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	681

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d2ftya1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.92 — Composite domain of metallo-dependent hydrolases
超家族 Superfamily superfamily	b.92.1 — Composite domain of metallo-dependent hydrolases
家族 Family family	b.92.1.3 — Hydantoinase (dihydropyrimidinase)

结构域编号 domain_id	d2ftya2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.9 — Metallo-dependent hydrolases
家族 Family family	c.1.9.6 — Hydantoinase (dihydropyrimidinase), catalytic domain

结构域编号 domain_id	d2ftyb1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.92 — Composite domain of metallo-dependent hydrolases
超家族 Superfamily superfamily	b.92.1 — Composite domain of metallo-dependent hydrolases
家族 Family family	b.92.1.3 — Hydantoinase (dihydropyrimidinase)

结构域编号 domain_id	d2ftyb2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.9 — Metallo-dependent hydrolases
家族 Family family	c.1.9.6 — Hydantoinase (dihydropyrimidinase), catalytic domain

结构域编号 domain_id	d2ftyc1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.92 — Composite domain of metallo-dependent hydrolases
超家族 Superfamily superfamily	b.92.1 — Composite domain of metallo-dependent hydrolases
家族 Family family	b.92.1.3 — Hydantoinase (dihydropyrimidinase)

结构域编号 domain_id	d2ftyc2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.9 — Metallo-dependent hydrolases
家族 Family family	c.1.9.6 — Hydantoinase (dihydropyrimidinase), catalytic domain

结构域编号 domain_id	d2ftyd1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.92 — Composite domain of metallo-dependent hydrolases
超家族 Superfamily superfamily	b.92.1 — Composite domain of metallo-dependent hydrolases
家族 Family family	b.92.1.3 — Hydantoinase (dihydropyrimidinase)

结构域编号 domain_id	d2ftyd2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.9 — Metallo-dependent hydrolases
家族 Family family	c.1.9.6 — Hydantoinase (dihydropyrimidinase), catalytic domain

CATH v4.4 (8 domains)

结构域编号 domain_id	2ftyA01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	40 — Urease, subunit C; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Urease, subunit C, domain 1

结构域编号 domain_id	2ftyA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	140 — Metal-dependent hydrolases

结构域编号 domain_id	2ftyB01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	40 — Urease, subunit C; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Urease, subunit C, domain 1

结构域编号 domain_id	2ftyB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	140 — Metal-dependent hydrolases

结构域编号 domain_id	2ftyC01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	40 — Urease, subunit C; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Urease, subunit C, domain 1

结构域编号 domain_id	2ftyC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	140 — Metal-dependent hydrolases

结构域编号 domain_id	2ftyD01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	40 — Urease, subunit C; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Urease, subunit C, domain 1

结构域编号 domain_id	2ftyD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	140 — Metal-dependent hydrolases

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	91.428 Å
晶胞边长 b length_b	73.320 Å
晶胞边长 c length_c	162.181 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	91.59 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.400 Å
最低分辨率 resolution_low	43.850 Å
R 因子 r_factor	0.2200
R_work r_work	0.2171
R_free r_free	0.2737
