SAXSdb — 2fus

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2fus
沉积日期 deposition_date	1997-01-09
结构标题 title	MUTATIONS OF FUMARASE THAT DISTINGUISH BETWEEN THE ACTIVE SITE AND A NEARBY DICARBOXYLIC ACID BINDING SITE
关键词 keywords	;HYDROLYASE, CARBON OXYGEN LYASE, KREB'S CYCLE ENZYME, FUMARATE HYDRATASE ;; HYDROLYASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	36.00 Å
回转半径 Rg (电子) rg_electron	35.34 Å
零角强度 I(0) i0	157592000.00
分子量 molecular_weight	98999.0 kDa
排除体积 excluded_volume	123170 Å³
包络体积 envelope_volume	159410 Å³
水化壳体积 shell_volume	37877 Å³
包络直径 envelope_diameter	110.0 Å
壳层 Rg shell_rg	41.35 Å
包络 Rg envelope_rg	34.80 Å
形状 Rg shape_rg	35.37 Å
总 Rg total_rg	35.63 Å
总原子数 total_atoms	8497
残基数 n_residues	911
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	112.5 Å
Rg (实空间) rg_real	35.90 Å
Rg 误差 (实空间) rg_real_error	0.95 Å
I(0) (实空间) i0_real	1.5760e+08
I(0) 误差 (实空间) i0_real_error	2.7600e+06
Rg (倒空间) rg_reciprocal	35.97 Å
I(0) (倒空间) i0_reciprocal	157600000.0000
解质量估计 total_estimate	0.9069
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	48.6 Å
偏度 Skewness skewness	0.070
峰度 Kurtosis kurtosis	-0.841
角度范围 angular_range	— – 0.2200 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	14230000.0000
实空间数据点数 n_real_points	45
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.943; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.981; Smooth: 0.974

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	FUMARASE C
分子量 formula_weight	50524.7 kDa
EC 编号 ec_number	4.2.1.2
突变 mutation	H129N
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	9610

MNTVRSEKDSMGAIDVPADKLWGAQTQRSLEHFRISTEKMPTSLIHALALTKRAAAKVNEDLGLLSEEKASAIRQAADEVLAGQHDDEFPLAIWQTGSGTQSNMNMNEVLANRASELLGGVRGMERKVNPNDDVNKSQSSNDVFPTAMHVAALLALRKQLIPQLKTLTQTLNEKSRAFADIVKIGRTHLQDATPLTLGQEISGWVAMLEHNLKHIEYSLPHVAELALGGTAVGTGLNTHPEYARRVADELAVITCAPFVTAPNKFEALATCDALVQAHGALKGLAASLMKIANDVRWLASGPRCGIGEISIPENEPGSSIMPGKVNPTQCEALTMLCCQVMGNDVAINMGGASGNFELNVFRPMVIHNFLQSVRLLADGMESFNKHCAVGIEPNRERINQLLNESLMLVTALNTHIGYDKAAEIAKKAHKEGLTLKAAALALGYLSEAEFDSWVRPEQMVGSMKAGR

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	CITRIC ACID
分子量 formula_weight	192.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	371

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d2fusa_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.127 — L-aspartase-like
超家族 Superfamily superfamily	a.127.1 — L-aspartase-like
家族 Family family	a.127.1.1 — L-aspartase/fumarase

结构域编号 domain_id	d2fusb_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.127 — L-aspartase-like
超家族 Superfamily superfamily	a.127.1 — L-aspartase-like
家族 Family family	a.127.1.1 — L-aspartase/fumarase

CATH v4.4 (6 domains)

结构域编号 domain_id	2fusA01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	275 — Fumarase C; Chain B, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (N-terminal domain)

结构域编号 domain_id	2fusA02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	200 — Fumarase C; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

结构域编号 domain_id	2fusA03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	40 — Ribonucleotide Reductase Protein R1; domain 1
同源超家族 H-superfamily homologous superfamily	30 — Fumarase/aspartase (C-terminal domain)

结构域编号 domain_id	2fusB01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	275 — Fumarase C; Chain B, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (N-terminal domain)

结构域编号 domain_id	2fusB02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	200 — Fumarase C; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

结构域编号 domain_id	2fusB03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	40 — Ribonucleotide Reductase Protein R1; domain 1
同源超家族 H-superfamily homologous superfamily	30 — Fumarase/aspartase (C-terminal domain)

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	104.160 Å
晶胞边长 b length_b	220.050 Å
晶胞边长 c length_c	86.650 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	C 2 2 21
空间群编号 int_tables_number	20
晶系 crystal_system	—

分辨率 resolution	2.200 Å
最低分辨率 resolution_low	8.000 Å
R 因子 r_factor	0.1780
R_work r_work	0.1780
R_free r_free	0.2290

fit	/app/data/saxs_computation/fu/2fus/2fus.fit
pddf	/app/data/pr_computation/fu/2fus/2fus.pr.out
profile	/app/data/saxs_computation/fu/2fus/2fus.dat

MUTATIONS OF FUMARASE THAT DISTINGUISH BETWEEN THE ACTIVE SITE AND A NEARBY DICARBOXYLIC ACID BINDING SITE

SAXS 散射曲线 SAXS Profile

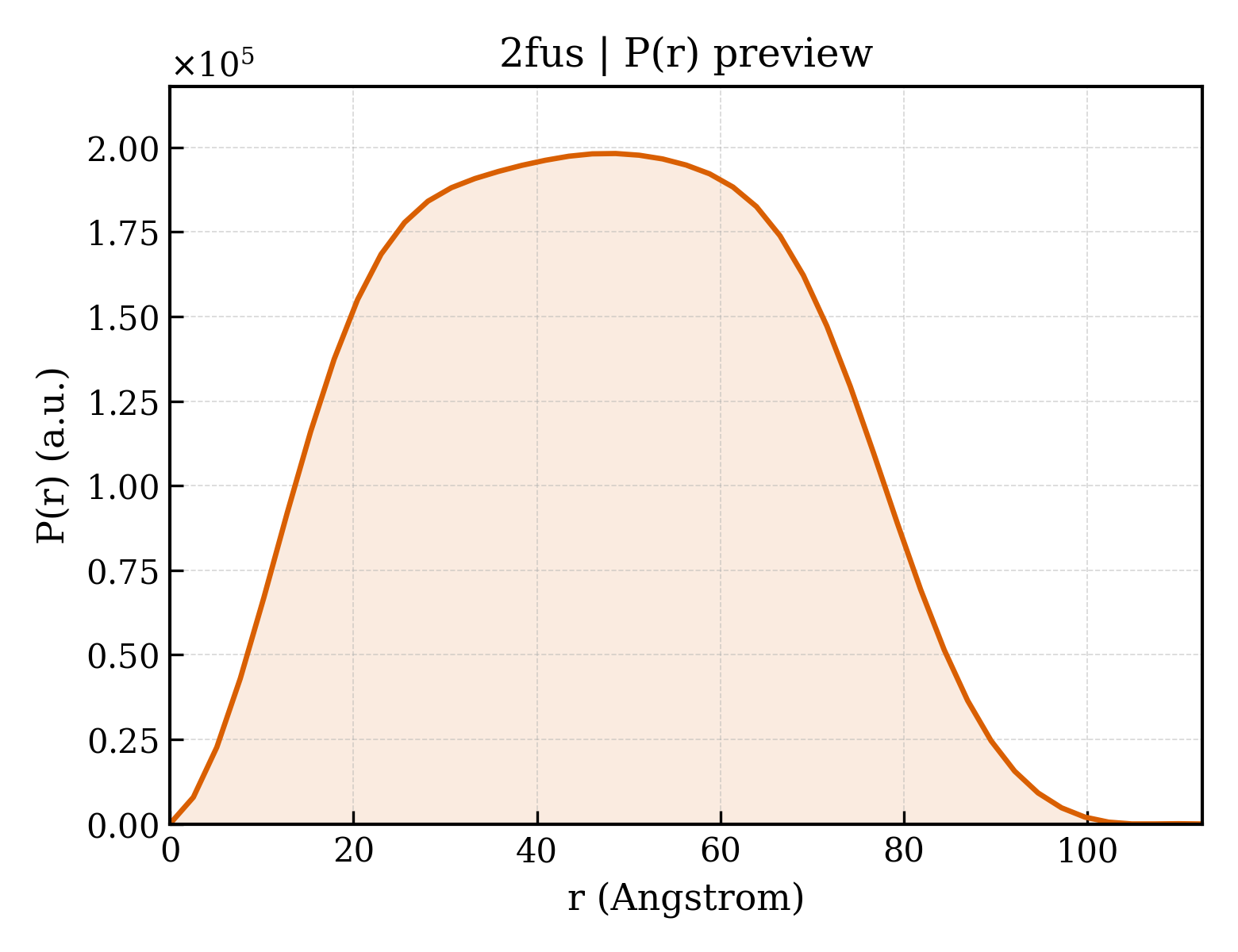

P(r) 距离分布 P(r) Distribution
