2fwr

Structure of Archaeoglobus Fulgidis XPB

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA repair protein RAD25

Archaeoglobus fulgidus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	PHOSPHATE ION × 1 ISOPROPYL ALCOHOL × 3 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	PHOSPHATE ION × 3 water × 1	Consistent with protein count
3	Protein monomer	Monomer	Protein 1	PHOSPHATE ION × 1 water × 1	Consistent with protein count
4	Protein monomer	Monomer	Protein 1	PHOSPHATE ION × 3 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O29889_ARCFU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 21–472； UniProt 1–452 Author chain B； PDBConstruct 21–472； UniProt 1–452 Author chain C； PDBConstruct 21–472； UniProt 1–452 Author chain D； PDBConstruct 21–472； UniProt 1–452

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2fwr
Deposition date deposition_date	2006-02-02
Structure title title	Structure of Archaeoglobus Fulgidis XPB
Keywords keywords	DNA Unwinding, DNA Repair, XPB, DNA BINDING PROTEIN; DNA BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2fwr__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2fwr__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

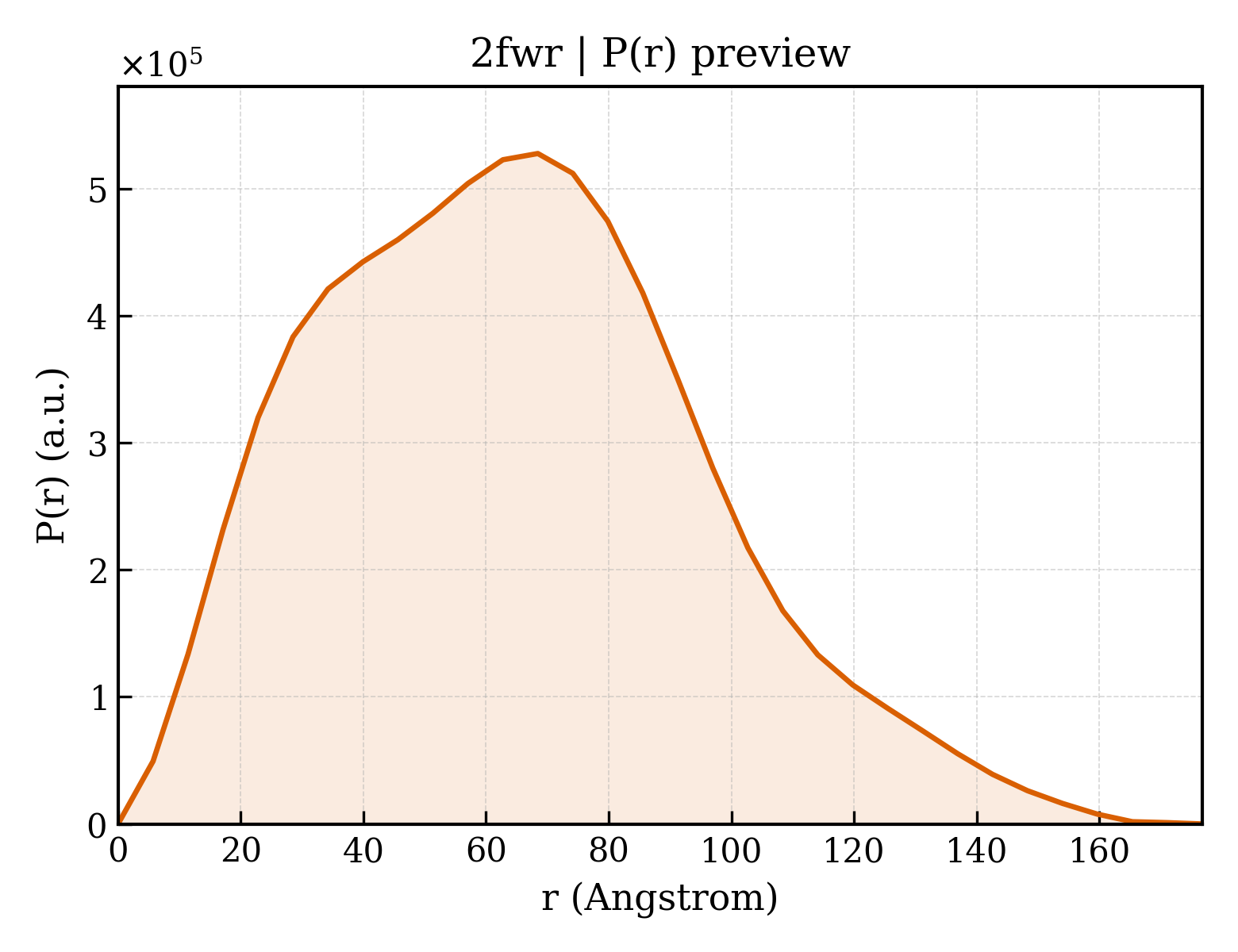

2fwr__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.32 Å
Rg (electron density)	24.19 Å
Total Rg	25.07 Å
Atom count	3530
Residues	434
Excluded volume	63045 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2fwr__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2fwr__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`2fwr__assembly_3__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`2fwr__assembly_4__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	DNA repair protein RAD25
Molecular weight formula_weight	54023.8 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	14769

MGSSHHHHHHSSGLVPRGSHMQMIAEIYYERGTIVVKGDAHVPHAKFDSRSGTYRALAFRYRDIIEYFESNGIEFVDNAADPIPTPYFDAEISLRDYQEKALERWLVDKRGCIVLPTGSGKTHVAMAAINELSTPTLIVVPTLALAEQWKERLGIFGEEYVGEFSGRIKELKPLTVSTYDSAYVNAEKLGNRFMLLIFDEVHHLPAESYVQIAQMSIAPFRLGLTATFEREDGRHEILKEVVGGKVFELFPDSLAGKHLAKYTIKRIFVPLAEDERVEYEKREKVYKQFLRARGITLRRAEDFNKIVMASGYDERAYEALRAWEEARRIAFNSKNKIRKLREILERHRKDKIIIFTRHNELVYRISKVFLIPAITHRTSREEREEILEGFRTGRFRAIVSSQVLDEGIDVPDANVGVIMSGSGSAREYIQRLGRILRPSKGKKEAVLYELISRGTGEVNTARRRKNAAKGAA

Source Source

Source organism organism	Archaeoglobus fulgidus
NCBI taxonomy ID ncbi_taxonomy_id	2234
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 non-polymer

Description description	ISOPROPYL ALCOHOL
Molecular weight formula_weight	60.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1066

▼

6. Fold Classification (SCOP + CATH) 20 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d2fwra1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.19 — Tandem AAA-ATPase domain

Domain ID domain_id	d2fwra2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.19 — Tandem AAA-ATPase domain

Domain ID domain_id	d2fwrb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.19 — Tandem AAA-ATPase domain

Domain ID domain_id	d2fwrb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.19 — Tandem AAA-ATPase domain

Domain ID domain_id	d2fwrc1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.19 — Tandem AAA-ATPase domain

Domain ID domain_id	d2fwrc2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.19 — Tandem AAA-ATPase domain

Domain ID domain_id	d2fwrd1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.19 — Tandem AAA-ATPase domain

Domain ID domain_id	d2fwrd2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.19 — Tandem AAA-ATPase domain

CATH v4.4 (12 domains)

Domain ID domain_id	2fwrA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1170 — MutS, DNA mismatch repair protein, domain I
Homologous superfamily homologous superfamily	30 —

Domain ID domain_id	2fwrA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2fwrA03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2fwrB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1170 — MutS, DNA mismatch repair protein, domain I
Homologous superfamily homologous superfamily	30 —

Domain ID domain_id	2fwrB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2fwrB03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2fwrC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1170 — MutS, DNA mismatch repair protein, domain I
Homologous superfamily homologous superfamily	30 —

Domain ID domain_id	2fwrC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2fwrC03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2fwrD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1170 — MutS, DNA mismatch repair protein, domain I
Homologous superfamily homologous superfamily	30 —

Domain ID domain_id	2fwrD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2fwrD03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

Unit-cell length a length_a	49.085 Å
Unit-cell length b length_b	97.963 Å
Unit-cell length c length_c	113.731 Å
Unit-cell angle α angle_alpha	79.03 °
Unit-cell angle β angle_beta	85.54 °
Unit-cell angle γ angle_gamma	89.69 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	29.350 Å
R factor r_factor	0.2210
R_work r_work	0.2370
R_free r_free	0.3000
