2g04

Crystal structure of fatty acid-CoA racemase from Mycobacterium tuberculosis H37Rv

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROBABLE FATTY-ACID-CoA RACEMASE FAR

Mycobacterium tuberculosis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O53867_MYCTU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–359； UniProt 1–359 Author chain B； PDBConstruct 1–359； UniProt 1–359 Author chain C； PDBConstruct 1–359； UniProt 1–359 Author chain D； PDBConstruct 1–359； UniProt 1–359 Author chain E； PDBConstruct 1–359； UniProt 1–359 Author chain F； PDBConstruct 1–359； UniProt 1–359

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2g04
Deposition date deposition_date	2006-02-11
Structure title title	Crystal structure of fatty acid-CoA racemase from Mycobacterium tuberculosis H37Rv
Keywords keywords	Isomerase; ISOMERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2g04__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2g04__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

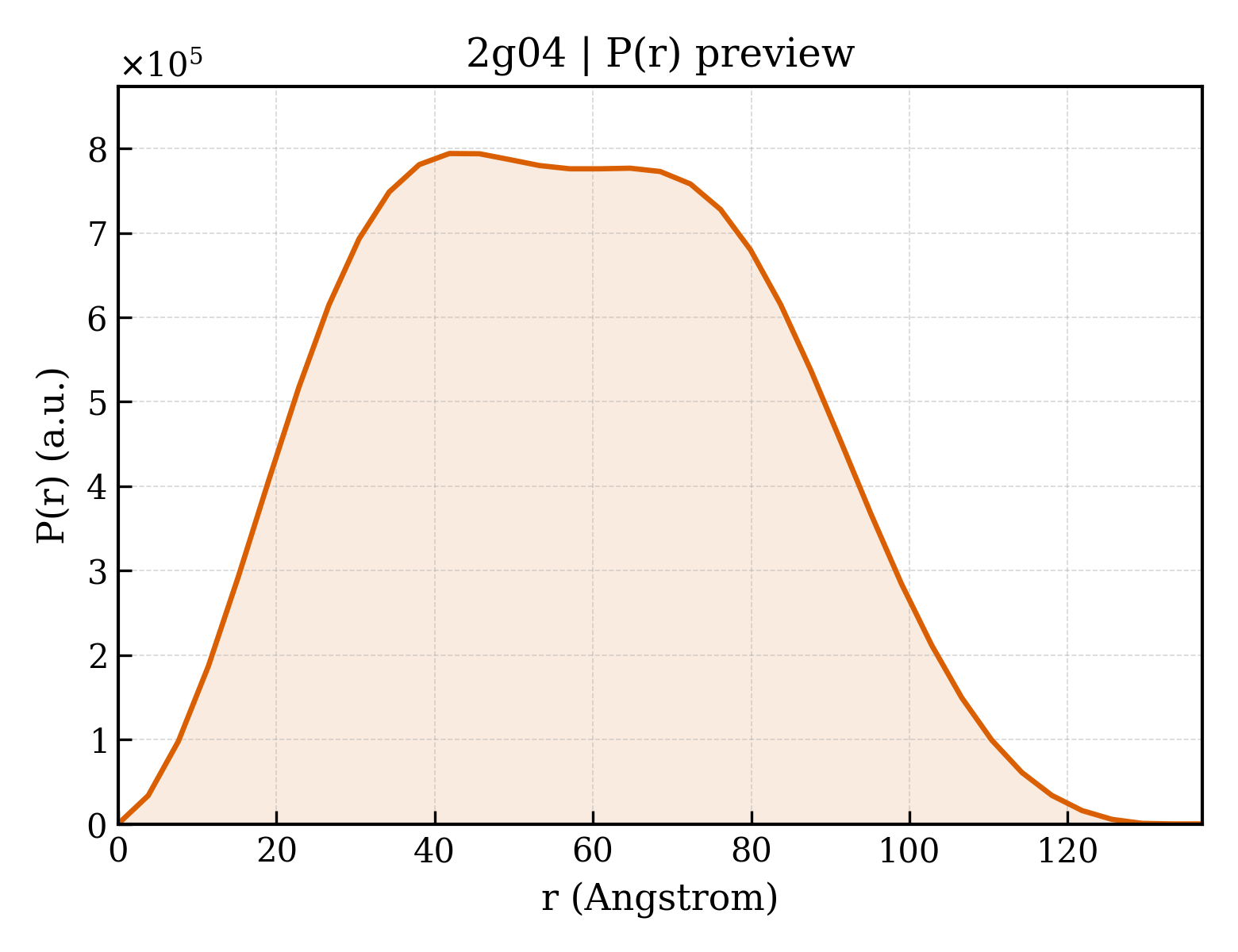

2g04__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.64 Å
Rg (electron density)	24.40 Å
Total Rg	25.24 Å
Atom count	5252
Residues	706
Excluded volume	93271 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2g04__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2g04__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`2g04__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 12 domains

CATH v4.4 (12 domains)

Domain ID domain_id	2g04A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10540 — Crotonobetainyl-coa:carnitine coa-transferase; domain 1

Domain ID domain_id	2g04A02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1540 — formyl-coa transferase, domain 3
Homologous superfamily homologous superfamily	10 — formyl-coa transferase, domain 3

Domain ID domain_id	2g04B01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10540 — Crotonobetainyl-coa:carnitine coa-transferase; domain 1

Domain ID domain_id	2g04B02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1540 — formyl-coa transferase, domain 3
Homologous superfamily homologous superfamily	10 — formyl-coa transferase, domain 3

Domain ID domain_id	2g04C01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10540 — Crotonobetainyl-coa:carnitine coa-transferase; domain 1

Domain ID domain_id	2g04C02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1540 — formyl-coa transferase, domain 3
Homologous superfamily homologous superfamily	10 — formyl-coa transferase, domain 3

Domain ID domain_id	2g04D01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10540 — Crotonobetainyl-coa:carnitine coa-transferase; domain 1

Domain ID domain_id	2g04D02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1540 — formyl-coa transferase, domain 3
Homologous superfamily homologous superfamily	10 — formyl-coa transferase, domain 3

Domain ID domain_id	2g04E01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10540 — Crotonobetainyl-coa:carnitine coa-transferase; domain 1

Domain ID domain_id	2g04E02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1540 — formyl-coa transferase, domain 3
Homologous superfamily homologous superfamily	10 — formyl-coa transferase, domain 3

Domain ID domain_id	2g04F01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10540 — Crotonobetainyl-coa:carnitine coa-transferase; domain 1

Domain ID domain_id	2g04F02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1540 — formyl-coa transferase, domain 3
Homologous superfamily homologous superfamily	10 — formyl-coa transferase, domain 3

▶

Unit-cell length a length_a	109.562 Å
Unit-cell length b length_b	109.562 Å
Unit-cell length c length_c	147.973 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	P 32
Space-group number int_tables_number	145
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.2400
R_work r_work	0.2400
R_free r_free	0.2900

Description description	PROBABLE FATTY-ACID-CoA RACEMASE FAR
Molecular weight formula_weight	38094.4 kDa
EC 编号 ec_number	5.1.99.4
Source method src_method	man
Copy count entity_count	6

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	16228

Crystal structure of fatty acid-CoA racemase from Mycobacterium tuberculosis H37Rv

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROBABLE FATTY-ACID-CoA RACEMASE FAR

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2g04__assembly_1__model_1

2g04__assembly_1__model_1 | I(q)

2g04__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 12 domains

CATH v4.4 (12 domains)

7. Citations (1)

Source organism organism	Mycobacterium tuberculosis
NCBI taxonomy ID ncbi_taxonomy_id	83332
Host organism host_organism	Escherichia coli BL21(DE3)

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	472
