SAXSdb — 2g39

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Acetyl-CoA hydrolase

Pseudomonas aeruginosa

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	1,2-ETHANEDIOL × 1 ACETIC ACID × 8 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9HTC2_PSEAE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–497； UniProt 1–497 Author chain B； PDBConstruct 1–497； UniProt 1–497

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2g39
Deposition date deposition_date	2006-02-17
Structure title title	Crystal structure of coenzyme A transferase from Pseudomonas aeruginosa
Keywords keywords	;coenzyme A transferase, Pseudomonas aeruginosa, Structural genomics, PSI, Protein Structure Initiative, Midwest Center for Structural Genomics, MCSG, UNKNOWN FUNCTION ;; STRUCTURAL GENOMICS, UNKNOWN FUNCTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2g39__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

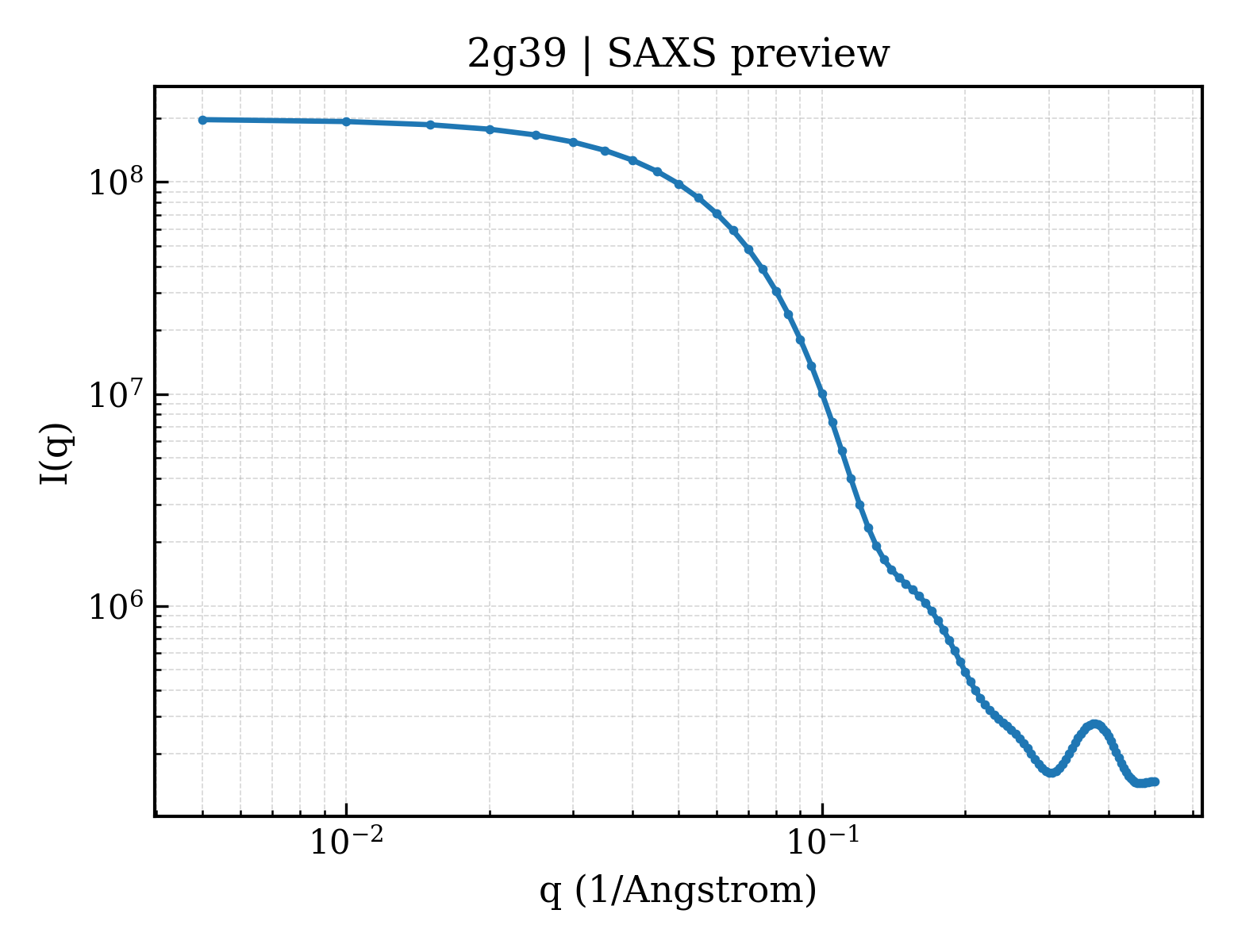

2g39__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

2g39__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.86 Å
Rg (electron density)	28.09 Å
Total Rg	28.88 Å
Atom count	7559
Residues	961
Excluded volume	134730 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2g39__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Acetyl-CoA hydrolase
Molecular weight formula_weight	54732.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	8404

MYRDRVRLPSLLDKVMSAAEAADLIQDGMTVGMSGFTRAGEAKAVPQALAMRAKERPLRISLMTGASLGNDLDKQLTEAGVLARRMPFQVDSTLRKAINAGEVMFIDQHLSETVEQLRNHQLKLPDIAVIEAAAITEQGHIVPTTSVGNSASFAIFAKQVIVEINLAHSTNLEGLHDIYIPTYRPTRTPIPLTRVDDRIGSTAIPIPPEKIVAIVINDQPDSPSTVLPPDGETQAIANHLIDFFKREVDAGRMSNSLGPLQAGIGSIANAVMCGLIESPFENLTMYSEVLQDSTFDLIDAGKLRFASGSSITLSPRRNADVFGNLERYKDKLVLRPQEISNHPEVVRRLGIIGINTALEFDIYGNVNSTHVGGTKMMNGIGGSGDFARNAHLAIFVTKSIAKGGNISSVVPMVSHVDHTEHDVDILVTEQGLADLRGLAPRERARVIIENCVHPSYQAPLLDYFEAACAKGGHTPHLLREALAWHLNLEERGHMLAG

Source Source

Source organism organism	Pseudomonas aeruginosa
NCBI taxonomy ID ncbi_taxonomy_id	287
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	ACETIC ACID
Molecular weight formula_weight	60.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	796

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2g39a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.124 — NagB/RpiA/CoA transferase-like
Superfamily Superfamily superfamily	c.124.1 — NagB/RpiA/CoA transferase-like
Family Family family	c.124.1.2 — CoA transferase alpha subunit-like

Domain ID domain_id	d2g39a2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.124 — NagB/RpiA/CoA transferase-like
Superfamily Superfamily superfamily	c.124.1 — NagB/RpiA/CoA transferase-like
Family Family family	c.124.1.2 — CoA transferase alpha subunit-like

Domain ID domain_id	d2g39b1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.124 — NagB/RpiA/CoA transferase-like
Superfamily Superfamily superfamily	c.124.1 — NagB/RpiA/CoA transferase-like
Family Family family	c.124.1.2 — CoA transferase alpha subunit-like

Domain ID domain_id	d2g39b2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.124 — NagB/RpiA/CoA transferase-like
Superfamily Superfamily superfamily	c.124.1 — NagB/RpiA/CoA transferase-like
Family Family family	c.124.1.2 — CoA transferase alpha subunit-like

▶

Unit-cell length a length_a	171.356 Å
Unit-cell length b length_b	69.806 Å
Unit-cell length c length_c	113.244 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.1624
R_work r_work	0.1624
R_free r_free	0.2036

Crystal structure of coenzyme A transferase from Pseudomonas aeruginosa
