Agrobacterium tumefaciens str. C58
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein homooligomer | Homooligomer | Protein 2 | water × 2 | Consistent with protein count |
| UniProt name | Q7CXI0_AGRT5 |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 16–152； UniProt 1–137 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 2g3a |
| Deposition date deposition_date | 2006-02-17 |
| Structure title title | Crystal structure of putative acetyltransferase from Agrobacterium tumefaciens |
| Keywords keywords | ;acetyltransferase, structural genomics, PSI, Protein Structure Initiative, Midwest Center for Structural Genomics, MCSG, TRANSFERASE ;; TRANSFERASE |
| Experimental Method method | X-RAY DIFFRACTION |
This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

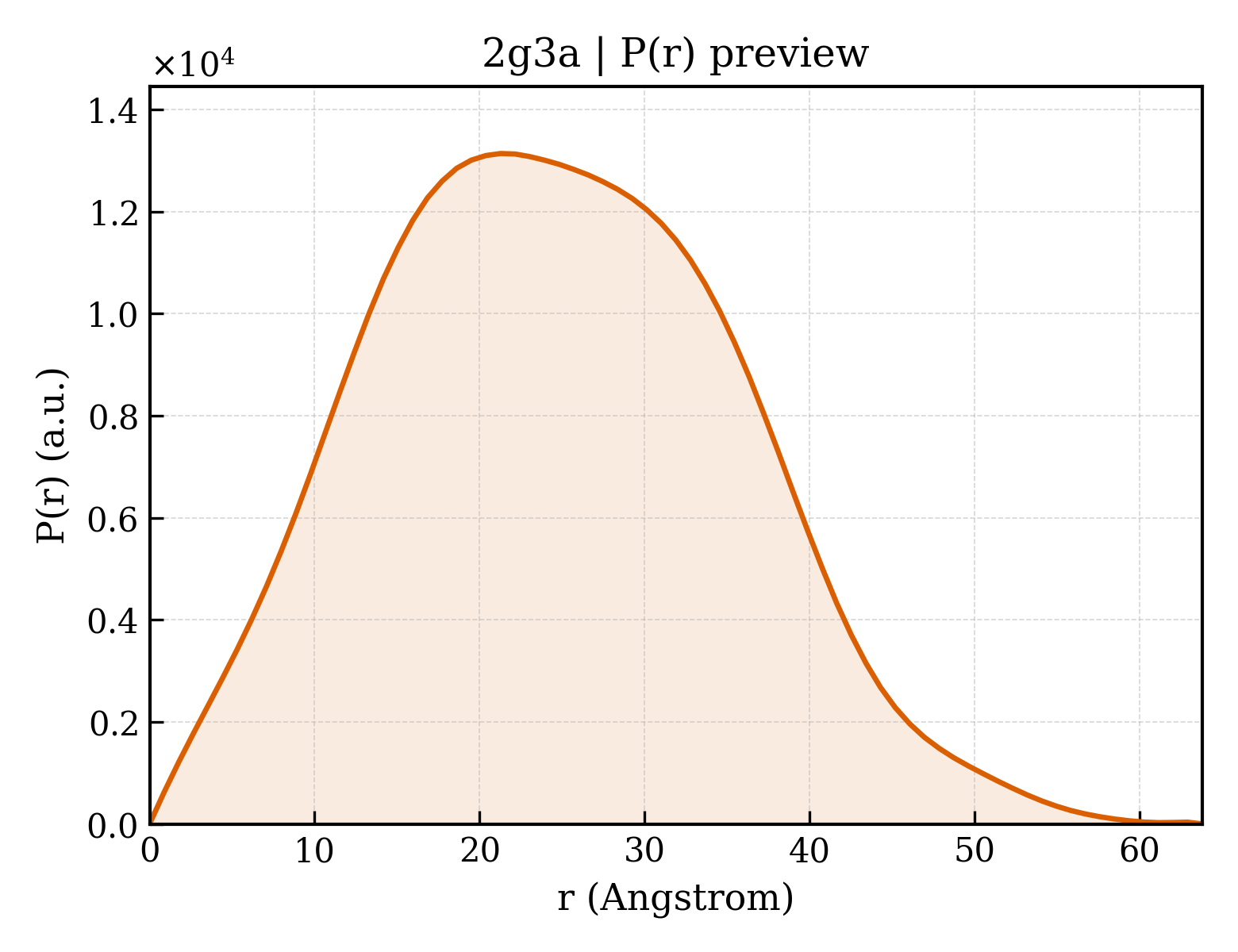

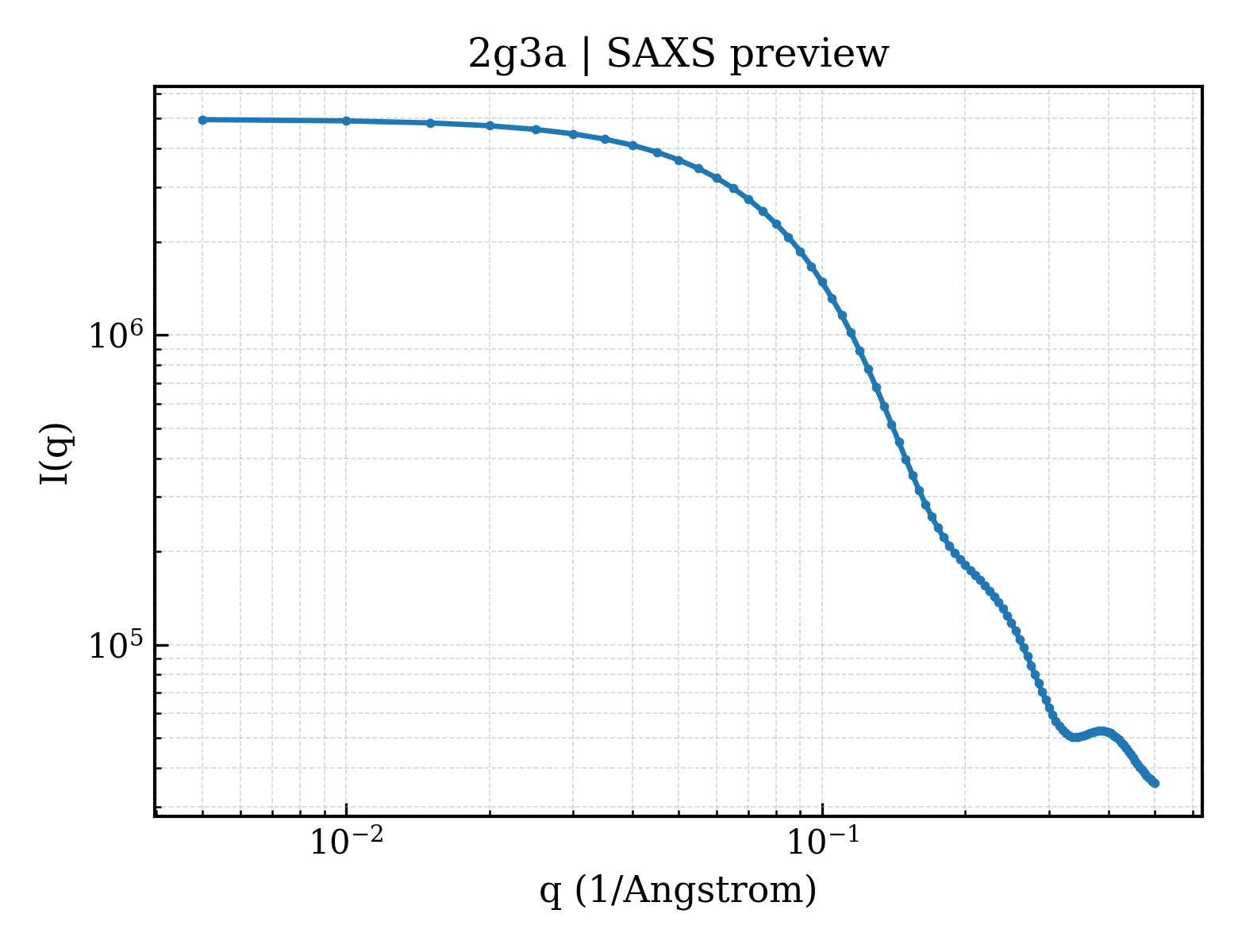

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 20.52 Å |
| Rg (electron density) | 19.22 Å |
| Total Rg | 20.30 Å |
| Atom count | 2134 |
| Residues | 264 |
| Excluded volume | 37999 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d2g3aa1 |
| Class class | d — Alpha and beta proteins (a+b) |
| Fold Fold fold | d.108 — Acyl-CoA N-acyltransferases (Nat) |
| Superfamily Superfamily superfamily | d.108.1 — Acyl-CoA N-acyltransferases (Nat) |
| Family Family family | d.108.1.1 — N-acetyl transferase, NAT |
| Domain ID domain_id | 2g3aA01 |
| Class class | 1 — Mainly Alpha |
| Architecture architecture | 20 — Up-down Bundle |
| Topology topology | 5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces |
| Homologous superfamily homologous superfamily | 540 — Single helix bin |
| Domain ID domain_id | 2g3aA02 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| Topology topology | 630 — Aminopeptidase |
| Homologous superfamily homologous superfamily | 30 — Gcn5-related N-acetyltransferase (GNAT) |
