2g42
Crystal structure of a putative nucleic acid binding protein (tm0693) from thermotoga maritima at 2.28 A resolution
SAXS 散射曲线 SAXS Profile

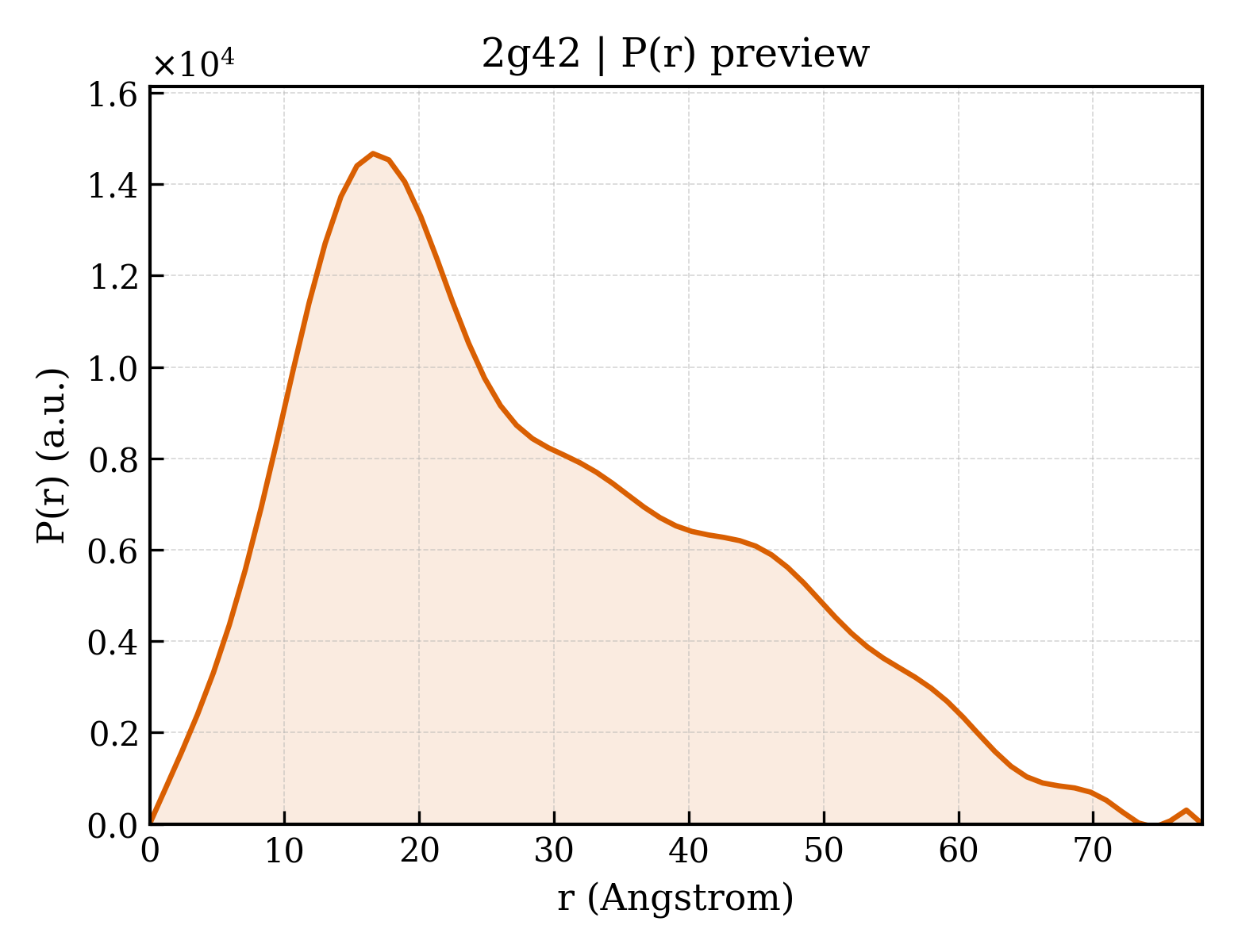

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2g42 |
| 沉积日期 deposition_date | 2006-02-21 |
| 结构标题 title | Crystal structure of a putative nucleic acid binding protein (tm0693) from thermotoga maritima at 2.28 A resolution |
| 关键词 keywords | Structural genomics, Joint Center for Structural Genomics, JCSG, Protein Structure Initiative, PSI-2, gene regulation; GENE REGULATION |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 22.39 Å |
| 回转半径 Rg (电子) rg_electron | 22.23 Å |
| 零角强度 I(0) i0 | 5695230.00 |
| 分子量 molecular_weight | 17828.0 kDa |
| 排除体积 excluded_volume | 22457 ų |
| 包络体积 envelope_volume | 27659 ų |
| 水化壳体积 shell_volume | 11999 ų |
| 包络直径 envelope_diameter | 78.6 Å |
| 壳层 Rg shell_rg | 25.81 Å |
| 包络 Rg envelope_rg | 22.52 Å |
| 形状 Rg shape_rg | 22.15 Å |
| 总 Rg total_rg | 23.05 Å |
| 总原子数 total_atoms | 1237 |
| 残基数 n_residues | 153 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 78.1 Å |
| Rg (实空间) rg_real | 22.75 Å |
| Rg 误差 (实空间) rg_real_error | 0.79 Å |
| I(0) (实空间) i0_real | 5.6950e+06 |
| I(0) 误差 (实空间) i0_real_error | 8.3180e+04 |
| Rg (倒空间) rg_reciprocal | 22.67 Å |
| I(0) (倒空间) i0_reciprocal | 5695000.0000 |
| 解质量估计 total_estimate | 0.4361 |
| 解质量评级 solution_quality | SUSPICIOUS a SUSPICIOUS solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 16.6 Å |
| 偏度 Skewness skewness | 0.590 |
| 峰度 Kurtosis kurtosis | -0.479 |
| 角度范围 angular_range | — – 0.3550 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 3049000.0000 |
| 实空间数据点数 n_real_points | 67 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.297; Stabil: 0.999; Sysdev: 0.189; Positv: 1.000; Valcen: 0.210; Smooth: 0.000 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (3)
6. 折叠分类 (SCOP + CATH) 6 domains
SCOP 2.08 (4 domains)
| 结构域编号 domain_id | d2g42a2 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.46 — Methionine synthase domain-like |
| 超家族 Superfamily superfamily | a.46.3 — TM0693-like |
| 家族 Family family | a.46.3.1 — TM0693-like |
| 结构域编号 domain_id | d2g42a3 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d2g42b2 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.46 — Methionine synthase domain-like |
| 超家族 Superfamily superfamily | a.46.3 — TM0693-like |
| 家族 Family family | a.46.3.1 — TM0693-like |
| 结构域编号 domain_id | d2g42b3 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
CATH v4.4 (2 domains)
| 结构域编号 domain_id | 2g42A00 |
| 类 Class class | 6 — Special |
| 架构 Architecture architecture | 10 — Helix non-globular |
| 拓扑 Topology topology | 250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces |
| 同源超家族 H-superfamily homologous superfamily | 50 — |
| 结构域编号 domain_id | 2g42B00 |
| 类 Class class | 6 — Special |
| 架构 Architecture architecture | 10 — Helix non-globular |
| 拓扑 Topology topology | 250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces |
| 同源超家族 H-superfamily homologous superfamily | 50 — |
