2g5w
;X-ray crystal structure of Arabidopsis thaliana 12-oxophytodienoate reductase isoform 3 (AtOPR3) in complex with 8-iso prostaglandin A1 and its cofactor, flavin mononucleotide. ;
SAXS 散射曲线 SAXS Profile

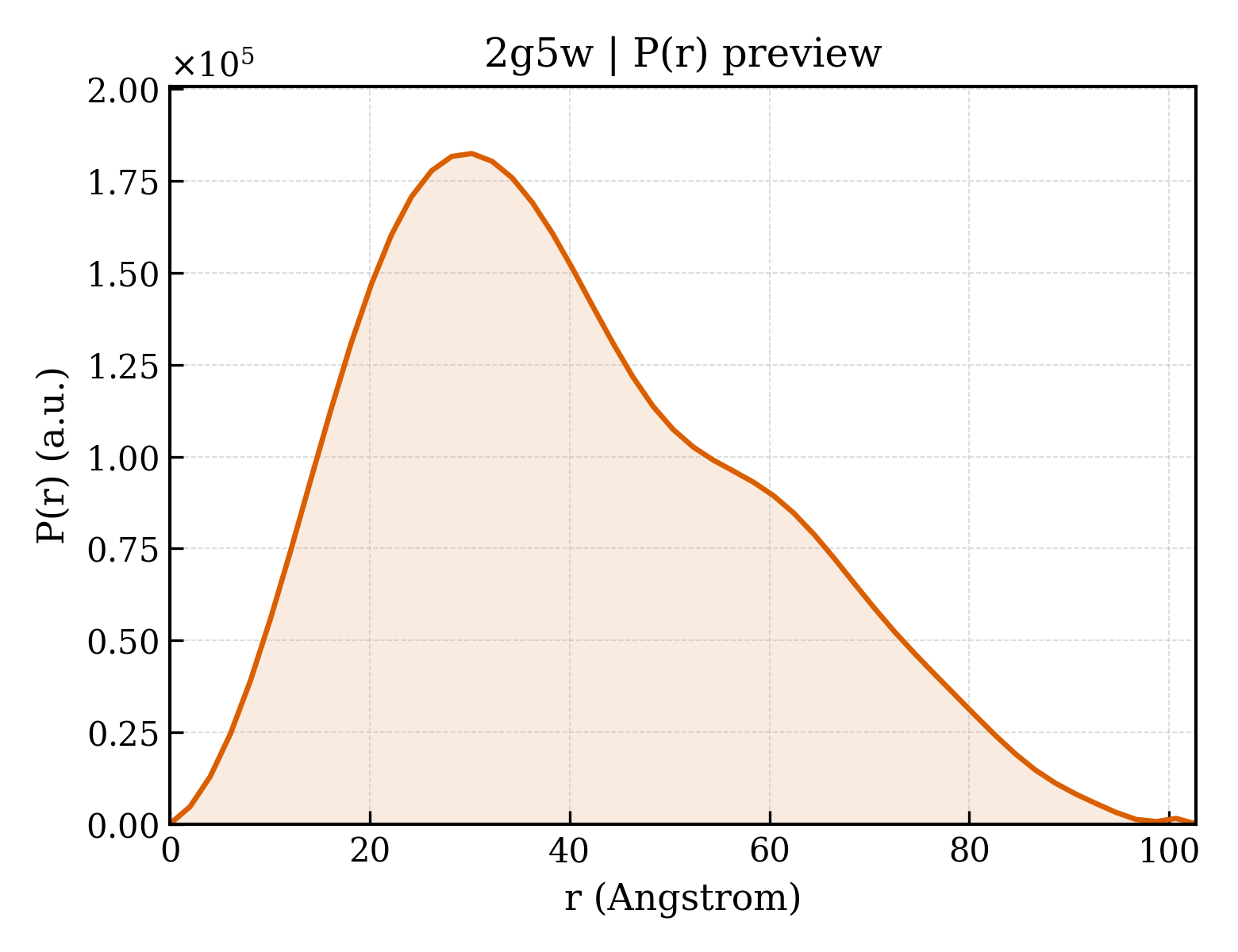

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2g5w |
| 沉积日期 deposition_date | 2006-02-23 |
| 结构标题 title | ;X-ray crystal structure of Arabidopsis thaliana 12-oxophytodienoate reductase isoform 3 (AtOPR3) in complex with 8-iso prostaglandin A1 and its cofactor, flavin mononucleotide. ; |
| 关键词 keywords | ;At2g06050, OPR ISOFORM 3, FLAVOPROTEIN, FLAVOENZYME, OXIDOREDUCTASE, XENOBIOTIC REDUCTASE, OLD YELLOW ENZYME, SECONDARY MESSENGER, STRUCTURAL GENOMICS FUNCTIONAL FOLLOW-UP STUDY, PROTEIN STRUCTURE INITIATIVE, PSI, CENTER FOR EUKARYOTIC STRUCTURAL GENOMICS, CESG ;; OXIDOREDUCTASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 31.10 Å |
| 回转半径 Rg (电子) rg_electron | 30.66 Å |
| 零角强度 I(0) i0 | 105160000.00 |
| 分子量 molecular_weight | 81329.0 kDa |
| 排除体积 excluded_volume | 101700 ų |
| 包络体积 envelope_volume | 121990 ų |
| 水化壳体积 shell_volume | 33930 ų |
| 包络直径 envelope_diameter | 110.4 Å |
| 壳层 Rg shell_rg | 36.70 Å |
| 包络 Rg envelope_rg | 30.81 Å |
| 形状 Rg shape_rg | 30.65 Å |
| 总 Rg total_rg | 31.21 Å |
| 总原子数 total_atoms | 5733 |
| 残基数 n_residues | 729 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 102.7 Å |
| Rg (实空间) rg_real | 31.31 Å |
| Rg 误差 (实空间) rg_real_error | 0.84 Å |
| I(0) (实空间) i0_real | 1.0520e+08 |
| I(0) 误差 (实空间) i0_real_error | 1.6930e+06 |
| Rg (倒空间) rg_reciprocal | 31.23 Å |
| I(0) (倒空间) i0_reciprocal | 105200000.0000 |
| 解质量估计 total_estimate | 0.8422 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 30.2 Å |
| 偏度 Skewness skewness | 0.481 |
| 峰度 Kurtosis kurtosis | -0.449 |
| 角度范围 angular_range | — – 0.2550 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 33090000.0000 |
| 实空间数据点数 n_real_points | 52 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.776; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.835; Smooth: 0.782 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (4)
6. 折叠分类 (SCOP + CATH) 4 domains
SCOP 2.08 (2 domains)
| 结构域编号 domain_id | d2g5wa_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.4 — FMN-linked oxidoreductases |
| 家族 Family family | c.1.4.1 — FMN-linked oxidoreductases |
| 结构域编号 domain_id | d2g5wb_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.4 — FMN-linked oxidoreductases |
| 家族 Family family | c.1.4.1 — FMN-linked oxidoreductases |
CATH v4.4 (2 domains)
| 结构域编号 domain_id | 2g5wA00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 70 — Aldolase class I |
| 结构域编号 domain_id | 2g5wB00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 70 — Aldolase class I |
