2g67
E. Coli Pyruvate Dehydrogenase E1 Component (Apoenzyme)

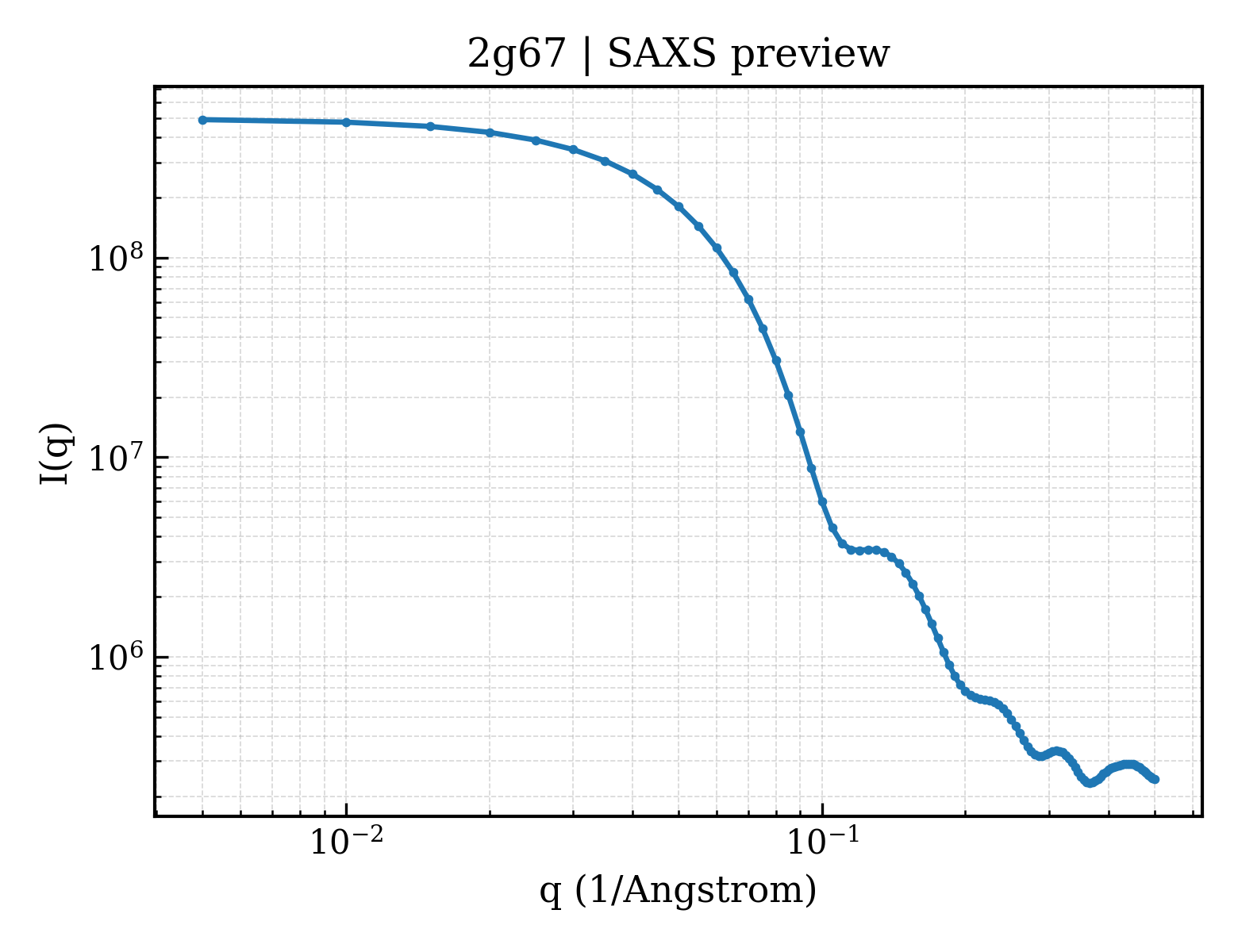

SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2g67 |
| 沉积日期 deposition_date | 2006-02-24 |
| 结构标题 title | E. Coli Pyruvate Dehydrogenase E1 Component (Apoenzyme) |
| 关键词 keywords | PYRUVATE DEHYDROGENASE E1 COMPONENT, APOENZYME, HOMODIMER, OXIDOREDUCTASE; OXIDOREDUCTASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 34.29 Å |
| 回转半径 Rg (电子) rg_electron | 33.38 Å |
| 零角强度 I(0) i0 | 496087000.00 |
| 分子量 molecular_weight | 179800.0 kDa |
| 排除体积 excluded_volume | 224430 ų |
| 包络体积 envelope_volume | 260490 ų |
| 水化壳体积 shell_volume | 61185 ų |
| 包络直径 envelope_diameter | 114.1 Å |
| 壳层 Rg shell_rg | 42.56 Å |
| 包络 Rg envelope_rg | 33.73 Å |
| 形状 Rg shape_rg | 33.37 Å |
| 总 Rg total_rg | 33.98 Å |
| 总原子数 total_atoms | 12682 |
| 残基数 n_residues | 1602 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 106.3 Å |
| Rg (实空间) rg_real | 34.11 Å |
| Rg 误差 (实空间) rg_real_error | 0.51 Å |
| I(0) (实空间) i0_real | 4.9610e+08 |
| I(0) 误差 (实空间) i0_real_error | 7.1930e+06 |
| Rg (倒空间) rg_reciprocal | 34.22 Å |
| I(0) (倒空间) i0_reciprocal | 496100000.0000 |
| 解质量估计 total_estimate | 0.8943 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 43.9 Å |
| 偏度 Skewness skewness | 0.174 |
| 峰度 Kurtosis kurtosis | -0.412 |
| 角度范围 angular_range | — – 0.2300 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 174400000.0000 |
| 实空间数据点数 n_real_points | 47 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.907; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.971; Smooth: 0.928 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (2)
6. 折叠分类 (SCOP + CATH) 12 domains
SCOP 2.08 (6 domains)
| 结构域编号 domain_id | d2g67a1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.36 — Thiamin diphosphate-binding fold (THDP-binding) |
| 超家族 Superfamily superfamily | c.36.1 — Thiamin diphosphate-binding fold (THDP-binding) |
| 家族 Family family | c.36.1.6 — TK-like Pyr module |
| 结构域编号 domain_id | d2g67a2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.36 — Thiamin diphosphate-binding fold (THDP-binding) |
| 超家族 Superfamily superfamily | c.36.1 — Thiamin diphosphate-binding fold (THDP-binding) |
| 家族 Family family | c.36.1.10 — TK-like PP module |
| 结构域编号 domain_id | d2g67a3 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.48 — TK C-terminal domain-like |
| 超家族 Superfamily superfamily | c.48.1 — TK C-terminal domain-like |
| 家族 Family family | c.48.1.1 — Transketolase C-terminal domain-like |
| 结构域编号 domain_id | d2g67b1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.36 — Thiamin diphosphate-binding fold (THDP-binding) |
| 超家族 Superfamily superfamily | c.36.1 — Thiamin diphosphate-binding fold (THDP-binding) |
| 家族 Family family | c.36.1.6 — TK-like Pyr module |
| 结构域编号 domain_id | d2g67b2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.36 — Thiamin diphosphate-binding fold (THDP-binding) |
| 超家族 Superfamily superfamily | c.36.1 — Thiamin diphosphate-binding fold (THDP-binding) |
| 家族 Family family | c.36.1.10 — TK-like PP module |
| 结构域编号 domain_id | d2g67b3 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.48 — TK C-terminal domain-like |
| 超家族 Superfamily superfamily | c.48.1 — TK C-terminal domain-like |
| 家族 Family family | c.48.1.1 — Transketolase C-terminal domain-like |
CATH v4.4 (6 domains)
| 结构域编号 domain_id | 2g67A01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 970 — Thiamin diphosphate (ThDP)-binding fold, Pyr/PP domains |
| 结构域编号 domain_id | 2g67A02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 970 — Thiamin diphosphate (ThDP)-binding fold, Pyr/PP domains |
| 结构域编号 domain_id | 2g67A03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 920 — |
| 结构域编号 domain_id | 2g67B01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 970 — Thiamin diphosphate (ThDP)-binding fold, Pyr/PP domains |
| 结构域编号 domain_id | 2g67B02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 970 — Thiamin diphosphate (ThDP)-binding fold, Pyr/PP domains |
| 结构域编号 domain_id | 2g67B03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 920 — |
