SAXSdb — 2gai

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2gai
沉积日期 deposition_date	2006-03-08
结构标题 title	Structure of Full Length Topoisomerase I from Thermotoga maritima in triclinic crystal form
关键词 keywords	Topoisomerase, Zinc ribbon, ISOMERASE; ISOMERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	41.55 Å
回转半径 Rg (电子) rg_electron	41.55 Å
零角强度 I(0) i0	250629000.00
分子量 molecular_weight	133870.0 kDa
排除体积 excluded_volume	169730 Å³
包络体积 envelope_volume	234920 Å³
水化壳体积 shell_volume	49526 Å³
包络直径 envelope_diameter	140.8 Å
壳层 Rg shell_rg	44.89 Å
包络 Rg envelope_rg	40.61 Å
形状 Rg shape_rg	41.51 Å
总 Rg total_rg	41.88 Å
总原子数 total_atoms	9428
残基数 n_residues	1162
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	140.2 Å
Rg (实空间) rg_real	43.39 Å
Rg 误差 (实空间) rg_real_error	0.57 Å
I(0) (实空间) i0_real	2.5040e+08
I(0) 误差 (实空间) i0_real_error	3.8660e+06
Rg (倒空间) rg_reciprocal	41.55 Å
I(0) (倒空间) i0_reciprocal	250600000.0000
解质量估计 total_estimate	0.6714
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	40.6 Å
偏度 Skewness skewness	0.450
峰度 Kurtosis kurtosis	-0.479
角度范围 angular_range	— – 0.1900 Å⁻¹
当前正则化参数 α current_alpha	2.2430
最高正则化参数 α highest_alpha	26350000.0000
实空间数据点数 n_real_points	39
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.877; Stabil: 0.888; Sysdev: 0.000; Positv: 1.000; Valcen: 0.930; Smooth: 0.538

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	DNA topoisomerase I
分子量 formula_weight	72806.9 kDa
EC 编号 ec_number	5.99.1.2
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	10600

MAKKVKKYIVVESPAKAKTIKSILGNEYEVFASMGHIIDLPKSKFGVDLEKDFEPEFAVIKGKEKVVEKLKDLAKKGELLIASDMDREGEAIAWHIARVTNTLGRKNRIVFSEITPRVIREAVKNPREIDMKKVRAQLARRILDRIVGYSLSPVLWRNFKSNLSAGRVQSATLKLVCDREREILRFVPKKYHRITVNFDGLTAEIDVKEKKFFDAETLKEIQSIDELVVEEKKVSVKKFAPPEPFKTSTLQQEAYSKLGFSVSKTMMIAQQLYEGVETKDGHIAFITYMRTDSTRVSDYAKEEARNLITEVFGEEYVGSKRERRKSNAKIQDAHEAIRPTNVFMTPEEAGKYLNSDQKKLYELIWKRFLASQMKPSQYEETRFVLRTKDGKYRFKGTVLKKIFDGYEKVWKTERNTGEFPFEEGESVKPVVVKIEEQETKPKPRYTEGSLVKEMERLGIGRPSTYASTIKLLLNRGYIKKIRGYLYPTIVGSVVMDYLEKKYSDVVSVSFTAEMEKDLDEVEQGKKTDKIVLREFYESFSSVFDRNDRIVVDFPTNQKCSCGKEMRLSFGKYGFYLKCECGKTRSVKNDEIAVIDDGKIFLGRKDSESGSPDGRSVEGKGNLSEKRRKGKKGS

来源 Source

来源生物 organism	Thermotoga maritima
NCBI 分类编号 ncbi_taxonomy_id	243274
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1054

▼

6. 折叠分类 (SCOP + CATH) 8 domains

CATH v4.4 (8 domains)

结构域编号 domain_id	2gaiA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	140 —

结构域编号 domain_id	2gaiA02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	460 — Topoisomerase I; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Topoisomerase I, domain 2

结构域编号 domain_id	2gaiA03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	70 — Distorted Sandwich
拓扑 Topology topology	20 — Topoisomerase I; domain 3
同源超家族 H-superfamily homologous superfamily	10 — Topoisomerase I, domain 3

结构域编号 domain_id	2gaiA04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	290 — Topoisomerase I; domain 4
同源超家族 H-superfamily homologous superfamily	10 — Topoisomerase I, domain 4

结构域编号 domain_id	2gaiB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	140 —

结构域编号 domain_id	2gaiB02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	460 — Topoisomerase I; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Topoisomerase I, domain 2

结构域编号 domain_id	2gaiB03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	70 — Distorted Sandwich
拓扑 Topology topology	20 — Topoisomerase I; domain 3
同源超家族 H-superfamily homologous superfamily	10 — Topoisomerase I, domain 3

结构域编号 domain_id	2gaiB04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	290 — Topoisomerase I; domain 4
同源超家族 H-superfamily homologous superfamily	10 — Topoisomerase I, domain 4

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	45.118 Å
晶胞边长 b length_b	95.421 Å
晶胞边长 c length_c	96.508 Å
晶胞夹角 α angle_alpha	83.40 °
晶胞夹角 β angle_beta	86.15 °
晶胞夹角 γ angle_gamma	84.87 °
晶胞分子数 Z z_pdb	2

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	1.700 Å
最低分辨率 resolution_low	41.560 Å
R 因子 r_factor	0.1990
R_work r_work	0.1970
R_free r_free	0.2320

fit	/app/data/saxs_computation/ga/2gai/2gai.fit
pddf	/app/data/pr_computation/ga/2gai/2gai.pr.out
profile	/app/data/saxs_computation/ga/2gai/2gai.dat

Structure of Full Length Topoisomerase I from Thermotoga maritima in triclinic crystal form

SAXS 散射曲线 SAXS Profile

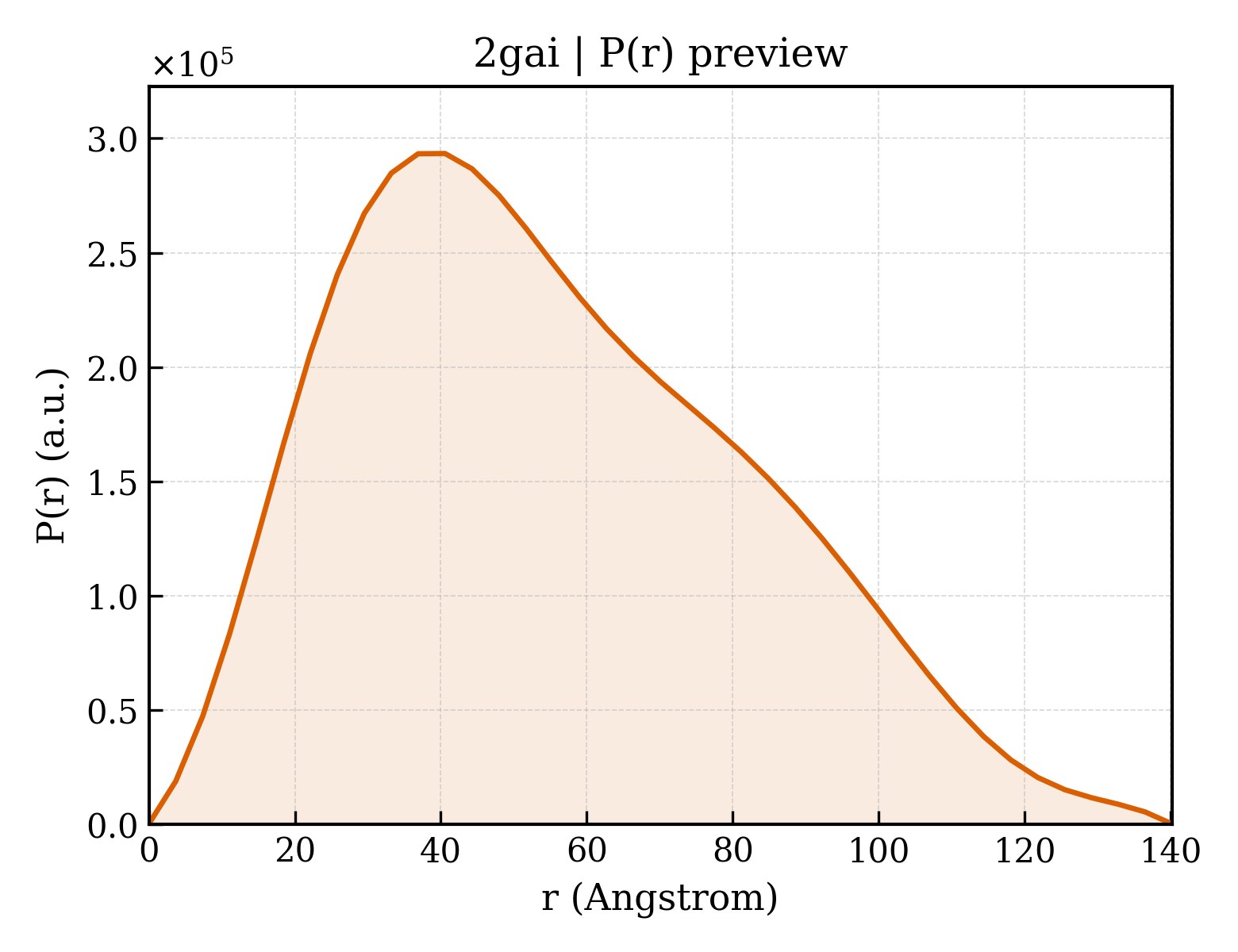

P(r) 距离分布 P(r) Distribution
