SAXSdb — 2gdf

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

lectin

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	MANGANESE (II) ION × 2 CALCIUM ION × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LECA_DIOGR
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–237； UniProt 1–237 Author chain B； PDBConstruct 1–237； UniProt 1–237 Author chain C； PDBConstruct 1–237； UniProt 1–237 Author chain D； PDBConstruct 1–237； UniProt 1–237

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2gdf
Deposition date deposition_date	2006-03-16
Structure title title	Crystal structure of Dioclea violacea seed lectin
Keywords keywords	plant lectin, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2gdf__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2gdf__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

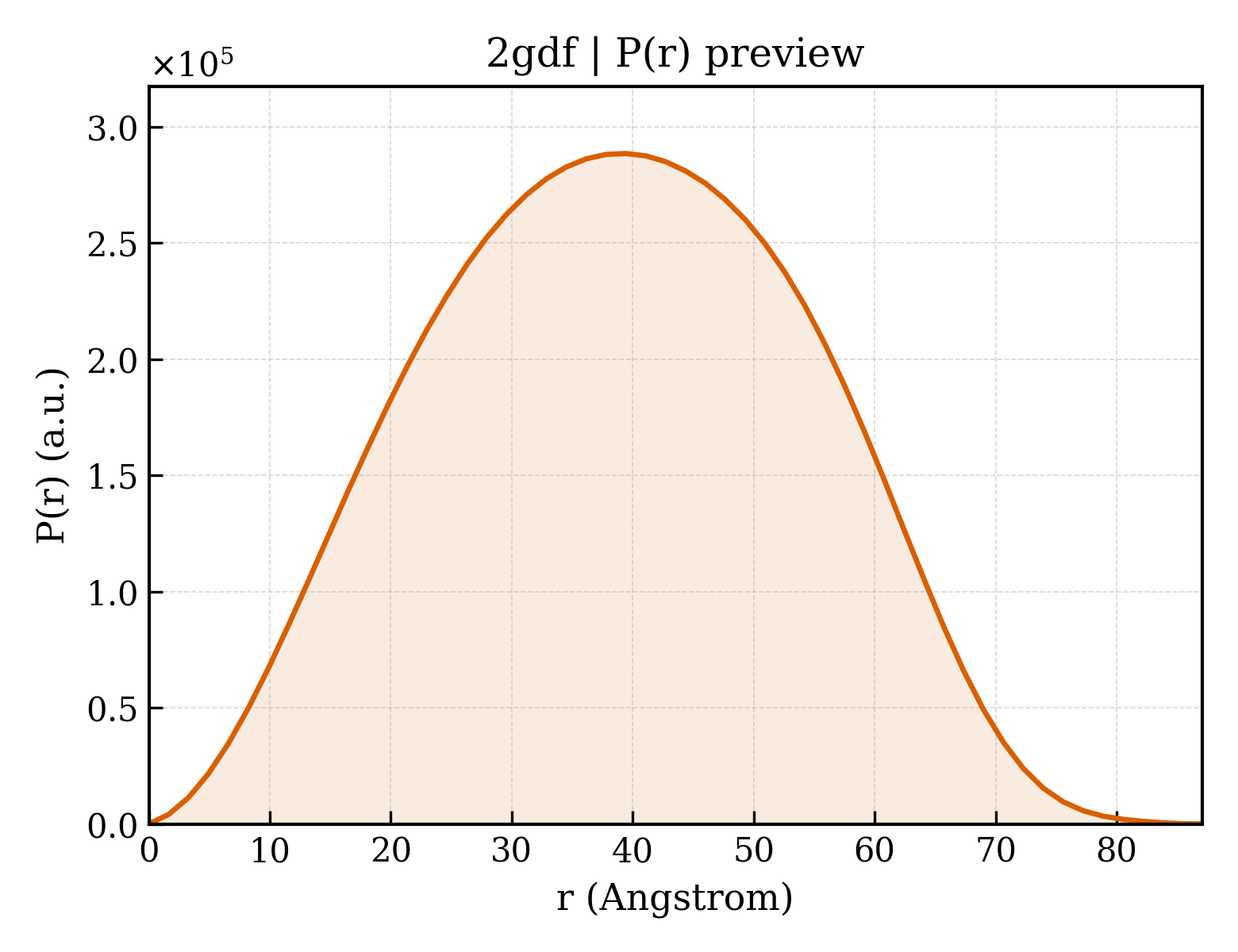

2gdf__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.74 Å
Rg (electron density)	28.34 Å
Total Rg	29.23 Å
Atom count	7084
Residues	926
Excluded volume	125370 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2gdf__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	lectin
Molecular weight formula_weight	25590.3 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	7229

ADTIVAVELDSYPNTDIGDPNYPHIGIDIKSIRSKSTARWNMQTGKVGTVHISYNSVAKRLSAVVSYSGSSSTTVSYDVDLNNVLPEWVRVGLSATTGLYKETNTILSWSFTSKLKTNSAADENSLHFSFHKFSQNPKDLILQGDAFTDSDGNLELTKVSSSGDPQGNSVGRALFYAPVHIWEKSAVVASFDATFTFLIKSPDREPADGITFFIANTDTSIPSGSGGRLLGLFPDAN

Entity 2 Entity 2 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	145

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2gdfa_
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.1 — Legume lectins

Domain ID domain_id	d2gdfb_
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.1 — Legume lectins

Domain ID domain_id	d2gdfc_
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.1 — Legume lectins

Domain ID domain_id	d2gdfd_
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.1 — Legume lectins

CATH v4.4 (4 domains)

Domain ID domain_id	2gdfA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

Domain ID domain_id	2gdfB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

Domain ID domain_id	2gdfC00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

Domain ID domain_id	2gdfD00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

▶

Unit-cell length a length_a	72.938 Å
Unit-cell length b length_b	72.938 Å
Unit-cell length c length_c	161.362 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 32
Space-group number int_tables_number	145
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	45.000 Å
R factor r_factor	0.2282
R_work r_work	0.2267
R_free r_free	0.2579

Crystal structure of Dioclea violacea seed lectin
