SAXSdb — 2gdu

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

sucrose phosphorylase

Bifidobacterium adolescentis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Homooligomer	Protein 2 其他Polymer 2	beta-D-fructofuranose-(2-1)-alpha-D-glucopyranose × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q84HQ2_BIFAD
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–504； UniProt 1–504 Author chain B； PDBConstruct 1–504； UniProt 1–504

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2gdu
Deposition date deposition_date	2006-03-17
Structure title title	E232Q mutant of sucrose phosphorylase from BIFIDOBACTERIUM ADOLESCENTIS in complex with sucrose
Keywords keywords	BETA-ALPHA-BARRELS, DIMER, GLYCOSIDE HYDROLASE, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2gdu__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

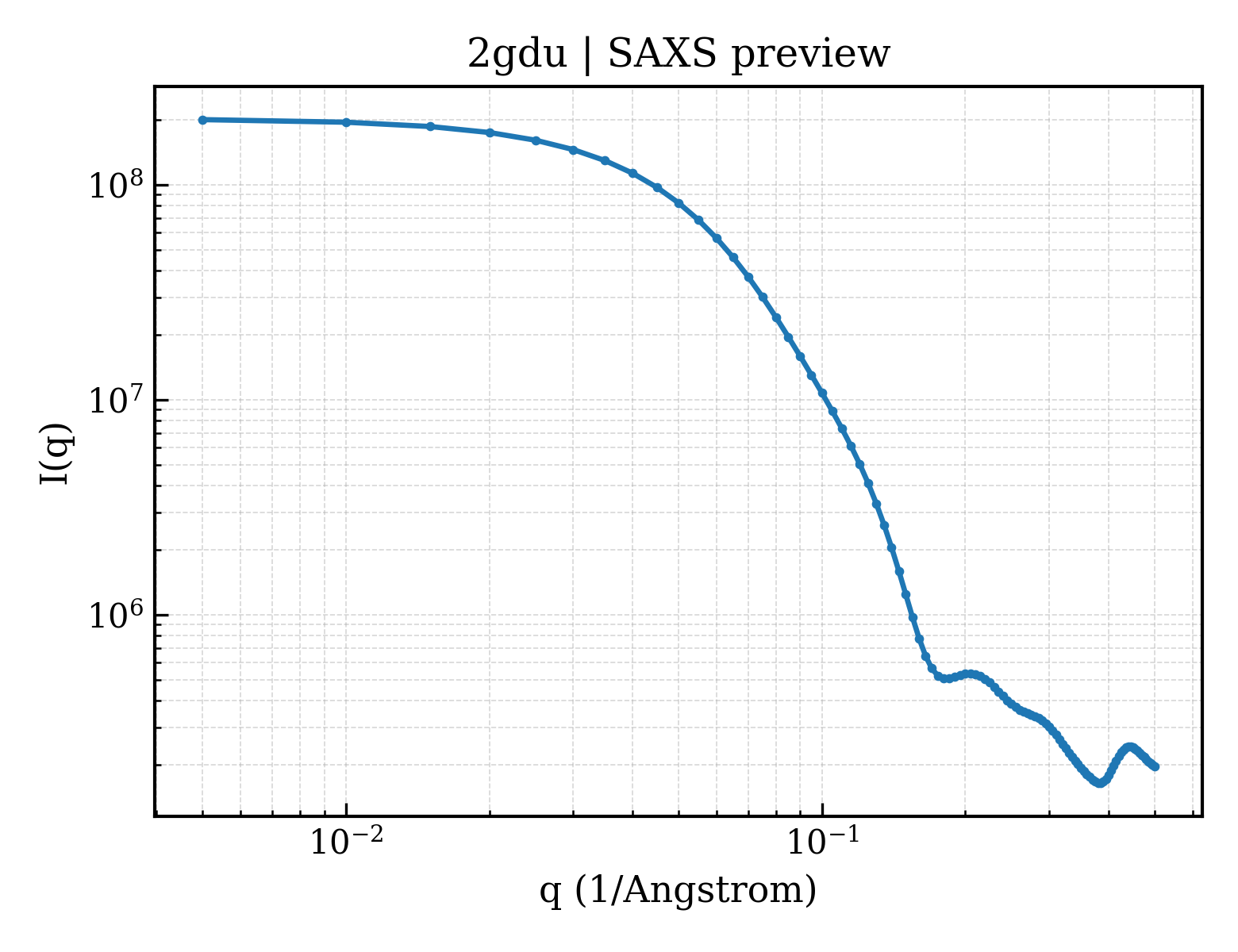

2gdu__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

2gdu__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.15 Å
Rg (electron density)	32.50 Å
Total Rg	33.02 Å
Atom count	7980
Residues	1006
Excluded volume	140820 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2gdu__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	sucrose phosphorylase
Molecular weight formula_weight	56283.7 kDa
EC 编号 ec_number	2.4.1.7
Mutation mutation	E232Q
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	8979

MKNKVQLITYADRLGDGTIKSMTDILRTRFDGVYDGVHILPFFTPFDGADAGFDPIDHTKVDERLGSWDDVAELSKTHNIMVDAIVNHMSWESKQFQDVLAKGEESEYYPMFLTMSSVFPNGATEEDLAGIYRPRPGLPFTHYKFAGKTRLVWVSFTPQQVDIDTDSDKGWEYLMSIFDQMAASHVSYIRLDAVGYGAKEAGTSCFMTPKTFKLISRLREEGVKRGLEILIQVHSYYKKQVEIASKVDRVYDFALPPLLLHALSTGHVEPVAHWTDIRPNNAVTVLDTHDGIGVIDIGSDQLDRSLKGLVPDEDVDNLVNTIHANTHGESQAATGAAASNLDLYQVNSTYYSALGCNDQHYIAARAVQFFLPGVPQVYYVGALAGKNDMELLRKTNNGRDINRHYYSTAEIDENLKRPVVKALNALAKFRNELDAFDGTFSYTTDDDTSISFTWRGETSQATLTFEPKRGLGVDNTTPVAMLEWEDSAGDHRSDDLIANPPVVA

Source Source

Source organism organism	Bifidobacterium adolescentis
NCBI taxonomy ID ncbi_taxonomy_id	1680
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 branched

Description description	beta-D-fructofuranose-(2-1)-alpha-D-glucopyranose
Molecular weight formula_weight	342.3 kDa
Source method src_method	man
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	999

▼

6. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2gdua1
Class class	b — All beta proteins
Fold Fold fold	b.71 — Glycosyl hydrolase domain
Superfamily Superfamily superfamily	b.71.1 — Glycosyl hydrolase domain
Family Family family	b.71.1.0 — automated matches

Domain ID domain_id	d2gdua2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.1 — Amylase, catalytic domain

Domain ID domain_id	d2gdub1
Class class	b — All beta proteins
Fold Fold fold	b.71 — Glycosyl hydrolase domain
Superfamily Superfamily superfamily	b.71.1 — Glycosyl hydrolase domain
Family Family family	b.71.1.0 — automated matches

Domain ID domain_id	d2gdub2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.1 — Amylase, catalytic domain

CATH v4.4 (6 domains)

Domain ID domain_id	2gduA01
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	80 — Glycosidases

Domain ID domain_id	2gduA02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	400 — Oligo-1,6-glucosidase; domain 2
Homologous superfamily homologous superfamily	10 — Oligo-1,6-glucosidase; Domain 2

Domain ID domain_id	2gduA03
Class class	2 — Mainly Beta
Architecture architecture	20 — Single Sheet
Topology topology	220 — Glycosyl hydrolase fold
Homologous superfamily homologous superfamily	10 — alpha-Amylases

Domain ID domain_id	2gduB01
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	80 — Glycosidases

Domain ID domain_id	2gduB02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	400 — Oligo-1,6-glucosidase; domain 2
Homologous superfamily homologous superfamily	10 — Oligo-1,6-glucosidase; Domain 2

Domain ID domain_id	2gduB03
Class class	2 — Mainly Beta
Architecture architecture	20 — Single Sheet
Topology topology	220 — Glycosyl hydrolase fold
Homologous superfamily homologous superfamily	10 — alpha-Amylases

▶

Unit-cell length a length_a	55.331 Å
Unit-cell length b length_b	124.157 Å
Unit-cell length c length_c	152.453 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	19.970 Å
R factor r_factor	0.1840
R_work r_work	0.1820
R_free r_free	0.2170

E232Q mutant of sucrose phosphorylase from BIFIDOBACTERIUM ADOLESCENTIS in complex with sucrose
