SAXSdb — 2gf4

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protein Vng1086c

Halobacterium sp.

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	CALCIUM ION × 4 ACETATE ION × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9HQM9_HALSA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–92； UniProt 1–92 Author chain B； PDBConstruct 1–92； UniProt 1–92

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2gf4
Deposition date deposition_date	2006-03-21
Structure title title	Crystal structure of Vng1086c from Halobacterium salinarium (Halobacterium halobium). Northeast Structural Genomics Target HsR14
Keywords keywords	Hsr14, Structural Genomics, PSI, Protein Structure Initiative, Northeast Structural Genomics Consortium, NESG, UNKNOWN FUNCTION; STRUCTURAL GENOMICS, UNKNOWN FUNCTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2gf4__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

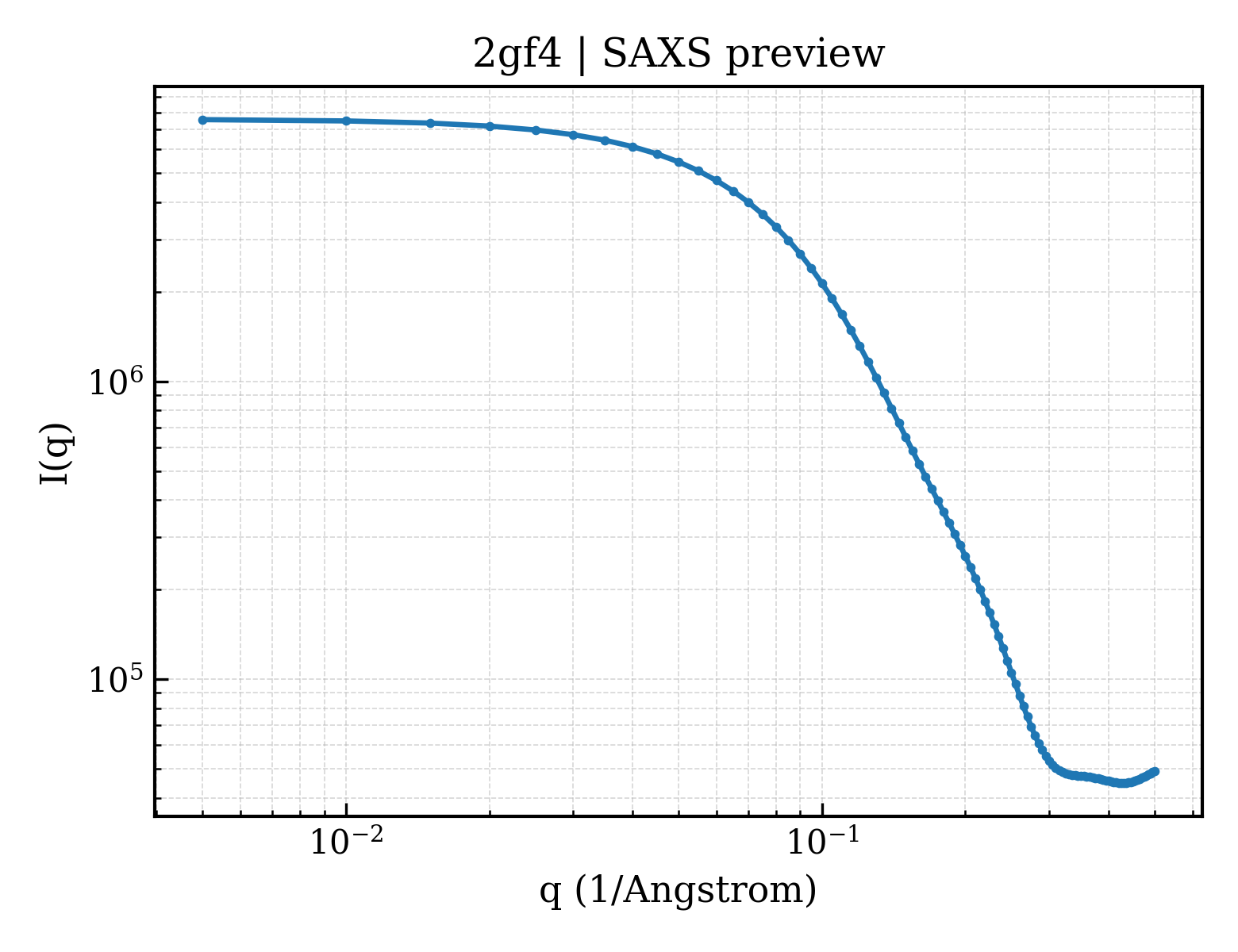

2gf4__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

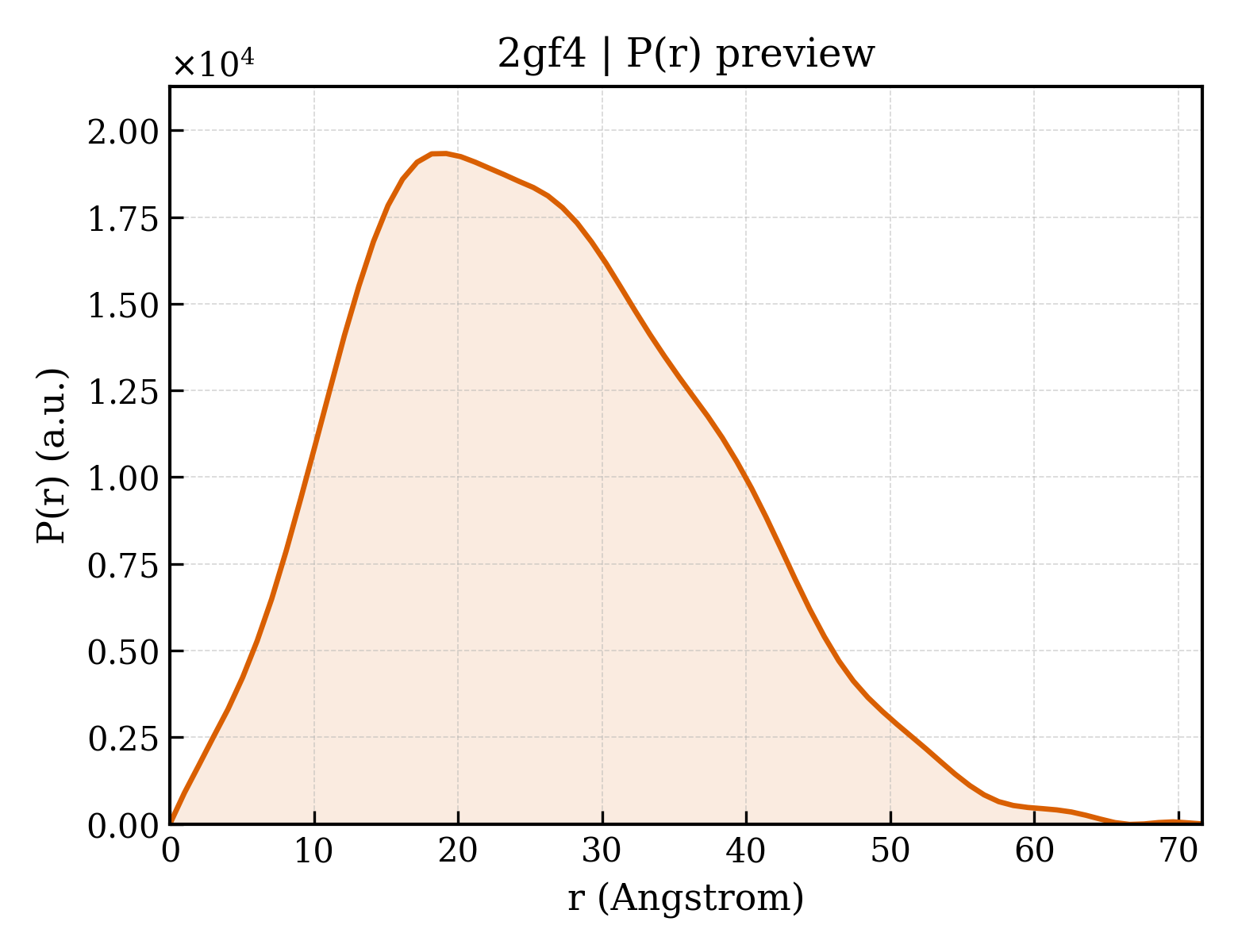

2gf4__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.16 Å
Rg (electron density)	19.97 Å
Total Rg	20.74 Å
Atom count	2610
Residues	314
Excluded volume	45898 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2gf4__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Protein Vng1086c
Molecular weight formula_weight	11655.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1455

MHKDELLELHEQMVNIKDQFLGFDHVDETAFAAYEELDVEPSHVHKSKSEHKHAVFLLGNALAAAMSEDEFSSAGRISKRMEELADDASNQLLEHHHHHH

Source Source

Source organism organism	Halobacterium sp.
NCBI taxonomy ID ncbi_taxonomy_id	64091
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	150

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2gf4a1
Class class	a — All alpha proteins
Fold Fold fold	a.8 — immunoglobulin/albumin-binding domain-like
Superfamily Superfamily superfamily	a.8.10 — Vng1086c-like
Family Family family	a.8.10.1 — Vng1086c-like

Domain ID domain_id	d2gf4b_
Class class	a — All alpha proteins
Fold Fold fold	a.8 — immunoglobulin/albumin-binding domain-like
Superfamily Superfamily superfamily	a.8.10 — Vng1086c-like
Family Family family	a.8.10.1 — Vng1086c-like

CATH v4.4 (2 domains)

Domain ID domain_id	2gf4A00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1270 — Substrate Binding Domain Of Dnak; Chain:A; Domain 2
Homologous superfamily homologous superfamily	110 — Uncharacterised protein family UPF0058

Domain ID domain_id	2gf4B00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1270 — Substrate Binding Domain Of Dnak; Chain:A; Domain 2
Homologous superfamily homologous superfamily	110 — Uncharacterised protein family UPF0058

▶

Unit-cell length a length_a	57.669 Å
Unit-cell length b length_b	64.914 Å
Unit-cell length c length_c	123.945 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.070 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2260
R_work r_work	0.2260
R_free r_free	0.2370

Crystal structure of Vng1086c from Halobacterium salinarium (Halobacterium halobium). Northeast Structural Genomics Target HsR14
