2gf7

Double tudor domain structure

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Jumonji domain-containing protein 2A

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	SULFATE ION × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	SULFATE ION × 1 water × 1	Consistent with protein count
3	Protein monomer	Monomer	Protein 1	SULFATE ION × 1 water × 1	Consistent with protein count
4	Protein monomer	Monomer	Protein 1	SULFATE ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	JMJ2A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–119； UniProt 895–1011 Author chain B； PDBConstruct 3–119； UniProt 895–1011 Author chain C； PDBConstruct 3–119； UniProt 895–1011 Author chain D； PDBConstruct 3–119； UniProt 895–1011

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2gf7
Deposition date deposition_date	2006-03-21
Structure title title	Double tudor domain structure
Keywords keywords	;double tudor domain, tudor tandem, trimethyl histone H3 lysine 4, trimethyl hisone demethylase, jmjc domain containing, METAL BINDING PROTEIN ;; METAL BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2gf7__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2gf7__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

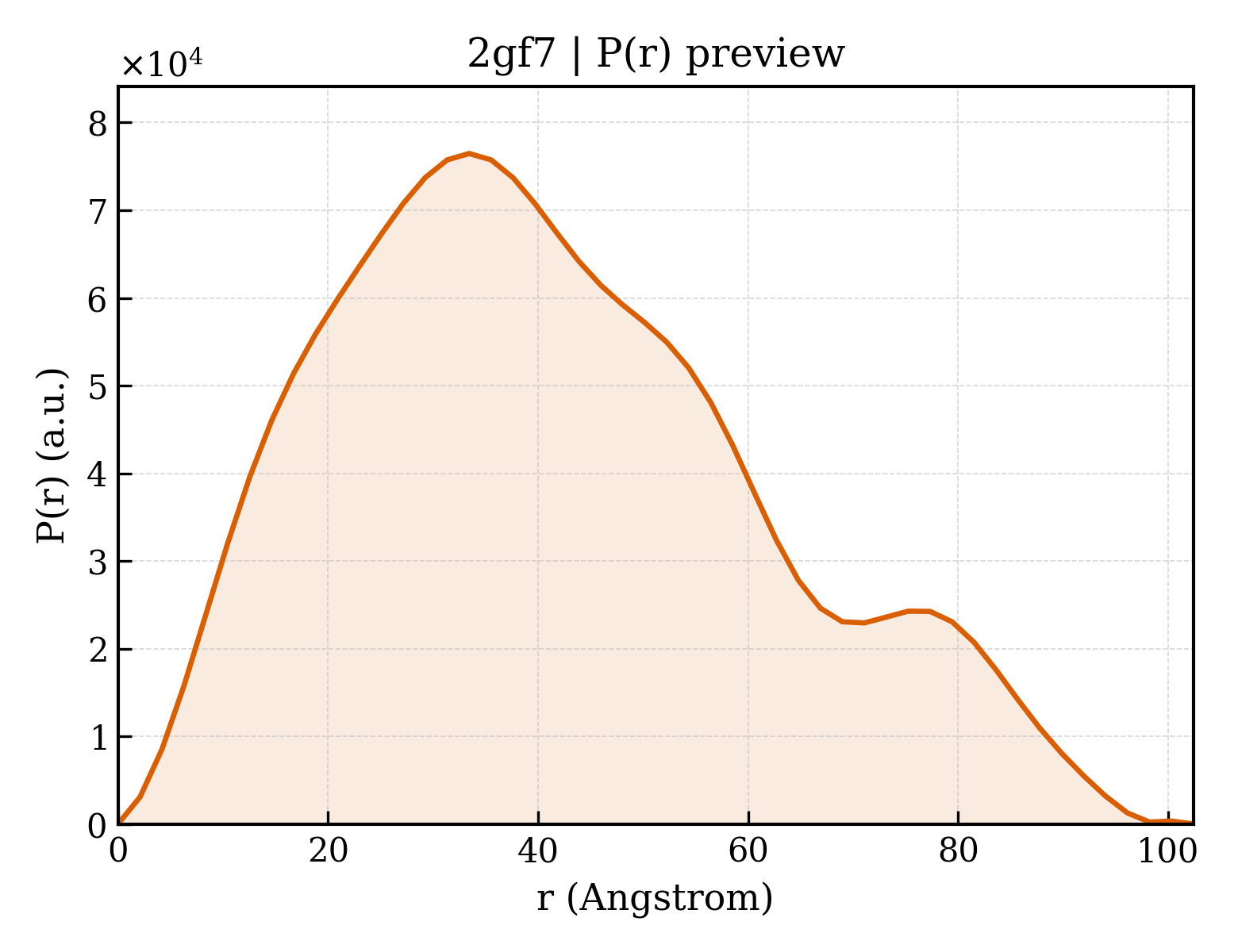

2gf7__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.24 Å
Rg (electron density)	17.39 Å
Total Rg	18.23 Å
Atom count	931
Residues	115
Excluded volume	16314 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2gf7__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2gf7__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`2gf7__assembly_3__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`2gf7__assembly_4__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Jumonji domain-containing protein 2A
Molecular weight formula_weight	13467.8 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	3924

GPALQSITAGQKVISKHKNGRFYQCEVVRLTTETFYEVNFDDGSFSDNLYPEDIVSQDCLQFGPPAEGEVVQVRWTDGQVYGAKFVASHPIQMYQVEFEDGSQLVVKRDDVYTLDEELP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	200

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d2gf7a1
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.9 — Tudor/PWWP/MBT
Family Family family	b.34.9.1 — Tudor domain

Domain ID domain_id	d2gf7a2
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.9 — Tudor/PWWP/MBT
Family Family family	b.34.9.1 — Tudor domain

Domain ID domain_id	d2gf7b1
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.9 — Tudor/PWWP/MBT
Family Family family	b.34.9.1 — Tudor domain

Domain ID domain_id	d2gf7b2
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.9 — Tudor/PWWP/MBT
Family Family family	b.34.9.1 — Tudor domain

Domain ID domain_id	d2gf7c1
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.9 — Tudor/PWWP/MBT
Family Family family	b.34.9.1 — Tudor domain

Domain ID domain_id	d2gf7c2
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.9 — Tudor/PWWP/MBT
Family Family family	b.34.9.1 — Tudor domain

Domain ID domain_id	d2gf7d1
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.9 — Tudor/PWWP/MBT
Family Family family	b.34.9.1 — Tudor domain

Domain ID domain_id	d2gf7d2
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.9 — Tudor/PWWP/MBT
Family Family family	b.34.9.1 — Tudor domain

CATH v4.4 (8 domains)

Domain ID domain_id	2gf7A01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	140 —

Domain ID domain_id	2gf7A02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	330 — Vcp-like ATPase; Chain A, domain 2
Homologous superfamily homologous superfamily	70 —

Domain ID domain_id	2gf7B01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	140 —

Domain ID domain_id	2gf7B02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	330 — Vcp-like ATPase; Chain A, domain 2
Homologous superfamily homologous superfamily	70 —

Domain ID domain_id	2gf7C01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	140 —

Domain ID domain_id	2gf7C02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	330 — Vcp-like ATPase; Chain A, domain 2
Homologous superfamily homologous superfamily	70 —

Domain ID domain_id	2gf7D01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	140 —

Domain ID domain_id	2gf7D02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	330 — Vcp-like ATPase; Chain A, domain 2
Homologous superfamily homologous superfamily	70 —

▶

Unit-cell length a length_a	189.915 Å
Unit-cell length b length_b	189.915 Å
Unit-cell length c length_c	116.317 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	72

Space group space_group	H 3 2
Space-group number int_tables_number	155
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.2640
R_work r_work	0.2250
R_free r_free	0.2640
