2gic

Crystal Structure of a vesicular stomatitis virus nucleocapsid-RNA complex

Method: X-RAY DIFFRACTION D_max: 158.7 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

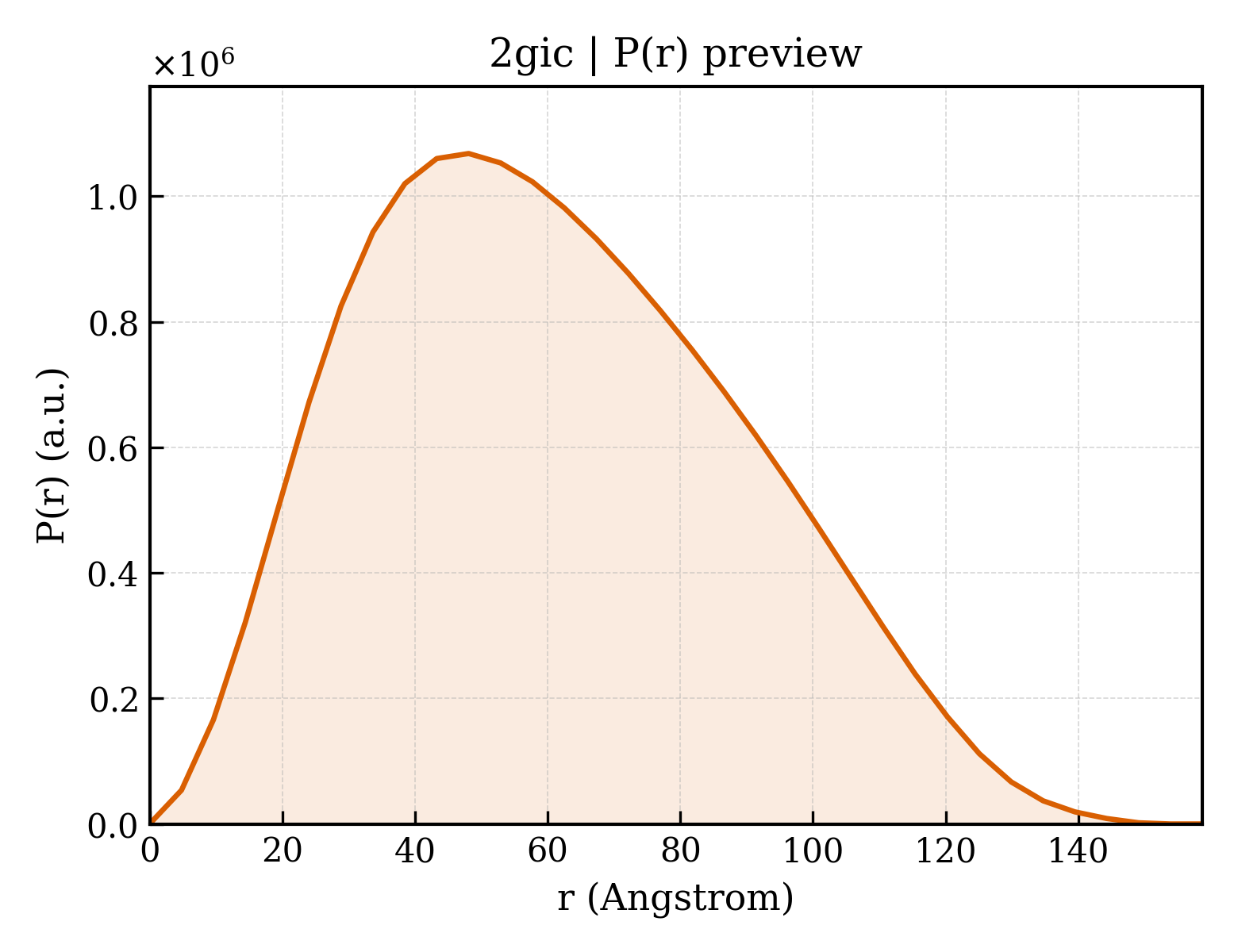

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2gic
沉积日期 deposition_date	2006-03-28
结构标题 title	Crystal Structure of a vesicular stomatitis virus nucleocapsid-RNA complex
关键词 keywords	nucleocapsid, protein-rna complex, negative strand virus, VIRUS-VIRAL PROTEIN-RNA COMPLEX; VIRUS/VIRAL PROTEIN/RNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	47.37 Å
回转半径 Rg (电子) rg_electron	47.55 Å
零角强度 I(0) i0	1012570000.00
分子量 molecular_weight	252080.0 kDa
排除体积 excluded_volume	308820 Å³
包络体积 envelope_volume	442850 Å³
水化壳体积 shell_volume	75793 Å³
包络直径 envelope_diameter	160.3 Å
壳层 Rg shell_rg	52.80 Å
包络 Rg envelope_rg	47.64 Å
形状 Rg shape_rg	47.54 Å
总 Rg total_rg	47.80 Å
总原子数 total_atoms	17432
残基数 n_residues	2131
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	158.7 Å
Rg (实空间) rg_real	47.46 Å
Rg 误差 (实空间) rg_real_error	1.68 Å
I(0) (实空间) i0_real	1.0130e+09
I(0) 误差 (实空间) i0_real_error	2.2090e+07
Rg (倒空间) rg_reciprocal	47.37 Å
I(0) (倒空间) i0_reciprocal	1012000000.0000
解质量估计 total_estimate	0.8789
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	48.1 Å
偏度 Skewness skewness	0.329
峰度 Kurtosis kurtosis	-0.570
角度范围 angular_range	— – 0.1650 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	225700000.0000
实空间数据点数 n_real_points	34
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.877; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.803

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	45-MER
分子量 formula_weight	13732.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	R
原子数 atom_count	17432

UUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUU

Entity 2 polymer

描述 description	Nucleocapsid protein
分子量 formula_weight	47463.9 kDa
来源方法 src_method	man
拷贝数 entity_count	5

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E

MSVTVKRIIDNTVIVPKLPANEDPVEYPADYFRKSKEIPLYINTTKSLSDLRGYVYQGLKSGNVSIIHVNSYLYGALKDIRGKLDKDWSSFGINIGKAGDTIGIFDLVSLKALDGVLPDGVSDASRTSADDKWLPLYLLGLYRVGRTQMPEYRKKLMDGLTNQCKMINEQFEPLVPEGRDIFDVWGNDSNYTKIVAAVDMFFHMFKKHECASFRYGTIVSRFKDCAALATFGHLCKITGMSTEDVTTWILNREVADEMVQMMLPGQEIDKADSYMPYLIDFGLSSKSPYSSVKNPAFHFWGQLTALLLRSTRARNARQPDDIEYTSLTTAGLLYAYAVGSSADLAQQFCVGDNKYTPDDSTGGLTTNAPPQGRDVVEWLGWFEDQNRKPTPDMMQYAKRAVMSLQGLREKTIGKYAKSEFDK

来源 Source

来源生物 organism	Vesicular stomatitis Indiana virus
NCBI 分类编号 ncbi_taxonomy_id	11277
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	URANYL (VI) ION
分子量 formula_weight	270.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	15

▼

6. 折叠分类 (SCOP + CATH) 15 domains

SCOP 2.08 (5 domains)

结构域编号 domain_id	d2gica1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.260 — Rhabdovirus nucleoprotein-like
超家族 Superfamily superfamily	a.260.1 — Rhabdovirus nucleoprotein-like
家族 Family family	a.260.1.1 — Rhabdovirus nucleocapsid protein

结构域编号 domain_id	d2gicb_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.260 — Rhabdovirus nucleoprotein-like
超家族 Superfamily superfamily	a.260.1 — Rhabdovirus nucleoprotein-like
家族 Family family	a.260.1.1 — Rhabdovirus nucleocapsid protein

结构域编号 domain_id	d2gicc_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.260 — Rhabdovirus nucleoprotein-like
超家族 Superfamily superfamily	a.260.1 — Rhabdovirus nucleoprotein-like
家族 Family family	a.260.1.1 — Rhabdovirus nucleocapsid protein

结构域编号 domain_id	d2gicd_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.260 — Rhabdovirus nucleoprotein-like
超家族 Superfamily superfamily	a.260.1 — Rhabdovirus nucleoprotein-like
家族 Family family	a.260.1.1 — Rhabdovirus nucleocapsid protein

结构域编号 domain_id	d2gice_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.260 — Rhabdovirus nucleoprotein-like
超家族 Superfamily superfamily	a.260.1 — Rhabdovirus nucleoprotein-like
家族 Family family	a.260.1.1 — Rhabdovirus nucleocapsid protein

CATH v4.4 (10 domains)

结构域编号 domain_id	2gicA01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	3570 — Rhabdovirus nucleoprotein-like fold
同源超家族 H-superfamily homologous superfamily	10 — Rhabdovirus nucleocapsid protein like domain

结构域编号 domain_id	2gicA02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	3610 — Rhabdovirus nucleoprotein-like
同源超家族 H-superfamily homologous superfamily	10 — Nucleoprotein

结构域编号 domain_id	2gicB01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	3570 — Rhabdovirus nucleoprotein-like fold
同源超家族 H-superfamily homologous superfamily	10 — Rhabdovirus nucleocapsid protein like domain

结构域编号 domain_id	2gicB02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	3610 — Rhabdovirus nucleoprotein-like
同源超家族 H-superfamily homologous superfamily	10 — Nucleoprotein

结构域编号 domain_id	2gicC01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	3570 — Rhabdovirus nucleoprotein-like fold
同源超家族 H-superfamily homologous superfamily	10 — Rhabdovirus nucleocapsid protein like domain

结构域编号 domain_id	2gicC02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	3610 — Rhabdovirus nucleoprotein-like
同源超家族 H-superfamily homologous superfamily	10 — Nucleoprotein

结构域编号 domain_id	2gicD01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	3570 — Rhabdovirus nucleoprotein-like fold
同源超家族 H-superfamily homologous superfamily	10 — Rhabdovirus nucleocapsid protein like domain

结构域编号 domain_id	2gicD02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	3610 — Rhabdovirus nucleoprotein-like
同源超家族 H-superfamily homologous superfamily	10 — Nucleoprotein

结构域编号 domain_id	2gicE01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	3570 — Rhabdovirus nucleoprotein-like fold
同源超家族 H-superfamily homologous superfamily	10 — Rhabdovirus nucleocapsid protein like domain

结构域编号 domain_id	2gicE02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	3610 — Rhabdovirus nucleoprotein-like
同源超家族 H-superfamily homologous superfamily	10 — Nucleoprotein

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	166.160 Å
晶胞边长 b length_b	236.316 Å
晶胞边长 c length_c	75.651 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	20

空间群 space_group	P 21 21 2
空间群编号 int_tables_number	18
晶系 crystal_system	—

分辨率 resolution	2.920 Å
最低分辨率 resolution_low	44.860 Å
R 因子 r_factor	0.2580
R_work r_work	0.2550
R_free r_free	0.3060

fit	/app/data/saxs_computation/gi/2gic/2gic.fit
pddf	/app/data/pr_computation/gi/2gic/2gic.pr.out
profile	/app/data/saxs_computation/gi/2gic/2gic.dat
