2gij

Q138F HincII bound to cognate DNA GTTAAC and Ca2+

Method: X-RAY DIFFRACTION
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Type II restriction enzyme HincII

Haemophilus influenzae

UniProt P17743

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein–DNA Homooligomer Protein 2 DNA 2 5'-D(*GP*CP*CP*GP*GP*TP*TP*AP*AP*CP*CP*GP*GP*C)-3' × 2 SODIUM ION × 1 CALCIUM ION × 2 water × 4 Consistent with all polymers

Other States of the Same Protein in the Database

Monomer

None

Homodimer
2aud

1 assemblies

Homotetramer

None

Other homooligomers

None

Heteromeric or nucleic-acid complex
1kc6 1kc6 1xhu 1xhu 1xhv 1xhv 2gih 2gij 3ebc

9 assemblies

View Construct and Data Evidence
UniProt name T2C2_HAEIN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain A； PDBConstruct 1–257； UniProt 2–258 Author chain B； PDBConstruct 1–257； UniProt 2–258

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id2gij
Deposition date deposition_date2006-03-28
Structure title titleQ138F HincII bound to cognate DNA GTTAAC and Ca2+
Keywords keywordsprotein DNA complex, indirect readout, DNA intercalation, endonuclease, HYDROLASE-DNA COMPLEX; HYDROLASE/DNA
Experimental Method methodX-RAY DIFFRACTION
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2gij__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

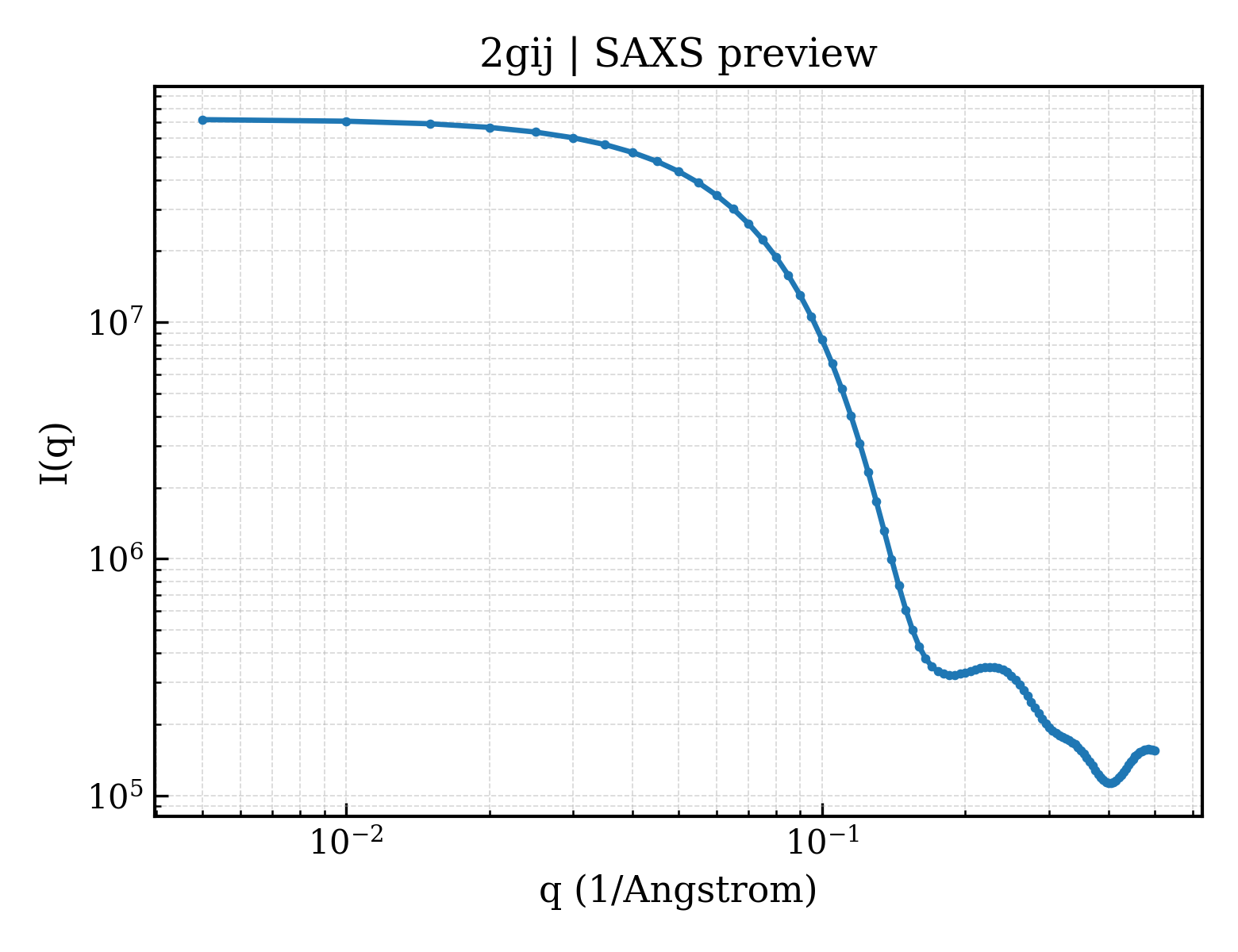

2gij__assembly_1__model_1 | I(q)

10-2 10-1 106 107 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

2gij__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）24.65 Å
Rg (electron density)24.29 Å
Total Rg25.05 Å
Atom count4436
Residues509
Excluded volume77473 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 2gij__assembly_1__model_1 tetrameric （4） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_idd2gija_
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.52 — Restriction endonuclease-like
Superfamily Superfamily superfamilyc.52.1 — Restriction endonuclease-like
Family Family familyc.52.1.19 — Restriction endonuclease HincII
Domain ID domain_idd2gijb_
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.52 — Restriction endonuclease-like
Superfamily Superfamily superfamilyc.52.1 — Restriction endonuclease-like
Family Family familyc.52.1.19 — Restriction endonuclease HincII

CATH v4.4 (2 domains)

Domain ID domain_id2gijA00
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology600 — ECO RV Endonuclease; Chain A
Homologous superfamily homologous superfamily10 — DNA mismatch repair MutH/Restriction endonuclease, type II
Domain ID domain_id2gijB00
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology600 — ECO RV Endonuclease; Chain A
Homologous superfamily homologous superfamily10 — DNA mismatch repair MutH/Restriction endonuclease, type II
▶

7. Citations (1)
