Bacillus subtilis
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein homooligomer | Homooligomer | Protein 2 | water × 2 | Consistent with protein count |
| UniProt name | YQJZ_BACSU |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–114； UniProt 1–114 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 2go8 |
| Deposition date deposition_date | 2006-04-12 |
| Structure title title | Crystal structure of YQJZ_BACSU FROM Bacillus subtilis. Northeast structural genomics TARGET SR435 |
| Keywords keywords | ;SR435, protein structure, Structural Genomics, PSI, Protein Structure Initiative, Northeast Structural Genomics Consortium, NESG, UNKNOWN FUNCTION ;; STRUCTURAL GENOMICS, UNKNOWN FUNCTION |
| Experimental Method method | X-RAY DIFFRACTION |

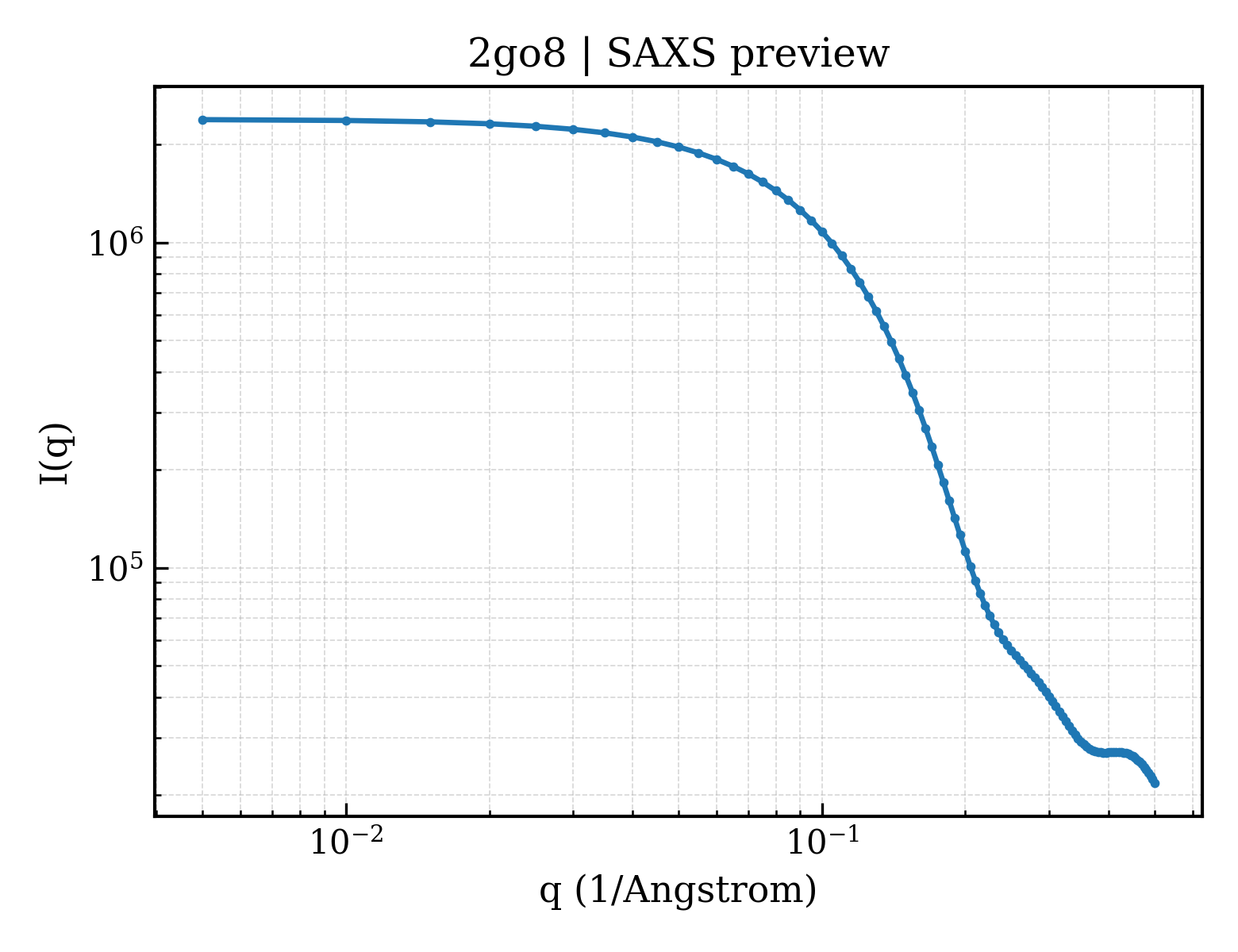

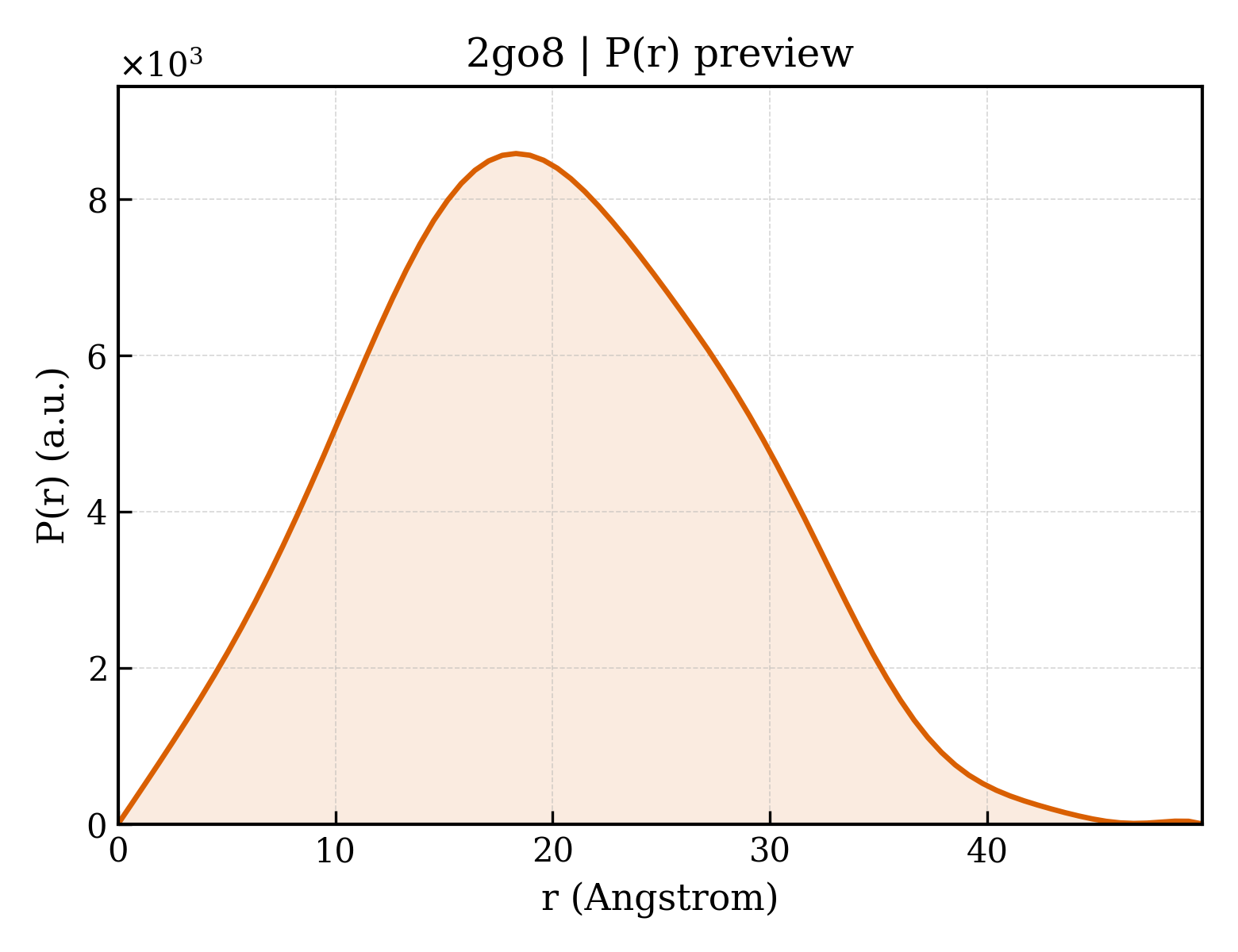

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 17.37 Å |
| Rg (electron density) | 15.86 Å |
| Total Rg | 16.91 Å |
| Atom count | 1434 |
| Residues | 174 |
| Excluded volume | 25190 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d2go8a1 |
| Class class | d — Alpha and beta proteins (a+b) |
| Fold Fold fold | d.58 — Ferredoxin-like |
| Superfamily Superfamily superfamily | d.58.4 — Dimeric alpha+beta barrel |
| Family Family family | d.58.4.5 — PG130-like |
| Domain ID domain_id | 2go8A01 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 30 — 2-Layer Sandwich |
| Topology topology | 70 — Alpha-Beta Plaits |
| Homologous superfamily homologous superfamily | 100 — |
