2goy
;Crystal structure of assimilatory adenosine 5'-phosphosulfate reductase with bound APS ;
SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2goy |
| 沉积日期 deposition_date | 2006-04-14 |
| 结构标题 title | ;Crystal structure of assimilatory adenosine 5'-phosphosulfate reductase with bound APS ; |
| 关键词 keywords | ;Iron sulfur cluster, nucleotide binding, adenosine 5'-phosphosulfate, thiosulfonate intermediate, OXIDOREDUCTASE ;; OXIDOREDUCTASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 56.11 Å |
| 回转半径 Rg (电子) rg_electron | 57.01 Å |
| 零角强度 I(0) i0 | 640455000.00 |
| 分子量 molecular_weight | 208330.0 kDa |
| 排除体积 excluded_volume | 258740 ų |
| 包络体积 envelope_volume | 379800 ų |
| 水化壳体积 shell_volume | 57201 ų |
| 包络直径 envelope_diameter | 199.3 Å |
| 壳层 Rg shell_rg | 56.93 Å |
| 包络 Rg envelope_rg | 55.42 Å |
| 形状 Rg shape_rg | 57.04 Å |
| 总 Rg total_rg | 56.90 Å |
| 总原子数 total_atoms | 14576 |
| 残基数 n_residues | 1780 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |

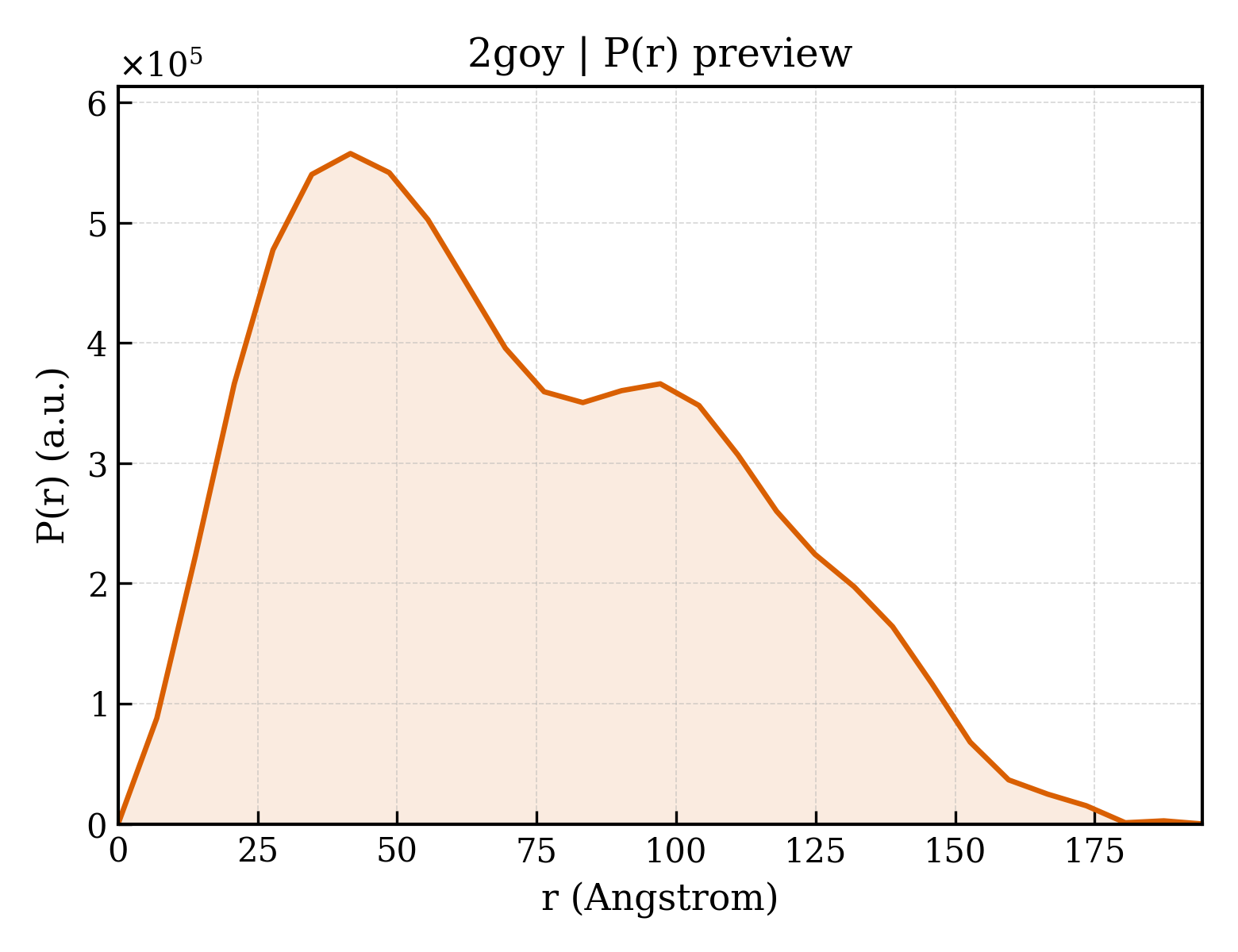

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 194.3 Å |
| Rg (实空间) rg_real | 56.65 Å |
| Rg 误差 (实空间) rg_real_error | 2.94 Å |
| I(0) (实空间) i0_real | 6.4050e+08 |
| I(0) 误差 (实空间) i0_real_error | 1.3660e+07 |
| Rg (倒空间) rg_reciprocal | 55.61 Å |
| I(0) (倒空间) i0_reciprocal | 639400000.0000 |
| 解质量估计 total_estimate | 0.7613 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 3 |
| 主峰位置 r_peak_primary | 41.6 Å |
| 偏度 Skewness skewness | 0.423 |
| 峰度 Kurtosis kurtosis | -0.710 |
| 角度范围 angular_range | — – 0.1400 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 24770000.0000 |
| 实空间数据点数 n_real_points | 29 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.584; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.589; Smooth: 0.554 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (4)
6. 折叠分类 (SCOP + CATH) 8 domains
CATH v4.4 (8 domains)
| 结构域编号 domain_id | 2goyA00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 620 — HUPs |
| 结构域编号 domain_id | 2goyB00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 620 — HUPs |
| 结构域编号 domain_id | 2goyC00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 620 — HUPs |
| 结构域编号 domain_id | 2goyD00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 620 — HUPs |
| 结构域编号 domain_id | 2goyE00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 620 — HUPs |
| 结构域编号 domain_id | 2goyF00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 620 — HUPs |
| 结构域编号 domain_id | 2goyG00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 620 — HUPs |
| 结构域编号 domain_id | 2goyH00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 620 — HUPs |
