SAXSdb — 2gpe

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Bifunctional protein putA

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	IMIDAZOLE × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	IMIDAZOLE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PUTA_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–52； UniProt 1–52 Author chain B； PDBConstruct 1–52； UniProt 1–52 Author chain C； PDBConstruct 1–52； UniProt 1–52 Author chain D； PDBConstruct 1–52； UniProt 1–52

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2gpe
Deposition date deposition_date	2006-04-17
Structure title title	Structure of the DNA-binding domain of E. Coli Proline Utilization A (PUTA)
Keywords keywords	PUTA, RIBBON-HELIX-HELIX, DNA-BINDING DOMAIN, PROLINE CATABOLISM, PROLINE UTILIZATION A, DNA BINDING PROTEIN; DNA BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2gpe__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2gpe__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

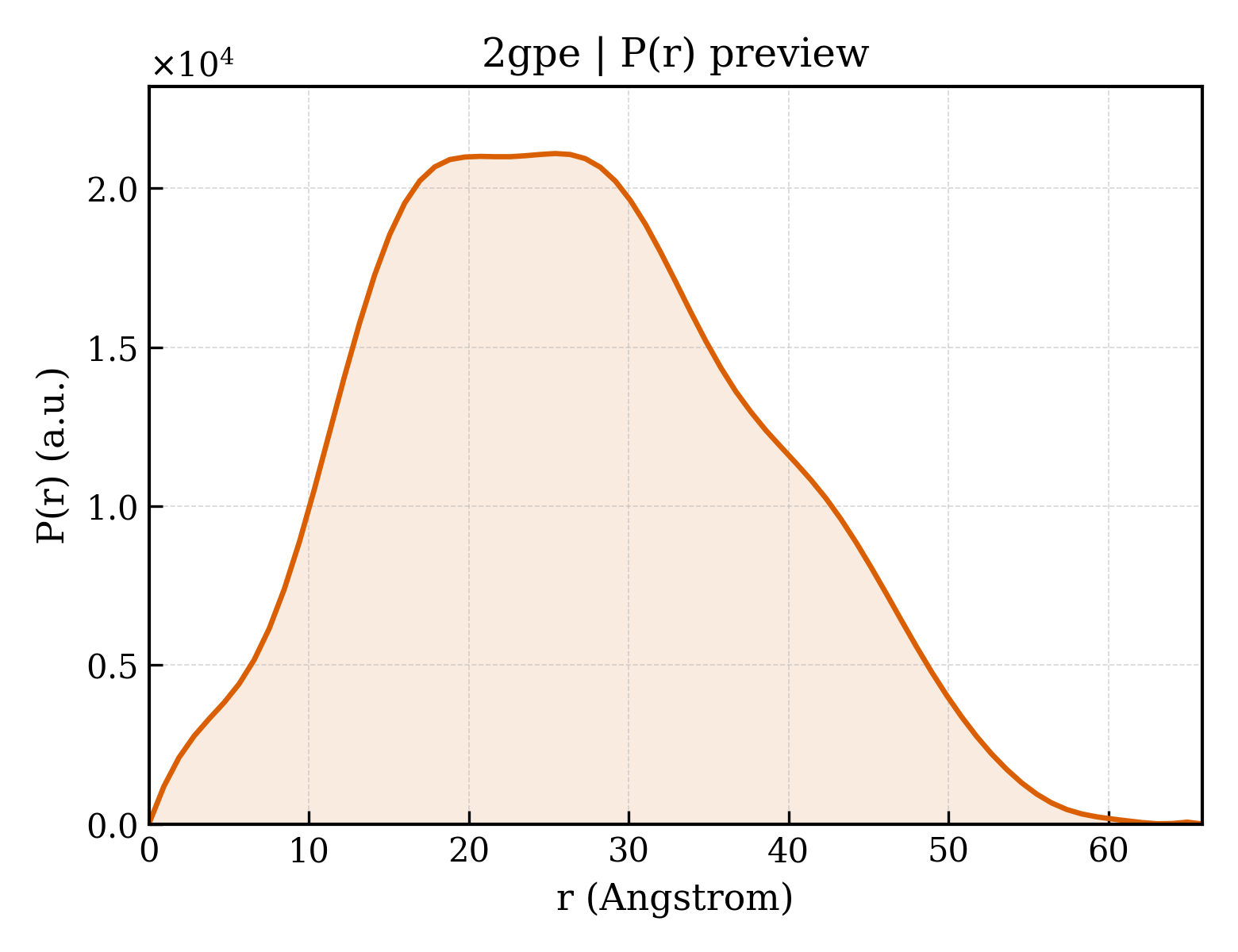

2gpe__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	14.63 Å
Rg (electron density)	12.88 Å
Total Rg	14.15 Å
Atom count	742
Residues	93
Excluded volume	13109 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2gpe__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2gpe__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Bifunctional protein putA
Molecular weight formula_weight	5957.7 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	1581

MGTTTMGVKLDDATRERIKSAATRIDRTPHWLIKQAIFSYLEQLENSDTLPE

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	IMIDAZOLE
Molecular weight formula_weight	69.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	68

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2gpea_
Class class	a — All alpha proteins
Fold Fold fold	a.43 — Ribbon-helix-helix
Superfamily Superfamily superfamily	a.43.1 — Ribbon-helix-helix
Family Family family	a.43.1.11 — PutA pre-N-terminal region-like

Domain ID domain_id	d2gpeb_
Class class	a — All alpha proteins
Fold Fold fold	a.43 — Ribbon-helix-helix
Superfamily Superfamily superfamily	a.43.1 — Ribbon-helix-helix
Family Family family	a.43.1.11 — PutA pre-N-terminal region-like

Domain ID domain_id	d2gpec_
Class class	a — All alpha proteins
Fold Fold fold	a.43 — Ribbon-helix-helix
Superfamily Superfamily superfamily	a.43.1 — Ribbon-helix-helix
Family Family family	a.43.1.11 — PutA pre-N-terminal region-like

Domain ID domain_id	d2gped_
Class class	a — All alpha proteins
Fold Fold fold	a.43 — Ribbon-helix-helix
Superfamily Superfamily superfamily	a.43.1 — Ribbon-helix-helix
Family Family family	a.43.1.11 — PutA pre-N-terminal region-like

CATH v4.4 (4 domains)

Domain ID domain_id	2gpeA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1220 — Arc Repressor Mutant
Homologous superfamily homologous superfamily	10 — Met repressor-like

Domain ID domain_id	2gpeB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1220 — Arc Repressor Mutant
Homologous superfamily homologous superfamily	10 — Met repressor-like

Domain ID domain_id	2gpeC01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1220 — Arc Repressor Mutant
Homologous superfamily homologous superfamily	10 — Met repressor-like

Domain ID domain_id	2gpeD01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1220 — Arc Repressor Mutant
Homologous superfamily homologous superfamily	10 — Met repressor-like

▶

Unit-cell length a length_a	55.731 Å
Unit-cell length b length_b	55.731 Å
Unit-cell length c length_c	125.019 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	50.900 Å
R factor r_factor	—
R_work r_work	0.2030
R_free r_free	0.2490
