2gsm

Catalytic Core (Subunits I and II) of Cytochrome c oxidase from Rhodobacter sphaeroides

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cytochrome c oxidase subunit 1

Rhodobacter sphaeroides

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Cytochrome c oxidase subunit 2 × 1 （Q03736） DECYL-BETA-D-MALTOPYRANOSIDE × 5 COPPER (II) ION × 3 MAGNESIUM ION × 1 CALCIUM ION × 1 HYDROXIDE ION × 1 HEME-A × 2 TRIDECANE × 6 CADMIUM ION × 2 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Cytochrome c oxidase subunit 2 × 1 （Q03736） DECYL-BETA-D-MALTOPYRANOSIDE × 5 COPPER (II) ION × 3 MAGNESIUM ION × 1 CALCIUM ION × 1 HYDROXIDE ION × 1 HEME-A × 2 TRIDECANE × 6 CADMIUM ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	COX1_RHOSH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–566； UniProt 1–566 Author chain C； PDBConstruct 1–566； UniProt 1–566

Cytochrome c oxidase subunit 2

Rhodobacter sphaeroides

UniProt Q03736

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Cytochrome c oxidase subunit 1 × 1 （P33517） DECYL-BETA-D-MALTOPYRANOSIDE × 5 COPPER (II) ION × 3 MAGNESIUM ION × 1 CALCIUM ION × 1 HYDROXIDE ION × 1 HEME-A × 2 TRIDECANE × 6 CADMIUM ION × 2 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Cytochrome c oxidase subunit 1 × 1 （P33517） DECYL-BETA-D-MALTOPYRANOSIDE × 5 COPPER (II) ION × 3 MAGNESIUM ION × 1 CALCIUM ION × 1 HYDROXIDE ION × 1 HEME-A × 2 TRIDECANE × 6 CADMIUM ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	COX2_RHOSH
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–256； UniProt 26–281 Author chain D； PDBConstruct 1–256； UniProt 26–281

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2gsm
Deposition date deposition_date	2006-04-26
Structure title title	Catalytic Core (Subunits I and II) of Cytochrome c oxidase from Rhodobacter sphaeroides
Keywords keywords	transmembrane protein complex, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2gsm__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2gsm__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

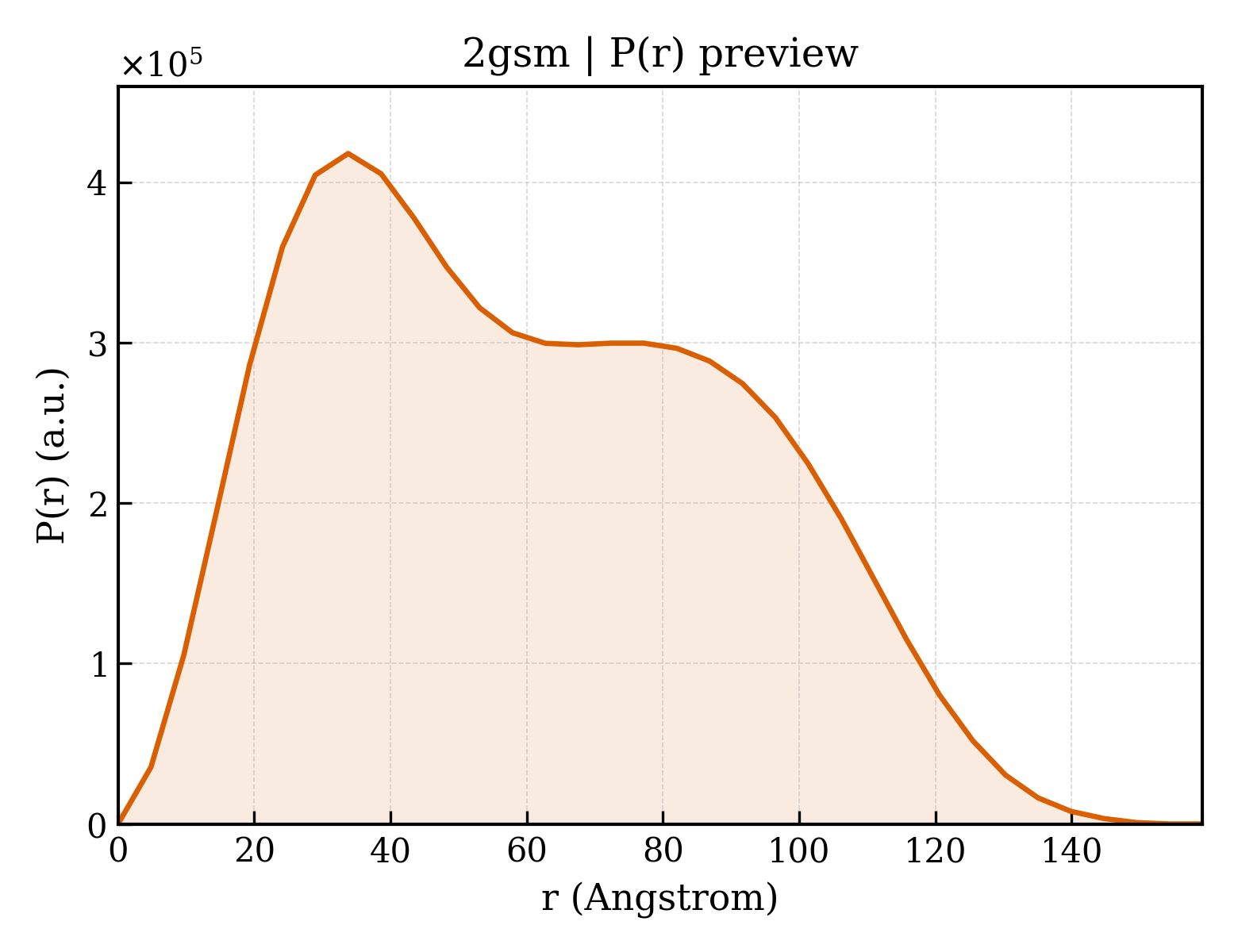

2gsm__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.60 Å
Rg (electron density)	27.24 Å
Total Rg	28.19 Å
Atom count	6588
Residues	791
Excluded volume	120340 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2gsm__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2gsm__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (11)

Entity 1 Entity 1 polymer

Description description	Cytochrome c oxidase subunit 1
Molecular weight formula_weight	63195.4 kDa
EC 编号 ec_number	1.9.3.1
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	13644

MADAAIHGHEHDRRGFFTRWFMSTNHKDIGVLYLFTGGLVGLISVAFTVYMRMELMAPGVQFMCAEHLESGLVKGFFQSLWPSAVENCTPNGHLWNVMITGHGILMMFFVVIPALFGGFGNYFMPLHIGAPDMAFPRMNNLSYWLYVAGTSLAVASLFAPGGNGQLGSGIGWVLYPPLSTSESGYSTDLAIFAVHLSGASSILGAINMITTFLNMRAPGMTMHKVPLFAWSIFVTAWLILLALPVLAGAITMLLTDRNFGTTFFQPSGGGDPVLYQHILWFFGHPEVYIIVLPAFGIVSHVIATFAKKPIFGYLPMVYAMVAIGVLGFVVWAHHMYTAGLSLTQQSYFMMATMVIAVPTGIKIFSWIATMWGGSIELKTPMLWALGFLFLFTVGGVTGIVLSQASVDRYYHDTYYVVAHFHYVMSLGAVFGIFAGIYFWIGKMSGRQYPEWAGKLHFWMMFVGANLTFFPQHFLGRQGMPRRYIDYPEAFATWNFVSSLGAFLSFASFLFFLGVIFYTLTRGARVTANNYWNEHADTLEWTLTSPPPEHTFEQLPKREDWERAPAH

Source Source

Source organism organism	Rhodobacter sphaeroides
NCBI taxonomy ID ncbi_taxonomy_id	1063
Host organism host_organism	Rhodobacter sphaeroides

Entity 2 Entity 2 polymer

Description description	Cytochrome c oxidase subunit 2
Molecular weight formula_weight	29365.4 kDa
EC 编号 ec_number	1.9.3.1
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

QQQSLEIIGRPQPGGTGFQPSASPVATQIHWLDGFILVIIAAITIFVTLLILYAVWRFHEKRNKVPARFTHNSPLEIAWTIVPIVILVAIGAFSLPVLFNQQEIPEADVTVKVTGYQWYWGYEYPDEEISFESYMIGSPATGGDNRMSPEVEQQLIEAGYSRDEFLLATDTAMVVPVNKTVVVQVTGADVIHSWTVPAFGVKQDAVPGRLAQLWFRAEREGIFFGQCSELCGISHAYMPITVKVVSEEAYAAWLEQHHHHHH

Source Source

Source organism organism	Rhodobacter sphaeroides
NCBI taxonomy ID ncbi_taxonomy_id	1063
Host organism host_organism	Rhodobacter sphaeroides

Entity 3 Entity 3 non-polymer

Description description	DECYL-BETA-D-MALTOPYRANOSIDE
Molecular weight formula_weight	482.6 kDa
Source method src_method	man
Copy count entity_count	10

Entity 4 Entity 4 non-polymer

Description description	COPPER (II) ION
Molecular weight formula_weight	63.5 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 5 Entity 5 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	HYDROXIDE ION
Molecular weight formula_weight	17.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 8 Entity 8 non-polymer

Description description	HEME-A
Molecular weight formula_weight	852.8 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 9 Entity 9 non-polymer

Description description	TRIDECANE
Molecular weight formula_weight	184.4 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 10 Entity 10 non-polymer

Description description	CADMIUM ION
Molecular weight formula_weight	112.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 11 Entity 11 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	503

▼

6. Fold Classification (SCOP + CATH) 14 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d2gsma_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.24 — Cytochrome c oxidase subunit I-like
Superfamily Superfamily superfamily	f.24.1 — Cytochrome c oxidase subunit I-like
Family Family family	f.24.1.1 — Cytochrome c oxidase subunit I-like

Domain ID domain_id	d2gsmb1
Class class	b — All beta proteins
Fold Fold fold	b.6 — Cupredoxin-like
Superfamily Superfamily superfamily	b.6.1 — Cupredoxins
Family Family family	b.6.1.2 — Periplasmic domain of cytochrome c oxidase subunit II

Domain ID domain_id	d2gsmb2
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.17 — Transmembrane helix hairpin
Superfamily Superfamily superfamily	f.17.2 — Cytochrome c oxidase subunit II-like, transmembrane region
Family Family family	f.17.2.1 — Cytochrome c oxidase subunit II-like, transmembrane region

Domain ID domain_id	d2gsmb3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2gsmc_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.24 — Cytochrome c oxidase subunit I-like
Superfamily Superfamily superfamily	f.24.1 — Cytochrome c oxidase subunit I-like
Family Family family	f.24.1.1 — Cytochrome c oxidase subunit I-like

Domain ID domain_id	d2gsmd1
Class class	b — All beta proteins
Fold Fold fold	b.6 — Cupredoxin-like
Superfamily Superfamily superfamily	b.6.1 — Cupredoxins
Family Family family	b.6.1.2 — Periplasmic domain of cytochrome c oxidase subunit II

Domain ID domain_id	d2gsmd2
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.17 — Transmembrane helix hairpin
Superfamily Superfamily superfamily	f.17.2 — Cytochrome c oxidase subunit II-like, transmembrane region
Family Family family	f.17.2.1 — Cytochrome c oxidase subunit II-like, transmembrane region

Domain ID domain_id	d2gsmd3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (6 domains)

Domain ID domain_id	2gsmA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	210 — Cytochrome C Oxidase; Chain A
Homologous superfamily homologous superfamily	10 — Cytochrome c oxidase-like, subunit I domain

Domain ID domain_id	2gsmB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	90 —

Domain ID domain_id	2gsmB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

Domain ID domain_id	2gsmC00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	210 — Cytochrome C Oxidase; Chain A
Homologous superfamily homologous superfamily	10 — Cytochrome c oxidase-like, subunit I domain

Domain ID domain_id	2gsmD01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	90 —

Domain ID domain_id	2gsmD02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

▶

Unit-cell length a length_a	125.020 Å
Unit-cell length b length_b	131.639 Å
Unit-cell length c length_c	176.802 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2139
R_work r_work	0.2135
R_free r_free	0.2324
