SAXSdb — 2gt4

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GDP-mannose mannosyl hydrolase

Escherichia coli K12

UniProt P32056

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	MAGNESIUM ION × 2 GUANOSINE-5'-DIPHOSPHATE-ALPHA-D-MANNOSE × 2 beta-D-mannopyranose × 1 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	MAGNESIUM ION × 2 GUANOSINE-5'-DIPHOSPHATE-ALPHA-D-MANNOSE × 2 beta-D-mannopyranose × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NUDD_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–160； UniProt 1–159 Author chain B； PDBConstruct 2–160； UniProt 1–159 Author chain C； PDBConstruct 2–160； UniProt 1–159

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2gt4
Deposition date deposition_date	2006-04-27
Structure title title	Crystal Structure of the Y103F mutant of the GDP-mannose mannosyl hydrolase in complex with GDP-mannose and MG+2
Keywords keywords	GDP-mannose hydrolase GDP-glucose hydrolase NUDIX GDP GDP-fucose, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2gt4__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2gt4__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

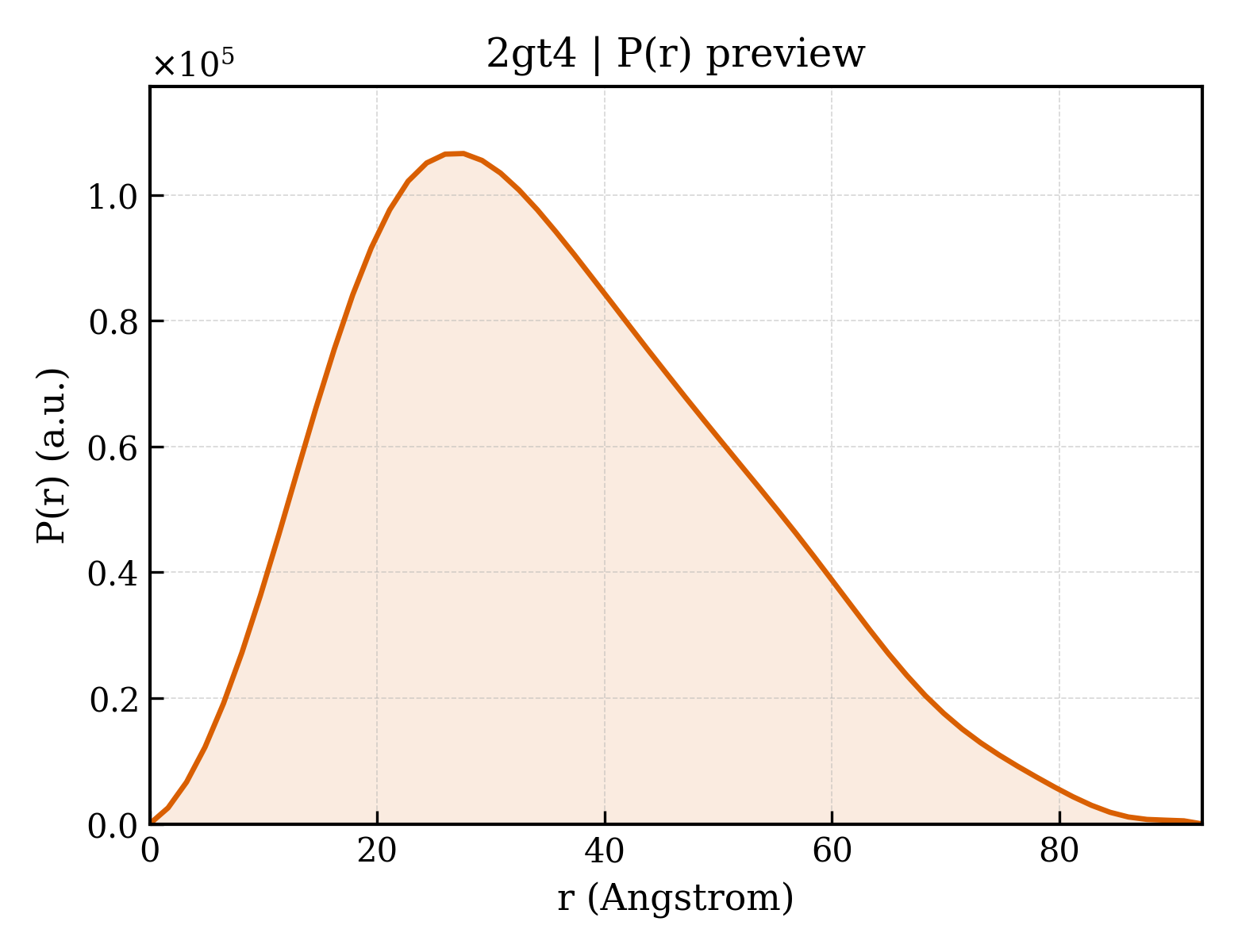

2gt4__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.12 Å
Rg (electron density)	20.87 Å
Total Rg	21.77 Å
Atom count	2695
Residues	320
Excluded volume	47330 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2gt4__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2gt4__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	GDP-mannose mannosyl hydrolase
Molecular weight formula_weight	18408.6 kDa
EC 编号 ec_number	3.6.1.-
Mutation mutation	Y103F
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	4393

MMFLRQEDFATVVRSTPLVSLDFIVENSRGEFLLGKRTNRPAQGYWFVPGGRVQKDETLEAAFERLTMAELGLRLPITAGQFYGVWQHFYDDNFSGTDFTTHFVVLGFRFRVSEEELLLPDEQHDDYRWLTSDALLASDNVHANSRAYFLAEKRTGVPGL

Source Source

Source organism organism	Escherichia coli K12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	GUANOSINE-5'-DIPHOSPHATE-ALPHA-D-MANNOSE
Molecular weight formula_weight	605.3 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	beta-D-mannopyranose
Molecular weight formula_weight	180.2 kDa
Source method src_method	man
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	345

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d2gt4a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.113 — Nudix
Superfamily Superfamily superfamily	d.113.1 — Nudix
Family Family family	d.113.1.5 — GDP-mannose mannosyl hydrolase NudD

Domain ID domain_id	d2gt4b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.113 — Nudix
Superfamily Superfamily superfamily	d.113.1 — Nudix
Family Family family	d.113.1.5 — GDP-mannose mannosyl hydrolase NudD

Domain ID domain_id	d2gt4c_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.113 — Nudix
Superfamily Superfamily superfamily	d.113.1 — Nudix
Family Family family	d.113.1.5 — GDP-mannose mannosyl hydrolase NudD

CATH v4.4 (3 domains)

Domain ID domain_id	2gt4A00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	79 — Nucleoside Triphosphate Pyrophosphohydrolase
Homologous superfamily homologous superfamily	10 — Nucleoside Triphosphate Pyrophosphohydrolase

Domain ID domain_id	2gt4B00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	79 — Nucleoside Triphosphate Pyrophosphohydrolase
Homologous superfamily homologous superfamily	10 — Nucleoside Triphosphate Pyrophosphohydrolase

Domain ID domain_id	2gt4C00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	79 — Nucleoside Triphosphate Pyrophosphohydrolase
Homologous superfamily homologous superfamily	10 — Nucleoside Triphosphate Pyrophosphohydrolase

▶

Unit-cell length a length_a	137.785 Å
Unit-cell length b length_b	93.893 Å
Unit-cell length c length_c	66.103 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	91.23 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	77.610 Å
R factor r_factor	0.1880
R_work r_work	0.1860
R_free r_free	0.2260

Crystal Structure of the Y103F mutant of the GDP-mannose mannosyl hydrolase in complex with GDP-mannose and MG+2
