SAXSdb — 2gv9

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA polymerase

Human herpesvirus 1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	SULFATE ION × 2 MERCURY (II) ION × 1 GUANIDINE × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DPOL_HHV1K
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1193； UniProt 43–1235 Author chain B； PDBConstruct 1–1193； UniProt 43–1235

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2gv9
Deposition date deposition_date	2006-05-02
Structure title title	Crystal structure of the Herpes Simplex virus type 1 DNA polymerase
Keywords keywords	Polymerase alpha fold, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2gv9__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2gv9__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

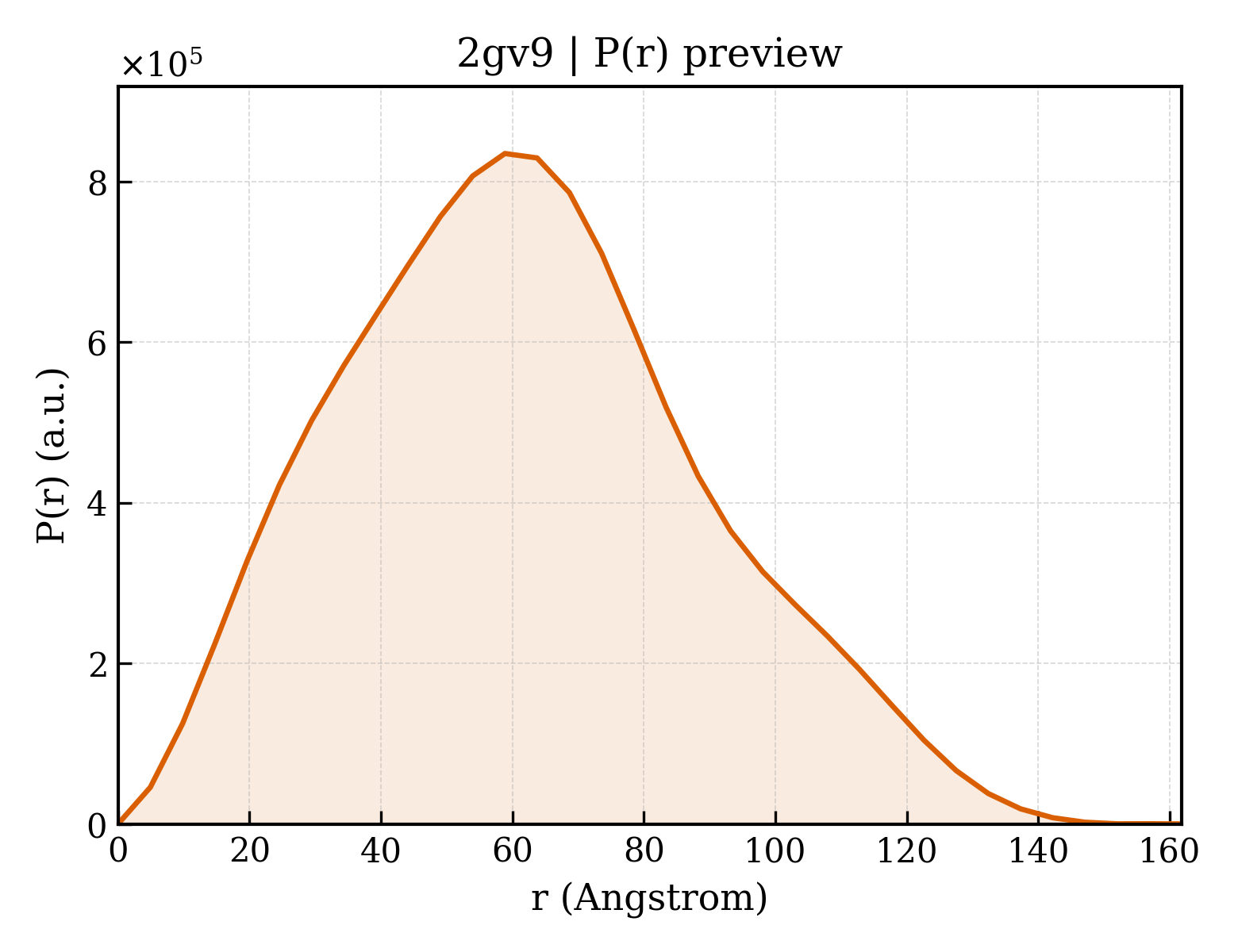

2gv9__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	35.67 Å
Rg (electron density)	34.65 Å
Total Rg	35.13 Å
Atom count	7725
Residues	981
Excluded volume	138270 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2gv9__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2gv9__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	DNA polymerase
Molecular weight formula_weight	132757.4 kDa
EC 编号 ec_number	2.7.7.7
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	16007

NFYNPYLAPVGTQQKPTGPTQRHTYYSECDEFRFIAPRVLDEDAPPEKRAGVHDGHLKRAPKVYCGGDERDVLRVGSGGFWPRRSRLWGGVDHAPAGFNPTVTVFHVYDILENVEHAYGMRAAQFHARFMDAITPTGTVITLLGLTPEGHRVAVHVYGTRQYFYMNKEEVDRHLQCRAPRDLCERMAAALRESPGASFRGISADHFEAEVVERTDVYYYETRPALFYRVYVRSGRVLSYLCDNFCPAIKKYEGGVDATTRFILDNPGFVTFGWYRLKPGRNNTLAQPRAPMAFGTSSDVEFNCTADNLAIEGGMSDLPAYKLMCFDIECKAGGEDELAFPVAGHPEDLVIQISCLLYDLSTTALEHVLLFSLGSCDLPESHLNELAARGLPTPVVLEFDSEFEMLLAFMTLVKQYGPEFVTGYNIINFDWPFLLAKLTDIYKVPLDGYGRMNGRGVFRVWDIGQSHFQKRSKIKVNGMVNIDMYGIITDKIKLSSYKLNAVAEAVLKDKKKDLSYRDIPAYYATGPAQRGVIGEYCIQDSLLVGQLFFKFLPHLELSAVARLAGINITRTIYDGQQIRVFTCLLRLADQKGFILPDTQGRFRGAGGEAPKRPAAAREDEERPEEEGEDEDEREEGGGEREPEGARETAGRHVGYQGAKVLDPTSGFHVNPVVVFDFASLYPSIIQAHNLCFSTLSLRADAVAHLEAGKDYLEIEVGGRRLFFVKAHVRESLLSILLRDWLAMRKQIRSRIPQSSPEEAVLLDKQQAAIKVVCNSVYGFTGVQHGLLPCLHVAATVTTIGREMLLATREYVHARWAAFEQLLADFPEAADMRAPGPYSMRIIYGDTDSIFVLCRGLTAAGLTAMGDKMASHISRALFLPPIKLECEKTFTKLLLIAKKKYIGVIYGGKMLIKGVDLVRKNNCAFINRTSRALVDLLFYDDTVSGAAAALAERPAEEWLARPLPEGLQAFGAVLVDAHRRITDPERDIQDFVLTAELSRHPRAYTNKRLAHLTVYYKLMARRAQVPSIKDRIPYVIVAQTREVEETVARLAALRELDAAAPGDEPAPPAALPSPAKRPRETPSHADPPGGASKPRKLLVSELAEDPAYAIAHGVALNTDYYFSHLLGAACVTFKALFGNNAKITESLLKRFIPEVWHPPDDVAARLRAAGFGAVGAGATAEETRRMLHRAFDTLA

Source Source

Source organism organism	Human herpesvirus 1
NCBI taxonomy ID ncbi_taxonomy_id	10306
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	MERCURY (II) ION
Molecular weight formula_weight	200.6 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	GUANIDINE
Molecular weight formula_weight	59.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	87

▼

6. Fold Classification (SCOP + CATH) 6 domains

CATH v4.4 (6 domains)

Domain ID domain_id	2gv9A03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	10 — Ribonuclease H-like superfamily/Ribonuclease H

Domain ID domain_id	2gv9A05
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	690 — B family DNA polymerase, finger domain

Domain ID domain_id	2gv9B03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	10 — Ribonuclease H-like superfamily/Ribonuclease H

Domain ID domain_id	2gv9B04
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1600 — Palm domain of DNA polymerase
Homologous superfamily homologous superfamily	10 — B family DNA polymerase, palm domain

Domain ID domain_id	2gv9B05
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	690 — B family DNA polymerase, finger domain

Domain ID domain_id	2gv9B06
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	132 — Topoisomerase I; Chain A, domain 4
Homologous superfamily homologous superfamily	60 — B family DNA polymerase, thumb domain

▶

Unit-cell length a length_a	103.917 Å
Unit-cell length b length_b	125.550 Å
Unit-cell length c length_c	220.577 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.680 Å
Low-resolution limit resolution_low	48.300 Å
R factor r_factor	0.2248
R_work r_work	0.2218
R_free r_free	0.2806

Crystal structure of the Herpes Simplex virus type 1 DNA polymerase
