2gvc

Crystal structure of flavin-containing monooxygenase (FMO)from S.pombe and substrate (methimazole) complex

Method: X-RAY DIFFRACTION D_max: 162.9 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

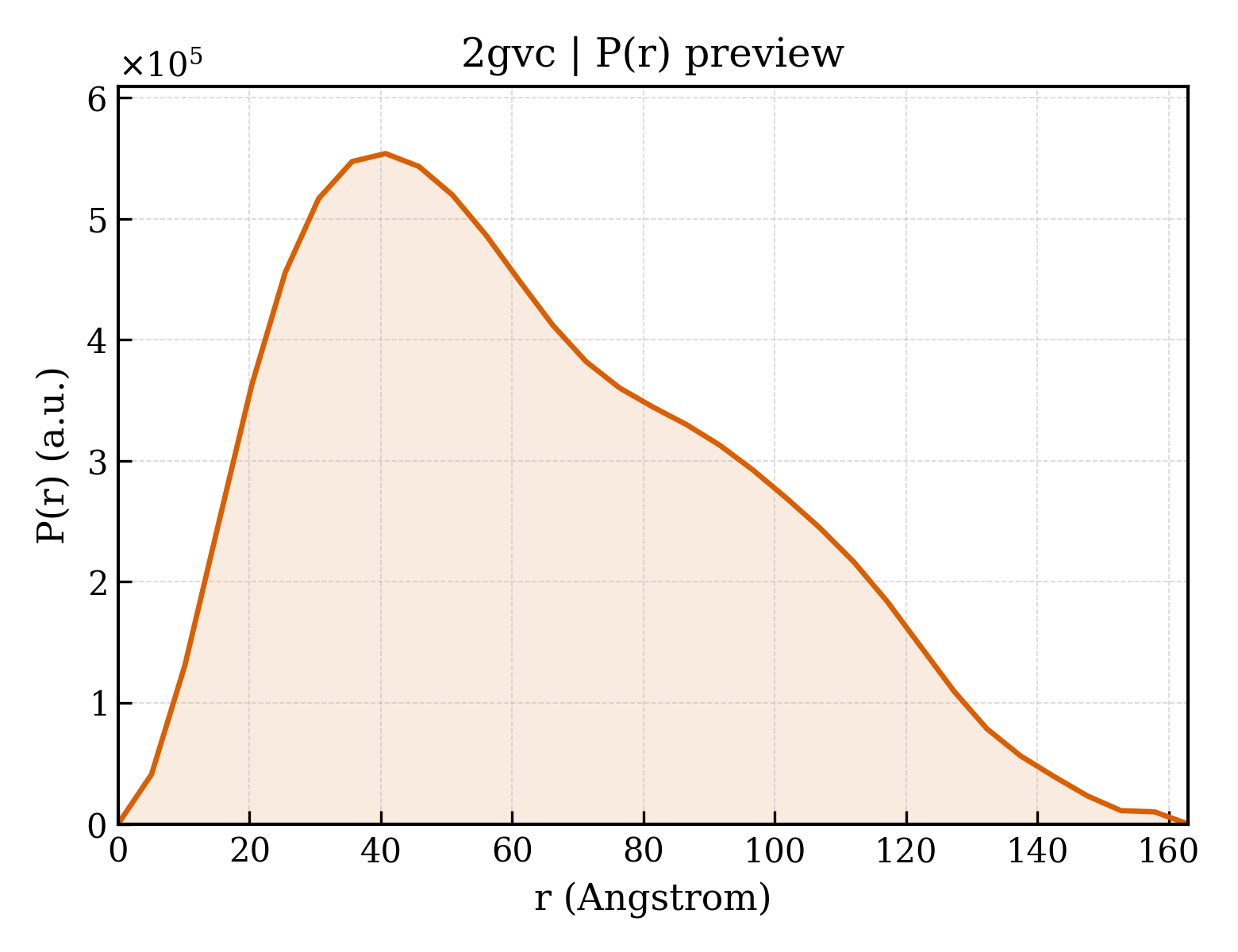

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2gvc
沉积日期 deposition_date	2006-05-02
结构标题 title	Crystal structure of flavin-containing monooxygenase (FMO)from S.pombe and substrate (methimazole) complex
关键词 keywords	;FMO, FAD, methimazole, oxygenase, PSI, Structural Genomics, Protein Structure Initiative, New York SGX Research Center for Structural Genomics, NYSGXRC, OXIDOREDUCTASE ;; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	49.33 Å
回转半径 Rg (电子) rg_electron	50.02 Å
零角强度 I(0) i0	554924000.00
分子量 molecular_weight	201890.0 kDa
排除体积 excluded_volume	254790 Å³
包络体积 envelope_volume	338120 Å³
水化壳体积 shell_volume	58939 Å³
包络直径 envelope_diameter	176.1 Å
壳层 Rg shell_rg	50.12 Å
包络 Rg envelope_rg	49.33 Å
形状 Rg shape_rg	50.01 Å
总 Rg total_rg	50.05 Å
总原子数 total_atoms	14216
残基数 n_residues	1752
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	162.9 Å
Rg (实空间) rg_real	49.94 Å
Rg 误差 (实空间) rg_real_error	1.80 Å
I(0) (实空间) i0_real	5.5490e+08
I(0) 误差 (实空间) i0_real_error	1.0950e+07
Rg (倒空间) rg_reciprocal	49.34 Å
I(0) (倒空间) i0_reciprocal	554500000.0000
解质量估计 total_estimate	0.7943
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	40.7 Å
偏度 Skewness skewness	0.464
峰度 Kurtosis kurtosis	-0.593
角度范围 angular_range	— – 0.1600 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	50830000.0000
实空间数据点数 n_real_points	33
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.770; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.754; Smooth: 0.259

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	monooxygenase
分子量 formula_weight	50179.5 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,D,E
原子数 atom_count	14753

MCLPTIRKIAIIGAGPSGLVTAKALLAEKAFDQVTLFERRGSPGGVWNYTSTLSNKLPVPSTNPILTTEPIVGPAALPVYPSPLYRDLQTNTPIELMGYCDQSFKPQTLQFPHRHTIQEYQRIYAQPLLPFIKLATDVLDIEKKDGSWVVTYKGTKAGSPISKDIFDAVSICNGHYEVPYIPNIKGLDEYAKAVPGSVLHSSLFREPELFVGESVLVVGGASSANDLVRHLTPVAKHPIYQSLLGGGDIQNESLQQVPEITKFDPTTREIYLKGGKVLSNIDRVIYCTGYLYSVPFPSLAKLKSPETKLIDDGSHVHNVYQHIFYIPDPTLAFVGLALHVVPFPTSQAQAAFLARVWSGRLKLPSKEEQLKWQDELMFSLSGANNMYHSLDYPKDATYINKLHDWCKQATPVLEEEFPSPYWGEKERSIRENMWSIRAKFFGIEPPK

来源 Source

来源生物 organism	Schizosaccharomyces pombe
通用名 common_name	fission yeast
NCBI 分类编号 ncbi_taxonomy_id	4896
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	HYDROGEN PEROXIDE
分子量 formula_weight	34.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	FLAVIN-ADENINE DINUCLEOTIDE
分子量 formula_weight	785.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 non-polymer

描述 description	1-METHYL-1,3-DIHYDRO-2H-IMIDAZOLE-2-THIONE
分子量 formula_weight	114.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 5 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	537

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d2gvca1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.5 — FAD/NAD-linked reductases, N-terminal and central domains

结构域编号 domain_id	d2gvca2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.5 — FAD/NAD-linked reductases, N-terminal and central domains

结构域编号 domain_id	d2gvcb1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.5 — FAD/NAD-linked reductases, N-terminal and central domains

结构域编号 domain_id	d2gvcb2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.5 — FAD/NAD-linked reductases, N-terminal and central domains

结构域编号 domain_id	d2gvcd1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.5 — FAD/NAD-linked reductases, N-terminal and central domains

结构域编号 domain_id	d2gvcd2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.5 — FAD/NAD-linked reductases, N-terminal and central domains

结构域编号 domain_id	d2gvce1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.5 — FAD/NAD-linked reductases, N-terminal and central domains

结构域编号 domain_id	d2gvce2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.5 — FAD/NAD-linked reductases, N-terminal and central domains

CATH v4.4 (8 domains)

结构域编号 domain_id	2gvcA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2gvcA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2gvcB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2gvcB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2gvcD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2gvcD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2gvcE01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2gvcE02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	72.700 Å
晶胞边长 b length_b	84.450 Å
晶胞边长 c length_c	113.510 Å
晶胞夹角 α angle_alpha	107.73 °
晶胞夹角 β angle_beta	90.76 °
晶胞夹角 γ angle_gamma	106.50 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.220 Å
最低分辨率 resolution_low	50.000 Å
R 因子 r_factor	0.2300
R_work r_work	0.2300
R_free r_free	0.2645
