SAXSdb — 2gvm

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2gvm
沉积日期 deposition_date	2006-05-03
结构标题 title	Crystal structure of hydrophobin HFBI with detergent
关键词 keywords	hydrophobin, amphiphile, surfactant, high solvent content, SURFACE ACTIVE PROTEIN; SURFACE ACTIVE PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	22.20 Å
回转半径 Rg (电子) rg_electron	20.62 Å
零角强度 I(0) i0	15828200.00
分子量 molecular_weight	30870.0 kDa
排除体积 excluded_volume	39219 Å³
包络体积 envelope_volume	47484 Å³
水化壳体积 shell_volume	19861 Å³
包络直径 envelope_diameter	68.5 Å
壳层 Rg shell_rg	26.10 Å
包络 Rg envelope_rg	20.70 Å
形状 Rg shape_rg	20.65 Å
总 Rg total_rg	21.34 Å
总原子数 total_atoms	2130
残基数 n_residues	280
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	68.2 Å
Rg (实空间) rg_real	22.11 Å
Rg 误差 (实空间) rg_real_error	0.45 Å
I(0) (实空间) i0_real	1.5830e+07
I(0) 误差 (实空间) i0_real_error	2.1280e+05
Rg (倒空间) rg_reciprocal	22.13 Å
I(0) (倒空间) i0_reciprocal	15830000.0000
解质量估计 total_estimate	0.9027
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	32.6 Å
偏度 Skewness skewness	0.095
峰度 Kurtosis kurtosis	-0.545
角度范围 angular_range	— – 0.3600 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	1419000.0000
实空间数据点数 n_real_points	68
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.927; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.962

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Hydrophobin-1
分子量 formula_weight	7543.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	2248

SNGNGNVCPPGLFSNPQCCATQVLGLIGLDCKVPSQNVYDGTDFRNVCAKTGAQPLCCVAPVAGQALLCQTAVGA

Entity 2 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 non-polymer

描述 description	LAURYL DIMETHYLAMINE-N-OXIDE
分子量 formula_weight	229.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	10

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	118

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d2gvma_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.138 — Hydrophobin II, HfbII
超家族 Superfamily superfamily	b.138.1 — Hydrophobin II, HfbII
家族 Family family	b.138.1.1 — Hydrophobin II, HfbII

结构域编号 domain_id	d2gvmb_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.138 — Hydrophobin II, HfbII
超家族 Superfamily superfamily	b.138.1 — Hydrophobin II, HfbII
家族 Family family	b.138.1.1 — Hydrophobin II, HfbII

结构域编号 domain_id	d2gvmc_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.138 — Hydrophobin II, HfbII
超家族 Superfamily superfamily	b.138.1 — Hydrophobin II, HfbII
家族 Family family	b.138.1.1 — Hydrophobin II, HfbII

结构域编号 domain_id	d2gvmd_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.138 — Hydrophobin II, HfbII
超家族 Superfamily superfamily	b.138.1 — Hydrophobin II, HfbII
家族 Family family	b.138.1.1 — Hydrophobin II, HfbII

CATH v4.4 (4 domains)

结构域编号 domain_id	2gvmA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	120 — hfbii hydrophobin
同源超家族 H-superfamily homologous superfamily	10 — Hydrophobin

结构域编号 domain_id	2gvmB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	120 — hfbii hydrophobin
同源超家族 H-superfamily homologous superfamily	10 — Hydrophobin

结构域编号 domain_id	2gvmC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	120 — hfbii hydrophobin
同源超家族 H-superfamily homologous superfamily	10 — Hydrophobin

结构域编号 domain_id	2gvmD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	120 — hfbii hydrophobin
同源超家族 H-superfamily homologous superfamily	10 — Hydrophobin

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	91.900 Å
晶胞边长 b length_b	121.600 Å
晶胞边长 c length_c	121.200 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	32

空间群 space_group	C 2 2 21
空间群编号 int_tables_number	20
晶系 crystal_system	—

分辨率 resolution	2.300 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.2330
R_work r_work	0.2330
R_free r_free	0.2470

fit	/app/data/saxs_computation/gv/2gvm/2gvm.fit
pddf	/app/data/pr_computation/gv/2gvm/2gvm.pr.out
profile	/app/data/saxs_computation/gv/2gvm/2gvm.dat

Crystal structure of hydrophobin HFBI with detergent

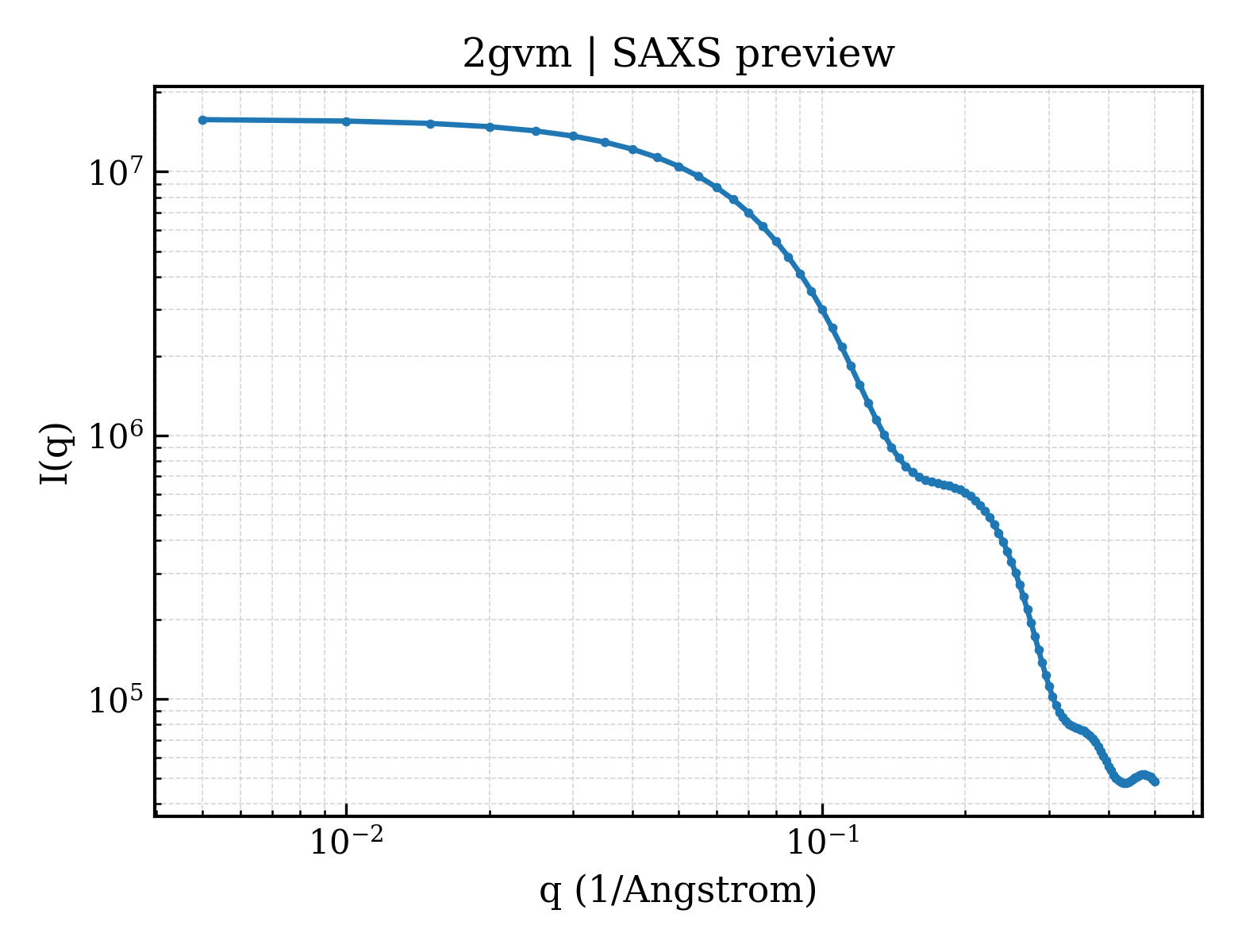

SAXS 散射曲线 SAXS Profile

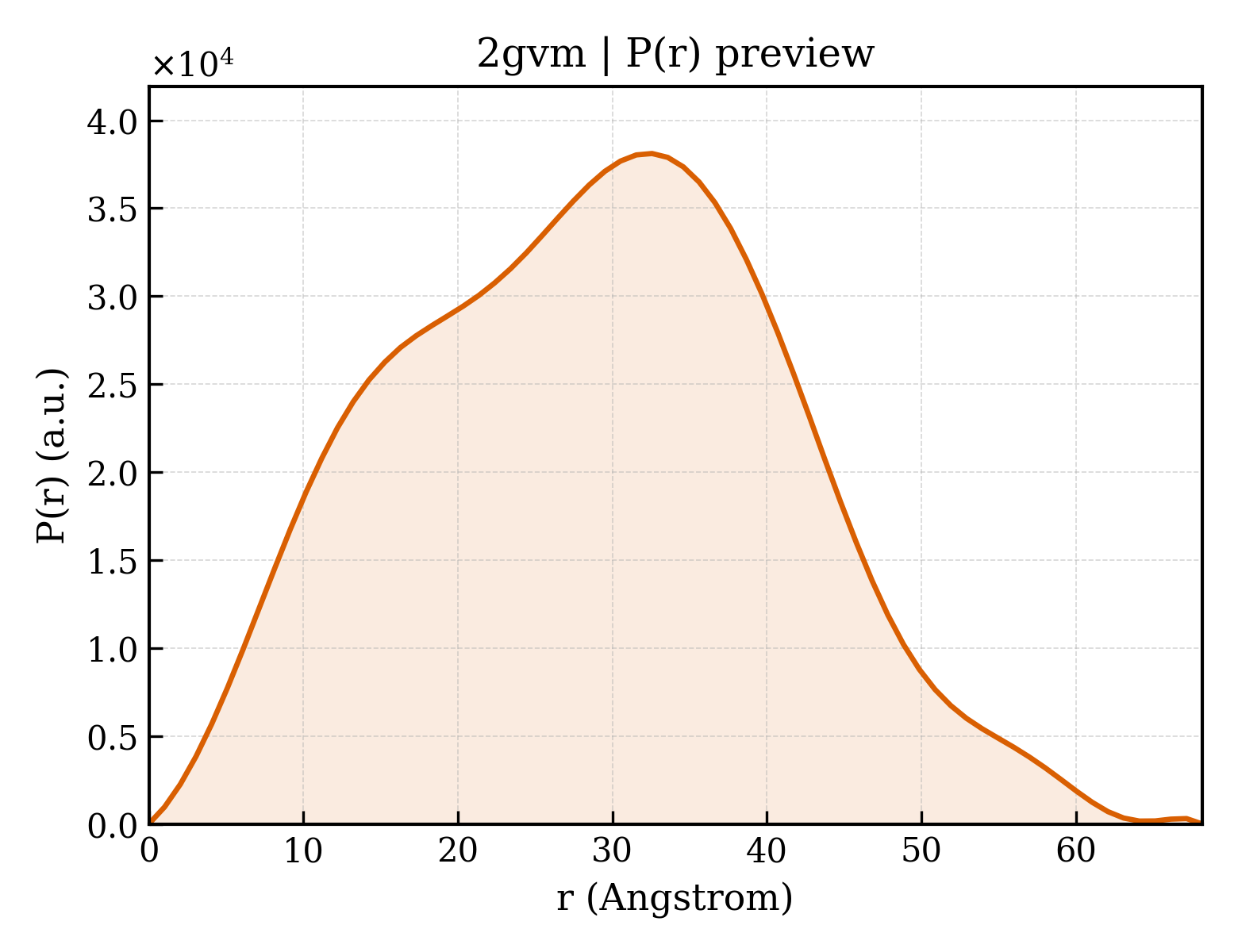

P(r) 距离分布 P(r) Distribution
