SAXSdb — 2gw5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Leukocyte immunoglobulin-like receptor subfamily B member 2 precursor

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 24–220	Fragment：N-terminal Domains 1 and 2	IPA ISOPROPYL ALCOHOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；0.1M Hepes pH 7.5, 10% Isopropanol, 20% PEG 4000 streak seeded., VAPOR DIFFUSION, HANGING DROP	Resolution 1.80 Å R-free 0.279

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2GW5	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2DYP Crystal Structure of LILRB2(LIR2/ILT4/CD85d) complexed with HLA-G Deposited 2006-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 24–219（196 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M Tris-HCl pH8.0, 45% PEG400, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.50 Å R-free 0.278
4LLA Crystal structure of D3D4 domain of the LILRB2 molecule Deposited 2013-07-09	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 222–419（198 aa）	Mutation：D3D4 domain, UNP residues 222-419	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291 K；3.5M sodium formate, 0.1M Tris, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.50 Å R-free 0.272
4LLA Crystal structure of D3D4 domain of the LILRB2 molecule Deposited 2013-07-09	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 222–419（198 aa）	Mutation：D3D4 domain, UNP residues 222-419	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291 K；3.5M sodium formate, 0.1M Tris, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.50 Å R-free 0.272
4LLA Crystal structure of D3D4 domain of the LILRB2 molecule Deposited 2013-07-09	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 222–419（198 aa）	Mutation：D3D4 domain, UNP residues 222-419	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291 K；3.5M sodium formate, 0.1M Tris, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.50 Å R-free 0.272
6AED Crystal Structure of the four Ig-like domain of LILRB2(LIR2/ILT4/CD85d) Deposited 2018-08-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 27–419（393 aa） Fragment：UNP residues 27-419	Mutation：V213M	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1 M Tris, pH 8.5, 25%(v/v) tert-butanol	Resolution 3.80 Å R-free 0.287
9C9C Protein receptor Deposited 2024-06-13	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 22–220（199 aa） Fragment：residues 22-220 (Uniprot numbering)	Not recorded	CL CHLORIDE ION × 1 IMD IMIDAZOLE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；imidazole, peg	Resolution 1.66 Å R-free 0.196
9C9C Protein receptor Deposited 2024-06-13	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 22–220（199 aa） Fragment：residues 22-220 (Uniprot numbering)	Not recorded	CL CHLORIDE ION × 3 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；imidazole, peg	Resolution 1.66 Å R-free 0.196
9C9D Protein receptor Deposited 2024-06-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain F 22–220（199 aa） Fragment：residues 22-220 (Uniprot numbering)	Not recorded	30W N-(6-formyl-4-oxo-3,4-dihydropteridin-2-yl)acetamide × 1 GOL GLYCEROL × 3 SO4 SULFATE ION × 8 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；295 K；PEG 8K, (NH4)2SO4, MES	Resolution 2.90 Å R-free 0.215

5 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	LIRB2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–196； UniProt 24–220

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2gw5
Deposition date deposition_date	2006-05-03
Structure title title	Crystal Structure of LIR-2 (ILT4) at 1.8 : differences from LIR-1 (ILT2) in regions implicated in the binding of the Cytomegalovirus class I MHC homolog UL18
Keywords keywords	Ig like domains, Immune system; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	20.27 Å
Radius of gyration Rg (electron density) rg_electron	19.47 Å
Forward intensity I(0) i0	7343740.00
Molecular weight molecular_weight	19875.0 kDa
Excluded volume excluded_volume	24803 Å³
Envelope volume envelope_volume	30158 Å³
Hydration-shell volume shell_volume	13779 Å³
Envelope diameter envelope_diameter	67.3 Å
Shell Rg shell_rg	24.56 Å
Envelope Rg envelope_rg	19.77 Å
Shape Rg shape_rg	19.48 Å
Total Rg total_rg	20.27 Å
Total atoms total_atoms	1402
Residues n_residues	184
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	67.3 Å
Rg (real space) rg_real	20.36 Å
Rg uncertainty (real space) rg_real_error	0.58 Å
I(0) (real space) i0_real	7.3440e+06
I(0) uncertainty (real space) i0_real_error	9.6620e+04
Rg (reciprocal space) rg_reciprocal	20.35 Å
I(0) (reciprocal space) i0_reciprocal	7344000.0000
Solution quality estimate total_estimate	0.7103
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	17.3 Å
Skewness Skewness skewness	0.384
Kurtosis Kurtosis kurtosis	-0.559
Angular range angular_range	— – 0.3900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2876000.0000
Real-space data points n_real_points	71
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.830; Stabil: 1.000; Sysdev: 0.319; Positv: 1.000; Valcen: 0.821; Smooth: 0.960

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Leukocyte immunoglobulin-like receptor subfamily B member 2 precursor
Molecular weight formula_weight	21934.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1553

GTIPKPTLWAEPDSVITQGSPVTLSCQGSLEAQEYRLYREKKSASWITRIRPELVKNGQFHIPSITWEHTGRYGCQYYSRARWSELSDPLVLVMTGAYPKPTLSAQPSPVVTSGGRVTLQCESQVAFGGFILCKEGEDEHPQCLNSQPHARGSSRAIFSVGPVSPNRRWSHRCYGYDLNSPYVWSSPSDLLELLVPG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ISOPROPYL ALCOHOL
Molecular weight formula_weight	60.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	145

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2gw5a1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d2gw5a2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.4 — I set domains

CATH v4.4 (2 domains)

Domain ID domain_id	2gw5A01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2gw5A02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	62.530 Å
Unit-cell length b length_b	62.530 Å
Unit-cell length c length_c	106.917 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	34.080 Å
R factor r_factor	0.2423
R_work r_work	0.2404
R_free r_free	0.2786

fit	/app/data/saxs_computation/gw/2gw5/2gw5.fit
pddf	/app/data/pr_computation/gw/2gw5/2gw5.pr.out
profile	/app/data/saxs_computation/gw/2gw5/2gw5.dat

Crystal Structure of LIR-2 (ILT4) at 1.8 : differences from LIR-1 (ILT2) in regions implicated in the binding of the Cytomegalovirus class I MHC homolog UL18

1. Protein Identity and Related Structures Protein Identity & Related Structures

Leukocyte immunoglobulin-like receptor subfamily B member 2 precursor

State in the Current Structure

Other States of the Same Protein in the Database

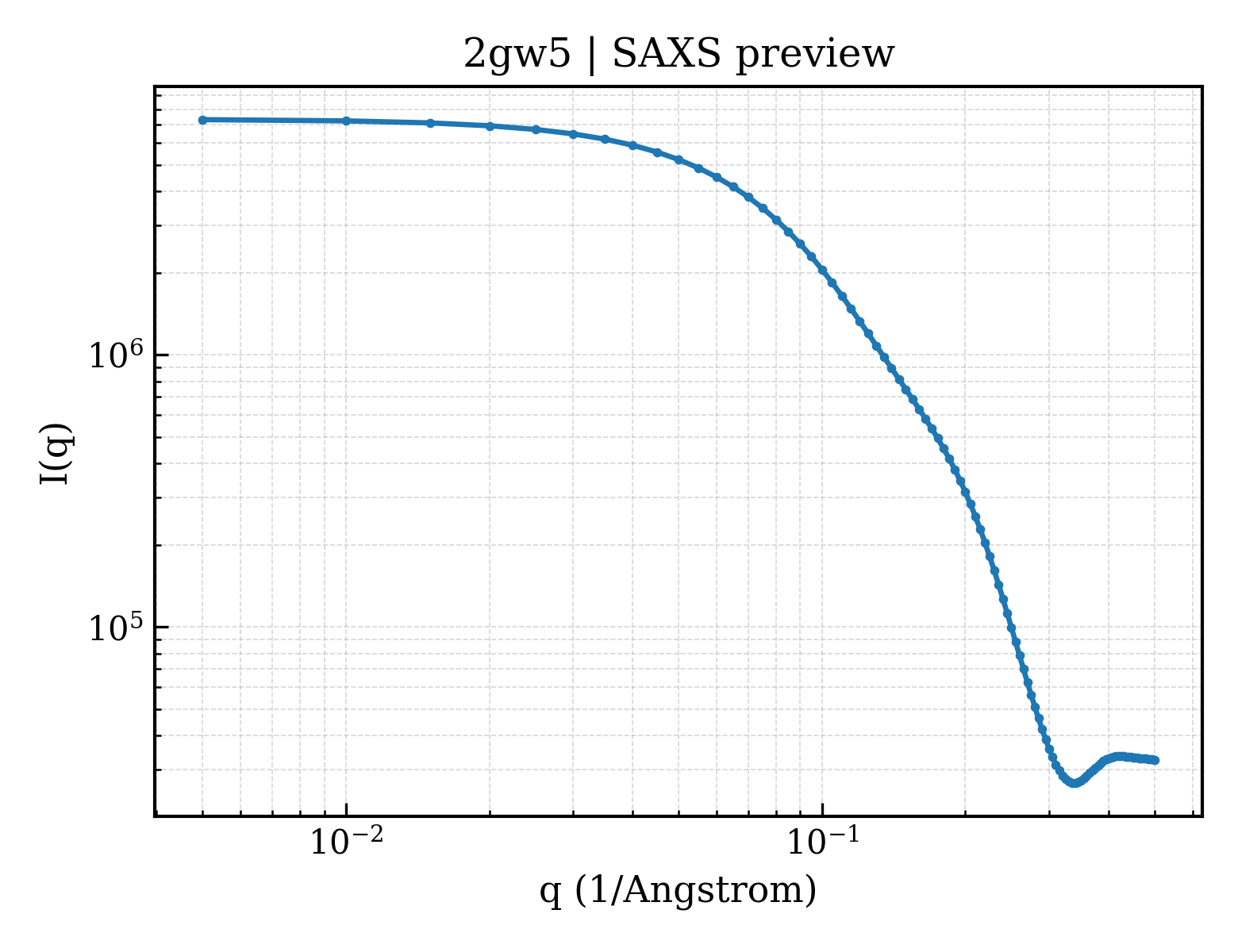

SAXS scattering curve SAXS Profile
