SAXSdb — 2gwc

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2gwc
沉积日期 deposition_date	2006-05-04
结构标题 title	Crystal structure of plant glutamate cysteine ligase in complex with a transition state analogue
关键词 keywords	disulfide bridges, glutathione biosynthesis, beta-hairpin, redox regulation, LIGASE; LIGASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	58.15 Å
回转半径 Rg (电子) rg_electron	58.27 Å
零角强度 I(0) i0	2413670000.00
分子量 molecular_weight	406910.0 kDa
排除体积 excluded_volume	504350 Å³
包络体积 envelope_volume	695970 Å³
水化壳体积 shell_volume	103710 Å³
包络直径 envelope_diameter	204.8 Å
壳层 Rg shell_rg	57.15 Å
包络 Rg envelope_rg	56.80 Å
形状 Rg shape_rg	58.26 Å
总 Rg total_rg	58.28 Å
总原子数 total_atoms	28122
残基数 n_residues	3353
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	189.0 Å
Rg (实空间) rg_real	58.29 Å
Rg 误差 (实空间) rg_real_error	1.29 Å
I(0) (实空间) i0_real	2.4140e+09
I(0) 误差 (实空间) i0_real_error	4.2120e+07
Rg (倒空间) rg_reciprocal	58.01 Å
I(0) (倒空间) i0_reciprocal	2413000000.0000
解质量估计 total_estimate	0.8533
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	70.0 Å
偏度 Skewness skewness	0.414
峰度 Kurtosis kurtosis	-0.166
角度范围 angular_range	— – 0.1350 Å⁻¹
当前正则化参数 α current_alpha	0.0002
最高正则化参数 α highest_alpha	64940000.0000
实空间数据点数 n_real_points	28
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.901; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.386

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Glutamate cysteine ligase
分子量 formula_weight	51818.3 kDa
EC 编号 ec_number	6.3.2.2
来源方法 src_method	man
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H
原子数 atom_count	29207

AASPPTEEAVVATEPLTREDLIAYLASGCKSKEKWRIGTEHEKFGFEVNTLRPMKYDQIAELLNSIAERFEWEKVMEGDKIIGLKQGKQSISLEPGGQFELSGAPLETLHQTCAEVNSHLYQVKAVAEEMGIGFLGMGFQPKWRREDIPTMPKGRYDIMRNYMPKVGSLGLDMMLRTCTVQVNLDFSSEADMIRKFRAGLALQPIATALFANSPFTEGKPNGFLSMRSHIWTDTDKDRTGMLPFVFDDSFGFEQYVDYALDVPMYFAYRNGKYVDCTGMTFRQFLAGKLPCLPGELPTYNDWENHLTTIFPEVRLKRYMEMRGADGGPWRRLCALPAFWVGLLYDEDVLQSVLDLTADWTPAEREMLRNKVPVTGLKTPFRDGLLKHVAEDVLKLAKDGLERRGYKEVGFLNAVTEVVRTGVTPAENLLEMYNGEWGQSVDPVFQELLY

来源 Source

来源生物 organism	Brassica juncea
NCBI 分类编号 ncbi_taxonomy_id	3707
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 3 non-polymer

描述 description	(2S)-2-amino-4-(S-butylsulfonimidoyl)butanoic acid
分子量 formula_weight	222.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1017

▼

6. 折叠分类 (SCOP + CATH) 8 domains

CATH v4.4 (8 domains)

结构域编号 domain_id	2gwcA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	590 — Creatine Kinase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	2gwcB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	590 — Creatine Kinase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	2gwcC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	590 — Creatine Kinase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	2gwcD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	590 — Creatine Kinase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	2gwcE00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	590 — Creatine Kinase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	2gwcF00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	590 — Creatine Kinase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	2gwcG00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	590 — Creatine Kinase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	2gwcH00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	590 — Creatine Kinase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	20 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	88.040 Å
晶胞边长 b length_b	198.920 Å
晶胞边长 c length_c	114.970 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	99.66 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.180 Å
最低分辨率 resolution_low	99.500 Å
R 因子 r_factor	0.2000
R_work r_work	0.1979
R_free r_free	0.2413

fit	/app/data/saxs_computation/gw/2gwc/2gwc.fit
pddf	/app/data/pr_computation/gw/2gwc/2gwc.pr.out
profile	/app/data/saxs_computation/gw/2gwc/2gwc.dat

Crystal structure of plant glutamate cysteine ligase in complex with a transition state analogue

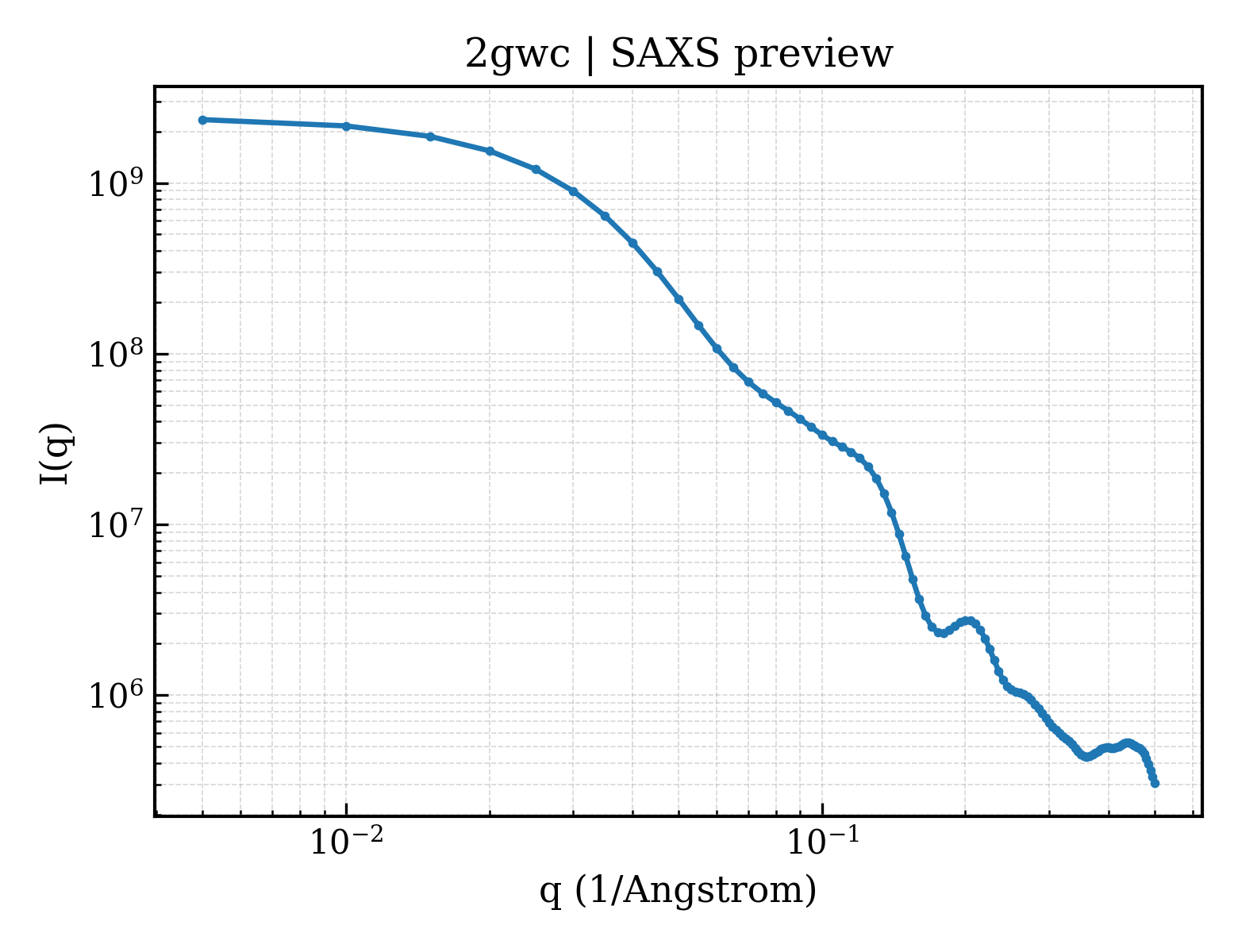

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution
