SAXSdb — 2gwg

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

4-oxalomesaconate hydratase

Rhodopseudomonas palustris

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	ZINC ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q6N0R4_RHOPA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–342； UniProt 1–342 Author chain B； PDBConstruct 1–342； UniProt 1–342

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2gwg
Deposition date deposition_date	2006-05-04
Structure title title	Crystal Structure of 4-Oxalomesaconate Hydratase, LigJ, from Rhodopseudomonas palustris, Northeast Structural Genomics Target RpR66.
Keywords keywords	;TIM-barrel like protein, Structural Genomics, PSI, Protein Structure Initiative, Northeast Structural Genomics Consortium, NESG, UNKNOWN FUNCTION ;; STRUCTURAL GENOMICS, UNKNOWN FUNCTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2gwg__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2gwg__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

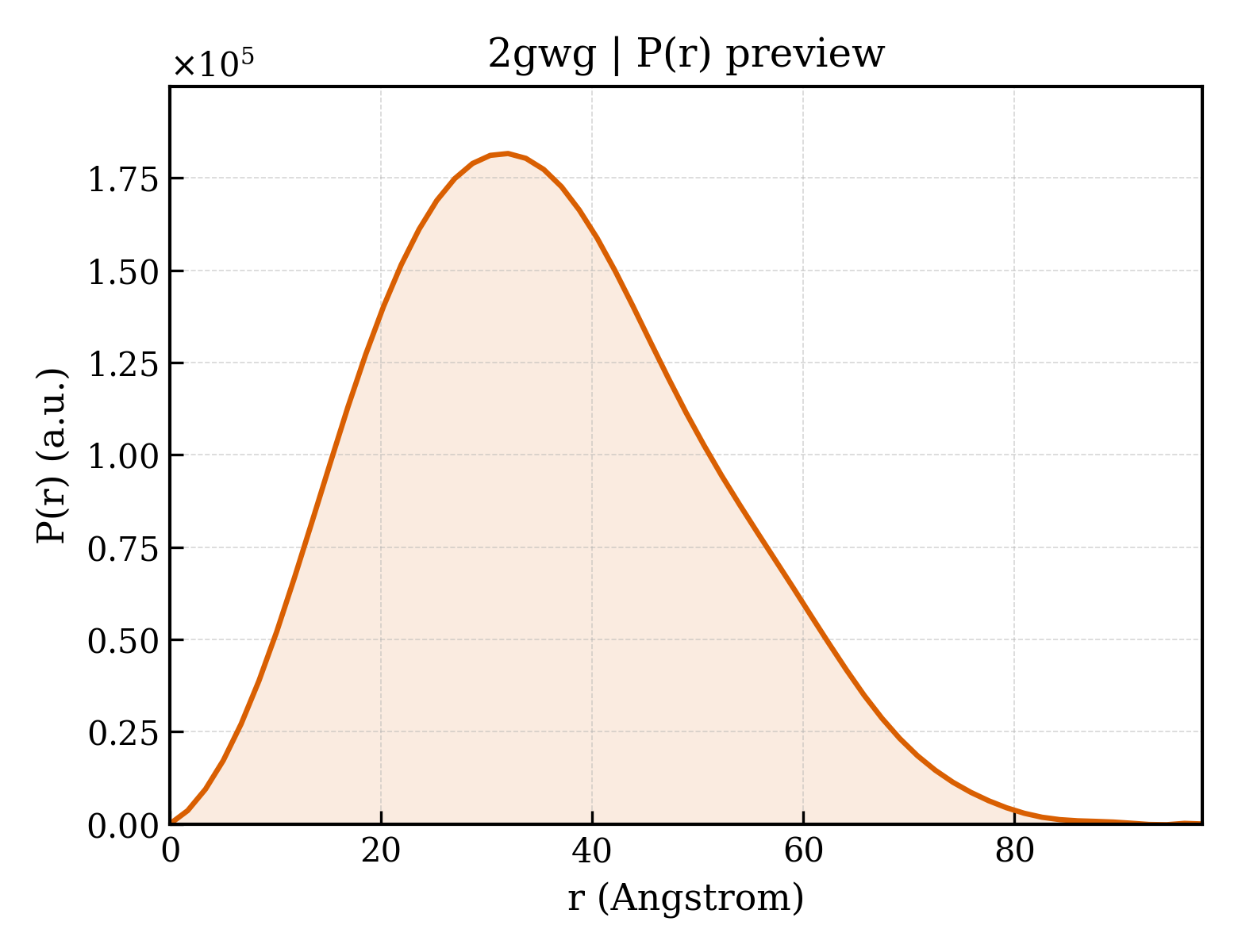

2gwg__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.45 Å
Rg (electron density)	26.69 Å
Total Rg	27.48 Å
Atom count	5191
Residues	637
Excluded volume	92939 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2gwg__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	4-oxalomesaconate hydratase
Molecular weight formula_weight	40054.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5836

MIIDIHGHYTTAPKALEDWRNRQIAGIKDPSVMPKVSELKISDDELQASIIENQLKKMQERGSDLTVFSPRASFMAHHIGDFNVSSTWAAICNELCYRVSQLFPDNFIGAAMLPQSPGVDPKTCIPELEKCVKEYGFVAINLNPDPSGGHWTSPPLTDRIWYPIYEKMVELEIPAMIHVSTSCNTCFHTTGAHYLNADTTAFMQCVAGDLFKDFPELKFVIPHGGGAVPYHWGRFRGLAQEMKKPLLEDHVLNNIFFDTCVYHQPGIDLLNTVIPVDNVLFASEMIGAVRGIDPRTGFYYDDTKRYIEASTILTPEEKQQIYEGNARRVYPRLDAALKAKGKLEHHHHHH

Source Source

Source organism organism	Rhodopseudomonas palustris
NCBI taxonomy ID ncbi_taxonomy_id	258594
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	645

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2gwga1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.9 — Metallo-dependent hydrolases
Family Family family	c.1.9.15 — PP1699/LP2961-like

Domain ID domain_id	d2gwga2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2gwgb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.9 — Metallo-dependent hydrolases
Family Family family	c.1.9.15 — PP1699/LP2961-like

Domain ID domain_id	d2gwgb3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	2gwgA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	140 — Metal-dependent hydrolases

Domain ID domain_id	2gwgB00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	140 — Metal-dependent hydrolases

▶

Unit-cell length a length_a	71.086 Å
Unit-cell length b length_b	55.335 Å
Unit-cell length c length_c	97.166 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.26 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	22.790 Å
R factor r_factor	0.1810
R_work r_work	0.1810
R_free r_free	0.2080

Crystal Structure of 4-Oxalomesaconate Hydratase, LigJ, from Rhodopseudomonas palustris, Northeast Structural Genomics Target RpR66.
